Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the gotham v2 and is the answer not in the manual?

Questions and answers

Related Manuals for JL Audio gotham v2

Summary of Contents for JL Audio gotham v2

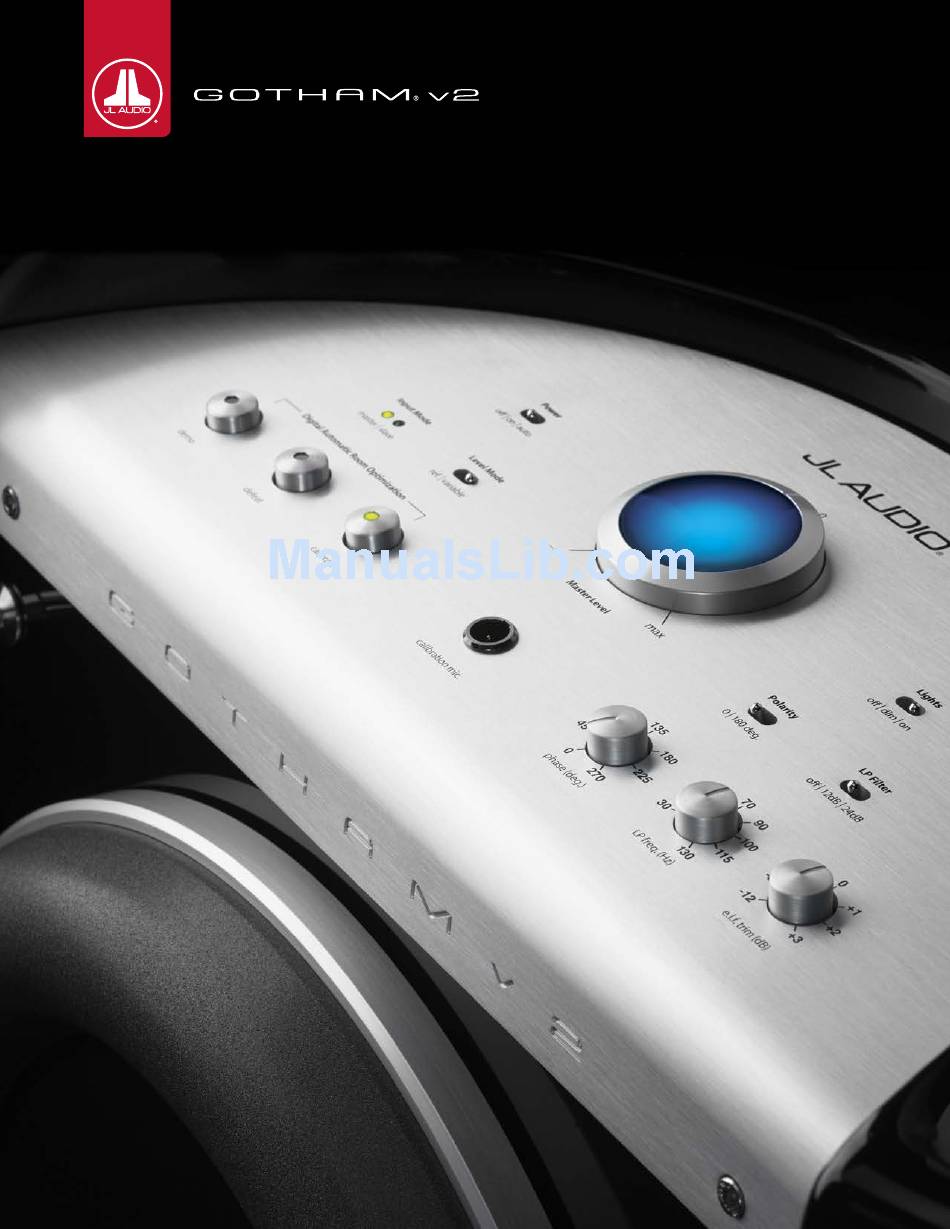

  • Page 1 Owner’s Manual...

  • Page 2: Important Safety Instructions

    IMPORTANT The Gotham v2 has a very powerful amplifier. For maximum performance, please utilize a dedicated AC power circuit. We suggest minimum circuit breaker sizes of 120 VAC / 20 amps or 230 VAC / 10 amps.
  • Page 3 THIS SUBWOOFER IS CAPABLE OF PRODUCING VERY HIGH SOUND PRESSURE LEVELS. PLEASE EXERCISE RESTRAINT IN ITS OPERATION TO WARNING PROTECT YOUR HEARING FROM PERMANENT DAMAGE. | Gotham v2 Page 3...

  • Page 4: Table Of Contents

    Placing your Gotham v2 in Your Listening Room: ..... . . 6-10 stiffness with minimal mass.

  • Page 5: Product Overview

    20% increase in amplifier power, further enhancing their outstanding dynamic capabilities. The beautiful cabinet enclosing the workings of your Gotham v2 is also the result of careful engineering. To contain the pressures created by the Gotham v2 driver, we utilize massive, fiberglass construction with extensive internal bracing features and advanced assembly techniques.
  • Page 6 WARNING: THE GOTHAM v2 IS EXTREMELY HEAVY (405 LBS. / 184 KG) WARNING AND IS VERY DIFFICULT TO HANDLE! PEOPLE WITH BACK PROBLEMS OR MEDICAL CONDITIONS THAT PRECLUDE EXERTION SHOULD NOT ATTEMPT TO UNPACK OR MOVE A GOTHAM v2. WARNING: THE UNPACKING INSTRUCTIONS MUST BE FOLLOWED PRECISELY.

  • Page 7: Placing Your Gotham V2 In Your Listening Room

    Room Optimization (D.A.R.O.) System can dramatically improve these less-than-ideal situations. We recommend that you begin by placing your Gotham v2 in the front of the room, near the front left or right speaker. Placing it directly in the front corner of the room will produce the maximum number of peaks and the minimum number of dips in the bass response.
  • Page 8 Recommended Subwoofer Placement Options for One Gotham v2 M O RE I NT E NS E MORE I N TEN SE RECOMMENDED SUBWOOFER PLACEMENT ZONES (For Single Subwoofer) SMOOTHER SMOOTHER COMPROMISED SEATING POSITIONS (Results in weaker, uneven bass performance) CENTERLINE OF ROOM...
  • Page 9 Experimentation with subwoofer and listener placement is recommended to achieve the best results – the benefits can be substantial. High-resolution measurements and professional system calibration are recommended for the best possible results & system performance. | Gotham v2 Page 9...
  • Page 10 – the benefits can be substantial. High-resolution measurements and professional system calibration are recommended for the best possible results & system performance. Recommended Subwoofer Placement Options for Four Gotham v2s Page 10 | Gotham v2...

  • Page 11: Unpacking Your Gotham V2

    * The Gotham v2 subwoofer ships in a protective cloth cover that is not pictured in the unpacking instructions above. Use the orientation of the Gotham v2™ above as a guide.

  • Page 12: Front Control Panel Layout

    Front Control Panel The labeled Figure below depicts the front control panel of a Gotham v2 subwoofer. Power Lights Master Level page 14 page 16 page 16 Input Mode Polarity LP Filter Level Mode page 15 page 17 page 16 page 15 A.R.O.

  • Page 13: Rear Control And Connector Panel Layout

    Rear Controls and Connectors The labeled Figure below depicts the rear panel of a Gotham v2 subwoofer. Balanced Inputs page 18 Unbalanced Inputs page 19 Input Mode Output to Switches Slave Connector page 20 page 21 Fuse IEC-Style AC page 33...

  • Page 14: Front Panel Controls In Detail

    The “Power” switch determines the operational readiness of the Gotham v2 subwoofer and should be the only switch used to turn the Gotham v2 on and off. Do not use a power strip switch, switched outlet or any other external switch as these may result in undesirable and potentially damaging transient pops.
  • Page 15 The Demo button triggers a 20 second long tone sequence that briefly demonstrates the range of the Gotham v2 subwoofer. The Demo function is useful for showcasing the output capability of the Gotham v2 and to verify that the Gotham v2 (or multiple Gotham v2s) are operational during system troubleshooting.
  • Page 16 Master Level Knob The Master Level Knob is used to control the output level of the Gotham v2 when the Variable Level mode is selected on the front control panel. When rotated fully counter-clockwise, the Gotham v2’s output will be fully muted.
  • Page 17 This is exactly what occurs when you turn the Phase control beyond 0 degrees. Once your Gotham v2 has been placed in your listening room to give you the smoothest overall sound and after you have determined the optimum “Polarity”...

  • Page 18: Rear Controls In Detail & Connecting Your Gotham V2(S)

    Gotham v2s in the system. • Do not use the balanced inputs with unbalanced signals via adaptors. The unbalanced inputs of the Gotham v2 are optically isolated and preferable in situations where only an unbalanced signal source is available. Balanced input impedance is 10 kohms.
  • Page 19 Unbalanced Inputs The Gotham v2 subwoofer features individual left and right unbalanced RCA- type input connectors. These are the most commonly used connectors for home audio applications and must be used if your receiver or preamplifier/processor does not provide balanced outputs. While unbalanced connections are not as...
  • Page 20 The Gotham v2 ships with this switch in the “Isolated” mode. If, with all system components connected and turned on (but no source material playing), you hear a continuous low-frequency hum through your Gotham v2, flip this switch to the “Grounded”...
  • Page 21 If you are operating more than one Gotham v2 subwoofer in one home theater system, you will designate one Gotham v2 as the Master (see page 20), and then feed signal from it to the remaining “Slave” Gotham v2s via this balanced XLR output.
  • Page 22 You will only use one of these input connection methods (not both). GOTHAM REAR CONTROLS (MASTER) WARNING! TURN OFF THE GOTHAM v2 AND ALL OTHER EQUIPMENT IN WARNING THE SYSTEM BEFORE MAKING OR CHANGING ANY CONNECTIONS! Page 22...
  • Page 23 Connections between the “Master” and “Slave” Gothams and between “Slave” Gothams are via balanced XLR cables ONLY. WARNING! TURN OFF THE GOTHAM v2(s) AND ALL OTHER EQUIPMENT IN WARNING THE SYSTEM BEFORE MAKING OR CHANGING ANY CONNECTIONS! | Gotham v2...
  • Page 24 Gotham v2 connected as shown on this diagram. See “Connection Diagram 2” on page 23 for slave connection explanation. GOTHAM REAR CONTROLS (MASTER) WARNING! TURN OFF THE GOTHAM v2 AND ALL OTHER EQUIPMENT IN WARNING THE SYSTEM BEFORE MAKING OR CHANGING ANY CONNECTIONS! Page 24...
  • Page 25 Gotham v2 connected as shown on this diagram. See “Connection Diagram 2” on page 23 for slave connection explanation. GOTHAM REAR CONTROLS (SLAVE) WARNING! TURN OFF THE GOTHAM v2(s) AND ALL OTHER EQUIPMENT IN WARNING THE SYSTEM BEFORE MAKING OR CHANGING ANY CONNECTIONS! | Gotham v2...

  • Page 26: Recommended Setup Procedure

    On your Active Crossover or Bass Management Processor: If you are using an active crossover or bass-management processor, we recommend that you set it as follows before beginning setup of your Gotham v2 subwoofer system (please turn off all Gotham v2s in the system prior to making these adjustments): 1.
  • Page 27 Flip each Gotham v2’s “Lights” switch to the “On” position. If you don’t see any lights on the front panel, you may have forgotten to plug the Gotham v2 in or there may be a problem with the electrical circuit.
  • Page 28 Once you have set the controls on your home theater receiver or preamp/ processor and on your Gotham v2(s) to the settings recommended on pages 26 and 27, you are ready to begin setting up your Gotham v2 for optimum performance.
  • Page 29 D.A.R.O. calibration, regardless of the knob settings. Normal operation is restored once calibration is complete. a) Set the Main Power switch to the “ON” position and be sure the Gotham v2’s indicator lights are switched “ON” via the “Lights” switch.
  • Page 30 Use the “e.l.f. trim” control to adjust the extreme low bass extension of the Gotham v2. This control allows -12 dB of cut or +3 dB of boost at 24 Hertz and is particularly useful when using a Gotham v2 (or two) in a small to medium sized home theater.

  • Page 31: Frequently Asked Questions

    Is the Gotham v2 magnetically shielded? Gotham v2 subwoofers are not magnetically shielded. To avoid magnetic distortion with certain television types, place the Gotham v2 at least 3-4 feet (1 - 1.5m) from your screen. If you notice any discoloration in the picture, try moving the subwoofer further away until these artifacts disappear.

  • Page 32: Troubleshooting

    4. Verify that your receiver’s subwoofer settings have not changed. 5. If your other speakers play, but the Gotham v2 does not, try changing the cable that connects the Gotham v2 to the system. 6. If the problem persists, call your dealer or JL Audio Technical Support for assistance.

  • Page 33: Troubleshooting

    This small spring-loaded cap may be removed, allowing access to inspect or replace the main power fuse. If your AC outlet has power but the Gotham v2’s lights do not come on, the main power fuse may be blown.

  • Page 34: Specifications

    0 or 180 degrees Phase: Variable from 0 – 270 degrees E.L.F. Trim: Variable from –12 dB to +3 dB at 24 Hz Digital Automatic Room Optimization (D.A.R.O.) Automatic, 18-band digital equalizer with included laboratory-grade calibration microphone, defeatable. Page 34 | Gotham v2...

  • Page 35: Limited Warranty / Service Information

    JL Audio for service. Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
  • Page 36 HOM E AUD IO | MOBILE AUDIO | MARINE AUDIO “JL Audio”, “Gotham” and the JL Audio logo are registered trademarks of JL Audio, Inc., “Ahead of the Curve” is a trademark of JL Audio, Inc. Due to continuous product development, all specifications are subject to change without notice.
