Summary of Contents for Ozito SSH-240

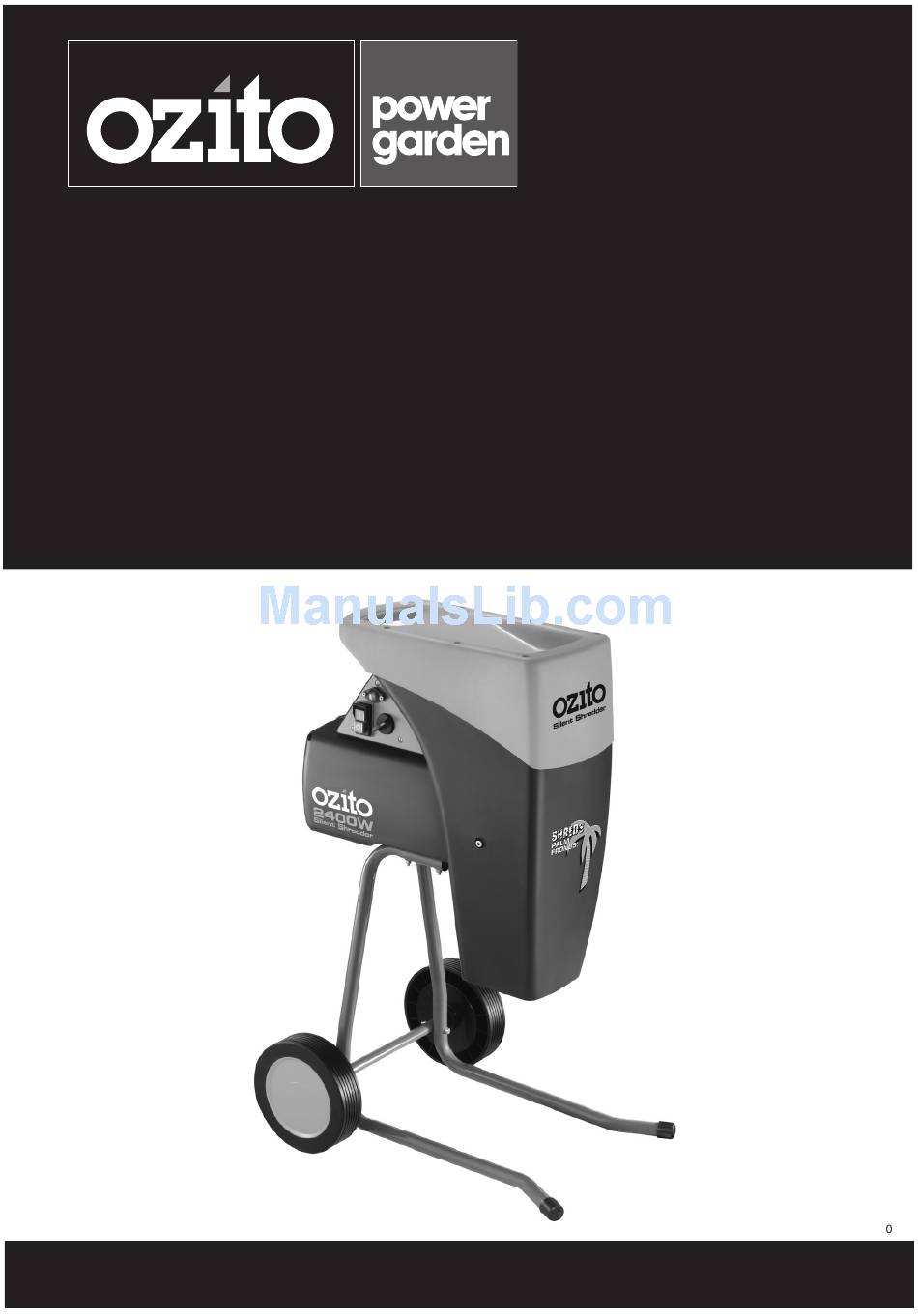

- Page 1 Silent Shredder 2400W Instruction Manual 2 Year Replacement Warranty SSH-240 CAUTION: Read this operation manual before using this tool. www.ozito.com.au To view the full range visit:...
-
Page 2: Specifications
SPECIFICATIONS - MODEL NO. SSH-240 2400W (S1 2000W / S6 (40%) 2400W) Motor: Duty type S1: continuous running duty S6: continuous-operation / periodic duty (4 min. Full load, 6 min. No load) 230-240V ~ 50Hz Input: No load speed: 40/min... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS ……………………………………….. Page 2 INTRODUCTION………………………………………... Page 4 GENERAL SAFETY RULES……………………………… Page 5 ASSEMBLY ………………………………………………. Page 8 OPERATION …………………………………………….. Page 9 MAINTENANCE …………….………………………….. Page 12 TROUBLESHOOTING ……….…………………………. Page 13 WARRANTY……………………………………………… Page 16... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Rules
GENERAL SAFETY RULES WARNING! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. SAVE THESE INSTRUCTIONS Save these instructions 1) Work area... - Page 6 GENERAL SAFETY RULES (cont.) e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR SHREDDERS This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 8: Assembly
ASSEMBLY 1. Remove the silent shredder and all components from the carton. WARNING! You may require assistance lifting the shredder out of the carton. 2. Carefully place the shredder housing (10) upside down on a flat surface (Fig. 1). Fig. 1 3. -
Page 9: Operation
OPERATION Prior to Operation The shredder operates by using a rolling cutter head, the cutter head rotates and pulls the material past a metal plate which grinds and cuts the material. Prior to operation the metal plate will need to be adjusted to ensure efficient performance. - Page 10 OPERATION (cont.) Direction Control Switch WARNING! The direction control switch can only be used when the shredder is turned off. 1. Prior to operation the direction control switch (3) must be set either to the feed or reverse position. 2. When set to the feed position the shredder will pull material through the hopper, into the rolling cutter head and shred it (Fig.
- Page 11 OPERATION (cont.) Overload Protection 1. The shredder is equipped with a built-in motor protection system that prevents the motor from being overloaded. The motor will switch off automatically in the event of overloading. 2. If overloading occurs disconnect the shredder from the power supply and move the direction control switch (3) to the “O”...
-
Page 12: Maintenance
• Store the shredder upright in a dry place. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 13: Troubleshooting
MAINTENANCE (cont.) Cleaning Always clean the shredder after each use. WARNING! Never use a high-pressure washer or running water when cleaning the shredder! Brush away dirt and plant residue which may be caught in the rolling cutter blade. Wipe clean the outside of the shredder with a cloth which has been moistened with a mild detergent and water. -
Page 14: Description Of Symbols
SPARE PARTS Limited spare parts are available subject to availability. Please contact your local Bunnings Special Orders Desk to order the required spare parts. Most common spare parts listed below Spare Part/Accessories Part No. Blade Holder SPSSH240-49 Blade SPSSH240-53 Blade Plate SPSSH240-56 Switch SPSSH240-85... - Page 15 2 x Wheel caps 1 x Collection bag 2 x Wheel locking inserts 1 x Instruction manual OZITO INDUSTRIES PTY LTD USTR LI (Head Office) 1 - 23 Letcon Drive, Bangholme, Victoria, Australia 3175 Telephone: 1800 069 486 Facsimile: +61 3 9238 5588 Website: www.ozito.com.au...
-
Page 16: Warranty
If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations. • Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175...
