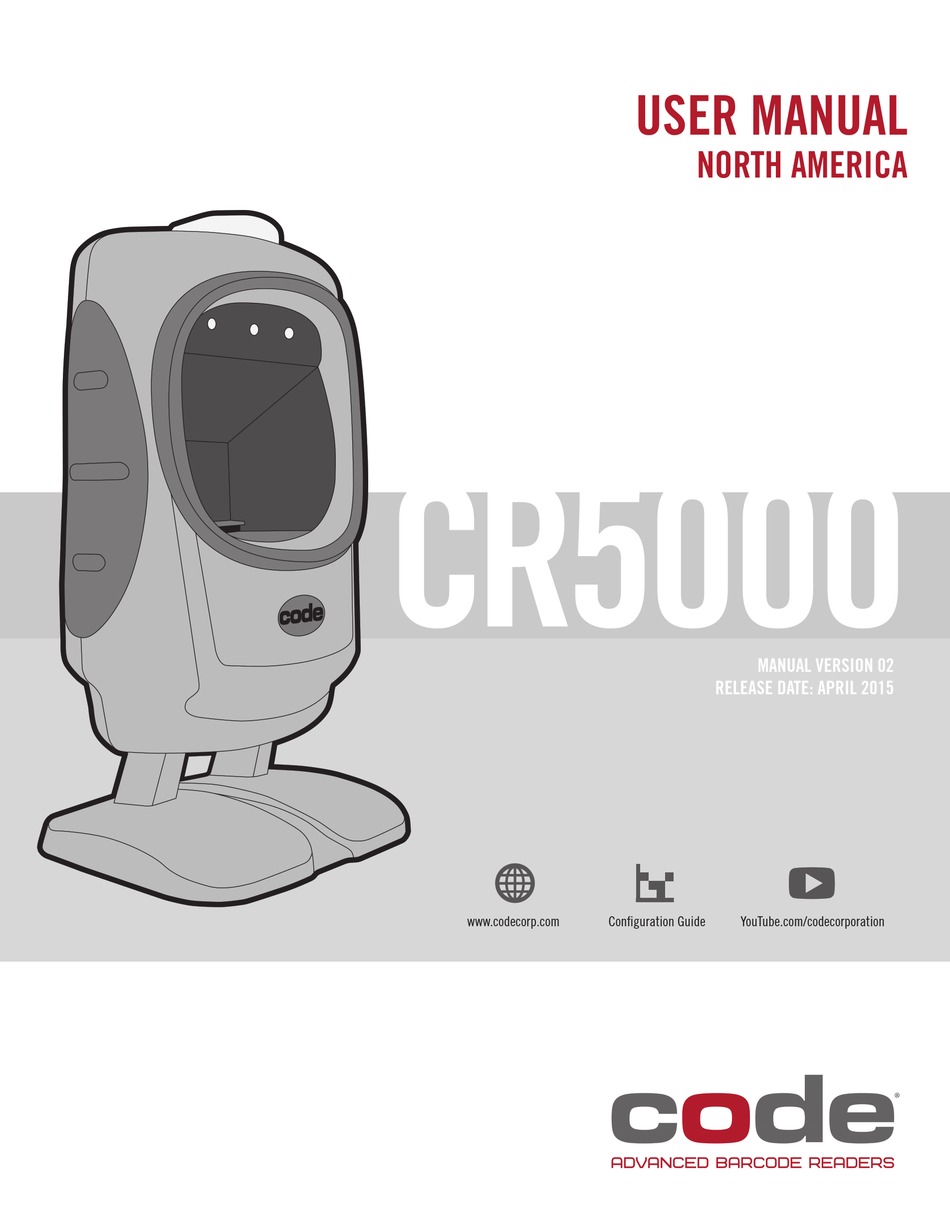

- Page 1 USER MANUAL NORTH AMERICA CR5000 MANUAL VERSION 02 RELEASE DATE: APRIL 2015 www.codecorp.com Configuration Guide YouTube.com/codecorporation ®...
-
Page 2: Statement Of Agency Compliance
The software described in this manual may only be used in accordance with the terms of its license agreement. No part of this publication may be reproduced in any form or by any means without written permission from Code Corporation. This includes electronic or mechanical means such as photocopying or recording in information storage and retrieval systems. -
Page 3: Table Of Contents
2.0 - Attaching and Detaching a Cable ..............5 3.0 - Set Up ....................... 5 4.0 - Using a CR5000 in Presentation Mode ............6 5.0 - Using a CR5000 in Handheld Mode ............6 6.0 - Reading Ranges ..................6 7.0 - Reader Feedback .................. -
Page 4: Included Items
1.0 - Included Items (if Ordered) CR5000 USB 2.0 Cable RS232 Cable 5VDC (Model #: CR5020 or CR5025) Power Supply D021992_02 CR5000 User Manual... -
Page 5: Attaching And Detaching A Cable
2.0 - Attaching and Detaching a Cable 3.0 - Set Up Plug In Wait 10 Seconds 10 Sec. LED will Flash Reader will Beep D021992_02 CR5000 User Manual... -
Page 6: Using A Cr5000 In Presentation Mode
4.0 - Using a CR5000 5.0 - Using a CR5000 in Presentation Mode in Handheld Mode 10 cm -15° 0° 15° 30° 45° J N R 6.0 - Reading Ranges CR5000 Performance Presentation Mode (Default) Handheld Mode Test Barcode Min Inches (mm) -
Page 7: Reader Feedback
To turn located in the CR5000 Configuration Guide located at symbologies on or off, scan the symbology barcodes located website at www.codecorp.com. in the CR5000 Configuration Guide located on our website at www.codecorp.com/files.php. Codabar All GS1 DataBar... -
Page 8: Configuring A Cr5000
10.0 - Configuring a CR5000 The online Configuration Guide Generator found at www.codecorp.com/configguide may be used to quickly configure a CR5000 to desired settings. 11.0 - CR5000AV The CR5000AV (Model# CR5025) is stand-alone age verification solution that does not require a PC or manual management of data to alert a clerk of an underage patron. -
Page 9: Cr5000 Overall Dimensions
13.0 - CR5000 Overall Dimensions 3.55" 2.80" (90.30 mm) (71.23 mm) 5.95" (151.14 mm) 14.0 - USB Cable Example with Pinouts NOTES: CONNECTOR A NAME WIRE COLOR CONNECTOR B 1. Part to be ROHS and Reach compliant. 24AWG 2. Maximum Voltage Tolerance = 5V +/- 10%. -
Page 10: Rs232 Cable Example With Pinouts
Cleaning the CR5000 Window CR5000 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Do not touch the window. Your CR5000 uses CMOS technology that is much like a digital camera. A dirty window may stop the CR5000 from reading barcodes. -
Page 11: Warranty
Code’s maximum liability related to its performance, or failure to perform, as described herein shall be limited to the amount paid by Customer for the Code product that is subject to the claim. In no event will either party be liable for any lost profits, lost savings, incidental damage, or other economic consequential damages.
