Summary of Contents for Transtherm Loft

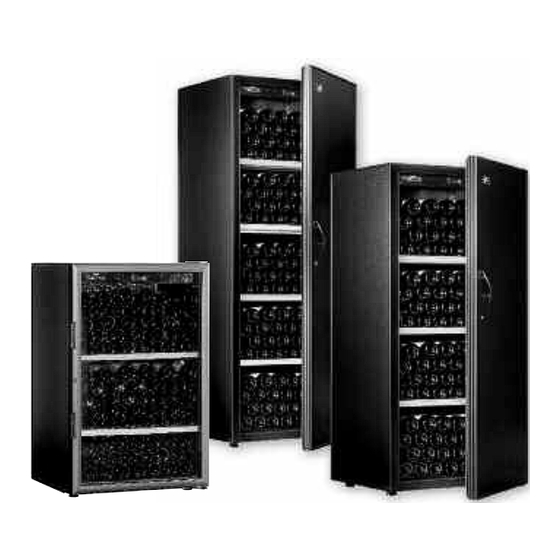

- Page 1 MODE D’EMPLOI TECHNIC L M NU L BEDIENUNGS NLEITUNG MODO DE EMPLEO GEBRUIKS NWIJZING ISTRUZIONI PER L’USO Caves à vin Wine cabinets Weinklimaschränke Armarios para vinos Wijnkasten Armadi climatizzati per vini légance Gamme-Range-Aufbewahrungsserie-Gama-Gamma Loft Villa Bastide...
- Page 2 The information contained in this document may be changed without warning. Photos are not contractually binding. TRANSTHERM offers no guarantee for this product when it is used for purposes other than those for which it was designed. TRANSTHERM shall not be held responsible for any errors contained in this manual or for any damage linked to or resulting from the supply, performance or use of this appliance.
-
Page 3: Table Of Contents
Contents Description of your wine cabinet ............. P 4 Power supply ..................P 5 Installing your wine cabinet ............P 5/6 Layout and loading recommendations ......... P 7/8 Commissioning and temperature settings ........P 9/10 Important wine information ............P 10 Wine service temperatures ............. -
Page 4: Description Of Your Wine Cabinet
Description of your wine cabinet Cabinet body Lock Hinge Adjustables feet (4) Glass door or solid door (depending Thermodynamic pump orifice on model) Maker’s label Storage shelf (type version) or Rack shelf universal sliding shef Setting strip... -
Page 5: Power Supply
Power supply For your personal safety, the wine cabinet should be properly earthed. Make sure ecommendation that the plug is earthed and that the installation's circuit is protected by a 30 mA* fuse. *not applied to certain countries ecommandation Any intervention should be carried out by a qualified electrician. important stuce Trick... -
Page 6: Layout And Loading Recommendations
Installing the handle Installing the handle of your wine cabinet is carried out in the following manner: - Introduce the two spacers (B) into the holes on the inside panel of the door. - Add the two washers (C) - Using a screwdriver, secure the handle (A) with the two screws (D). - Page 7 - Start by placing the bottles in each recess on the back row, with the base of the bottle towards the back. - Continue with the front row, placing the bottles in the opposite direction. - Continue stacking the bottles, ensuring that none of the bottles touches the back wall.
-
Page 8: Commissioning And Temperature Settings
sliding shelf can only hold one layer of bottles (maximum of 13 "Tradition" Bordeaux bottles). - In order to enjoy optimum accessibility when setting up the cabinet in a mixed layout, we recommend that shelves destined to be used as sliding shelves are located in the middle section of the cabinet. - Page 9 2 • Temperature settings Description du tableau de commande • Temperature display: displays the actual temperature inside your wine cabinet. It is therefore necessary to wait before your new setting takes effect. • Simply press and hold down SET for a few seconds to see the tempe- rature setting.
-
Page 10: Important Wine Information
Wait a few days. If the temperature does not stabilise, contact your retailer. Important wine information Your TRANSTHERM cabinet has been designed to guarantee the optimum conditions for storing and/or serving your wine Wine is a highly complex product, requiring long and gentle develop- ment and needs specific conditions in which to reach its full potential. -
Page 11: Wine Service Temperatures
Wine service temperatures (provided as an indicator only) French wines Alsace 10°C Beaujolais 13°C Sweet white Bordeaux 6°C Dry white Bordeaux 8°C Red Bordeaux 17°C White Burgundy 11°C Red Burgundy 18°C ecommendation Champagne 6°C Jura 10°C ecommandation Languedoc-Roussillon 13°C important Provence Rosé... - Page 12 Everyday care of your wine cabinet Your TRANSTHERM cabinet is a simple tried and tested item of equip- ment. The following few operations enable you to obtain optimum operation and an extended life cycle. 1 -Regularly remove dust (once a year) from the condenser (black metal grill fastened to the back of your wine cabinet).
-
Page 13: Operating Anomalies
Operating anomalies When starting up The compressor will not operate : Ensure that there is power to the electrical supply plug by connecting another electrical appliance to it. The compressor will not turn off: 1- Place your hand on the condenser (metal grill located along the exterior wall behind your cabinet). -
Page 14: Energy And Technical Features
Reference rating (Kwh/year) (liters) compartments** (dB(A)) LOFT solid door LOFT glass door VILLA solid door VILLA glass door BASTIDE solid door BASTIDE glass door Power consumption calculation based on the result obtained over 24 hrs in standard test conditions. Actual power consumption depends on the appliance’s location and operating conditions. -
Page 15: Frequently Asked Question
I have noticed frost on the back of my cabinet. In a Transtherm wine cabinet, frost may appear in the upper section of the back wall. It is coldest when the compressor starts up. This is there- fore the time when the frost will be most noticeable – this is comple- tely normal. - Page 16 My cabinet makes no noise. The compressor fitted in Transtherm cabinets is very quiet (38dB). Depending on the ambient temperature of the room and the temperature of the cabinet, the compressor may have stopped according to the setting. The level of humidity in my cabinet is too low.
-
Page 17: Protecting The Environment
- Keep the door open for as short a time as possible. - Ensure that the door seal is in good condition and check that it is not damaged. If it is damaged, contact your Transtherm retailer. N.B.: Caring for the environment: when replacing your wine cabinet, consult the local municipal refuse department in order to observe the appropriate recycling procedure.
