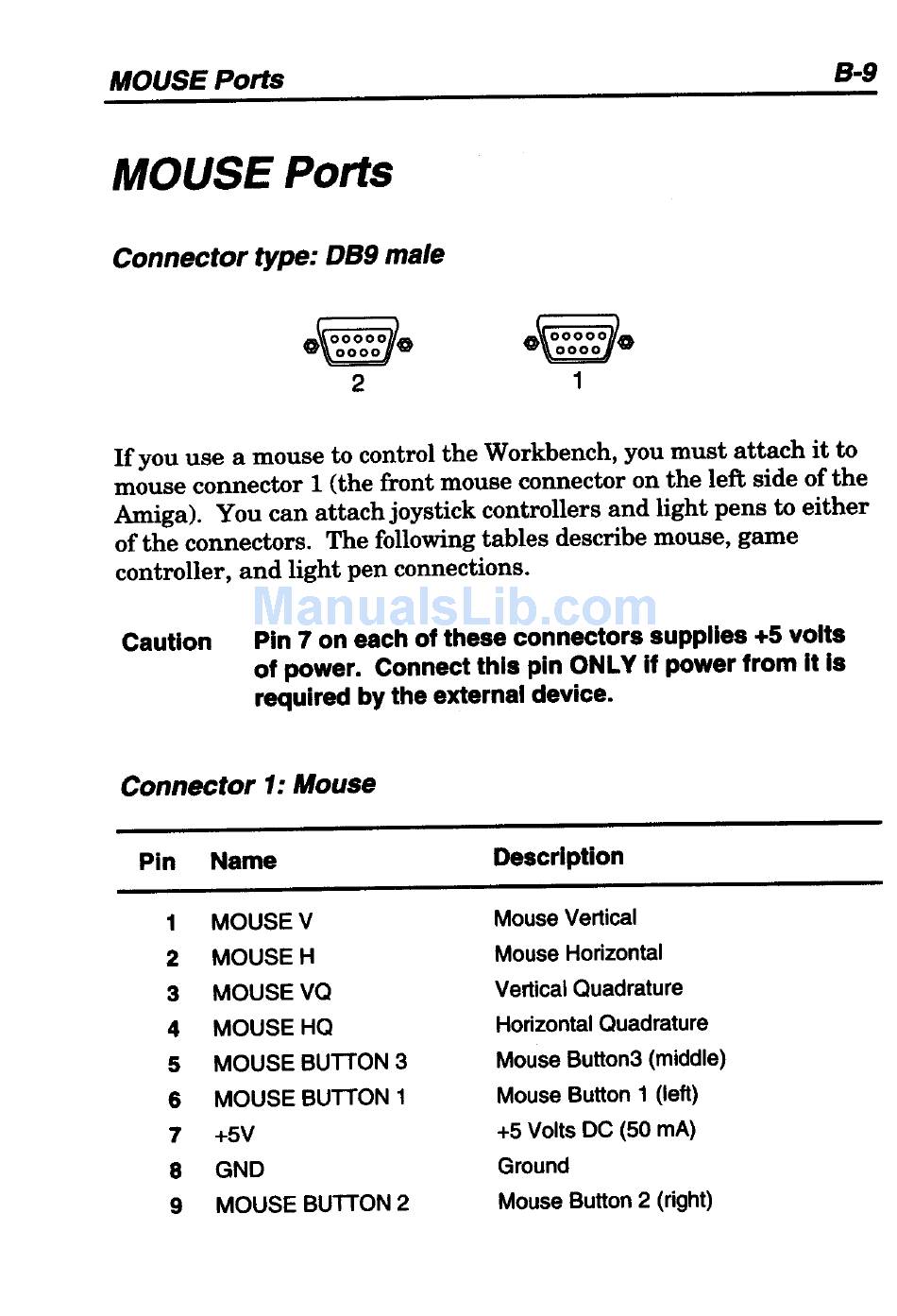

MOUSE Ports 8-9
MOUSE Ports
Connector type: DS9 male
2 1
If you use a mouse to control the Workbench, you must attach it to
mouse connector 1 (the front mouse connector on the left side of the
Amiga). You can attach joystick controllers and light pens to either
of the connectors. The following tables describe mouse, game
controller, and light pen connections.
Caution Pin 7 on each of these connectors supplies +5 volts
of power. Connect this pin ONLY If power from It Is
required
by
the external device.
Connector 1: Mouse
Pin Name
Description
1
MOUSE V
Mouse Vertical
2
MOUSEH Mouse Horizontal
3 MOUSEVO
Vertical Ouadrature
4
MOUSE HO Horizontal Ouadrature
5 MOUSE BUnON 3
Mouse Button3 (middle)
6 MOUSE BUnON 1 Mouse Button 1 (left)
7
+5V
+5 Volts DC (50 mAl
8
GND Ground
9 MOUSE BUnON 2
Mouse Button 2 (right)
