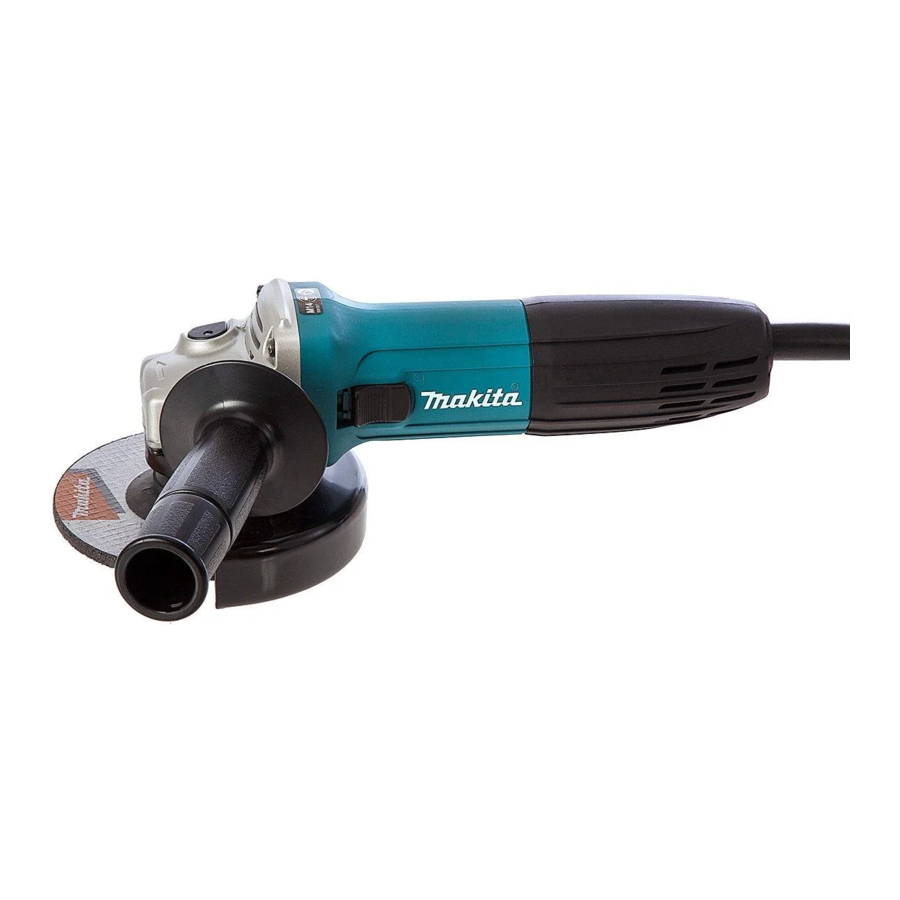

- Page 1 INSTRUCTION MANUAL Angle Grinder GA4030 GA4530 GA5030 009421 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model GA4030 GA4530 GA5030 Depressed center wheel diameter 100 mm 115 mm 125 mm Spindle thread Rated speed (n)/No load speed (n 11000 min 11000 min 11000 min Overall length 266 mm 266 mm 266 mm Net weight 1.7 kg... -
Page 3: Grinder Safety Warnings
Do not abuse the cord. Never use the cord for Power tool use and care carrying, pulling or unplugging the power tool. 18. Do not force the power tool. Use the correct Keep cord away from heat, oil, sharp edges or power tool for your application. - Page 4 and/or serious injury. may fly away and cause injury beyond immediate Operations such polishing area of operation. recommended to be performed with this power 10. Hold power tool insulated gripping tool. Operations for which the power tool was not surfaces only, when performing an operation where the cutting accessory may contact designed may create a hazard and cause personal injury.
- Page 5 forces, if proper precautions are taken. the possible kickback may propel the spinning b) Never place your hand near the rotating wheel and the power tool directly at you. accessory. Accessory may kickback over your c) When wheel is binding or when interrupting a hand.
-
Page 6: Functional Description
20. Before using the tool on an actual workpiece, to safety rules for the subject product. MISUSE or let it run for a while. Watch for vibration or failure to follow the safety rules stated in this wobbling that could indicate poor installation instruction manual may cause serious personal or a poorly balanced wheel. - Page 7 For tool with clamp lever type wheel guard ASSEMBLY 1. Wheel guard 2. Bearing box CAUTION: 3. Screw Always be sure that the tool is switched off and • 4. Lever unplugged before carrying out any work on the tool. Installing side grip (handle) 009430 1.
-
Page 8: Operation
Grinding and sanding operation 1. Lock nut wrench ALWAYS hold the tool firmly with one hand on housing 2. Shaft lock and the other on the side handle. Turn the tool on and then apply the wheel or disc to the workpiece. In general, keep the edge of the wheel or disc at an angle of about 15 degrees to the workpiece surface. -
Page 9: Maintenance
100 mm (4") Abrasive cut-off wheel Diamond wheel Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more Thickness: Less than 4 mm (5/32") Thickness: 4 mm (5/32") or more 16 mm (5/8") 16 mm (5/8") 20 mm (13/16") 20 mm (13/16") 1. - Page 10 Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center. Wheel guard (Wheel cover) For depressed center • wheel / Multi disc Wheel guard (Wheel cover) For abrasive cut-off •...
- Page 12 Makita Corporation 884853B3...
