AFP-2800/2802
Fire Alarm Panel
, I
NSTALLATION
Revision 6.00
3rd May 2013
Manufactured by:
Australian Standard AS4428.1 1998
ActivFire Listing No: AFP-1801
PO Box 7026
Baulkham Hills BC
NSW 2153 Australia
&
M
ANUAL
ECN13-0023
Approvals:
tel 02 8850 2888
fax 02 8850 2999
www.firesense.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFP-2800 and is the answer not in the manual?

Questions and answers

Hickson Hui
March 14, 2025

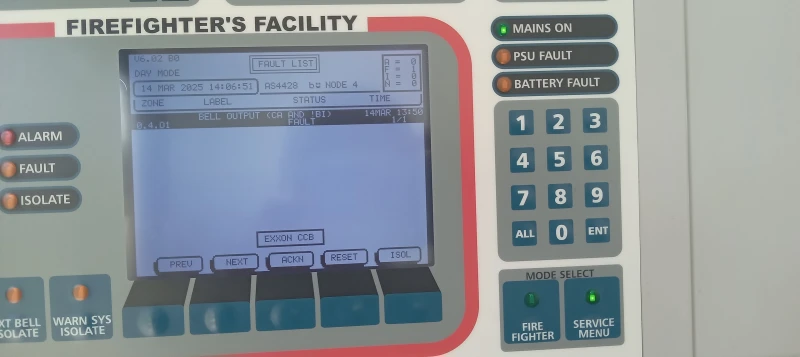

How to reset a digital output relay fault

User image 67d3b0de0b973
0

Related Manuals for Fire Sense AFP-2800

Summary of Contents for Fire Sense AFP-2800

  • Page 1 AFP-2800/2802 Fire Alarm Panel & PERATION NSTALLATION ROGRAMMING ANUAL Revision 6.00 3rd May 2013 ECN13-0023 Manufactured by: Approvals: Australian Standard AS4428.1 1998 ActivFire Listing No: AFP-1801 Distributors For: 18-20 Brookhollow Avenue PO Box 7026 tel 02 8850 2888 Baulkham Hills...
  • Page 2 Documentation Feedback Your feedback helps us keep our documentation up to date and accurate. If you have any comments or suggestions about our printed manuals you can email us. Please include the following information: • Product name and version number (if applicable) •...

  • Page 3: Installation Precautions

    Radio communication devices should not be used in the vicinity of fire panels or associated ancillary devices and systems. This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 4: Table Of Contents

    ............................26 ERVICE 7.3.1 Service Menu structure ..........................26 7.3.2 Service Menu .............................. 28 Service Menu – List ............................. 29 7.3.3 Service Menu – Isolate ..........................51 7.3.4 Service Menu – Config ..........................59 7.3.5 AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 5 9.11.2 ACM-16AT (16 BUTTONS, 32 LED’S) ......................133 ACM-32A (32 Red LED’S) ..........................134 9.11.3 9.11.4 SCS-8 (8 Fan Controls) ..........................135 9.11.5 LDM-32 (Expansion Relay Driver Board)....................136 9.11.6 LDM-R32 (32 Expansion Relays)........................137 9.11.7 LCD80 Display Interface ..........................138 AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 6 FDMR-1 (2 x Monitor & 2 x Relay) ......................152 9.13.14 Fan Controls Connection Diagram ......................153 9.14 NPS P ........................154 OWER UPPLY ONNECTIONS 9.14.1 Connection to IFS-714 Termination Board ....................154 9.14.2 Connection to IFS-724 Termination Board ....................155 AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 7: Emergency Operation

    Press: ISOL then press ACK to confirm the isolation Isolates the point or zone IN ALARM AND CLEARS IT’S ALARM OUTPUTS • • Isolating a zone automatically acknowledges and isolates all points in the zone AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 8: Placing Into Operation Checklist

    LCM boards correctly addressed and all analogue loops have been tested as per section 9.6.4.2  AFP-2800/2802 manufacturing label affixed You are now ready to power up the AFP-2800/2802 Fire Indicator Panel. Note: When re-booting the panel, power off for at least 10 seconds or LCM modules might not operate correctly.

  • Page 9: Fault Record

    Placing Into Operation 2.3 F AULT ECORD AULT ORRECTION TESTS SATISFACTORILY COMPLETED. TESTED BY SIGNATURE DATE OF TEST If all faults have been rectified and all tests are completed satisfactorily, the AFP-2800/2802 is now ready for operation. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 10: System Description

    Each loop can support 159 detectors and 159 modules. In its maximum configuration, the AFP-2800 can support more than 802 Conventional Detection Circuits, more than 400 Programmable Relay Outputs and 3,180 Analog addressable points. AFP-2802 supports a maximum of 396 Analog addressable points.

  • Page 11: Specifications & Approvals

    Radio communication devices should not be used in the vicinity of fire panels or associated ancillary devices and systems. This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 12: Electrical Specifications

    WARNING: Severe damage may occur if the batteries are connected incorrectly. Note: When annunciators or field modules are powered from external power supplies, use a separate conductor to connect the main power supply common terminal (-0V) to the remote power supplies common terminal (-0V). AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 13: Termination Board (Fim)

    Data is regenerated at each node. HS-NCM High-speed data communications (12 Mb wire, 100 Mb MF/SF fibre). Multi-mode fibre optic (MF), single-mode fibre optic (SF),wire (W), or a combination of W/MF/SF communications path. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 14: Fan Control Module

    Outputs, RX/TX, Power, Fault Supply Input 20V to 28Vdc 40mA standby 180mA alarm (ALL LED’S on) Communications Link EIA485 multi-dropped Supply Input 20V to 28Vdc 40mA standby 180mA aLARM (ALL LED’S on) Communications Link EIA485 multi-dropped AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 15: Display Interface

    Supply Input 20V to 28Vdc 40mA Standby 200mA Alarm (32 relays energised) Communications Link EIA485 multi-dropped Relay contacts max 1A @ 30Vdc Supply Input 20V to 28Vdc 100mA Standby 100mA Alarm Communications Link EIA485 multi-dropped AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 16: Compatible Devices

    DCD-A, DCC-A, DCA-B-60R Mk V Hochiki Thermal Type B DFJ-60B, DFE-60B, DFG-60BLKJ Hochiki Thermal Type C DCD-C, DCC-C, DCA-B-90R Mk I Hochiki Thermal Type D DFJ-90D, DFE-90D Hochiki Smoke Ionisation SIJ-ASN, SIH-AM Hochiki Smoke Photo Optical SLR-AS, SLK-A AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 17 The batteries could be seriously and permanently damaged if they are permitted to discharge below 20V DC when placed in series. The NPS series of power supplies will only charge the battery if the terminal voltage is above 12V when measured across 2 batteries in series. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 18: System Capacity And Expandability

    Network Control Module (NCM) AFP-2802 does not support Networking. Relay card with 8 relays – contact Panel Expansion Relays Up to 8 IFS-803/IFS-717 (IFS803 or IFS-717) rating is 1A @ 24Vdc 8-way relay boards can be added AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 19: Acm-32A Annunciator

    Please note that the FAN-C module has been discontinued and will not be supplied for new installations. When annunciators or field modules are powered from external power supplies, use a separate conductor to connect the main power supply common terminal (-0V) to the remote power supplies common terminal (-0V). AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 20: Display Interfaces

    Address 201 to 239 LCD80 Annunciator mode display interface (see A maximum of 32 LCD 80 manual) display interfaces can be installed on the communications ring. Address 101 to 139 AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 21: Panel Operation

    RONT ANEL ISPLAY The AFP-2800/2802 is fitted with a LED backlit 1/4 VGA resolution graphical LCD screen allowing ease of use for the operator by displaying multiple lines of information. The AFP-2800/2802 USES THE CONCEPT OF “HARD” AND “SOFT” buttons.

  • Page 22: Entering Information

    N = 5 There are three different types of point in the AFP-2800/2802 system – real (or physical) points, virtual (software generated) points and network points. All points on the distributed ring and the Analog addressable loops are real points. Distributed points on field modules are controlled and referred TO IN “R.M.IO”...
  • Page 23 Network Points n can range up to 1000 Expansion Relays n can range up to 64 System Parameters Common Alarm Common Fault Common Isolate Battery Fault Charger Fault Mains On Ext. Bell Isolated Warning System Isolated AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 24: Annunciator Addressing

    Panel Operation The AFP-2800/2802 can support up to 50 annunciator devices on the distributed ring. There are 4 types of annunciators that can be used. Type Description Suggested Use ACM32A 32 Red LED Mimic panel ACM16AT 16 Pushbuttons Output control for flow switches and 16 Red LED test solenoids.

  • Page 25: Firefighters Mode

    Resetting or isolating a zone will result in all the underlying points being isolated or reset. To view, isolate or reset individual alarm points you must go to the Service Menu and list alarms, after acknowledging all active alarms. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 26: Service Menu Mode

    1) Zone 7) Analog 7) Analog 7) Fault 2) Azf 8) Range 8) Change 3) Dout 9) Group 9) Module 4) Din 0) Network 5) Virtual 6) Netpoint 7) Analog 8) Ring 7) History 8) Shadow AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 27 6) Led 7) Analog 7) Module 8) Ring Modules 8) Local 9) History Restart System Erase Sectors Deisol All Isol Note: The networking menu is only displayed on the AFP-2800 FIP. AFP-2802 does not support networking. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 28: Service Menu

    6) GLOBAL CONFIGURE SYSTEM PARAMETERS 7) PRINT VARIOUS PRINTING UTILITIES select LOG-OFF). 8) DIAG VARIOUS DIAGNOSTIC TESTS 9) NETWORK CONFIGURE NETWORK PARAMETERS 0) LOG-OFF RESET PASSWORD TIMER USE BUTTONS/NUMBERS TO SELECT A FUNCTION DOWN SELECT AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 29: Service Menu - List

    DISPLAYS ALL SYSTEM NETPOINTS. SOFT BUTTONS PROVIDE ABILITY TO CHANGE A POINT’S PROGRAMMING. ANALOG Displays Analog addressable loops 1-10 and detectors/modules with names for status viewing, editing and testing. RING Displays the systems communications rings and modules found on each. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 30 You will be asked to press ACKN to confirm, press any other button to abort. PREV NEXT ACKN RESET ISOL Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling functions. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 31 You will be asked to press ACKN to confirm, press any other button to abort. PREV NEXT ACKN RESET ISOL Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling functions. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 32 You will be asked to press ACKN to confirm, press any other button to abort. PREV NEXT ACKN RESET ISOL Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling functions. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 33 L1D1 L1D2 LID3 LID4 LID5 L1D6 Use TAB to move around. INS, DEL to edit lines. ENTER accept line and/or Skip to next item. ESC to leave without change. OVERWRITE MODE BACKSP ENTER AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 34 Use the SELECT button to select the loop to list. SELECT DEVICE ON LOOP 1: DETECTOR MODULE USE BUTTONS/NUMBERS TO SELECT DEVICE DOWN SELECT BACK Note: AFP-2802 supports a maximum of 4 loops. Loops 5 to 10 are not displayed on AFP-2802. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 35 NOT INSTALLED L1D15 NOT INSTALLED L1D16 NOT INSTALLED DOWN BACK DOWN STATUS CHANGE BACK Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling functions. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 36 Highest reading since last reset Please refer to page Error! Bookmark not defined. for Drift Compensation information on Drift Compensation Sensitivities Detector sensitivity for day/night, alarm/pre-alarm. Please refer to page 105 for explanation information on sensitivity settings AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 37 When entering device type, an option list will appear at the bottom of the screen. Refer to appendix for more information on options and sensitivity settings. You will be prompted Yes/No to save changes when BACKSP ENTER finished. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 38 Press the BACK button to return to the previous L1M15 NOT INSTALLED NOT INSTALLED L1M16 screen. DOWN DOWN STATUS CHANGE BACK Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling functions. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 39 Module type physically seen on loop Device State Normal/Active/Alarm Shows alarm or activated condition of point Detailed description of fault condition. I.e. “NO RESPONSE” Device Status 23 fault types LED Status 4 Types Polling, On, Off, Polling ID AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 40 > NORMAL screen. LED Status > Polling Green USE BUTTONS TO SELECT TEST . STATUS Note: Script processing is paused during an output module test. Scripts will automatically resume processing once a test is complete. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 41 Once the output module name and type has been saved, you will then be transferred to the script entry screen and be prompted to enter a script for the output. Please refer to page 90 for more information on entering scripts. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 42 USE BUTTONS TO SELECT A MODULE: PREV NEXT SELECT Note: If the module number is displayed with an asterisk (*) beside it, it means the module has been manually programmed in but never “seen” BY THE PANEL. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 43 In the above example, the following abbreviations of STATUS apply. Status Meaning Abbreviation Alarm Isolated Fault Activated Note: If the input is a non-alarm AZF, it will display an x when the INPUT is activated. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 44 In the above example, the following abbreviations of STATUS apply. Status Meaning Abbreviation Alarm Isolated Fault Activated Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling functions. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 45 In the above example, the following abbreviations of STATUS apply. Status Meaning Abbreviation Isolated Fault Activated Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling functions. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 46 In the above example, the following abbreviations of STATUS apply. Status Meaning Abbreviation Isolated Fault Activated Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling functions. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 47 UNNAMED POINT VP15 UNNAMED POINT VP16 UNNAMED POINT VP17 UNNAMED POINT BACK DOWN CHANGE Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling functions. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 48 UNNAMED POINT NP14 UNNAMED POINT NP15 UNNAMED POINT NP16 UNNAMED POINT BACK DOWN CHANGE Note: You can also use the arrow keys, the Page Up and Page Dn keys on an external keyboard for scrolling functions. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 49 The AFP-2800/2802 SYSTEM STORES 4000 EVENTS. THE HISTORY LIST WILL THEN “OVER-EXPAND” TO 8,000 events and once it reaches this level, will purge the oldest 4000 entries leaving the 4000 most recent entries in the list. This is an automatic process.
  • Page 50 The AFP-2800/2802 system stores over 4000 shadow history events. When the shadow history buffer is full, the system will remove the oldest entries whenever a new entry is received thus leaving the 4000 most recent entries in the list.

  • Page 51: Service Menu - Isolate

    7) ANALOG ..LIST ADDRESSABLE POINTS 8) RANGE ..ISOLATE A RANGE OF ANALOG POINTS 9) GROUP ..PROGRAM AN INPUT TO ISOLATE POINTS 0) NETWORK ..ISOLATE REMOTE ZONE OR POINT DOWN SELECT MENU AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 52 01.002.Z02 (Z13 ) LEVEL 2 CORRIDOR 01.002.Z03 (Z212) ROOM 212 01.002.Z04 (Z213) ROOM 213 01.002.Z05 (Z214) ROOM 214 01.002.Z06 (Z10 ) LIFT MOTOR ROOM 01.002.Z07 (Z0 ) (AZM8) 01.002.Z08 (Z0 ) (AZM8) DOWN ACKN ISOL DEISOL AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 53 01.101.I6 BUTTON 6 ON 16AT 01.101.I7 BUTTON 7 ON 16AT 01.101.I8 BUTTON 8 ON 16AT 01.101.I9 (ACM16AT) 01.101.I10 (ACM16AT) 01.101.I11 (ACM16AT) 01.101.I12 (ACM16AT) 01.101.I13 (ACM16AT) 01.101.I14 (ACM16AT) 01.101.I15 (ACM16AT) 01.101.I16 (ACM16AT) DOWN ACKN ISOL DEISOL AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 54 UNNAMED POINT UNNAMED POINT UNNAMED POINT UNNAMED POINT VP10 UNNAMED POINT VP11 UNNAMED POINT VP12 UNNAMED POINT VP13 UNNAMED POINT VP14 UNNAMED POINT VP15 UNNAMED POINT VP16 UNNAMED POINT VP17 UNNAMED POINT DOWN ACKN ISOL DEISOL AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 55 Use the UP and DOWN buttons to select option. N = 0 20 JULY 2002 14:44:37 • Use the SELECT button to select the loop to list. SELECT DEVICE ON LOOP 1: DETECTOR MODULE USE BUTTONS/NUMBERS TO SELECT DEVICE DOWN SELECT BACK AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 56 Follow the on-screen instructions. You will be prompted for the first Analog addressable point in the range and then the last point in the range. Pressing the ISOL or DEISOL buttons will isolate / de-isolate the selected range of points. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 57 BUTTON 5 ON 16AT 01.101.I6 BUTTON 6 ON 16AT 01.101.I7 BUTTON 7 ON 16AT 01.101.I8 BUTTON 8 ON 16AT 01.101.I9 (ACM16AT) 01.101.I10 (ACM16AT) 01.101.I11 (ACM16AT) 01.101.I12 (ACM16AT) 01.101.I13 (ACM16AT) 01.101.I14 (ACM16AT) 01.101.I15 (ACM16AT) 01.101.I16 (ACM16AT) DOWN SELECT BACK AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 58 ESC to leave this screen ENTER 7.3.4.9 – I – N ERVICE SOLATE ETWORK This menu will allow the operator to perform a read status and then isolate zones and points programmed on remote nodes. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 59: Service Menu - Config

    Will prompt for a specific loop and detector / module number and take you directly to the modify point screen Will PROMPT YOU TO SELECT conventional ring or Analog addressable loop modules and take you directly to the Add/Remove Module screen. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 60 ENTER button for the field (using the soft or hard buttons, or the Enter on the keyboard). Overwrite/Insert mode can be toggled by pressing the Insert key on the remote keyboard. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 61 20 JULY 2002 14:44:37 controlled by and press ENTER PLEASE ENTER THE INFORMATION BELOW: • The AFP-2800/2802 will then check the syntax, report any errors and give you the option to accept SELECTED POINT: 1.1.o1 Yes/No. Press YES or NO as appropriate. See ‘EW IS OUTPUT LEVEL 1’...
  • Page 62 ESC will take you back to the previous screen. Use arrows to move around. INS,DEL to edit lines. ENTER accept line and/or Skip to next item ESC to leave Overwrite mode this screen BACKSP ENTER AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 63 20 JULY 2002 14:44:37 controlled by and press ENTER PLEASE ENTER THE INFORMATION BELOW: • The AFP-2800/2802 will then check the syntax, report any errors and give you the option to accept SELECTED POINT: VP1 Yes/No. Press YES or NO as appropriate. See ‘VP1’...
  • Page 64 20 JULY 2002 14:44:37 controlled by and press ENTER PLEASE ENTER THE INFORMATION BELOW: • The AFP-2800/2802 will then check the syntax, report any errors and give you the option to accept SELECTED POINT: NP1 Yes/No. Press YES or NO as appropriate. See ‘UNNAMED POINT’...
  • Page 65 When entering device type a numerical pick list will appear at the bottom of the screen. • Refer to appendix for more information on options and sensitivity settings. BACKSP ENTER • You will be prompted Yes/No to save changes when finished. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 66 Once the output module name and type has been saved, you will then be transferred to the script entry screen and be prompted to enter a script for the output. Please refer to page 90 for more information on entering scripts. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 67 This Config menu is used for adding and removing distributed field modules from the RS485 ring. Even though the AFP-2800/2802 auto-detects any new modules and adds them to the system approximately every 5 minutes. You may have a module that is not physically installed yet, but you wish to configure its inputs etc. You can use this menu to add the module to the system.

  • Page 68: Service Menu - Analog

    – Overview: The AFP-2800 can support up to 10 loops of Analog addressable devices using various protocols including the Notifier FlashScan protocol, which can support 159 detectors and 159 modules per loop. The AFP-2802 can support up to 2 loops of Analog addressable devices using CLIP protocol, which can support 99 detectors and 99 modules per loop.
  • Page 69 AUTOPROG -> Look for new devices on loop TOGGLE -> Change the poll mode on loop in FlashScan mode, the button will toggle it to CLIP mode. The toggle button is only available on the AFP-2800. AFP-2802 can only operate in CLIP mode NEXT AUTOPRG TOGGLE MENU •...
  • Page 70 (F07) ..LOW THRESHOLD (F08) ..MAINTENANCE ALERT (F09) ..MAINTENANCE URGENT (F11) ..DETECTOR FAILED TEST (F14) ..GROUND FAULT (F18) ..GENERAL FAULT (F21) ..MODULE EXTERN PWR LOSS ANALOG FAULT CODE DEFINITIONS BACK AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 71 THROUGHOUT THE DURATION OF THE WALK TEST, THE ‘FAULT’, ‘EXT BELL ISOLATE’ AND “WARNING SYSTEM ISOLATE” FRONT PANEL LEDS WILL PULSE ON AND OFF. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 72 The Analog tests do not generate a real alarm or fault condition at the device. A successful test is not an indication of the device’s ability to report a real alarm condition, its only an indication of proper communication between the LCM and FIP. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 73 A successful Battery Test will clear a battery fault. The panel also performs a short battery integrity test every hour. Note: The battery test will not run if there is a Mains Fail condition, so as not to further deplete the battery charge. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 74 IN THE ZONE OR LOOP THAT CAN BE “WALK TESTED”. FROM THIS SCREEN, You are able to remove individual devices from the walk test if you wish, or simply start the walk test by pressing the START button. All points to be tested are automatically isolated during the test. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 75: Service Menu - Global

    Press the MENU button to return to the Service TIME ..SET THE DATE/TIME Menu screen. DAY-NIGHT ..SET DAY/NIGHT TIMES PASSWORDS ..SET SYSTEM PASSWORDS SITE ..SET NAME & CONTACT INFO PRINT..SET PRINTER PARAMETERS DOWN SELECT MENU AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 76 Determines if the panel will support terminal mode using the PCI. Modem operation must be enabled to use terminal mode with the PC Interface. Virtual points are added / This setting determines if active Virtual Points are added to the Non-alarm list. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 77 Once you have correctly entered the new date and THEN <ENTER> OR <ESC> TO EXIT SCREEN time, you will automatically return back to the OR JUST <ENTER> TO KEEP CURRENT TIME Service Menu. BACKSP ENTER AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 78 ASSWORDS Overview: The AFP-2800/2802 supports a total of 15 passwords. Passwords consist of 3 different levels. Each level can have 5 user passwords (refer to 96 for a full description of password access levels). If the Level 3 User 1 password is left blank (or a zero is used at the beginning of this field), then passwords are disabled on the system.
  • Page 79 SITE NAME: CONTACT 1: on the screen, if you do not wish to change them, PHONE CONTACT 2: simply press the ENTER button. PHONE ENTER OR CLEAR (DISABLE) SITE/CONTACT DETAILS ENTER BACKSP AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 80 Notifier NFS2-3030 fire panel format and should only be used in conjunction with the Fieldserver MODBUS gateway. The NFS2-3030 format does not print all events and should not be used as the standard printing format. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 81 Analog Prints all installed Analog addressable points. This option also prints the % compensation and maximum value reached since last reset for Analog detectors. Ring Modules Prints all installed modules on rings 1 & 2. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 82: Service Menu - Diagnostics

    No of points which have been assigned names No Of Controlled Outputs Number of Dout points that have control scripts written for them Checksum values of code and configuration Press the BACK button to return to the service menu AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 83 2) DOUT ..AUTOTEST ALL Dig. OUTS ON MODULE • Press the BACK button to return to the Service 3) DBASE . . . DISPLAY MODULE DBASE Menu screen. USE UP/DOWN BUTTONS TO SELECT A FUNCTION DOWN SELECT BACK AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 84 7.3.8.12 S – D – D & R ERVICE IAGNOSTICS EISOL SOLATES ESET LARMS This command will reset all alarms and de-isolate all isolated points on the panel. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 85: Service Menu - Network

    – Note: AFP-2802 does not support networking. The rest of this section only applies to the AFP-2800 FIP. This menu is used to enter the network operating parameters and display network information for the panel. Networking is only available on panels with V3.xx or higher firmware version.
  • Page 86 DAY MODE I = 0 • Enter the node number of the panel from which N = 1 20 JULY 2002 14:44:37 the local node shall receive events. ENTER NODE NUMBER 0-240 > ENTER BACKSP AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 87 Note: If events are to be received from more than one node on the network, the above steps must be repeated for each additional node. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 88: Service Menu - Log Off

    Failure to manually log off the system will result in the system automatically logging the user off after 5 minutes of no button presses, to prevent the system remaining accessible after the technician has finished. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 89: Programming

     1.1.z8. If you need to span more than 1 module address, then you must enter the range via the PC Interface The scripting facility on the AFP-2800/2802 is a very powerful feature which makes it easy for the operator to view and modify the control logic of an output and all can b e done on-screen without the need of a laptop programmer.

  • Page 90: Writing Scripts

    For example, a fire trip relay (L1M3) is required to latch on common alarm and to be reset by push button 1 on annunciator 1, once all alarms have cleared. A script that will perform this operation is: L1M3 = CA OR (L1M3 AND !1.101.I1); AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 91: Any Operator

    4. If ALL seven days are entered or if no days are entered, the script will operate every day. 5. The order of days is not significant. 6. If a date range, does not include a day specified, the script will not operate AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 92: S' Pre-Operator

    1.2.o3 will go ON because the script will treat the isolated point as OFF (inactive). This may or may not be the desired action depending on the application. Note: Special Netpoints can be used to perform special functions on AFP-2800/2802 FIP. See page 94 for details. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 93: Network Points ( Where Applicable )

    Example 2: There are 5 panels on an AFP-2800 network. There is a toggle switch on Node 1 which is mapped to a non latching input module L1M1. Nodes 2 to 5 have a local AC shutdown relay L2M10. Netpoints can be used to prevent fans on Nodes 2 to 5 from operating by activating the toggle switch on the main panel (Node 1).

  • Page 94: Special Net Points

    If NZ mode has been selected in global options, NP996 to NP999 are reserved for special functions as described in NZ supplement to this manual. NPxxx cannot be programmed as ISOLM trigger through the keypad. Use PCI for programming. Points to isolate must be a list of detectors and cannot include zones. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 95: Appendix

    4. If the alarm is still present, keep zone in alarm, otherwise return zone back to normal condition after 60 seconds. Note: Minimum time in alarm condition is 75 seconds (15 seconds to first test plus 60 seconds after alarm clears) AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 96: Password Access Levels

    ASSWORD CCESS EVELS The AFP-2800/2802 has 3 levels of password protection. For a full explanation of how to use passwords, refer to Each password level can have 5 different user passwords and each password level has security access as follows:...

  • Page 97: Lcd80 Operation

    Alarm, Fault and Isolate lists. A local buzzer will sound for any alarm or fault (this buzzer can be disabled if required). The AFP-2800/2802 can support up to 32 LCD80 units on Ring 1. Refer to page 138 for connection, addressing and set-up details.
  • Page 98 CPU in over 10 seconds CPU NOT RESPONDING The LCD80 is being polled by the CPU, but the CPU has not responded to an LCD80 request in over 20 seconds AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 99: Annunciator Mode

    AFP-2800/2802. It displays pre-programmed messages of 60 characters each which are activated via a script event in the AFP-2800/2802. Up to 64 different messages are possible. A local buzzer will sound for any message annunciation or fault (this buzzer can be disabled if required). The AFP-2800/2802 can support up to 32 LCD80 units on Ring 1.
  • Page 100 NO ACTIVE POINTS There are no active points on the panel programmed to display on the LCD-80. COMMS FAILURE This messages flashes: The LCD80 has not been polled by the CPU in over 10 seconds AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 101 ROGRAMMING The LCD80 annunciator mode pre-programmed messages can be programmed in via a laptop using the AFP- 2800/2802 PC Interface Program. Each required message must be activated via a script in the AFP-2800/2802 panel. Switch 7 of DIP switch SW1 will enable the RS232 port on the LCD80 for programming.

  • Page 102: Recommended Cabling Requirements

    Data Cable cabinet (ground). FIP Cabinet Do not connect shields to modules or annunciators. Wire shields together outside of the Do not ground both respective ends of the shield; enclosures. one end should be left floating. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 103: Addressable Loop Cabling

    NOTE: Using shielded wire in applications where it is not recommended will reduce the maximum SLC length. If shielded wire must be used where not recommended, failing to float the ends will reduce the maximum SLC length even further. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 104: Noti.fire.net Network Cabling

    Appendix Wire Circuits Applies to: • AFP-2800 networks using NCM-W network cards and RPT-W repeaters. Requirements:  Recommended 0.75 mm x 2 core TWISTED pair, NOT Shielded The cable should have short overall Cable twist lengths (8 or more twists per metre).

  • Page 105: Intelligent Sensing Features

    Analog readings and sets the Pre-Alarm level just above these normal peaks. This allows extremely sensitive Pre- Alarm capability with reasonable protection against non-fire signals. The figure below shows a graphical representation of the Self-Optimizing Pre-Alarm level: The control panel provides nine Sensitivity Levels for alarm detection and pre-alarm as follows: AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 106 Level 6 9.84% 6.56 to 13.12% 6.56% Level 7 9.84 - 13.12% 6.56 to 13.12% 6.56% Level 8 13.12% 13.12% 6.56 - 9.84% Default Level 9 C degrees Heat Only C degrees 6.56 - 9.84% AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 107 FSC-851 (IntelliQuad) IntelliQuad detector is a FlashScan Multi-Criteria detector which will also run in CLIP mode. When in FlashScan mode, the CO and temperature levels can be accessed through the read status menu on the panel. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 108: Drift Compensation

    Note that the drift compensation values for Acclimate and IntelliQuad detectors can only be accessed through the read status menu if the loop in running in FlashScan mode. The drift compensation value for a multi criteria detector is not available in CLIP mode. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 109: Fault Codes

    FAULT (F022) The device on the loop is using the wrong communication protocol. Type Replace the device with a version that has compatible protocol with the panel. RFX Communication FAULT (F023) Not used on AFP-2800/2802. Loss AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 110 Incorrect Position FAULT (F029) Beam Detector Fault - Over Range FAULT (F030) Not used on AFP-2800/2802 - FMM-4-20. Under Range FAULT (F031) Not used on AFP-2800/2802 - FMM-4-20. Device Inhibit FAULT (F032) Not used on AFP-2800/2802 - FMM-4-20.

  • Page 111: Panel Connection Diagrams

    Board Relay Relay Expansion Power Status & control Expansion Main 24V Two 24V/1A Connector IN from power supply Connector OUT Power Input Output CONNECTING RIBBONS TO CPU 40 WAY RIBBON CABLE 20 WAY RIBBON CABLE AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 112 (PSI) Manual for more information Fit Link at J6 NI-2012 Power Supply Interface (PSI) NI-2012 (PSI) Dipswitch Settings: Normal operation: All off NZ Operation: 1 on, all others off Manual mode: 2 on, all others off AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 113 - 24V + 24V +AZ2 FROM LAST -AZ2 MODULE IN LOOP TERMINATION BOARD 9.6.1.5 – C AZF’ 1 & 2 ERMINATION OARD ONNECTING +AZ1 ALARM ZONE INPUT -AZ1 +AZ2 UNUSED INPUT -AZ2 4700 Ohms TERMINATION BOARD AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 114 Relay boards connected. The maximum allowed is 8 x 8 way relay boards. If the serial loop is left open, the panel will assume that all 8 boards are present. Note: If no expansion relay boards are used, jumper pins J18, situated close to the J14 connector, must be shorted together. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 115: Cpu

    DPU414 thermal printer with 9 pin connector Note: If using a , connect pins 3, 5, 8 on AFP-2800/2802 to pins 3, 5, 8 on the printer (1 to 1). Refer to printer manual for detailed connection information. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 116: Loop Interface Module (Lim)

    Not used on LIM 20 way ribbon cable to LCM/LEM boards Factory Programming Port Address Switch Reset Switch Address Settings: Description LOOP INTERFACE MODULE (FOR USE WITH LCM’S) NETWORK INTERFACE MODULE (FOR USE WITH NCM’S) AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 117: Analog Lcm And Lem Terminations

    (Loops 1, 3, 5, 7, 9) Second Loop (Loops 2, 4, 6, 8, 10) MicroController Address Switch Heartbeat LED (ELCM) 5VDC OK LCM Firmware Loop Connections Address Switch Settings Inserting a pair of LCM/LEM into CHS-3L/4L AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 118 A or B ports of the LCM and an isolation module, the shorted section of loop will be isolated and the processor will poll through both ends. Note that the A and B ports of the LCM also provide short circuit isolation. AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 119 Addressable module STYLE 6 To LCM or LEM B+ B- A- ISO-X Loop Return Two wire addressable detector Isolation module Addressable module Loop Out ISO-X STYLE 7 To LCM or LEM B+ B- A- A+ AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 120 All addressable sounder/strobes with built in isolators should also be removed from the loop while taking measurements. Refer to SLC Wiring Manual for more information. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 121: Noti.fire.net

    NOTI.FIRE.NET™ is two nodes connected via wire (or optical fibre). NOTI.FIRE.NET™ for the AFP-2800 supports up to 100 nodes. The AFP-2800 occupies a single node address on the network. Each network node requires a unique node address; the node communicates with other nodes via a Network Control Module (NCM).
  • Page 122 NUP 2 Pin 1 Network connection ports (NUP) NIM (IFS-705) to-NCM cable specification: NIM end NCM end Comm B NUP Port (Pin 5) Ref (Pin 4) (Pin 3) (Pin 2) +24V (Pin 1) +24V AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 123 Connector Pin Signal Name TB100-1 CH-A (+) Channel-A Driver / Receiver TB100-2 CH-A (-) Channel-A Driver / Receiver TB100-3 CH-B (+) Channel-B Driver / Receiver TB100-4 CH-B (-) Channel-B Driver / Receiver TB100-5 Earth Ground AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 124 NCM S WITCH UNCTIONS ROUND AULT ETECTION AND ERMINATION The NCM-W provides two sets of switches to simplify network set-up. Default settings for AFP-2800 networks are shown in the diagram below. EF B TERM B EF A TERM A SETUP...

  • Page 125: Odem Rinter /Hli Interface

    9.7 M /HLI I ODEM RINTER NTERFACE The AFP-2800/2802 PC Interface can be used to control the FIP using a modem and AFP-2800/2802 PCI software. A global option on the FIP will enable/disable modem operation. 9.7.1.1 PC M ODEM Any non software modem should work correctly with the PCI. It is recommended to use a high quality external modem to allow modifying of modem parameters to solve any possible compatibility issues.

  • Page 126: Printer/Pager/Hli Interface

    Notes: • Pin 8 (CTS) on the CPU side has to be high (+5v) for AFP-2800/2802 to print. If the printer/pager does not support Hardware handshaking (RTS signal), link pin 7 and 8 (on the CPU side) to allow printing without handshaking.
  • Page 127 Time is max 5 characters long and starts at position 75 There is a semicolon ';' at the end of each line (position 80) followed by a carriage return (ASCII characters 13) and a line feed (ASCII characters 10) AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 128: Battery Calculations

    Power Supply Size (Amps) = A + Note: When annunciators or Field Modules are powered from external power supplies, use a separate conductor to connect the main power supply common terminal (-0V) to the remote power supplies common terminal (-0V). AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 129: F R P

    AFP-2800/2802 CPU board PCB/724 AFP-2800/2802 Main termination board 2800/LIM AFP-2800/2802 Loop Interface Module (Analog addressable) 2800/NIM AFP-2800 Network Interface Module AFP-2800/2802 Addressable Loop Driver – Master (Loops 2800/LCM 1,3,5,7,9) AFP-2800/2802 Addressable Loop Driver – Slave (Loops 2800/LEM 2,4,6,8,10) AFP-2800/2802 Annunciator – 16AT 2800/16AT AFP-2800/2802 Annunciator –...

  • Page 130: Field Module Connection Diagrams

    +24V To Next Module 0V To Next Module Note: Between Field modules, connect shields together outside of their respective enclosures. Make sure that the shield is only grounded at the FIP and not at the modules or annunciators. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 131: Fan Controller

    OUTPUT FUNCTION 2 OUTPUT FUNCTION 3 Note: Between Field modules, connect shields together outside of their respective enclosures. Make sure that the shield is only grounded at the FIP and not at the modules or annunciators. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 132: Annunciator Connection

    5) When annunciators or Field Modules are powered from external power supplies, use a separate conductor to connect the main power supply common terminal (-0V) to the remote power supplies common terminal (-0V). AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 133: Acm-16At (16 Buttons, 32 Led's)

    Dip Switch Settings: Bank 1 (buttons 1-8) ARE “TOGGLE ON/TOGGLE OFF” Bank 1 (buttons 1-8) are momentary Bank 2 (buttons 9-16) ARE “TOGGLE ON/TOGGLE OFF” Bank 1 (buttons 1-8) are momentary Not Used Not Used AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 134: Acm-32A (32 Red Led's)

    Appendix ’ ’ Example: Annunciator address 150 First red LED = 1.150.O1 Last red LED = 1.150.O32 Dip Switch Settings: Not Used Not Used AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 135: Fan Controls)

    No EOL resistor selected (set for AFP-2800/2802) Note: EOL resistor can be enabled by dip switch 8 on SCS-8. When used on AFP-2800/2802 ensure that the EOL resistor is not enabled as it is not required. AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 136: Expansion Relay Driver Board)

    Appendix Connectors to relay board Relay Exp Power Address switches Ones Tens Power and RS-485 Connector – see diagram below for connections Comms active LED Dip Switch Settings: Not Used Not Used AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 137: Ldm-R32 (32 Expansion Relays)

    Relay contacts are on Terminal Blocks TB1 – TB6 as shown in the diagram above Example addressing: If annunciator address is 50, then relay K1 point address will be 1.150.O1 and relay K32 point address will be 1.150.O32 Notes: Relay contacts are rated at 1 Amp AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 138: Lcd80 Display Interface

    101 – 139. Setting all switches to off will take the LCD-80 offline. SW3-1 SW3-2 Actual Address 1 – 9 101 – 109 0 – 9 110 – 119 0 – 9 120 – 129 0 – 9 130 – 139 AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 139: Panel Expansion Relays

    Appendix 9.12 ANEL XPANSION ELAYS AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 140: Analog Addressable Devices

    Appendix 9.13 NALOG DDRESSABLE EVICES 501 Detector Base LPB-W Sounder/Strobe base Terminal Function Negative Positive in Remote Positive out Indicator Remote LED (Detector base sounders only) Shield AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 141: B5241Eft Isolator Base

    Appendix AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 142: Isolation Module Iso-X

    Appendix AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 143: Relay Module Frm-1

    Appendix AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 144: Control Module Fcm-1

    Appendix AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 145: Zone Module Fzm-1

    Appendix AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 146: Monitor Module Fmm-1

    Appendix Manual Call Point AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 147: Mini Monitor Module Fmm-101

    Appendix AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 148: Xp10-M (10 X Monitor Module)

    Appendix AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 149: Xp6-Ma (6 X Conventional Zone Interface Module)

    Appendix AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 150: Xp6-R (6 X Relay Module)

    Appendix AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 151: Xp6C (6 X Control Module)

    Appendix AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 152: Fdmr-1 (2 X Monitor & 2 X Relay)

    Appendix & & AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 153: Fan Controls Connection Diagram

    This D raw ing must not be use d for Constr u ction No . Eng. App. Date Q:\JOBS\ ..\Nif s_f an-28-B.sch Email: support@inertia.com.au Revision - revise on CAD. Do not amend by hand unless signed as a pproved AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 154: Nps Power Supply Connections

    Appendix 9.14 NPS P OWER UPPLY ONNECTIONS AFP-2800/2802 Manual – P/N DOC-01-011...

  • Page 155: Connection To Ifs-724 Termination Board

    Appendix AFP-2800/2802 Manual – P/N DOC-01-011...
  • Page 156 Notes...
