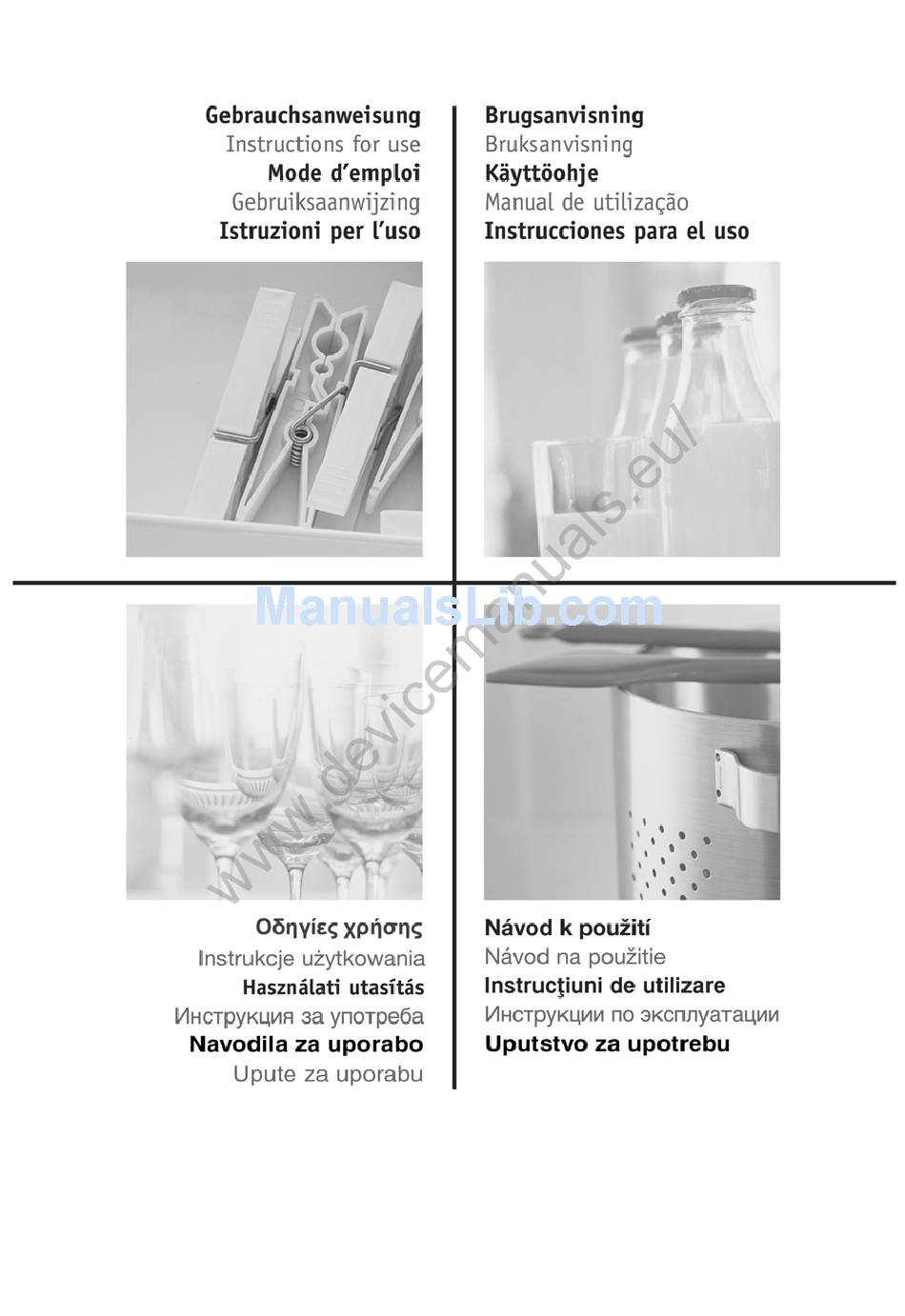

Whirlpool AZA9791 Instructions For Use Manual

Hide thumbs

Table Of Contents

Table of Contents

Summary of Contents for Whirlpool AZA9791

Page 2: Table Of Contents
CONTENTS READ INSTRUCTIONS FOR USE! INSTRUCTIONS FOR USE SAFE INSTALLATION AND USE Page INTENDED USE Page INSTALLATION Page DESCRIPTION OF THE DRYER Page CLEANING AND MAINTENANCE Page CLEANING THE DOOR FILTER Page CLEANING THE BOTTOM FILTER Page DRAINAGE SYSTEM Page DOOR REVERSIBILITY Page ENERGY SAVING/AUTOMATIC SWITCH-OFF FUNCTION...
Page 3: Safe Installation And Use
SAFE INSTALLATION AND USE To avoid injuries, damages on the dryer and its surrounding area or even a fire, you must observe the instructions below. Packaging, damages, handling • Keep the packaging foil away from children; danger of suffocation. • Do not operate the dryer if it has been damaged during transport or later. Inform the After-Sales Service.
Page 4 • If you want to install the dryer under a worktop, make sure that a ventilation grid (minimum 45 x 8 cm) is inserted in the rear part of the worktop where the dryer will be installed, to assure sufficient ventilation. Stacking on a washing machine •...
Page 5 • Do not trap the mains cable between the dryer and the wall, to prevent damages on the cable. • Do not operate the dryer if the mains cable or plug shows damages. • Before doing any maintenance on the dryer, disconnect it from the mains supply, to avoid dangers.
Page 6 • Do not use flammable cleaning agents. • Do not use the tumble dryer if chemicals have been used for cleaning. • Fabric softeners or similar products must be used as specified by the fabric softener instructions. • Never stop the tumble dryer before the end of the drying cycle, unless all items are quickly removed and spread out so that the heat is dissipated.
Page 7: Intended Use
INTENDED USE This appliance is destined to dry laundry which is marked to be appropriate for being treated in a dryer, in quantities which are usual for private households. • Observe the instructions given in these Instructions for Use and in the Quick Reference Guide when using the dryer.
Page 8: Installation
INSTALLATION For installing your dryer, you must observe the instructions of chapter SAFE INSTALLATION AND USE. • Carefully level the dryer by adjusting the four feet; check the correct leveling with a level. • Before running the first drying cycle, ensure that the water container is fully pushed inside and that the bottom filter is correctly positioned (see chapter DESCRIPTION OF THE DRYER).
Page 9: Description Of The Dryer
2-pin, side earth type. 3) Socket outlet / plug (valid for both countries) If the fitted plug is not suitable for your socket outlet, please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations.
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE AFTER EACH DRYING CYCLE • Switch off the dryer before cleaning or carrying out maintenance. • Empty the water container at the end of each drying cycle. • Clean the door filter at the end of every drying cycle. Dryer exterior and control panel: •...
Page 11: Cleaning The Bottom Filter
CLEANING THE BOTTOM FILTER A. Open the bottom filter flap. Lift up the handle of the filter and pull the bottom filter out. B. Open the filter by lifting on the latch of the filter frame. C. Take out the foam from the inside of the filter. D.
Page 12: Drainage System
DRAINAGE SYSTEM For your convenience: The dryer can be connected directly to the sewage system of the house to avoid the emptying of the water container after each drying cycle. Place an absorbent cloth underneath to collect water spillage. A. Unplug the hose located at the upper rear part of the dryer. B.
Page 13 C. Fix the hose to the sewage system. The height difference between the floor where the dryer stands on and the connection at the sewage system should not exceed 1 m. max. 1 m NOTE: To avoid siphoning, the end of the hose must not be immersed in the drain water. Avoid bending and twisting the hose.
Page 14: Door Reversibility
DOOR REVERSIBILITY For your convenience: In case you want to stack the dryer on a washing machine, you can reverse the door opening direction, to bring the door handle in a lower position. A. Unplug the dryer. B. Open the door. C.
Page 15: Energy Saving
ENERGY SAVING For Dryers with Energy Label according to Directive 2010/30/EU The Energy Label contains information on performance and consumption of your dryer: The bold black arrow marks the energy efficiency class (A+++ = most efficient / D = least efficient). Power consumption per year Type of dryer Maximum load capacity...
Page 16: Troubleshooting Guide/After-Sales Service
• Always dry a full load: depending on the type of laundry and the programme/drying time. For detailed information, refer to the separate Quick Reference Guide. • Use the maximum spin speed allowed by your washing machine, since draining the water mechanically requires less energy.
Page 17: Ec Declaration Of Conformity
The service code (the number after the word Service on the adhesive rating plate) on the lower side of the door opening. • Your full address and phone number. Manufacturer: Whirlpool Europe s.r.l. Viale Guido Borghi 27 21025 Comerio (VA) Italy EC Declaration of Conformity •...
Page 18: Disposal
DISPOSAL • This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). • By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
