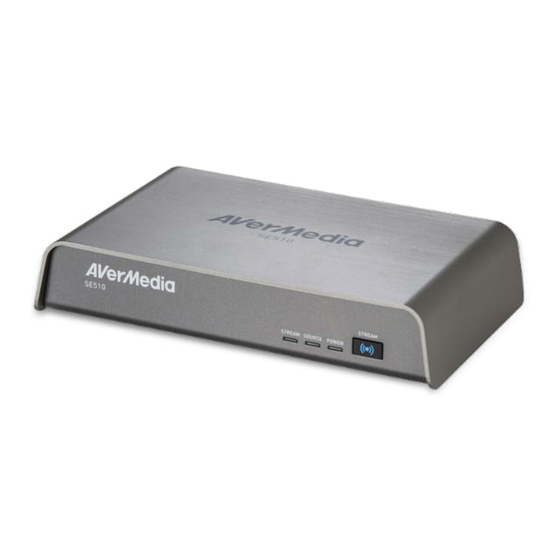

Page 1: User Manual
AVerCaster SE510 SE510 English User Manual... - Page 2 Copyright and Trademark Information © 2015 by AVerMedia Technologies, Inc. All rights reserved. No part of this publication, in whole or in part, may be reproduced, transmitted, transcribed, altered or translated into any language in any form by any means without the written permission of AVerMedia Technologies, Inc.
-
Page 3: Table Of Contents
Table of Contents About This Manual Introduction Getting Started Management Interface Configurations for Streaming Watching Streaming Contents – VLC Watching Streaming Contents – Ustream Settings Updating Firmware (PC Only) -
Page 4: About This Manual
About This Manual This manual instructs users on how to set up, configure and use an AVerCaster SE510 (or SE510) streaming box and NexStream application to stream HDMI or composite signals to a number of users in an IP network. -
Page 5: Introduction
Introduction The AVerCaster SE510, developed by AVerMedia, is the solution to provide top-notch functions from HDMI and Composite inputs to IP streaming services. The following includes some basic information about the AVerCaster SE510, such as specifications, network considerations, compatible clients, etc. -
Page 6: Getting Started
Getting Started You can capture HDMI or composite signals from an external AV input source. You can also decide the environment and streaming conditions of each input signal. Please note that HDCP-protected video cannot be streamed. The following is a brief overview of the steps to set up IP streaming. Step 1: Install your SE510 Before using your SE510, make sure the device is properly connected and powered-on. - Page 7 Step 4: Log In to NexStream After your SE510 is found, click it to enter NexStream. When the login page appears, enter your password. (Default password: avermedia) Step 5: Start streaming See next section for more details. Other Support For more support, email us at TechSupport@avermedia.com.
-
Page 8: Management Interface
Management Interface NexStream allows administrators to manage and set up the IP streaming service. After logging in the system, you can see the management interface. The functions of each sections are as follows: Video and audio input selection Device name Settings (language, time/date, password, firmware update, etc.) Refresh button Preview screen... -
Page 9: Configurations For Streaming
Configurations for Streaming The SE510 supports two types of sources – HDMI and Composite. Please see the the following instructions on how to stream properly. Setting Up Live Streaming Before setting up, make sure that an HDMI or a composite source is connected to the corresponding port on the back of the device. - Page 10 Step 3: Select a streaming quality for your content. Or click to add a new quality profile. Step 4: Click to start streaming.
-
Page 11: Watching Streaming Contents - Vlc
Watching Streaming Contents – VLC You can watch streaming contents on popular media player like VLC media player. Step 1: Open VLC and go to Media > Open Network Stream... Step 2: Under the Network tab, enter your RTMP broadcast address then click Play to start watching. -
Page 12: Watching Streaming Contents - Ustream
Watching Streaming Contents – Ustream AVerCaster SE510 allows you to broadcast on UStream. Step 1: Go to Streaming Platform and click Step 2: Select UStream as your streaming platform and log in to your Ustream account. Step 3: Click to start streaming. - Page 13 Step 4: Search the channel name on Ustream.com and start enjoying the live streaming on Ustream. Note: When encountering streaming difficulties, you can test your bandwidth with the Ustream Network Test Tool and obtain recommended encoding. Link: https://ustream.zendesk.com/entries/22962268-Internet- connection-and-recommended-encoding-settings#bandwidth...
-
Page 14: Settings
Settings Click to access various settings that are listed below. Select Language (PC Only) Set Time and Date Edit Device Name Change Password Update Firmware... - Page 15 Restore Faculty Defaults Report Problems To report problems, click and email your downloaded log files to us at TechSupport@avermedia.com.
-
Page 16: Updating Firmware (Pc Only)
Updating Firmware (PC Only) Step 1: Click to pull down Settings and select Update Firmware. Step 2: Click Product Page to download the latest firmware. Step 3: Click Choose File and select the downloaded firmware file. Step 4: Click Update to begin. Note: Do not operate the device or remove network cable during firmware update as they will cause malfunction to the device. -
Page 17: Limited Warranty
Usage of Personal Contact Information If you obtain service under this warranty, you agree to and fully authorize AVerMedia or its distributor to store, use, and handle information related to the warranty service, as well as your personal contact information, including but not limited to your name, phone number, address, and email. - Page 18 AVerMedia to transfer his/her customer information to the country or region of the original purchase. This allows AVerMedia to undertake the scope of product or parts maintenance of the warranty service. AVerMedia may also disclose this information under certain legal requirements.
- Page 19 Other rights This warranty provides the customer with specific legal rights. The customer may be subject to jurisdiction in accordance with the relevant laws in his or her district, but the customer is subject to the laws and regulations that govern the country or state where the product was originally purchased. This warranty does not affect any legal rights, including the limitations or exclusions laid out by this contract;...
-
Page 20: End User License Agreement
OWNERSHIP AND RESTRICTIONS Terms and conditions hereof do not constitute a sale of the Software or any copy of the Software. It is AVerMedia and its licensors that retain all worldwide ownership of the rights, title and interest in and to the Software, and... - Page 21 SOFTWARE; provided that you should not use the pictures in any illegal or immoral manners, nor shall you grant your right to use to any third party. AVerMedia does not provide any warranty or representation to these pictures from third parties.
- Page 22 AVerMedia, its employees or agents as a direct or indirect result of your breach of this Agreement, negligence, breach of statutory duty or other act or omission.
- Page 23 Agreement shall be deemed effective unless contained in writing and signed by a duly authorized representative of AVerMedia, and no waiver of any past or present right arising from any breach or failure to perform shall be deemed to be a waiver of any future right arising under this Agreement. If any provision in this...
- Page 24 European Community Compliance Statement Class B This product is herewith confirmed to comply with the requirements set out in the Council Directives on the approximation of the laws of the Member States relating to Electromagnetic Compatibility Directive (EMC) 2014/30/EU, Low Voltage Directive (LVD) 2014/35/EU and Energy- related Products Directive (ErP) 2009 / 125 / EC.
- Page 26 Model No.: SE510 M A D E I N TA I WA N...
