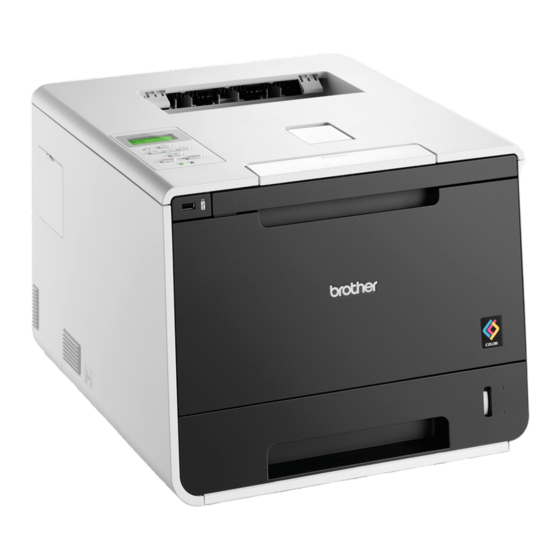

HL-L8250CDN / HL-L8350CDW / HL-L8350CDWT

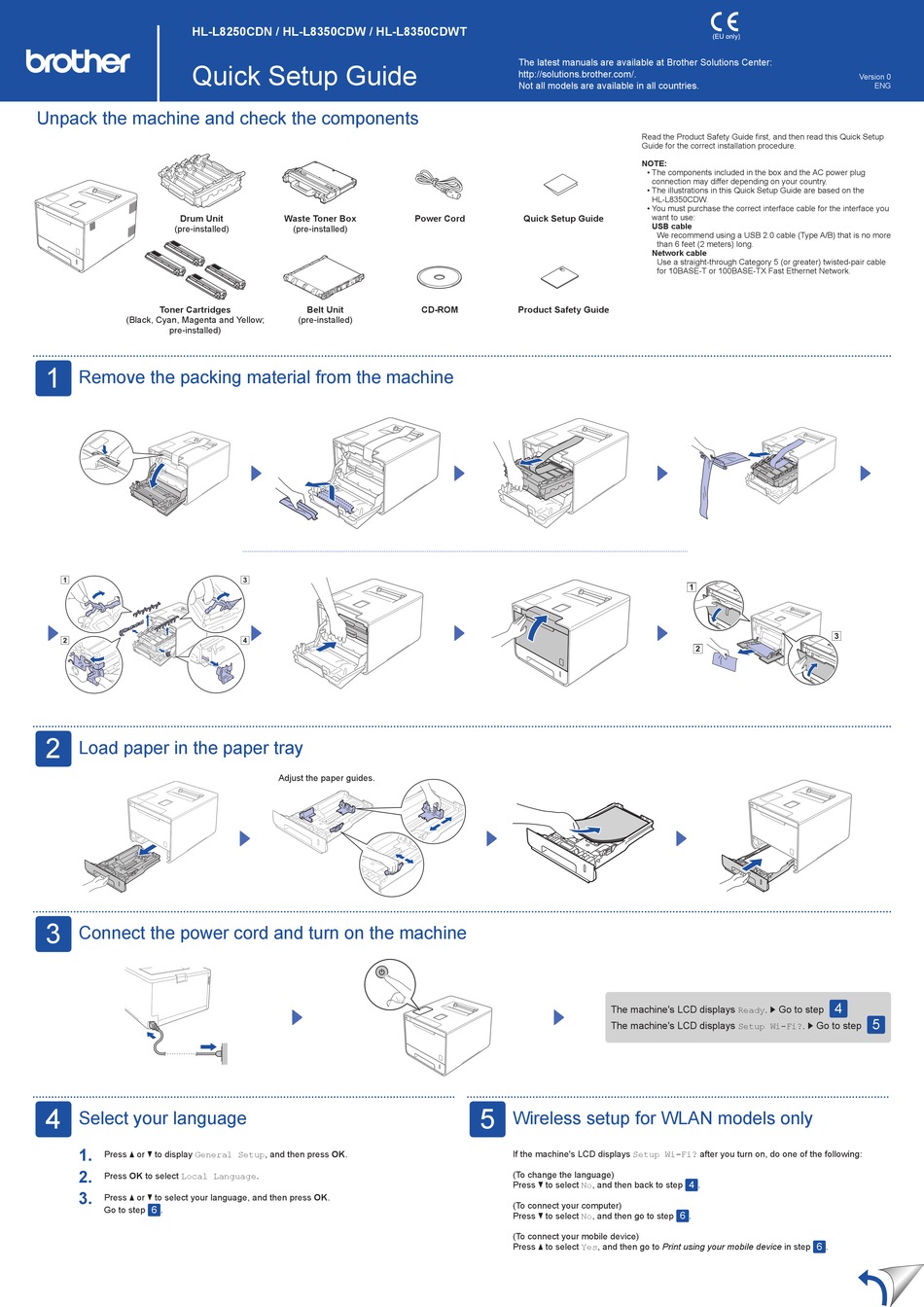

Quick Setup Guide
Unpack the machine and check the components
Drum Unit
(pre-installed)
Toner Cartridges
(Black, Cyan, Magenta and Yellow;
pre-installed)
1
Remove the packing material from the machine
1
2
2
Load paper in the paper tray
3
Connect the power cord and turn on the machine
4
Select your language
1.
a or b to display General Setup, and then press OK.
Press
2.
Press
OK to select Local Language.
3.
a or b to select your language, and then press OK.
Press
6
Go to step
.
Waste Toner Box
Power Cord
(pre-installed)
Belt Unit
(pre-installed)
3
4
Adjust the paper guides.
The latest manuals are available at Brother Solutions Center:
http://solutions.brother.com/.
Not all models are available in all countries.
Quick Setup Guide
CD-ROM
Product Safety Guide
5
Wireless setup for WLAN models only
If the machine's LCD displays Setup Wi-Fi? after you turn on, do one of the following:
(To change the language)
Press b to select No, and then back to step
(To connect your computer)
Press b to select No, and then go to step
(To connect your mobile device)
Press a to select Yes, and then go to Print using your mobile device in step
Read the Product Safety Guide first, and then read this Quick Setup
Guide for the correct installation procedure.
NOTE:
•
The components included in the box and the AC power plug
connection may differ depending on your country.
•
The illustrations in this Quick Setup Guide are based on the
HL-L8350CDW.
•
You must purchase the correct interface cable for the interface you
want to use:
USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no more
than 6 feet (2 meters) long.
Network cable
Use a straight-through Category 5 (or greater) twisted-pair cable
for 10BASE-T or 100BASE-TX Fast Ethernet Network.
1
2
The machine's LCD displays
. c Go to step
Ready
The machine's LCD displays
Setup Wi-Fi?
4
.
6
.
Version 0
ENG
3
4
5
. c Go to step
6
.
