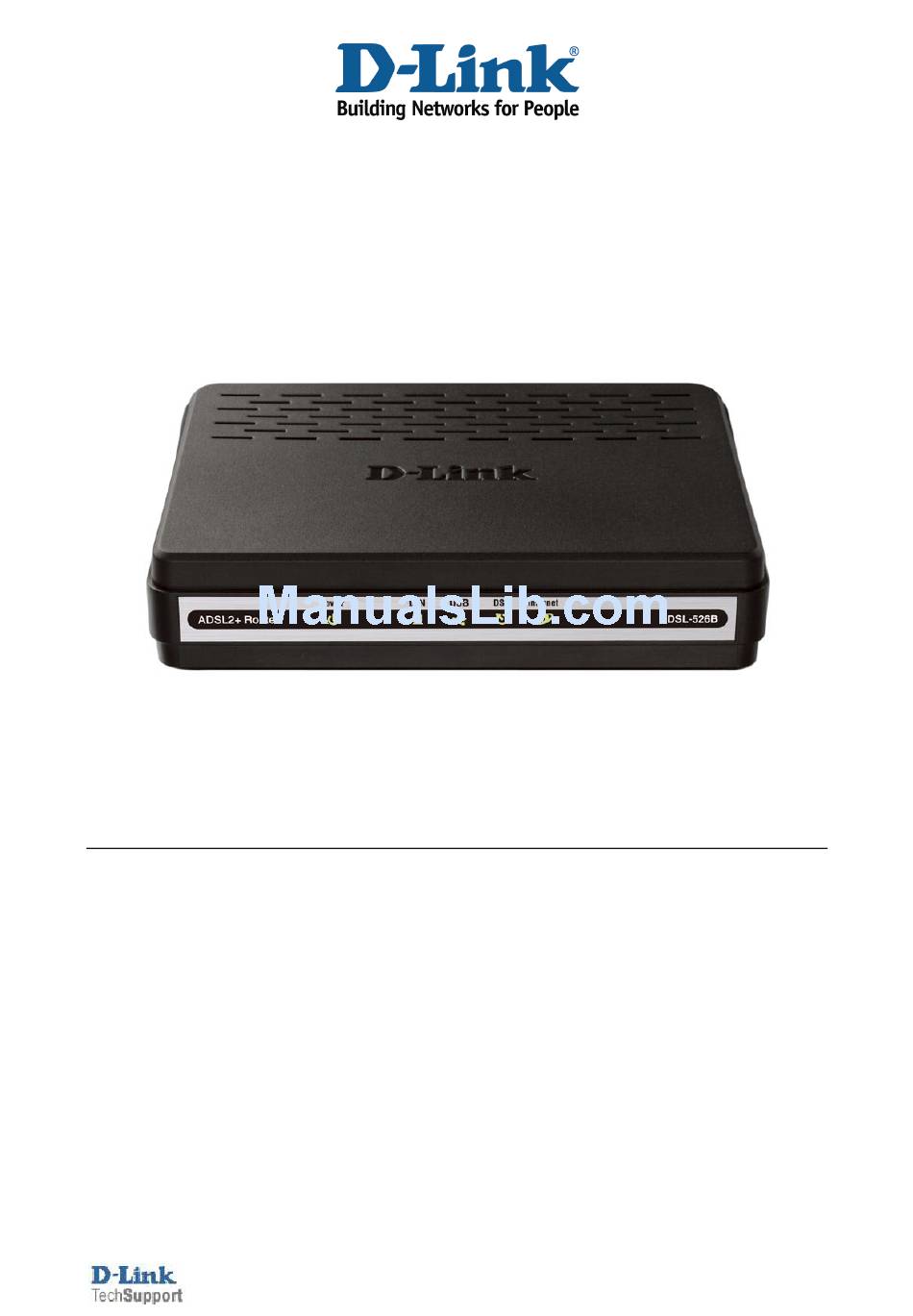

DSL-526B - Port Forwarding Guide
This document will detail how to configure Port Forwarding on the DSL-526B.
Support – How to configure Port Forwarding on the DSL-526B.
D-Link Technical
Page 1 of 8

Advertisement

loading

Related Manuals for D-Link DSL-526B

Summary of Contents for D-Link DSL-526B

  • Page 1 DSL-526B - Port Forwarding Guide This document will detail how to configure Port Forwarding on the DSL-526B. Support – How to configure Port Forwarding on the DSL-526B. D-Link Technical Page 1 of 8...
  • Page 2 1. Log in to the modem with the computer connected to the modem via Ethernet. URL: http://192.168.1.1 (default) Username: admin Password: admin (default) Validate Code: (randomly generated) Support – How to configure Port Forwarding on the DSL-526B. D-Link Technical Page 2 of 8...
  • Page 3 Desktop in this example. 7. Enter the Remote Desktop port number (3389) in the External Port Start and External Port End. (The Internal Ports will auto fill). Support – How to configure Port Forwarding on the DSL-526B. D-Link Technical Page 3 of 8...
  • Page 4 To check whether the port is successfully forwarded, go to www.canyouseeme.org enter the ‘external port’ used in your port forwarding rule and click Submit. It will return with a Success or Error message. Support – How to configure Port Forwarding on the DSL-526B. D-Link Technical Page 4 of 8...
  • Page 5 How to configure Windows 7 with a static IP Address. 1. Click the ‘Network’ icon in the windows task tray. 2. Select Open Network and Sharing Center Support – How to configure Port Forwarding on the DSL-526B. D-Link Technical Page 5 of 8...
  • Page 6 3. Select Change Adapter Settings from the left menu panel. Support – How to configure Port Forwarding on the DSL-526B. D-Link Technical Page 6 of 8...
  • Page 7 4. Right Click the icon of the adapter which you are using to access the Internet e.g. Local Area Connection (Wired) or Wireless Network Connection (Wireless) and select Properties. 5. Select Internet Protocol Version 4 (TCP/IPv4) and click the Properties button. Support – How to configure Port Forwarding on the DSL-526B. D-Link Technical Page 7 of 8...
  • Page 8 However this can be assigned with your ISP’s DNS or alternative DNS servers. 7. Click OK to save and activate the changes, followed by OK or CLOSE on the window following. Support – How to configure Port Forwarding on the DSL-526B. D-Link Technical Page 8 of 8...
