Page 1

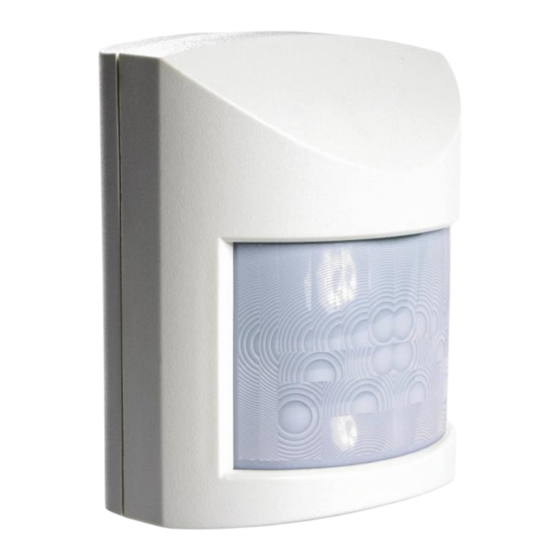

DUS704 can be placed in an automatic “Daylight Harvesting” mode for energy savings. Unit 6, 691 Gardeners Road Mascot NSW 2020 Australia f +61 2 8338 9333 dynalite.info@philips.com ABN 33 097 246 921 Philips.com/dynalite +61 8338 9899...
installation steps 1. * WARNING * Do not touch the Pyro Sensor with your fingers. For indoor use only. 2. Select an appropriate indoor mounting location, as detailed in the location guidelines on the following pages. Note that this product has three functions, and the optimum mounting location for each individual function may conflict with each other, and may require the use of multiple sensors.
Page 3
connecting data cable connect data cable in a “daisy chain” serial cable permanent connectors Connect Data Cable in a "Daisy Chain" DIMTEK 11 0 DIMTEK 11 0 INSTALLATI ON DETAIL S INSTALLATI ON DETAIL S INPUT: 23 0 V 5 0-6 0Hz 10 A INPUT: 23 0 V 5 0-6 0Hz 10 A O UTP UT: 1 x 230 V 10A O UTP UT: 1 x 230 V 10A...
Page 4
optional motion detector lens In addition to the supplied Wide Angle lens, An option for a long range lens is available for corridor applications: • DUS704W Long Range – Useful for monitoring a long thin space such as a corridor. Contact your local supplier for more details Optional Lens –...
specifications Motion Detector Infra Red Remote Control Receiver Range > 6m Wide Angle Wall Mount PIR Detector LED activation indicator Range 12m x 90O (standard lens) Can be used with DTK500 series Mounting height: 1.1m to 3.1m Infra Red remotes or other learning LED activation indicator IR Remote controls Adjustable Pulse Count &...
Page 6
DUS704W Instruction Manual Rev F.doc. Specifications and design subject to change without notice. Philips Dynalite manufactured by WMGD Pty Ltd (ABN 33 097 246 921). Unit 6, 691 Gardeners Road Mascot NSW 2020 Australia Tel: +61 2 8338 9899 Fax: +61 2 8338 9333 E-Mail: dynalite.info@philips.com...
