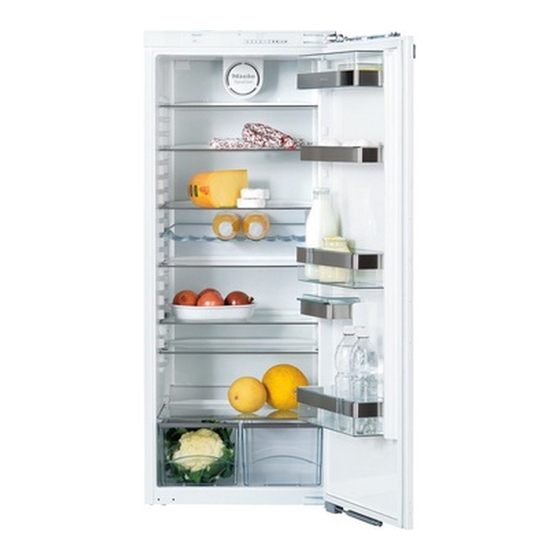

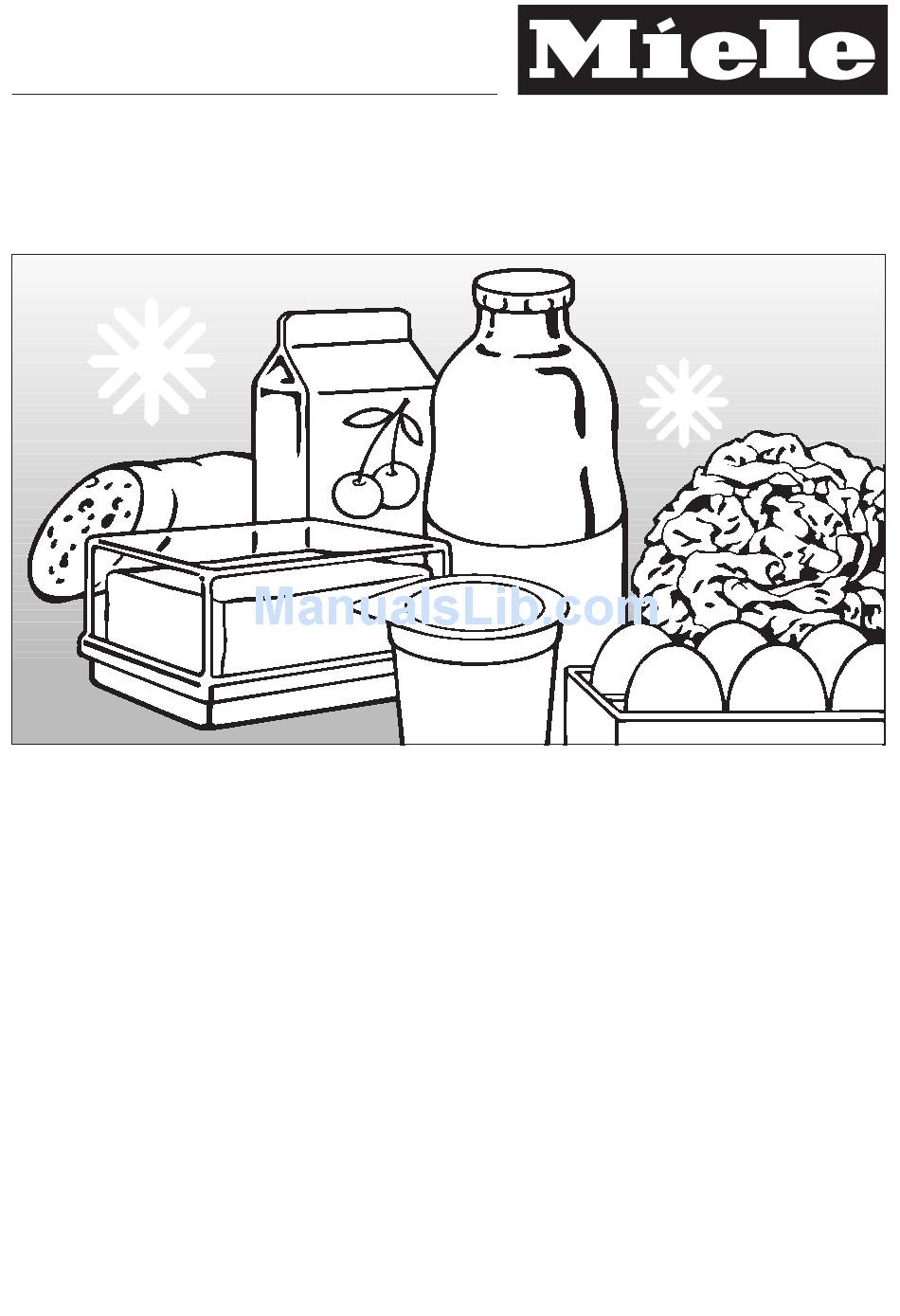

- Page 1 Operating and installation instructions Refrigerator with DynamicCooling K 9552 iD (-1) K 9752 iD (-1) en - AU, NZ To avoid the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time.
-
Page 2: Table Of Contents
Contents Guide to the appliance ..........4 Caring for the environment . - Page 3 Contents After Sales ............32 Electrical connection .
-
Page 4: Guide To The Appliance
Guide to the appliance a Safety lock indicator light d Temperature selector buttons (+ for warmer; – for colder) b On/Off button e SuperCool button and c Refrigerator temperature display indicator light f DynamicCooling button and indicator light... - Page 5 Guide to the appliance a DynamicCooling fan f Butter and cheese compartment b Bottle rack* g Egg tray/Condiment tray c Adjustable shelves h Interior lighting d Condensate channel and i Universal container* drain hole j Bottle shelf e Fruit and vegetable containers * k Bottle divider * Depending on model...
-
Page 6: Caring For The Environment
Caring for the environment Disposal of the packing Disposing of your old material appliance The transport and protective packing Electrical and electronic appliances has been selected from materials which often contain materials which, if are environmentally friendly for disposal handled or disposed of incorrectly, and can normally be recycled. -
Page 7: Warning And Safety Instructions
Warning and Safety instructions Safety with children This appliance complies with all This appliance is not a toy! To avoid relevant legal safety requirements. the risk of injury, do not allow children Improper use of the appliance can, to play on or near it or to play with the however, present a risk of both controls. -
Page 8: Technical Safety
(e.g. electric shock). If the connection cable is faulty it must only be replaced by a Miele approved service technician to protect the user from danger. - Page 9 Warning and Safety instructions Safe operation of the appliance is In countries where there are areas only assured if it has been installed and which may be subject to infestation by connected in accordance with these cockroaches or other vermin, pay operating and installation instructions.
-
Page 10: Disposal Of Your Old Appliance
Warning and Safety instructions Do not use sharp edged objects to Never use a steam-cleaning appliance to clean this appliance. – remove frost and ice, Pressurised steam could reach the – separate food which has become electrical components and cause a frozen. -
Page 11: How To Save Energy
How to save energy Normal energy consumption Increased energy consumption Installation In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near a heat source Situated near a heat source (radiator, oven). (radiator, oven). -
Page 12: Switching On And Off
^ Press the On/Off button until the protective foil, apply the Original temperature display goes out. Miele Care product for stainless steel that comes with the appliance. The cooling system is switched off. (If this does not happen, the safety lock is Important! This stainless steel still activated). -
Page 13: Switching Off For Longer Periods Of Time
Switching on and off Switching off for longer Activating or de-activating the safety lock periods of time If the appliance is not going to be used for a longer period of time, e.g. whilst on holiday: ^ switch the appliance off, ^ Press and hold the SuperCool button pressed in for approx. -
Page 14: The Correct Temperature
The correct temperature Setting the temperature in the It is very important to set the correct temperature for storing food in the refrigerator appliance. Micro-organisms will cause Use the two buttons underneath the food which is not stored at the correct temperature display to set the temperature to deteriorate rapidly. -
Page 15: Temperature Range
The correct temperature If you have adjusted the temperature, Temperature display brightness wait for approx. 6 hours if the The appliance is supplied with the appliance is not very full and for brightness of the temperature display approx. 24 hours if the appliance is set as low as possible. - Page 16 The correct temperature ^ Press the SuperCool button to save the setting. ^ Press the On/Off button to come out of setting mode. If you do not do this, the electronics will switch over to normal operation automatically after a couple of minutes.
-
Page 17: Supercool And Dynamiccooling
SuperCool and DynamicCooling DynamicCooling m SuperCool The SuperCool function can be used to When the DynamicCooling function is rapidly reduce the temperature in the not switched on, the natural circulation refrigerator section to its lowest setting of air in the appliance will cause (depending on the room temperature). - Page 18 SuperCool and DynamicCooling Switching off DynamicCooling ^ Press the DynamicCooling button m. The DynamicCooling indicator light will go out. The fan automatically switches off when the door is open.
-
Page 19: Using The Refrigerator Efficiently
Using the refrigerator efficiently Different storage zones – pre-packed vegetables and other fresh food with a label stating it Due to the natural circulation of the air should be kept at a temperature of in the appliance, there are different approx. -
Page 20: Food Which Should Not Be Stored In A Refrigerator
Using the refrigerator efficiently Food which should not be Storing food correctly stored in a refrigerator Food should generally be stored covered or packaged. This will prevent Not all food is suitable for refrigeration, food smells from affecting other foods, as some food is sensitive to cold. -
Page 21: Unpacked Meat And Vegetables
Using the refrigerator efficiently – Examples of fruit and vegetables Meat which react strongly to the natural Meat should be stored unwrapped. gases given off by other types of (Undo wrappings slightly to leave meat fruit and vegetables are: loosely covered, and leave containers Kiwis, broccoli, cauliflower, Brussels open). -
Page 22: Adjusting The Interior Fittings
Adjusting the interior fittings Moving the shelves To move the split shelf: ^ Take both halves of the split glass The shelves can be adjusted according to the height of the food. shelf out, ^ Raise the shelf, pull it forwards slightly until the notch at the side is in line with the shelf support. -
Page 23: Adjusting The Condiment Tray/Bottle Shelf
Adjusting the interior fittings Fruit and vegetable containers Adjusting the condiment on telescopic runners tray/bottle shelf ^ Lift the tray/shelf up and out of the (depending on model) stainless steel frame to remove. The fruit and vegetable containers are ^ Push up the stainless steel frame, pushed in and out on telescopic runners, and can be completely and remove. -
Page 24: Moving The Bottle Divider
Adjusting the interior fittings Universal container Moving the bottle divider (depending on model) The bottle divider can be moved to the left or right to ensure that bottles are The universal container can be used held securely in position when the door both to store and serve food. -
Page 25: Automatic Defrost
Automatic defrost The refrigerator defrosts automatically. Condensate and frost can build up on the back wall of the refrigerator whilst it is in use. You do not need to remove this, as it will defrost and evaporate automatically with the warmth generated by the appliance. -
Page 26: Cleaning And Care
Cleaning and care To avoid damaging the outer For stainless steel surfaces on the surfaces of your appliance, do not appliance, use the Original Miele use: Care product for stainless steel – cleaning agents containing soda, (available from Miele). ammonia, acids or chlorides, Do not let water get into the –... -
Page 27: Cleaning The Interior And Accessories
Cleaning and care ^ Reconnect the stainless steel panel Before cleaning to the butter and cheese ^ Switch off the appliance. compartment in the reverse order ^ Disconnect the appliance from the after cleaning. mains. Switch off at the wall and withdraw the plug from the socket, or Cleaning the interior and disconnect the mains fuse or remove... -
Page 28: Ventilation Gaps
^ Place food back in the appliance and ^ Stainless steel components can be close the door. cleaned with the Original Miele Care product for stainless steel. ^ Apply the Original Miele Care product for stainless steel to stainless steel panels and frames each time you clean the appliance. -
Page 29: Problem Solving Guide
^ Check that the fuse is not defective . . . you cannot switch the appliance and that the mains fuse has not off. tripped. If it has, contact the Miele Service Department. The safety lock has been activated..the temperature in the refrigerator . - Page 30 ^ Clean the condensate channel and drain hole. If you still cannot remedy the fault having followed these suggestions, please contact the Miele Service Department. To prevent unnecessary loss of temperature it is advisable not to open the door while waiting for the...
-
Page 31: Noises
Noises Normal noises What causes them Humming noise made by the motor (compressor). This noise can Brrrrr ... get louder for brief periods when the motor is switching on. Blubb, blubb..A gurgling noise can be heard when coolant is circulating through the pipes. -
Page 32: After Sales
You will find the address and telephone number of Miele on the back cover of the manual. When contacting your Chartered Agent or Miele, please quote the model and serial number of your appliance. This information is given on the data plate inside your appliance. -
Page 33: Electrical Connection
Electrical connection Electrical connection WARNING THIS APPLIANCE MUST BE All electrical work should be carried out EARTHED by a suitably qualified and competent person in strict accordance with current local and national safety regulations. The appliance is supplied with a mains cable and moulded plug ready for connection to an AC single phase 220-240 V 50 Hz supply. -
Page 34: Installation Advice
Installation advice Ventilation This appliance must be built in, Air at the back of the appliance gets otherwise it could tip over. warm. The appliance housing unit must be constructed to allow sufficient space Location for ventilation. This appliance should be installed in a A ventilation gap of at least 38 mm dry, well-ventilated room. -
Page 35: Before Installation
They are no dangerous. longer required because the furniture ^ Remove any cable clips from the door is now fitted to the appliance door. All the necessary parts are supplied or back of the appliance. can be ordered from Miele. -
Page 36: Stainless Steel Front
Installation advice Stainless steel front (depending on model) The old door can be replaced by a stainless steel front if required. This is available from your Chartered Agent or from Miele. -
Page 37: Building-In Dimensions
Building-in dimensions Niche height (mm) K 9552 iD (-1) 1397 - 1413 K 9752 iD (-1) 1772 - 1788... -
Page 38: Adjusting The Door Hinges
Adjusting the door hinges The door hinges are set ex-works to enable the door to be opened wide. However, if the opening angle of the door needs to be limited for any reason, the hinge can be adjusted to accommodate this. For example, if the appliance door hits an adjacent wall when opened, the opening angle can be limited to 90°. -
Page 39: Changing The Door Hinging
Changing the door hinging ^ Slide the door outwards and lift it off Before building the appliance in, you will need to decide on which side the door is to be hinged. If left hand door ^ Unscrew the fixing screws d hinging is required, follow the completely, and loosely screw them instructions below. - Page 40 Changing the door hinging ^ Unscrew mounting b and pull To secure the soft-close mechanism soft-close mechanism c downwards ^ Place the door with the outer side to remove it. downwards on a stable surface. ^ Undo ball joint d using a spanner and remove it.
- Page 41 Changing the door hinging ^ Push the appliance door onto the pre-fitted screws, and then tighten the screws. ^ Replace covers a, b and c. ^ Replace the locking pins into the top of the hinges to prevent the doors opening too far.
-
Page 42: Building In The Appliance
Appliance furniture door in kg The housing unit must be carefully K 9552 iD (-1) aligned using a spirit level before K 9752 iD (-1) installing the appliance. The unit corners must be at right angles, as... -
Page 43: Preparing The Appliance
Building in the appliance ^ Open the appliance door. Preparing the appliance ^ Slide cover strip a into the holder in the middle of the appliance with the bumps facing downwards. The bumps will fit into the keyhole slots. ^ Position the mains electricity cable so ^ Remove the cover c on the top that the appliance can be connected corner of the appliance, using a... - Page 44 Building in the appliance Building in the appliance ^ Fit the cover g onto the fixing bracket h. ^ Secure the fixing bracket h to the bottom of the appliance with the screws i (M5 x 15). ^ Carefully remove the protective foil –...
-
Page 45: Securing The Appliance In The Niche
Building in the appliance Securing the appliance in the On furniture with door fittings (e.g. bumps, seals, etc.) the dimension of niche these must be taken into account when making sure there is a gap all round of 42 mm. ^ Pull the appliance forwards by the dimension of the door fitting to keep the gap at 42 mm all round. -
Page 46: Fitting A Furniture Door
Building in the appliance ^ Break off the protruding end of the bottom cover e. It is no longer required. ^ Fit angled cover g onto the bottom fixing bracket c. ^ Close the appliance door. Fitting a furniture door ^ Loosen the screws b on the top and bottom fixing brackets c. - Page 47 Building in the appliance ^ Using a pencil, lightly mark a line ^ Hang the furniture door onto the adjusting bolts h. down the centre of the inside of the furniture door. ^ Loosely attach nuts c on the ^ Hang the fixing brackets d with the adjusting bolts.
- Page 48 Building in the appliance Securing the appliance door to the furniture door: ^ Close the door and align to match the ^ Screw the fixing bracket a with a neighbouring furniture doors. hexagonal headed screw b into the ^ Whilst counterholding the adjusting pre-drilled holes in the appliance bolts i with a screwdriver, tighten door.
- Page 49 Building in the appliance ^ Replace all the covers. To make sure the appliance is correctly fitted: – The doors must close properly. – The doors must not touch the furniture carcase. – The seal at the top edge of the handle side must fit properly.
