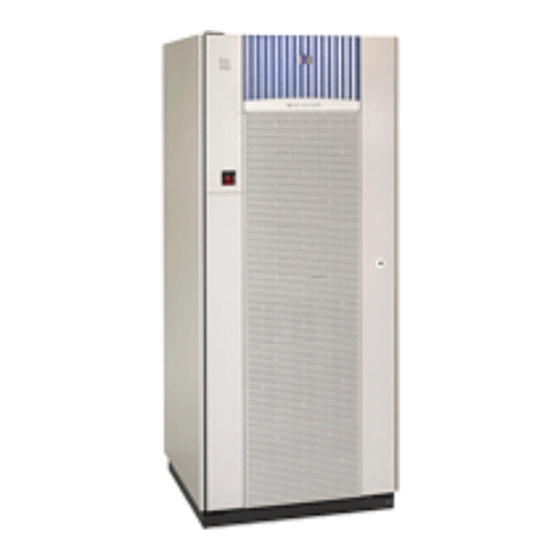

HP StorageWorks

External Storage XP user guide

Part number: T1706-96003
Third edition: March 2006

Advertisement

Table of Contents
loading

Related Manuals for HP StorageWorks

Summary of Contents for HP StorageWorks

  • Page 1: External Storage Xp User Guide

    HP StorageWorks External Storage XP user guide Part number: T1706-96003 Third edition: March 2006...
  • Page 2 The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

  • Page 3: Table Of Contents

    Limitations on External Storage XP operations ......... 32 Combining External Storage XP with other HP StorageWorks products ......37 Using external LUs for Auto LUN XP operations.
  • Page 4 Port Operation tree ............55 Port Operation list.

  • Page 5: External Storage Xp User Guide

    System parameters for connecting TagmaStore AMS and TagmaStore WMS subsystems ..105 Relationship between serial numbers in the Device list on the LU Operation pane and TagmaStore AMS and TagmaStore WMS subsystem models ........106 Relationship between the WWN of the port on the TagmaStore AMS or TagmaStore WMS subsystem and the controller .
  • Page 6 13 External LU capacity is smaller than the specified emulation type’s basic capacity ....33 14 Using external LUs for Auto LUN XP operations ........39 15 Using external LUs for Continuous Access XP operations .

  • Page 7: External Storage Xp User Guide

    Storage disk arrays that can be connected as external disk arrays ......15 External Storage XP requirements..........19 When external LU’s emulation type is OPEN .

  • Page 9: About This Guide

    The functions described in this manual may be limited, depending on your assigned level of user access. Some users will have read-only access while others will have limited or full array access. For additional information on users and user groups, please see the HP StorageWorks XP Remote Web Console user guide.

  • Page 10: Firmware Versions

    HP StorageWorks Continuous Access XP user guide for the XP12000/XP10000 • HP StorageWorks Flex Copy XP user guide • HP StorageWorks LUN Configuration and Security Manager XP user guide for the XP12000/XP10000 You can find these documents at http://www.hp.com/support/rwc/manuals •...

  • Page 11: Hp Technical Support

    Provides additional information. TIP: Provides helpful hints and shortcuts. HP technical support Telephone numbers for worldwide technical support are listed on the HP support web site: http://www.hp.com/support/. Collect the following information before calling: • Technical support registration number (if applicable) •...

  • Page 13: External Storage Xp For The Xp12000/Xp10000

    XP12000/XP10000 disk array. Flex Copy XP is another HP StorageWorks XP product that copies user data between an existing LU on an XP12000/XP10000/XP1024/XP128 and an LU on an external storage device. For a detailed description of Flex Copy XP, see the HP StorageWorks Flex Copy XP user guide.

  • Page 14: Preparing For External Storage Xp Operations

    If you use Flex Copy XP with External Storage XP, you can copy data in the external disk array to the local disk array and copy data in the local disk array to the external disk array. For more information about Flex Copy XP, see the HP StorageWorks Flex Copy XP user guide. Figure 1 illustrates a local disk array and an external disk array that are connected using External Storage XP and Fibre Channel hardware.

  • Page 15: System Requirements

    Web Console For instructions on installing and using Command View XP or XP Remote Web Console, see the HP StorageWorks Command View XP user guide for XP Disk Arrays or the HP StorageWorks XP Remote Web Console user guide for XP12000/XP10000.
  • Page 16 Table 3 Storage disk arrays that can be connected as external disk arrays (continued) Storage disk array Notes HP StorageWorks Enterprise Virtual Array (EVA) • In this user guide, the disk array appears as “EVA 3000/5000 (Active/Standby and Active/Active disk array”.
  • Page 17 Table 3 Storage disk arrays that can be connected as external disk arrays (continued) Storage disk array Notes Lightning 9900C series subsystem • “Lightning 99xxC series subsystem” indicates the Lightning 9910 and Lightning 9960. • In this user guide, the disk arrays might appear as “Lightning 9900 subsystem”.
  • Page 18 For more information about alternate path modes, see ”Setting alternate paths for external LUs” on page 74. Contact your HP account support representative for the latest external disk array and FC switch support matrix. External Storage XP for the XP12000/XP10000...

  • Page 19: External Storage Xp Requirements

    Enable the External Storage XP options in Command View XP or XP Remote Web Console and on each External Storage XP disk array. For instructions, see the HP StorageWorks Command View XP user guide for XP Disk Arrays or the HP StorageWorks XP Remote Web Console user guide for XP12000/XP10000.

  • Page 20: External Ports

    • Configuration of alternate paths (see ”Alternate paths” on page 22) External ports Local disk array ports used for External Storage XP must be set to a designation of External. When the external disk array is connected to the local disk array’s external port via Fibre Channel, you can view information about the external disk array from Command View XP or XP Remote Web Console.
  • Page 21 If you use an external LU and set Cache Mode to Disable for Cache LUN XP operations, you cannot use the XP12000/XP10000 Cache LUN XP Bind mode. For more information, see the HP StorageWorks Cache LUN XP user guide for XP12000/XP10000.

  • Page 22: Alternate Paths

    If you have not configured any alternate paths, host I/O operations are suspended when the primary path becomes unavailable (such as during disk array maintenance operations or following a failure in the channel processor). HP recommends configuring alternate paths for safer operation and increased bandwidth. For instructions, ”Setting alternate paths for external LUs” on page 74.

  • Page 23: Examples Of Switching I/O Execution Paths To Alternate Paths

    Since two ports of different clusters must be set in the local disk array for External Storage XP to use alternate path settings, HP does not recommend the configuration shown in Figure...

  • Page 24: Alternate Path Mode Is Multi Mode

    NOTE: As you restore the error path, use of the restored path automatically resumes. Figure 5 Alternate path mode is Multi mode NOTE: In Multi mode, active I/O load balancing occurs across external disk array ports and controllers. The XP and EMC DMX are examples of external disk arrays that use Multi mode. •...

  • Page 25: Alternate Path Mode Is Single Mode

    NOTE: As you restore the path with a priority higher than the current path, the I/O execution path automatically switches to the restored path with the highest priority. Figure 6 Alternate path mode is Single mode • Alternate path mode is Single mode and at least one alternate path is in Standby status Figure 7 shows an example of when the alternate path mode is Single mode and there are alternate paths in Normal and Standby status.

  • Page 26: Alternate Path Mode Is Single Mode With Alternate Paths In Normal And Standby

    NOTE: When the external disk array is an EVA disk array, as you restore the path with the highest priority, the I/O execution path switches back to the restored highest priority path. In this case, the status of the path for which the status changed to Normal when the error occurred changes back to Standby.

  • Page 27: Turning A Disk Array's Power On Or Off

    Figure 8 Alternate path mode is Single mode with alternate paths in Standby only NOTE: External disk arrays with Active/Standby (A/S) controllers, such as the MSA, are an example of Figure 8. A notable characteristic of using A/S controller disk arrays as external storage is that there is typically only a single port to the owning controller.

  • Page 28: Turning The Local Disk Array's Power On Or Off

    This command verifies that the saved information about the mapped external LU matches the actual external LU status. If the external LU can be used as the mapped local disk array XP LDEV, the external LU is set to accept I/O operations, and you can continue using the external LU as a mapped LU. Use this command to restore host I/O operations to a mapped external LU after disabling those operations using either the Disconnect Subsystem or Disconnect Volume command.

  • Page 29: Turning The External Disk Array's Power On Or Off

    LDEV is set to Normal and is not automatically formatted. To optimally initialize the mapped LU’s data area, use Volume Manager to format the mapped LU. For instructions, see the HP StorageWorks LUN Configuration and Security Manager XP user guide for the XP12000/XP10000.

  • Page 30: Using Existing Data In Mapped External Lus

    HP StorageWorks LUN Configuration and Security Manager XP user guide for the XP12000/XP10000. Map the Target port LU to the mapped LDEV. The mapped LDEV is available for host I/O operations. After the path is set, host I/O operations to the mapped LU are available.

  • Page 31: Uninstalling External Storage Xp

    Log in to Command View XP or XP Remote Web Console. For instructions, see the HP StorageWorks Command View XP user guide for XP Disk Arrays or the HP StorageWorks XP Remote Web Console user guide for XP12000/XP10000. Click the External Storage XP button ( ).

  • Page 32: Limitations On External Storage Xp Operations

    Continuous Access XP P-VOLs, S-VOLs, and journal volumes are not supported on MSA disk arrays. • HP does not recommend that volumes involved with Snapshot XP reside on external MSA arrays. • If you map an external LU that is more than 2 TB with the setting of OPEN-V emulation type, you can access the data stored in the field up to 2 TB.

  • Page 33: External Lu Capacity Is Larger Than The Specified Emulation Type's Capacity (Open-3 Example)

    LU. This means that the capacity available after mapping is slightly smaller than the actual external LU capacity. Available capacity decreases by the size of the XP array management information area, and all prior data must be considered lost. For more information, see the HP StorageWorks Flex Copy XP user guide.
  • Page 34 • If you mapped a volume that has not been zero-formatted on the external disk array side, format the volume on the local disk array side. For instructions on the formatting and Write to Control Blocks operations, see the HP StorageWorks LUN Configuration and Security Manager XP user guide for the XP12000/XP10000.
  • Page 35 • You can delete up to 256 mappings for external LUs at one time. • Mapping operations cannot be performed if some parts of the local disk array are blocked. In this case, restore blocked parts of the local disk array, and retry the operation. •...

  • Page 36: When External Lu's Emulation Type Is Open

    • Table 5 Table 6 show the recommended application level for the mapped external LU according to the external LU’s HDD type. Table 5 When external LU’s emulation type is OPEN Application HDD type S-ATA Database Not Recommended Not Recommended Online Transaction Processing (OLTP) File operation from host Not Recommended...

  • Page 37: Combining External Storage Xp With Other Hp Storageworks Products

    Combining External Storage XP with other HP StorageWorks products You can use HP StorageWorks software products to manage the external LUs you set using External Storage XP. The HP StorageWorks software products that support mapped external LUs are listed below. Configuration examples are described in the following sections: •...
  • Page 38 LU is mapped through that external port, the topology setting is not available. NOTE: Some mainframe products might be marketed under different HP names and are not supported at this time. Contact your HP account support representative for the latest support matrix.

  • Page 39: Using External Lus For Auto Lun Xp Operations

    XP LDEV is set as the target volume. Existing data in the external LU is (in effect) manually migrated to the internal XP LDEV on the local disk array using Auto LUN XP. For more information, see the HP StorageWorks Auto LUN XP user guide for the XP12000/XP10000.

  • Page 40: Using External Lus For Continuous Access Xp Operations

    LU is set as the Continuous Access XP pair’s S-VOL, and the volume in the local disk array that is connected as the MCU is set as the Continuous Access XP pair’s P VOL. For more information about Continuous Access XP operations, see the HP StorageWorks Continuous Access XP user guide for the XP12000/XP10000.

  • Page 41: Using External Lus For Continuous Access Xp Journal Operations

    Normal. However, the volume-formatting process is not automatically executed. To optionally format the mapped volume, use the Custom Volume Size (CVS) function. For instructions, see the HP StorageWorks LUN Configuration and Security Manager XP user guide for the XP12000/XP10000.

  • Page 42: Using External Lus For Business Copy Xp Operations

    LU is set as the Business Copy XP pair’s S-VOL, and the local disk array internal XP LDEV is set as the Business Copy XP pair’s P-VOL. For more information, see the HP StorageWorks Business Copy XP user guide for the XP12000/XP10000.

  • Page 43: External Storage Xp Panes

    External Storage XP panes External Storage XP operations involve the LU Operation and Port Operation panes. In addition to these two panes, The Flex Copy pane is available if you licensed Flex Copy XP. When you select a tab, the corresponding pane appears.

  • Page 44: Lu Operation Pane

    LU Operation pane This pane appears when you start External Storage XP. Use this pane to perform operations such as mapping external LUs and setting alternate paths. Device tree Device list Filter button Information area Preset list Operation information area Apply and Cancel buttons Figure 19 LU Operation pane...

  • Page 45: Device Tree

    • Total number of External Groups: Number of external LU groups that are set. • Total number of External LUs: Number of external LUs that are connected. • Found WWNs: WWNs found when you clicked Discovery in the Device tree. •...

  • Page 46: Device List

    Appears in the branch under the product name of the external disk array connected to the local disk array. When you select Discovery, External Storage XP searches for external disk array ports that can be connected, and displays their WWNs. •...

  • Page 47: Mapped External Lu Status Values

    • LDEV Status: Mapped external LU’s status. Possible values: Normal, Unknown, Blockade, Warning, and Format. Table 8 Mapped external LU status values LDEV status Description Normal LDEV status is normal. Unknown LDEV status has yet to be ascertained. Blockade I/O traffic to the LDEV is not permitted. Warning External LUs have abnormal status.

  • Page 48: Wwn Tree

    • WWN: World Wide Name identifying the port in the external disk array that can be set. • Serial: Product serial number. • Product: Product name. • Vendor: Vendor name. • WWN of the external disk array • LUN: LU number in the external disk array. •...
  • Page 49 • LDEV Status: Mapped external LU’s status. Possible values: Normal, Unknown, Blockade, Warning, or Format. For a description of these values, see Table • Product name of the connected external disk array • WWN: WWN identifying the port in the external disk array for which the connection setting is completed.

  • Page 50: Port Tree

    • Response error: External disk array is in blocked status caused by an abnormal reply (Response). • Initiator port: External disk array’s port attribute changed to the initiator port. • Unknown port: External disk array’s port attribute is unknown. • Cannot detect port: Path was removed or external disk array’s port could not be found. •...

  • Page 51: Port List

    Port list Displays information about the ports and paths of the local disk array or external disk array, depending on the item selected in the Port tree. You can sort the list by displayed items. For instance, to sort the items by the port number, select Port on the list.

  • Page 52: Filter Button

    • Status: Status of the path configured by the port of the local disk array and the port of the external disk array identified by the WWN. • Normal: Path is normal. • Unknown: Path status is unknown. • Blockade: Path is blocked. •...

  • Page 53: Preset List (Lu Operation Pane)

    This window contains Enable and Disable options that control the display of unsupported devices. When you select Enable, information about unsupported disk arrays appears in the Device tree and Device list. Unsupported disk arrays are indicated by Unknown Devices in the Device tree and Device list. The Disable option is selected by default.

  • Page 54: Port Operation Pane

    Port Operation pane Use this pane to check port settings and set port attributes. This section describes items displayed in the Port Operation pane. For instructions, see ”Setting a local disk array’s port attributes” on page 59. Port Operation list Port Operation tree Preset list Information area...

  • Page 55: Port Operation Tree

    Port Operation tree Displays ports in the local disk array. Contents displayed in the Port Operation list (right pane) varies according to the item selected in the Port Operation tree (left pane). Figure 26 Port Operation tree • Subsystem When selected, displays nothing in the Port Operation list. Subsystem is selected when you initially display the Port Operation pane.

  • Page 56: Preset List (Port Operation Pane)

    • Attribute Port attribute. External ports are used for connecting to the external disk array. • PCB Mode Port’s PCB mode. Ports designated as External do not have High Speed mode. • FLI_TOV (Fabric Login Timeout Value) Maximum time allowed (in seconds) for an external array to perform a fabric login after being connected to a switch.

  • Page 57: Configuring External Lus

    Configuring external LUs To use external storage devices connected to the local disk array, configure the connection to the external LU. This involves setting port attributes on the local and/or external arrays, mapping external LUs, and setting alternate paths. This section describes procedures for using External Storage XP to configure external LUs. •...

  • Page 58: Overview Of Configuring External Lus

    101. Start External Storage XP operations. For instructions, see the HP StorageWorks Command View XP user guide for XP Disk Arrays or the HP StorageWorks XP Remote Web Console user guide for XP12000/XP10000. Set the external disk array port attribute to External. For instructions, see ”Setting a local disk array’s...

  • Page 59: Setting An External Disk Array's Port

    If you select a mainframe emulation type on the Add LU pane, use Volume Manager to reformat the volume or perform the Write to Control Blocks operation. For instructions, (see the HP StorageWorks LUN Configuration and Security Manager XP user guide for the XP12000/XP10000.

  • Page 60: Mapping External Lus (Add Lu)

    When an FC switch is connected, set Fabric to Enable. When a switch is not connected, set Fabric to Disable, and specify FC-AL. Set Connection according to the actual connection configuration. For more information about setting the topology, see the HP StorageWorks LUN Configuration and Security Manager XP user guide for the XP12000/XP10000.

  • Page 61: Add Lu Window

    NOTE: Before mapping the external LU, ensure that no other applications (such as RAID Manager) that use the command device are executing. Stop any applications that are executing before mapping the external LU. CU list LDEV map CU:LDEV list Figure 31 Add LU window •...
  • Page 62 External LU’s extended identifying information. This information is used for identifying logical volumes in the EVA disk array. For more information, see ”Identifying logical volumes of EVA disk arrays (using Characteristic 2)” on page 111. • ExG (1-16384) Group number of the connected external LUs. You can specify any decimal value from 1 to 16384. The E displayed outside the text box is the capital letter of the external LU group.
  • Page 63 If you set the IO Suppression mode to Enable, the Cache Mode is automatically set to Disable. For External Storage XP, HP recommends that you set Cache Mode to Disable. CAUTION: If you select Disable, Cache LUN XP’s bind mode cannot be set.

  • Page 64: Select Paths Pane

    external LU as an internal XP LDEV, select an external LU with (N/A) in the CU:LDEV list. To map all external LUs in the CU:LDEV list at one time, use the Linear button. • Interval If you select two or more volumes in the CU:LDEV list or click Linear for mapping, you can select the interval that arranges each volume.

  • Page 65: To Map An External Lu As An Internal Xp Ldev Individually

    Ports excluded from being candidates for the ports setting the primary and alternate paths appear among the external disk array ports that can be set as the primary and alternate paths. WWNs identifying the external disk array ports appear in the list. •...

  • Page 66: Add Lu Pane

    following the internal XP LDEV you selected (Figure 33). The LDEV numbers of the selected XP LDEV are in a series. When Interval is set, the mapping is done at the specified interval. Figure 33 Add LU pane (mapping using the Linear button) •...

  • Page 67: Ssid Window

    • If you need to set the SSID, the SSID window appears. Go to step Figure 35 SSID window • If the SSID setting is not necessary, the Add LU window closes, and the LU Operation pane appears. Settings appear in blue italics in the Device tree and Device list. Contents specified in the Add LU window appear in the Preset list.

  • Page 68: Mapping Multiple External Lus At One Time (Add Lu (Auto))

    If you plan to use the mapped external LU for a Flex Copy XP pair, you must specify OPEN-V. When the external LU to be mapped has the VMA setting, you must select OPEN-V. Due to the advantages of the OPEN-V emulation type, HP recommends OPEN-V as the default type for use with External Storage XP.
  • Page 69 Number of LDEVs that can be mapped based on the capacity supported by the emulation type specified in the Emulation Type box. Select the number of LDEVs you want to map from the Create LDEVs list. The default is Full. When Create LDEVs is Full, the maximum number of LDEVs that can be created based on the capacity supported by the specified emulation type are mapped.
  • Page 70 CAUTION: If the specified number of alternate paths cannot be set, an error appears in the Preset list. • CLPR (see ”External LU attributes set by mapping” on page 20) When cache memory is partitioned using XP Disk/Cache Partition, you can select the CLPR used to access the mapped LU from the list.

  • Page 71: Select Ldev Window

    Select LDEV window Figure 38 Select LDEV window • CU list CU number of the local disk array to which you want to map the external LU. • Interval Interval of the CU:LDEV number for mapping each volume. When two or more LDEVs are created from one external LU and mapped, the CU:LDEV number is set at intervals specified in each created LDEV.
  • Page 72 In the Device tree, select the port (WWN) you want to connect from the WWNs displayed. External LUs that can be connected from the port (WWN) selected in the tree appear in the Device list. In the Device list, select the external LUs you want to map as internal XP LDEVs, right-click, and select Add LU (Auto).

  • Page 73: Displaying Detailed Information Stored In Vma (Vma Information)

    39). To view the VMA Information pane, select WWN in the Device tree, and select the external disk array’s port. Right-click the volume you want to display, and select VMA Information. For more information about items displayed in the VMA Information pane, see the HP StorageWorks LUN Security XP Extension user guide.

  • Page 74: Setting Alternate Paths For External Lus

    • Mode Mode the RAID Manager user assigns to the logical volume. • Zer: Zero Read Cap mode is assigned to the logical volume. • Inv: Invisible mode is assigned to the logical volume. • Zer/Inv: Zero Read Cap and Invisible mode are assigned to the logical volume. •...

  • Page 75: Path Setting Window

    The Path Setting window displays information about external disk arrays and the condition of paths set from the internal XP LDEV to the external LU. Defined paths Available paths Figure 40 Path Setting window • Vendor External disk array’s vendor. •...
  • Page 76 • Normal: Path is normal. • Unknown: Path status is unknown. • Blockade: Path is blocked. • External device setting changed: External disk array’s setting changed. For example, the path definition was deleted or the external disk array itself was replaced. •...

  • Page 77: Defining Alternate Paths

    If you select multiple external LUs in the Device list, click Previous to change the Alternate Path list to the external LU appearing just above the currently displayed LU. Click Next to change the Alternate Path list to the external LU appearing just below the currently displayed LU. •...

  • Page 78: Canceling Defined Alternate Paths

    In the Device tree, select the external LU group number. Information about the external LU mapped as an internal XP LDEV appears in the Device list. In the Device list, right-click the external LU, and select Path Setting. The Path Setting window (Figure 40) appears.

  • Page 79: Changing Alternate Paths

    Follow step 5 step 7 ”Defining alternate paths” on page 77. Changing alternate paths To change an alternate path, cancel the current alternate path, and then define another path as a new alternate path. Follow step 1 step 3 ”Defining alternate paths”...

  • Page 80: To Add Alternate Paths To Multiple External Lus At One Time

    WWNs that appear in this field are paths that will be added as ports that configure alternate paths. WWNs identify ports on the external disk array. This field is empty until you add paths from Unselected Paths. • Unselected Paths External disk array ports (WWNs) that can configure the path connecting with the local disk array port selected in the Port list.

  • Page 81: To Delete Alternate Paths For Multiple External Lus At One Time

    NOTE: Use the Delete Paths window to delete paths to multiple external LUs at one time. However, the deleted path settings might not be applied because of the current path setting of each volume. After you set the deletion in the Delete Paths window, check whether or not the new path settings can be applied in the Path Setting window for each external LU.

  • Page 82: Checking An External Lu's Status (Ldev Information)

    After mapping an external LU as a local disk array internal XP LDEV, the external LU is available for operations in External Storage XP, Flex Copy, and other HP StorageWorks products that support mapped external LUs. Use the LDEV Information window (Figure 44) to check the status of mapped external LUs.

  • Page 83: Restoring External Lus (Restore)

    External disk array’s product serial number. • Group External LU group and reference number of the external LU in the group. • Characteristic External LU’s identification number. • Device External LU’s device name. • Capacity External LU’s capacity. When you set an open-system emulation type for the mapped external LU, capacity is displayed in 512-byte blocks.

  • Page 84: Shortcut Menu Of The Ldev Information Window

    and executed the Check Paths & Restore Vol. command, execute the Restore command from the LDEV Information window. NOTE: If paths between the local disk array and external disk array are not restored, the external LU cannot be restored to a usable status, even though you execute the Restore command. NOTE: If you set a mainframe-system emulation type (such as 3390-3) when you mapped the external LU, and you restore the mapped LU without formatting the LU or performing the Write to Control Blocks...

  • Page 85: Displaying Configuration Information For External Lus (Volume Detail)

    Displaying configuration information for external LUs (Volume Detail) To display the Volume Detail window, right-click a row with an external LU from the LDEV list in the LDEV Information window, and select Volume Detail (Figure 45). If you select an external LU that is a LUSE volume in the LDEV list, the Volume Detail window displays a list of all LDEVs that make up the LUSE volume.

  • Page 86: Disconnecting External Lus Individually (Disconnect Volume)

    In the Device list, right-click the external disk array you want to disconnect from the local disk array, and select Disconnect Subsystem. Figure 46 Disconnect Subsystem and Check Paths & Restore Vol. Commands The selected external disk array appears in blue italics in the LU list and Device list, and appears in the Preset list.

  • Page 87: Checking The Connection Status And Resuming External Lu Operations (Check Paths & Restore Vol.)

    CAUTION: To access the external LU after executing the Disconnect Subsystem command, you must execute the Check Paths & Restore Vol. command. Checking the connection status and resuming external LU operations (Check Paths & Restore Vol.) When errors occur in the path between the local disk array and external disk array, and also in all alternate paths, the local disk array changes the external LU’s status to Blockade.

  • Page 88: Restoring External Lus (Ldev Restore)

    In the Device list, right-click the external LU, and select Check Paths & Restore Vol. NOTE: After executing the Check Paths & Restore Vol. command, click the Refresh button ( ) in the Command View XP or XP Remote Web Console main pane to update the information, and check the current progress status.

  • Page 89: Restoring Lus In A Mapped External Lu Individually

    Restoring LUs in a mapped external LU individually In LU Operation pane, select an external LU group number in the Device tree. Information about the external LUs in the selected external LU group appear in the Device list. In the Device list, right-click the external LU you want to restore, and select LDEV Restore. The selected external LU group number and external LU appear in blue italics in the Device tree and Device list.

  • Page 90: Changing An External Disk Array's Port Setting

    • If you select the external disk array’s WWN, connection information about the paths between the selected WWN and local disk array ports appear in the WWN list. In the WWN list, select the WWN for which you want to restore the path. •...

  • Page 91: Stopping The Use Of Paths To An External Lu By Specifying A Local Disk Array's Port (Disconnect Paths)

    In the WWN tree, select the product name of the connected external disk array identifying the external disk array’s port. The WWNs of all the ports that are connected to the local disk array and are used appear in the WWN list. In the WWN list, select the port for which you want to restore the path.

  • Page 92: Deleting External Lu Mappings (Delete Lu)

    Deleting external LU mappings (Delete LU) You can start deleting external LU mappings from the LU Operation pane. To delete the external LU mapping, select Delete LU from the shortcut menu displayed in the LU Operation pane. Although you can use the Delete LU command to delete the mapping between an internal XP LDEV and external LU, you cannot use this command to reliably delete data in the external LU or internal XP LDEV.

  • Page 93: Remote Command Devices

    Business Copy XP or Continuous Access XP pairs in the external disk array. For more information about RAID Manager and command devices, see the HP StorageWorks RAID Manager XP User’s Guide.

  • Page 94: Information Displayed In The Device Column For Remote Command Devices

    • TagmaStore™ Universal Storage Platform subsystem • TagmaStore™ Network Storage Controller subsystem • TagmaStore™ Adaptable Modular Storage subsystem • TagmaStore™ Workgroup Modular Storage subsystem • Lightning 9900V series subsystem • Thunder 9500V series subsystem • SANRISE Universal Storage Platform subsystem •...

  • Page 95: Mapping Command Devices As Remote Command Devices

    If you have a problem with the Command View XP computer or Command View XP or XP Remote Web Console software, see the HP StorageWorks Command View XP user guide for XP Disk Arrays or the HP StorageWorks XP Remote Web Console for XP12000/XP10000 for troubleshooting information.

  • Page 96: General External Storage Xp Troubleshooting

    For a problem with the local disk array’s Command View XP management station or Command View XP or XP Remote Web Console software, see the Troubleshooting chapter of the HP StorageWorks Command View XP user guide for XP Disk Arrays or the HP StorageWorks XP Remote Web Console user guide for XP12000/XP10000.
  • Page 97 LUs” on page 74). Unknown Status: The path status is unknown. Corrective action: The path status cannot be identified. Contact your HP account support representative. Blockade Status: The external port is blocked. Corrective action: The external port is blocked because of the microprogram or package replacement or some other factor.
  • Page 98 Check the external disk array’s setting and the condition of the connection to the external disk array (for example, cables or switches). If you cannot restore the path, contact your HP account support representative. Busy Status: The external disk array status is BUSY.
  • Page 99 Corrective action: Check the condition of the connection to the external disk array. If you cannot restore the path, contact your HP account support representative. Status: Internal error A program error occurred, or there is a logical contradiction.
  • Page 100 Check Paths & Restore Vol. than 10 minutes, but the command again. device’s status does not If the problem persists despite retrying, contact your HP account support change from Checking. representative. The Disconnect Subsystem or...

  • Page 101: Notes On Connecting External Disk Arrays

    Table 11 General External Storage XP troubleshooting (continued) Error Corrective action The message The device status is currently changing. Please wait for a while, and then check the device status again. When the transition of the device status completes normally, INTERVENTION REQUIRED is issued to the mainframe the device can be used immediately.

  • Page 102: Relationship Between Serial Numbers In The Device List On The Lu Operation Pane And Thunder 9500V Subsystem Models

    Table 12 System parameter settings (Thunder 9500V subsystems) (continued) Pane name Parameter Parameter setting Inquiry Setting Command Queuing Mode Set this parameter to ON. Vendor ID Keep this parameter as HITACHI (default), and do not change. Product ID Keep this parameter as DF600F (default), and do not change.

  • Page 103: Relationship Between The Wwn Of The Port On The Thunder 9500V Subsystem And The Controller

    Table 13 shows the relationship between serial numbers displayed in the Serial column and subsystem models. Table 13 Relationship between serial numbers and subsystem models (Thunder 9500V subsystems) Displayed serial number Model D600XXXX 9570V, 9520V D60JXXXX 9530V D60HXXXX 9580V, 9585V NOTE: In serial numbers, X is an arbitrary number or character.

  • Page 104: Path Status And Examples Of Recovery Procedures (Thunder 9500V Subsystems)

    ”Troubleshooting External Storage XP” on page 95 and this table to recover the path status. If you cannot restore the path, contact you HP account support representative. Table 15 Path status and examples of recovery procedures (Thunder 9500V subsystems)

  • Page 105: Connecting Tagmastore Ams And Tagmastore Wms Subsystems

    Connecting TagmaStore AMS and TagmaStore WMS subsystems System parameters for connecting TagmaStore AMS and TagmaStore WMS subsystems Table 16 explains whether to specify system parameters when making settings for ports on TagmaStore AMS and TagmaStore WMS subsystems. Table 16 System parameter settings (TagmaStore AMS and TagmaStore WMS subsystems) Pane name Parameters Parameter setting...

  • Page 106: Relationship Between Serial Numbers In The Device List On The Lu Operation Pane And Tagmastore Ams And Tagmastore Wms Subsystem Models

    Relationship between serial numbers in the Device list on the LU Operation pane and TagmaStore AMS and TagmaStore WMS subsystem models When the external disk array is a TagmaStore AMS or TagmaStore WMS subsystem, you can identify the subsystem model from the serial number displayed in the Serial column in the Device list on the LU Operation pane.

  • Page 107: Path Status And Examples Of Recovery Procedures (Tagmastore Ams And Tagmastore Wms Subsystems)

    ”Troubleshooting External Storage XP” on page 95 and this table to recover the path status. If you cannot restore the path, contact your HP account support representative. Table 19 Path status and examples of recovery procedures (TagmaStore AMS and TagmaStore WMS...

  • Page 108: Connecting Xp12000/Xp10000 Disk Arrays

    ”Troubleshooting External Storage XP” on page 95 and this table to recover the path status. If you cannot restore the path, contact your HP account support representative. Table 20 Path status and examples of recovery procedures (XP12000/XP10000 disk arrays)

  • Page 109: Connecting Xp1024/Xp128 Disk Arrays

    ”Troubleshooting External Storage XP” on page 95 and this table to recover the path status. If you cannot restore the path, contact your HP account support representative. Table 21 Path status and examples of recovery procedures (XP1024/XP128 disk arrays)

  • Page 110: Connecting Xp512/Xp48 Disk Arrays

    ”Troubleshooting External Storage XP” on page 95 and this table to recover the path status. If you cannot restore the path, contact your HP account support representative. Table 22 Path status and examples of recovery procedures (XP512/XP48 disk arrays)

  • Page 111: Connecting Eva Disk Arrays

    Table 22 Path status and examples of recovery procedures (XP512/XP48 disk arrays) (continued) Path status Examples of recovery procedures Illegal request The volume may have been set as a pair volume for data copy. Check if the volume is set as a pair volume for Business Copy XP, Continuous Access XP, or another copy program.

  • Page 112: Alternate Path's Behavior When An Eva Disk Array Is Connected

    Name found on the EVA disk array. You can identify the EVA disk array’s logical volume by this World Wide LUN Name. Figure 49 Configuration example for which logical volumes can only be identified by characteristic Alternate path’s behavior when an EVA disk array is connected When an EVA disk array is connected, the alternate path’s behavior differs depending on the EVA disk array’s microprogram version.

  • Page 113: Ldev Capacity

    base LDEV capacity, the external LU is divided into multiple LDEVs, each having the base LDEV capacity. Because the OPEN-V emulation type supports a maximum of 2TB of the volume, one LDEV is always created when the external LU is mapped. If you use the Volume Manager function, you can divide the mapped external LU into a maximum of 256 CVs.

  • Page 114: Calculating Lu Capacity (Open-3 Example)

    Figure 51 Calculating LU capacity (OPEN-3 example) Table 24 LDEV capacity information for each emulation type Emulation type Minimum data area Base data area Control information capacity (blocks) capacity (blocks) area capacity (blocks) 3380-3 72,000 4,808,160 10,080 3380-3A 72,000 4,808,160 10,080 3380-3B 72,000...

  • Page 115: Volume Capacity Information For Each Emulation Type

    Table 24 LDEV capacity information for each emulation type (continued) Emulation type Minimum data area Base data area Control information capacity (blocks) capacity (blocks) area capacity (blocks) 3390-LB 87,000 57,002,400 40,020 3390-LC 87,000 57,002,400 40,020 3390-M 87,000 114,004,800 92,220 3390-MA 87,000 114,004,800 92,220...

  • Page 116: Adjusting Volume Capacity For Copy Pair Setting

    CV with the same capacity as the mapped internal XP LDEV (B) out of the disk array volume (C) using Volume Manager. For more information, see the HP StorageWorks LUN Configuration and Security Manager XP user guide for the XP12000/XP10000.

  • Page 117: Copying Data To External Disk Arrays (Setting External Lus As S-Vols)

    NOTE: To create a Continuous Access XP pair with a volume of an XP1024/XP128 disk array, you might not be able to create a CV with the same capacity as the internal XP LDEV (B) because Volume Manager does not allow you to specify the capacity in blocks. In this case, you cannot create a Continuous Access XP pair.
  • Page 118 118 External Storage XP for the XP12000/XP10000...

  • Page 119: A Using Xp12000 Disk Arrays With Eva Gl Disk Arrays Attached As Subordinated External Storage Disk Arrays

    XP12000. This also allows for connecting hosts to the EVA that run software applications such as HP StorageWorks Command View EVA and System Insight Manager so the EVA can be managed in-band as well as monitoring its operational status. The XP12000 does not forward detailed SIM (status) messages the EVA generates during operation.

  • Page 120: Minimum Physical Configuration For Ha

    Minimum physical configuration for HA For highly available (HA) functionality to be possible, each EVA controller must be connected to the XP12000 so there is at least one fiber channel path from each XP12000 cluster to one of the separate EVA controllers through their respective fibre channel switch connections.

  • Page 121: Creating New Eva Host Objects For The Xp12000

    For the XP12000 to use LUs resident on the attached EVA, a host object must be defined for the XP12000. Use HP StorageWorks Command View EVA to create EVA host objects. Set Host name to a unique name representing the XP12000, and set Port WW Name to the world wide port name of a connected XP12000...

  • Page 122: Creating And Presenting Eva Vdisks

    external port. Additionally, set Host OS to Microsoft Windows for the XP12000 to use the EVA LUs correctly. Figure 56 illustrates this step. Figure 56 Creating EVA host objects After the host object is created, add the remaining XP12000 external ports by selecting the new host object, and clicking the Ports tab.

  • Page 123: Defining Xp12000 External Ports

    HP recommends defining Vdisk settings so the number of Vdisks presented to the XP is balanced between the two EVA controllers and across controller ports. Figure 58 Selecting Vdisk’s Preferred path/mode After EVA Vdisks are created, they can be assigned to the previously defined XP12000 host object;...

  • Page 124: Defining Xp12000 External Storage Ldevs

    Operation pane in External Storage, right-click on the desired ports, and select Change to External. Figure 60 illustrates this step. Figure 60 Defining XP12000 external ports After external ports are defined, EVA LUs presented to the XP12000 can be defined as XP external storage LDEVs.

  • Page 125: Selecting Eva Lus

    NOTE: You must select external storage LUs through the presenting controller. Failure to do so results in new external LDEVs being placed in a blockade state shortly after a host attempts to access them. Figure 61 Selecting EVA LUs After you select an external logical unit (LU), the Add LU pane appears. At this point, you can configure each individual external LU by choosing options such as the emulation type, the number of LDEVs (CVS is used), and the LU’s unique LDEV identifiers within the XP12000.

  • Page 126: Recommendations

    XP12000-attached host, see the HP StorageWorks Command View XP user guide for XP Disk Arrays or the HP StorageWorks XP Remote Web console user guide for XP12000/XP10000. Recommendations Performance considerations for using EVAs as external storage Unlike the MSA family of disk arrays, an EVA can be configured to perform I/O operations with both its controllers on separate EVA LUs simultaneously (Active/Passive capability).

  • Page 127: Troubleshooting

    Troubleshooting • Be careful to define an external storage LDEV presented to the XP12000 by the EVA from the EVA controller that is presently serving its associated LU in an active status. • If you attempt to define an LDEV from an LU via that LU’s passive controller, the resulting external storage LDEV is placed in a blockade state.
  • Page 128 128 Using XP12000 disk arrays with EVA GL disk arrays attached as subordinated external storage disk arrays...

  • Page 129: B Configuring Msa1000/1500 As External Disk Arrays

    Use Selective Storage Presentation to configure the MSA LUs involved with External Storage XP. Connecting MSA1000/1500 If you connect an HP StorageWorks Modular Smart Array (MSA) with two controllers as an external disk array (highly recommended), set the port’s host mode to Tru64 and use Selective Storage Presentation.

  • Page 130: Setting Up The Msa

    LUN security on the MSA using the ACU Selective Storage Presentation (SSP) functionality. Use the HP StorageWorks Array Configuration Utility (ACU) to configure the MSA for its role as an external array. ACU runs from a server attached to the MSA via a Fibre Channel path.

  • Page 131: Selective Storage Presentation

    presentation to the XP12000/XP10000. For example, suppose you want to create a 40 GB (40960 MB) LU on the MSA for use as XP12000/XP10000 external storage. If you request only the exact size needed, the ACU optimizes the LU to a size of 40959 MB, which is 1 MB smaller than needed. In this case, the optimization algorithm the ACU uses can be compensated for by specifying a size of 40963 MB, which results in the correct size of 40960 MB (40 GB).
  • Page 132 132 Configuring MSA1000/1500 as external disk arrays...

  • Page 133: Index

    Index Discovery operation, troubleshooting disk arrays. See external disk arrays; local disk arrays ACU (Array Configuration Utility) document ACU Selective Storage Presentation (SSP) conventions Add LU operation prerequisites Add LU window related documentation alternate paths adding to multiple external LUs canceling emulation types changing...
  • Page 134 using data in defined Volume Detail window port settings Volume Migration powering off writing data to system requirements External port setting LUN Security XP Extension external ports, defining LUs. See external LUs external storage LDEVs, defining mapping features Add LU command Filter button Add LU window firmware versions...
  • Page 135 SSP (Selective Storage Presentation) using status XP512/XP48 disk arrays, system parameters connection external LUs Subscriber’s choice, HP switching I/O execution paths to alternate paths symbols in text system parameters for external disk arrays system requirements TagmaStore AMS subsystems system parameters...
