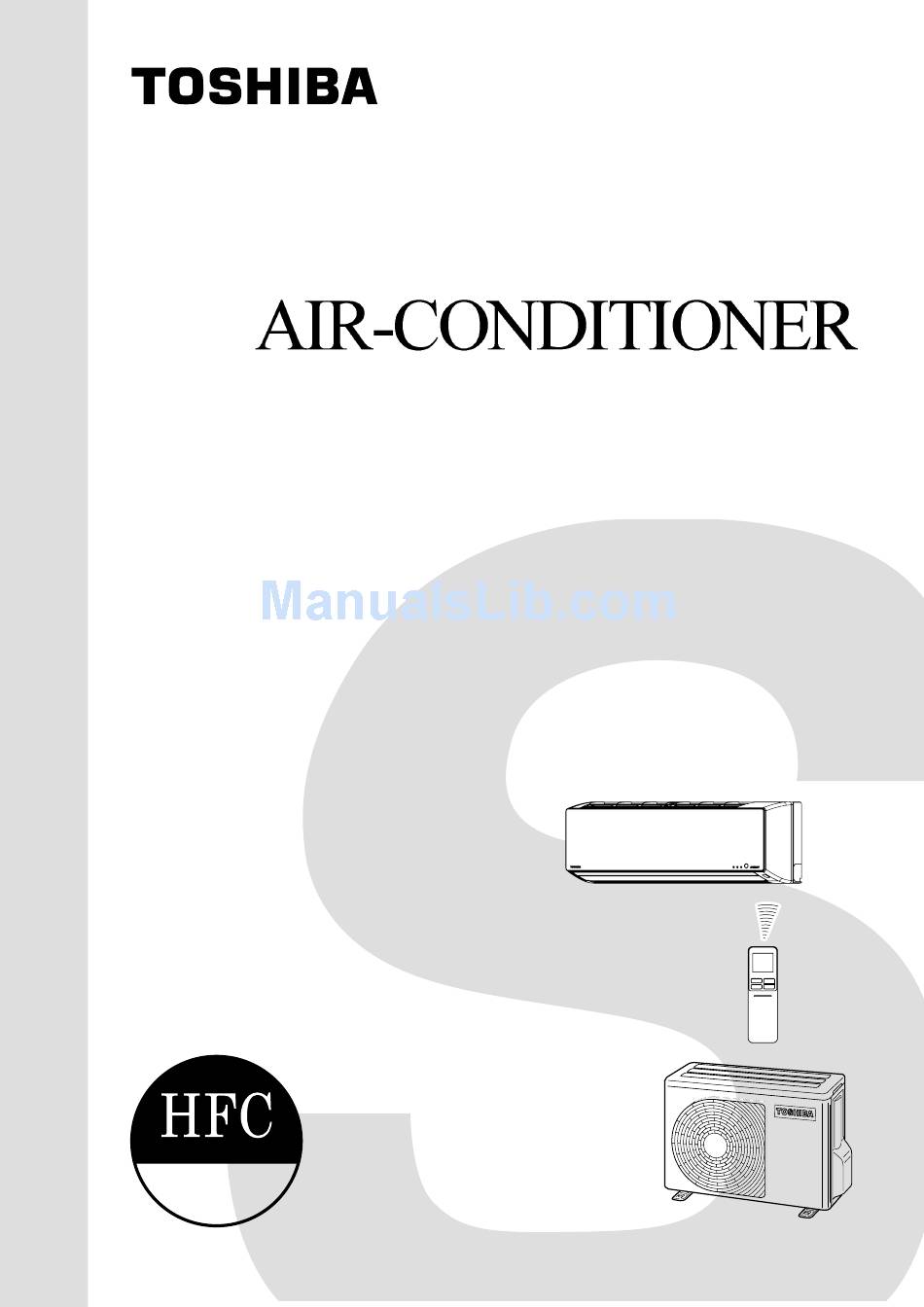

FILE NO. SVM-14017

SERVICE MANUAL

SPLIT TYPE
Indoor Unit
Outdoor Unit
<High Wall, Heat Pump Type>
<Heat Pump Type>
RAS-10G2KVP-E / RAS-10G2AVP-E
RAS-13G2KVP-E / RAS-13G2AVP-E
RAS-16G2KVP-E / RAS-16G2AVP-E
R410A
May, 2014

Advertisement

Table of Contents
loading

Related Manuals for Toshiba RAS-10G2KVP-E

Summary of Contents for Toshiba RAS-10G2KVP-E

  • Page 1: Service Manual

    FILE NO. SVM-14017 SERVICE MANUAL SPLIT TYPE Indoor Unit Outdoor Unit <High Wall, Heat Pump Type> <Heat Pump Type> RAS-10G2KVP-E / RAS-10G2AVP-E RAS-13G2KVP-E / RAS-13G2AVP-E RAS-16G2KVP-E / RAS-16G2AVP-E R410A May, 2014...

  • Page 2: Table Of Contents

    FILE NO. SVM-14017 CONTENTS 1. SAFETY PRECAUTIONS ................2 2. SPECIFICATIONS ..................5 3. REFRIGERANT R410A ................7 4. CONSTRUCTION VIEWS ................ 15 5. WIRING DIAGRAM .................. 17 6. SPECIFICATIONS OF ELECTRICAL PARTS ......... 18 7. REFRIGERANT CYCLE DIAGRAM ............19 8.

  • Page 3: Safety Precautions

    FILE NO. SVM-14017 1. SAFETY PRECAUTIONS Installing, staring up, and servicing air-conditioning equipment can be hazardous due to system pressures, electrical components, and equipment location (roofs, elevated structures, etc.). Only trained, qualified installers and service mechanics should install, start-up, and service this equipment. Untrained personnel can perform basic maintenance functions such as cleaning coils.
  • Page 4 FILE NO. SVM-14017 DANGER FOR USE BY QUALIFIED PERSONS ONLY. • • TURN OFF MAIN POWER SUPPLY BEFORE.ATTEMPTING ANY ELECTRICAL WORK. MAKE SURE ALL POWER SWITCHES ARE OFF. FAILURE TO DO SO MAY CAUSE ELECTRIC SHOCK. • CONNECT THE CONNECTING CABLE CORRECTLY. IF THE CONNECTING CABLE IS CONNECTED WRONGLY, ELECTRIC PARTS MAY BE DAMAGED.
  • Page 5 FILE NO. SVM-14017 CAUTION CAUTION • Exposure of unit to water or other moisture before installation could result in electric shock. Do not store it in a wet basement or expose to rain or water. • After unpacking the unit, examine it carefully for possible damage. Report any damages to your distributor. Do not install in a place that can increase the vibration of the unit.

  • Page 6: Specifications

    FILE NO. SVM-14017 2. SPECIFICATIONS 2-1. Specifications RAS-10G2KVP-E RAS-13G2KVP-E RAS-16G2KVP-E Unit model Indoor RAS-10G2AVP-E RAS-13G2AVP-E RAS-16G2AVP-E Outdoor Cooling capacity (kW) 2.50 3.50 4.50 Cooling capacity range (kW) 0.55-3.50 0.63-4.10 0.63-5.00 Heating capacity (kW) 3.20 4.00 5.50 Heating capacity range (kW) 0.45-5.80...

  • Page 7: Operation Characteristic Curve

    FILE NO. SVM-14017 2-2. Operation Characteristic Curve <Cooling> <Heating> RAS-16G2KVP-E RAS-16G2KVP-E RAS-13G2KVP-E RAS-13G2KVP-E RAS-10G2KVP-E RAS-10G2KVP-E Conditions Conditions Indoor : DB 27 C/WB 19 Indoor : DB 20 C/WB 15 Outdoor : DB 35 C/WB 24 Outdoor : DB 7 C/WB 6...

  • Page 8: Refrigerant R410A

    FILE NO. SVM-14017 3. REFRIGERANT R410A This air conditioner adopts the new refrigerant HFC 6. When an air conditioning system charged with a (R410A) which does not damage the ozone layer. large volume of refrigerant is installed in a small room, it is necessary to exercise care so that, The working pressure of the new refrigerant R410A even when refrigerant leaks, its concentration...
  • Page 9 FILE NO. SVM-14017 Table 3-2-1 Thicknesses of annealed copper pipes Thickness (mm) Nominal diameter Outer diameter (mm) R410A 6.35 0.80 0.80 9.52 0.80 0.80 12.70 0.80 0.80 15.88 1.00 1.00 2. Joints For copper pipes, flare joints or socket joints are used. Prior to use, be sure to remove all contaminants. a) Flare Joints Flare joints used to connect the copper pipes cannot be used for pipings whose outer diameter exceeds 20 mm.
  • Page 10 FILE NO. SVM-14017 d) Flare Processing Make certain that a clamp bar and copper pipe have been cleaned. ØD By means of the clamp bar, perform the flare processing correctly. Use either a flare tool for R410A or conven- tional flare tool. Flare processing dimensions differ according to the type of flare tool.
  • Page 11 FILE NO. SVM-14017 Table 3-2-6 Flare and flare nut dimensions for R22 Dimension (mm) Nominal Outer diameter Thickness Flare nut width diameter (mm) (mm) (mm) 6.35 9.52 13.0 13.5 12.70 16.2 16.0 12.9 15.88 19.7 19.0 16.0 19.05 23.3 24.0 19.2 Fig.

  • Page 12: Specifications

    FILE NO. SVM-14017 3-3. Tools 3-3-1. Required Tools The service port diameter of packed valve of the outdoor unit in the air-water heat pump using R410A is changed to prevent mixing of other refrigerant. To reinforce the pressure-resisting strength, flare processing dimensions and opposite side dimension of flare nut (For Ø12.7 copper pipe) of the refrigerant piping are lengthened.

  • Page 13: Recharging Of Refrigerant

    FILE NO. SVM-14017 3-4. Recharging of Refrigerant When it is necessary to recharge refrigerant, charge the specified amount of new refrigerant according to the following steps. Recover the refrigerant, and check no refrigerant remains in the equipment. When the compound gauge’s pointer has indicated –0.1 Mpa (–76 cmHg), place the handle Low in the fully closed position, and turn off the vacuum pump’s power switch.

  • Page 14: Brazing Of Pipes

    FILE NO. SVM-14017 1. Be sure to make setting so that liquid can be charged. 2. When using a cylinder equipped with a siphon, liquid can be charged without turning it upside down. It is necessary for charging refrigerant under condition of liquid because R410A is mixed type of refrigerant. Accordingly, when charging refrigerant from the refrigerant cylinder to the equipment, charge it turning the cylinder upside down if cylinder is not equipped with siphon.
  • Page 15 FILE NO. SVM-14017 2. Characteristics required for flux 3-5-3. Brazing • Activated temperature of flux coincides with the As brazing work requires sophisticated techniques, brazing temperature. experiences based upon a theoretical knowledge, it must be performed by a person qualified. •...

  • Page 16: Construction Views

    FILE NO. SVM-14017 4. CONSTRUCTION VIEWS 4-1. Indoor Unit Heat exchanger Plasma ion charger (Air purifier) Front panel Air filter Picoion generator Knock out system Knock out system 70.5 131.5 104.3 Wiress remote controller Drain hose (0.6m) Hanger Hanger Connecting pipe(0.62m) Connecting pipe(0.66m) Flare 6.35mm...

  • Page 17: Outdoor Unit

    FILE NO. SVM-14017 4-2. Outdoor Unit 6 hole R5.5 A detail drawing (Back leg) 6 hole 11x14 hole 25 Drain outlet 11x14 Hole (For 10 anchor bolt) B detail drawing (Front leg) FAN-GUARD COVER-PV View Z Electrical part Liquid side (Flare 6.35) Gas side...

  • Page 18: Wiring Diagram

    FILE NO. SVM-14017 5. WIRING DIAGRAM – –...

  • Page 19: Specifications Of Electrical Parts

    FILE NO. SVM-14017 6. SPECIFICATIONS OF ELECTRICAL PARTS 6-1. Indoor Unit Part s n ame Type Specif icat ions Fan motor (for indoor) MF-340-30-3 DC250~370, 30W Room temp. sensor (TA-sensor) ( - ) at 25°C Ω Heat exchanger temp. sensor (TC-sensor) 10kΩ...

  • Page 20: Refrigerant Cycle Diagram

    FILE NO. SVM-14017 7. REFRIGERANT CYCLE DIAGRAM 7-1. Refrigerant Cycle Diagram RAS-10G2KVP-E / RAS-10G2AVP-E Temp. measurement INDOOR UNIT Indoor heat exchanger Cross flow fan Max. : 25m : 2m Min. Pressure measurement Chargeless : 15m Deoxidized copper pipe Gauge attaching port Charge : 20g/m Outer dia.
  • Page 21 FILE NO. SVM-14017 RAS-13G2KVP-E / RAS-13G2AVP-E RAS-16G2KVP-E / RAS-16G2AVP-E Temp. measurement INDOOR UNIT Indoor heat exchanger Cross flow fan Max. : 25m : 2m Min. Pressure measurement Chargeless : 15m Deoxidized copper pipe Gauge attaching port Charge : 20g/m Outer dia. : 6.35mm Vacuum pump connecting port (16 to 25m) Thickness : 0.8mm...

  • Page 22: Operation Data

    FILE NO. SVM-14017 7-2. Operation Data <Cooling> Tempeature Model name Standard Heat exchanger Indoor Outdoor Compressor condition(°C) RAS- pressure pipe temp. fan mode fan mode revolution Indoor Outdoor P (MPa) T1 (°C) T2 (°C) (rps) 27/19 35/- 10G2KVP-E 1.0 to 1.2 13 to 15 40 to 42 High...

  • Page 23: Control Block Diagram

    FILE NO. SVM-14017 8. CONTROL BLOCK DIAGRAM 8-1. Indoor Unit Indoor Unit Control Unit M.C.U. Heat Exchanger Sensor (TCJ) Louver Functions Motor Heat Exchanger Sensor (TC) Cold draft preventing Function · Room Temperature Sensor (TA) · 3-minute Delay at Restart for Compressor Louver Motor Drive Control ·...
  • Page 24 FILE NO. SVM-14017 8-2. Outdoor Unit (Inverter Assembly) – –...

  • Page 25: Operation Description

    FILE NO. SVM-14017 9. OPERATION DESCRIPTION 9-1. Outline of Air Conditioner Control • Detection of inverter input current and current release operation This air conditioner is a capacity-variable type air • Over-current detection and prevention operation conditioner, which uses AC or DC motor for the indoor to IGBT module (Compressor stop function) for motor and the outdoor fan motor.
  • Page 26 FILE NO. SVM-14017 9-2. Operation Description 1. Basic operation ......................26 1. Operation control ....................26 2. Cooling/Heating operation ..................27 3. AUTO operation ..................... 28 4. DRY operation ......................28 2. Indoor fan motor control ..................... 29 3. Outdoor fan motor control ................... 31 4.

  • Page 27: Basic Operation

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 1. Basic 1. Operation control operation Receiving the user’s operation condition setup, the operation statuses of indoor/outdoor units are controlled. 1) The operation conditions are selected by the remote controller as shown in the below. 2) A signal is sent by ON button of the remote controller.

  • Page 28: Cooling/Heating Operation

    FILE NO. SVM-14017 Operation flow and applicable data, etc. Description Item 1. Basic 2. Cooling/Heating operation operation The operations are performed in the following parts by controls according to cooling/heating conditions. 1) Receiving the operation ON signal of the remote controller, the cooling or heating operation signal starts being transferred form the indoor controller to the outdoor unit.

  • Page 29: Auto Operation

    FILE NO. SVM-14017 Operation flow and applicable data, etc. Description Item 1) Detects the room temperature (Ta) when 1. Basic 3. AUTO operation the operation started. operation Selection of operation mode As shown in the following figure, the operation starts by 2) Selects an operation mode from Ta in selecting automatically the status of room temperature the left figure.

  • Page 30: Indoor Fan Motor Control

    *4 : Fan speed = (M + –L) x 2/4 + L +1.5 *5 : Fan speed = (M + –L) x 1/4 + L +1.0 +0.5 (Linear approximation L(W7) from M+ and L) (Table 1) Indoor fan air flow rate RAS-10G2KVP-E RAS-13G2KVP-E RAS-16G2KVP-E Fan speed Cooling Heating Cooling Heating Cooling...
  • Page 31 FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 2. Indoor fan <In heating operation> 1) When setting the fan speed to L, motor control L+, M, M+, H or Quiet on the remote controller, the operation is per- formed with the constant speed HEAT ON shown in Fig.

  • Page 32: Outdoor Fan Motor Control

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 3. Outdoor fan The blowing air volume at the outdoor unit side is controlled. 1) The operation command sent motor control from the remote controller is Receiving the operation command from the controller of processed by the indoor unit indoor unit, the controller of outdoor unit controls fan speed.

  • Page 33: Capacity Control

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 4. Capacity The cooling or heating capacity depending on the load is 1) The difference between set control adjusted. temperature on remote controller (Ts) and room temperature (Ta) According to difference between the setup value of tempera- is calculated.

  • Page 34: Release Protective Control By Temperature Of Indoor Heat Exchanger

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 6. Release protective <In cooling/dry operation> 1) When temperature of the indoor control by tempera- heat exchanger drops below 5°C, (Prevent-freezing control for indoor heat exchanger) ture of indoor heat the compressor speed is In cooling/dry operation, the sensor of indoor heat exchanger...

  • Page 35: Defrost Control (Only In Heating Operation)

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 7. Defrost control (This function removes frost adhered to the outdoor The necessity of defrost operation is (Only in heating heat exchanger.) detected by the outdoor heat exchanger operation) temperature.
  • Page 36 FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 7. Defrost control • On demand defrost <On demand defrost setting> (Only in heating In certain extreme condition, one can manually In AUTO or Heat mode, pass SET operation) defrost at any time by pressing button on the button and hold for 5 seconds.

  • Page 37: Louver Control

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 8. Louver control This function controls the air direction of the indoor unit. 1) Louver • The position is automatically controlled according to the operation position mode (COOL/HEAT). • The set louver position is stored in memory by the microcomputer, and the louver returns to the stored position when the next operation is performed.
  • Page 38 FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 8. Louver control 2) Louver position in heating operation Manual and automatic operation HI-POWER operation Initial setting is directs downward (43.1°) Default setting is directs downward (26.1°) Wide air direction Wide position is directs downward (43.1°) Wide-angle Right wide...
  • Page 39 FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 8. Louver control 2) Wind direction adjustment Horizotal blowing Inclined blowing • The Up-Down louver position can be arbitrarily set up by pressing [FIX ] button. • The Left-Right louver position can be arbitrarily set up by pressing [FIX...

  • Page 40: Eco Operation

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 9. ECO <Cooling operation> When pressing [ECO] button on the remote controller, a operation Economic operation is performed. 1) The control target temperature <Cooling operation> increase 0.5ºC per hour up to 2ºC This function operates the air conditioner with the difference starting from the set temperature between the set and the room temperature as shown in the...

  • Page 41: Temporary Operation

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 10. Temporary Pressing [RESET] button starts the temporary opera- 1) When pressing [RESET] button, the operation tion of [AUTO] operation. When keeping [RESET] temporary [AUTO] operation starts. button pressed for 10 seconds or more, the temporary 2) When keeping [RESET] button pressed [COOL] operation is performed.

  • Page 42: Discharge Temperature Control

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 1. Purpose 11. Plasma ionizer purifier control [Detection of abnormality] The air purifying control function is to alert the user to trouble in the ionizing or Plasma ionizer purifier operation plasma ionixer purifier operation.

  • Page 43: High Pressure Control

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 13. High pressure control 1. Purpose This function detects error on the refrigerating cycle or error on the com- Cooling Heating pressor, and performs protective control. Control operation (TE) (TC) 2.

  • Page 44: Self-Cleaning Function

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 15. Self-Cleaning 1. Purpose function The Self-Cleaning operation is to minimize the growth of mold, bacteria etc. by running the fan and drying so as to keep the inside of the air conditioner clean. Unit now performing cooling or dry operation Self-Cleaning operation When the cooling or dry operation shuts...

  • Page 45: Remote-A Or B Selection

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 15. Self-Cleaning function 15-1-1. Self-Cleaning diagram Operation display FCU fan rpm is depend on presetting. (500RPM) OPEN (12.7º) FCU louver OPEN CLOSE ON or OFF ON or OFF Timer display depend on presetting of timer function.

  • Page 46: Quiet Mode

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 16. Remote-A or B Setting the remote controller 1. Purpose selection This operation is to operate only one To separate using of remote control for each indoor unit in case of 2 air conditioner are installed nearly. indoor unit using one remote controller.

  • Page 47: Short Timer

    FILE NO. SVM-14017 Item Operation flow and applicable data, etc. Description 19. Short Timer In the normal condition, after switching one circuit Purpose breaker, 3-minute delay time for compressor and To start the unit immediately for the purpose of 1 hour for plasma air purifier are set for the testing, trial...etc, short timer can be used.

  • Page 48: Power Selection Mode

    <Maximum number of revolution of compressor at normal time and Quiet control time> RAS-10G2KVP-E RAS-13G2KVP-E RAS-16G2KVP-E Outside temp. Normail time Ouiet controlled Normail time Ouiet controlled Normail time Ouiet controlled...

  • Page 49: F Cu Display Lamp Rightness Control

    FILE NO. SVM-14017 Item Operation flow and applicable data,etc Description 23. FCU Display lamp brighness control Purpose It is necessary to decrease the display lamp brightness or turn it LAMP BRIGHTNESS ADJUSTMENT off. While operating (Auto, Cool, Heat or Dry), select Rise Press to adjust brightness which can be set at 4 levels or...

  • Page 50: O Peration Mode Setecable

    FILE NO. SVM-14017 Item Operation flow and applicable data,etc Description Operating system setting 24. Operation Purpose mode Choosing the operating system as setectable appropriate in real condition Operation Factory default setting prefer J804 "Heat pump" system. Through it is able to cooling only system heating only system or return to factory default.

  • Page 51: Auto Restart Function

    FILE NO. SVM-14017 9-3. Auto Restart Function This indoor unit is equipped with an automatic restarting function which allows the unit to restart operating with the set operating conditions in the event of a power supply being accidentally shut down. The operation will resume without warning three minutes after power is restored.

  • Page 52: How To Cancel The Auto Restart Function

    FILE NO. SVM-14017 9-3-2. How to Cancel the Auto Restart Function To cancel Auto Restart Function, proceed as follows. 1. The power supply to the unit must be ON ; The function will not set or reset if the power supply is OFF. 2.

  • Page 53: Parts Name Of Remote Contr Oller

    FILE NO. SVM-14017 9-4. Remote control 9-4-1. Remote control and its functions I nfrared signal emitter Memory and preset button (PRESET) Start/Stop button Temperature up/down and Timer or clock up/down button (TEMP.) Mode select button (MODE) Swing louver button (SWING) Fan speed button (FAN) Wide air flow, spot air flow (AIR FLOW) Set louver button for vertical direction (FIX )
  • Page 54 FILE NO. SVM-14017 How to set WEEKLY TIMER Press to enter WEEKLY TIMER setting. Blink PRESET TEMP. Press to select desired day in sequence. The sequence of day symbol appears on the LCD WEEKLY SUMO TUWETHFRSA (All day) Press to select the program number. •...
  • Page 55 FILE NO. SVM-14017 Press to select desired operation. Press to select desired temperature. TEMP. • The temperature can be set between 17°C and 30°C. Press to select the desired fan speed. Add operations, if required. • Press to use 8°C operation. •...
  • Page 56 FILE NO. SVM-14017 Edit Weekly timer program To edit the program after conflrming the weekly timer setting Page 21 , follow steps on below. Press • The day of the week and the program number of the current day will be displayed. Press to select the day of the week and press to select program number to be confirmed.
  • Page 57 FILE NO. SVM-14017 To delete programs The individual program Press • • The day of the week and the program number is displayed. Select the day to delete the program. Press to select the program number to be deleted. PRESET TEMP.
  • Page 58 FILE NO. SVM-14017 2. AUTOMATIC OPERATION To automatically select cooling, heating, or fan only operation. 1. Press Press : Sele 2. Press Press : Select the desired tempera , HIGH 3. Press Press : Select AUTO, LOW , LOW+ , MED , MED+ or Quiet 3.
  • Page 59 FILE NO. SVM-14017 9. AIR VOLUME, AIR DIRECTION AND SWING LOUVERS • Changing the air volume, press FAN button • Changing the air direction, press FIX button When changing the air to the When changing the air to the vertical direction, release the horizontal position, release left side at the desired position.
  • Page 60 FILE NO. SVM-14017 10. COMFORT AIR FLOW • Wide air flow : Air flows around the room. • Spot air flow : Air flow is concentrated at one point. While operating (Auto, Cool, Heat, Dry and these modes with PURE), Select •...
  • Page 61 FILE NO. SVM-14017 13. QUIET OPERATION To operate at ultra low fan speed for quiet operation (except in DRY mode) [Fan] Button : Start and stop the operation. Press Note: Under certain conditions, QUIET operation may not provide adequate cooling or heating due to low sound features. 14.

  • Page 62: Name And Functions Of Indications On Remote Controller

    FILE NO. SVM-14017 9-4-3. Name and Functions of Indications on Remote Controller [Display] All indications, except for the clock time indicator, are displayed by pressing the button. Transmission mark TIMER and weekly timer indicator This transmission mark indicates when the The time setting for timer operation and weekly remote controller transmits signals to the indoor timer function is indicated.

  • Page 63: Installation Procedure

    FILE NO. SVM-14017 10. INSTALLATION PROCEDURE 10-1. Installation Diagram of Indoor and Outdoor Units Hook Installation For the rear left and left piping plate Wall Insert the cushion between the indoor unit and wall, and tilt the indoor unit for Bush body better operation.
  • Page 64 FILE NO. SVM-14017 10-2. Installation 10-2-1. Optional installation parts Part Parts name Q'ty Code Refrigerant piping Liquid side : ∅6.35 mm each ∅ Gas side 9.52 mm (10,13k Series) ∅ 12.70 mm (16k Series) Pipe insulating material (polyethylene foam, 6 mm thick) Putty, PVC tapes each Fixing bolt arrangement of outdoor unit...
  • Page 65 FILE NO. SVM-14017 10-2-2. Accessory and installation parts Part Part Part Part name (Q’ty) Part name (Q’ty) Part name (Q’ty) Drain nipple* x 1 Installation plate x 1 Remote control holder x 1 Wireless remote control x 1 Mounting screw ∅4 x 25 s x 6 Cap water proof * x 2 Flat head wood screw ∅3.1 x 16 s x 2...

  • Page 66: Installation/Servicing Tools

    FILE NO. SVM-14017 10-2-3. Installation/Servicing Tools Changes in the product and components In the case of an air conditioner using R410A, in order to prevent any other refrigerant from being charged accidentally, the service port diameter of the outdoor unit control valve (3 way valve) has been changed. (1/2 UNF 20 threads per inch) •...

  • Page 67: Installation Place

    FILE NO. SVM-14017 10-3. Indoor Unit 10-3-2. Cutting a Hole and Mounting Installation Plate 10-3-1. Installation Place • A place which provides the spaces around the Cutting a hole indoor unit as shown in the diagram. When installing the refrigerant pipes from the rear. •...
  • Page 68 FILE NO. SVM-14017 When the installation plate is directly 10-3-3. Piping and Drain Hose Installation mounted on the wall Piping and drain hose forming 1. Securely fit the installation plate onto the wall by screwing it in the upper and lower parts to hook •...
  • Page 69 FILE NO. SVM-14017 How to remove the drain hose CAUTION • The drain hose can be removed by removing the Firmly insert the drain hose and drain cap; screw securing the drain hose and then pulling out otherwise, water may leak. the drain hose.
  • Page 70 FILE NO. SVM-14017 Bend the connecting pipe within a radius of 30 mm. 10-3-4. Indoor Unit Fixing To connect the pipe after installation of the unit 1. Pass the pipe through the hole in the wall and hook (figure) the indoor unit on the installation plate at the upper To connect the pipe after installation of the unit hook.
  • Page 71 FILE NO. SVM-14017 10-3-6. Drainage CAUTION 1. Run the drain hose sloped downwards. Arrange the drain pipe for proper drainage from NOTE : the unit. Improper drainage can result in dew-dropping. • The hole should be made a slight downward slant on the outdoor side.
  • Page 72 FILE NO. SVM-14017 10-4. Outdoor Unit Precautions for adding refrigerant 10-4-1. Installation Place • Use a scale having a precision with at least 10 g per index line when adding the refrigerant. • A place which provides enough space around the outdoor unit as shown in the diagram.
  • Page 73 FILE NO. SVM-14017 10-4-3. Draining the Water 10-4-4. Refrigerant Piping Connection • Holes are provided on the base plate of the Flaring outdoor unit to ensure that the defrost water produced during heating operations is drained off 1. Cut the pipe with a pipe cutter. efficiently.
  • Page 74 FILE NO. SVM-14017 10-4-5. Evacuating Tightening Connection After the piping has been connected to the indoor Align the centers of the connecting pipes and tighten unit, perform the air purge. the flare nut as much as possible with your fingers. Then tighten the nut with a wrench and torque AIR PURGE wrench as shown in the figure.
  • Page 75 FILE NO. SVM-14017 CAUTION • KEEP IMPORTANT 5 POINTS FOR PIPING WORK (1) Take away dust and moisture (Inside of the connecting pipes.) (2) Tight the connection (between pipes and unit) (3) Evacuate the air in the connecting pipes using a VACUUM PUMP.

  • Page 76: Wiring Connection

    FILE NO. SVM-14017 10-5. Electrical works The power supply can be selected to connect to indoor unit or outdoor unit. Choose proper way and connect the power supply and connecting cable by follow the instruction as following. Model RAS-10,13,16G2KVP Series 50Hz, 220-240V Single phase Power source 60Hz, 220-230V Single phase...
  • Page 77 FILE NO. SVM-14017 10-5-2. Power Supply and Connecting Cable Connection Power Supply Input at Indoor Unit Terminal Block (Recommend) Indoor Unit Outdoor Unit Power supply cable Connecting cable connect to Stripping length of the terminal block (1, 2, 3, power supply cable Earth line 100 mm 10 mm...

  • Page 78: Power Supply Input Wiring Diagram

    FILE NO. SVM-14017 10-5-3. Power Supply input Wiring Diagram Power supply input at Indoor unit Terminal Block (Recommend) Indoor Terminal Block Power supply input Outdoor Terminal Block Power supply input at Outdoor unit Terminal Block (Optional) Indoor Terminal Block Outdoor Terminal Block Power supply input...
  • Page 79 FILE NO. SVM-14017 10-6. Others Note : Repeat above step to reset Remote Control to be A. 10-6-1. Gas leak test 2. Remote Control A has not “A” display. 3. Default setting of Remote Control from Check places for indoor unit (Flarenut factory is A.

  • Page 80: How To Diagnose The Trouble

    FILE NO. SVM-14017 11. HOW TO DIAGNOSE THE TROUBLE The pulse motor circuits are mounted to both indoor and outdoor units. Therefore, diagnose troubles according to the trouble diagnosis procedure as described below. (Refer to the check points in servicing written on the wiring diagrams attached to the indoor/outdoor units.) Table 11-1 Troubleshooting Procedure First Confirmation...
  • Page 81 FILE NO. SVM-14017 CAUTION A high voltage (equivalent to the supply voltage) is also energized to ground through the sensors, PMV and other low-voltage circuits. The sensor leads and other wires are covered with insulated tubes for protection. Nevertheless, care must be taken to ensure that these wires are not pinched.
  • Page 82 FILE NO. SVM-14017 11-1. First Confirmation 11-1-1. Confirmation of Power Supply Confirm that the power breaker operates (ON) normally. 11-1-2. Confirmation of Power Voltage Confirm that power voltage is AC 220–230–240 ± 10%. If power voltage is not in this range, the unit may not operate normally. 11-1-3.

  • Page 83: Primary Judgment

    FILE NO. SVM-14017 11-2. Primary Judgment To diagnose the troubles, use the following methods. 1) Judgment by flashing LED of indoor unit 2) Self-diagnosis by service check remote controller 3) Judgment of trouble by every symptom Firstly use the method 1) for diagnosis. Then, use the method 2) or 3) to diagnose the details of troubles. 11-3.
  • Page 84 FILE NO. SVM-14017 11-4. Self-Dia gnosis by Remote Controller (Check Code) 1. If the lamps are indicated as shown B to E in Table 11-4-1, execute the self-diagnosis by the remote controller. 2. When the remote controller is set to the service mode, the indoor controller diagnoses the operation condition and indicates the information of the self-diagnosis on the display of the remote controller with the check codes.
  • Page 85 FILE NO. SVM-14017 11-4-2 Caution at Servicing 1. After using the service mode of remote controller finished, press the [ ] button to reset the remote controller to normal function. 2. After finished the diagnosis by the remote controller, turn OFF power supply and turn its ON again to reset the air conditioner to normal operation.
  • Page 86 FILE NO. SVM-14017 Block distinction Operation of diagnosis function Action and Judgment Check Check Display flashing Block Cause of operation conditioner code code error status Serial signal 1) Defective wiring of the Indoor unit Flashes when 1) to 3) The outdoor unit never and connecting connecting cable or operates...
  • Page 87 FILE NO. SVM-14017 Block distinction Operation of diagnosis function Action and Judgment Check Check Display flashing Block Cause of operation conditioner code code error status Outdoor P.C. Current on inverter circuit All OFF Flashes after 1. Remove connecting lead wire of the board is over limit in short time.
  • Page 88 FILE NO. SVM-14017 Block distinction Operation of diagnosis function Action and Judgment Check Check Display flashing Block Cause of operation conditioner code code error status Compressor drive output error. All OFF Flashes after 1. Check installation conditions such as (Relation of voltage, current error is detected packed valve opening, refrigerant and frequency is abnormal)
  • Page 89 FILE NO. SVM-14017 Block distinction Operation of diagnosis function Action and Judgment Check Check Display Block Cause of operation conditioner code code flashing error status Compressor does not rotate. All OFF Flashes after 1. Remove connecting lead wire of the Because of missed wiring, error is detected compressor, and operate again.

  • Page 90: Judgement Of Trouble By Every Symptom

    FILE NO. SVM-14017 11-5. Judgement of Trouble by Every Symptom 11-5-1. Indoor unit (Including remote controller) Operation (1) Indoor unit is not operated. Check Item Considerable principle cause Turn off power supply once, and Measures 5 second later, turn it on again. Item by symptoms Is OPERATION indicator flashing? Is it possible to turn on...
  • Page 91 FILE NO. SVM-14017 (3) Only the indoor motor fan does not operate <Primary check> 1. Is it possible to detect the power supply voltage (AC220–240V) between on the terminal block? 2. Does the indoor fan motor operate in cooling operation? (In heating operation, the indoor fan motor does not operate for approximately 10 minutes after it is turned on, to prevent a cold air from blowing in.) Turn off power...
  • Page 92 FILE NO. SVM-14017 Is it possible to Does check display Replace change airflow level remote on remote show high? to “HIGH”? Change the new PC Replace board. Does fan speed motor change? Fan motor operates normally. Is it possible to Does check cross-flow Replace bearing rotate cross-flow fan by...
  • Page 93 FILE NO. SVM-14017 (4) Indoor fan motor automatically starts to rotate by turning on power supply <Cause> The IC is built in the indoor fan motor. Therefore the P.C. board is also mounted to inside of the motor. If the P .C. board is soldered imperfectly or the IC is defective, the fan motor may automatically rotate by turning on power supply.
  • Page 94 FILE NO. SVM-14017 (5) Troubleshooting for remote controller <Primary check> Check that A or B selected on the main unit is matched with A or B selected on the remote controller. There is no beep from the indoor unit Push the [ ] button.
  • Page 95 FILE NO. SVM-14017 11-5-2. Wiring Failure (Interconnecting and Serial Signal Wire) (1) Outdoor unit does not operate 1) Is the voltage between of the indoor terminal block varied? Confirm that transmission from indoor unit to outdoor unit is correctly performed based upon the follow- ing diagram.
  • Page 96 FILE NO. SVM-14017 11-6. Check Code 1C (Miswiring in indoor/outdoor units) and 1E <Check procedure> Gas leakage, Discharge temp. error, disconnection of TS/TC gas leakage sensors (Check code 02, 1C) (Check code 03, 1E) Valve drive check Is coil of the pulse motor valve Set it correctly.

  • Page 97: How To Diagnose Trouble In Outdoor Unit

    FILE NO. SVM-14017 11-7. How to Diagnose Trouble in Outdoor Unit • Connect discharge Check Power Supply resistance (approx. 100Ω, (Voltage Rate ±10%) 40W) or soldering iron (plug) between +, – terminals of the electrolytic capacitor (760µF) Turn OFF power of C10 (with printed supply.
  • Page 98 FILE NO. SVM-14017 Does outdoor fan operate normally? Turn OFF power supply. Does compresser operate normally? Remove connector CN300 of outdoor fan motor. Check winding resistance by ohmmeter are correct? Compressor Check rotor locking by rotate is normal with hand. Can it rotate? Turn OFF power supply.
  • Page 99 FILE NO. SVM-14017 11-8. Trou bleshooting 11-8-1. How to Check Whether the Air Purifier and Minus Ion Gerneration are Good or NG Turn off the power breaker once, and turn on again after 10 seconds. To item “Power supply is not turned on” Does the OPERATION indicator flash? Turn off the power breaker and remove CN401 (Micro switch connector).
  • Page 100 FILE NO. SVM-14017 11-9. How to Check Simply the Main Parts (2) Inspection procedures 1) When a P.C. board is judged to be defective, 11-9-1. How to check the P.C. board (Indoor unit) check for disconnection, burning, or discolora- tion of the copper foil pattern or this P.C. board. (1) Operating precautions 2) The P.C.
  • Page 101 FILE NO. SVM-14017 11-9-2. P .C . Board Layout +15V +12V [1] Sensor characteristic table TD : Discharge temp. sensor TA : Room temp. sensor TC and TCJ : Heat exchanger temp. sensor TO : Outdoor temp. sensor TA,TC,TCJ,TO,TE,TS TE : Outdoor heat exchanger temp. sensor TS : Suction temp.
  • Page 102 FILE NO. SVM-14017 11-9-3. Indoor Unit (Other Parts) Part name Checking procedure Room temp. (TA) sensor Disconnect the connector and measure the resistance value with tester. Heat exchanger (TC,TCJ) (Normal temp.) sensor Temperature 10°C 20°C 25°C 30°C 40°C Sensor TA, TC, TCJ (kΩ) 20.7 12.6 10.0...
  • Page 103 FILE NO. SVM-14017 11-9-5. Checking Method for Each Part Part name Checking procedure Electrolytic capacitor 1. Turn OFF the power supply breaker. (For boost, smoothing) 2. Discharge all two capacitors completely. 3. Check that safety valve at the bottom of capacitor is not broken. 4.

  • Page 104: How To Simply Judge Whether Outdoor Fan Motor Is Good Or Bad

    FILE NO. SVM-14017 11-10. How to Simply Judge Whether Outdoor Fan Motor is Good or Bad 1. Symptom • Outdoor fan motor does not rotate. • Outdoor fan motor stops within several tens seconds though it started rotating. • Outdoor fan motor rotates or does not rotate according to the position where the fan stopped, etc. Remote controller check code “02 : Outdoor block, 1A : Outdoor fan drive system error”...

  • Page 105: How To Replace The Main Parts

    FILE NO. SVM-14017 12. HOW TO REPLACE THE MAIN PARTS WARNING • Since high voltages pass through the electrical parts, turn off the power without fail before proceeding with the repairs. Electric shocks may occur if the power plug is not disconnected. •...
  • Page 106 FILE NO. SVM-14017 Part name Work procedure Remarks BUSH-BODY(R) 1) Push the bottom of part and slide to the BUSH-BODY(R) BUSH-BODY(L) right side. BUSH-BODY(L) 1) Push the bottom of part and slide to the left side. <Point to note during re-assemble The claw of Front panel must be lower ASM-FRAME Front panel>...
  • Page 107 FILE NO. SVM-14017 Part name Work procedure Remarks Electric parts 7) Disconnect the connector of High voltage box assembly. fan-motor, louver-motor and high voltage generator connector generator. motor Louver connector Fan motor 8) Pull out TCJ sensor from sensor holder of the evaporator.
  • Page 108 FILE NO. SVM-14017 Part name Work procedure Remarks Frame 1) Follow to the procedure 2) Remove the fixing screws (5 pcs.) 2 Screws Screws 3) Remove screw of earth lead on plate earth. Earth screw 4) Take off 5 hooks from rear side then remove Frame assembly.
  • Page 109 FILE NO. SVM-14017 Part name Work procedure Remarks Plasma-ion 1) Follow to the procedure in the item 5 Screws charger, High 2) Remove 5 screws and remove the ion- volt generator charger assembly from the frame. 3) Remove the Plasma-ion charger from the High volt generator assembly.
  • Page 110 FILE NO. SVM-14017 Part name Work procedure Remarks Evaporator 1) Follow the procedure in item (Heat exchanger) 2) Remove 2 fixing screws at the left side of the end plate of the heat exchanger. Fixing screw 3) Remove 2 fixing screws on the right side of heat exchanger.
  • Page 111 FILE NO. SVM-14017 Part name Work procedure Remarks Fan motor 1) Follow the procedure 2) Remove 3 fixing screws, then remove Cover motor assembly. Fixing screw 3) Loosen the set screws of the transverse fan from the vent. Set screw 4) Remove 2 screws from the Motor- band (right) 5) Pull the motor band(right) and the Fan-...
  • Page 112 FILE NO. SVM-14017 Part name Work procedure Remarks 1) Follow to the procedure in the item Bearing Base bearing assembly 2) Remove 2 fixing screws from the Base bearing assembly, then remove Base bearing assembly from the main unit. <Caution at assembling> - If the bearing is out from the housing, Fixing screw push it into the specified position and then...
  • Page 113 FILE NO. SVM-14017 Part name Work procedure Remarks Cross flow fan <Caution at reassemblying> 1) To incorporate the Fan-motor incorporate Fan motor D Double point set the Motor into the position in the following shaft screw figure, and then install the Fan-motor - Install the cross flow fan so that the right end of the 1st joint from the right of the Cross flow fan is set keeping 5.0mm...
  • Page 114 FILE NO. SVM-14017 12-3. Outdoor Unit Part name Procedure Remarks  Common 1. Detachment procedure Upper cabinet NOTE Wear gloves for this job. Otherwise, you may injure your hands on the parts, etc. Waterproof cover 1) Stop operation of the air conditioner, and turn off the main switch of the breaker for air conditioner.
  • Page 115 FILE NO. SVM-14017 Part name Procedure Remarks ‚ Front cabinet 1. Detachment  1) Perform step 1 in 2) Remove the fixing screws (ST1TØ4 × 10L 2 pcs.) used to secure the front cabinet and inverter cover, the screws (ST1TØ4 ×...
  • Page 116 FILE NO. SVM-14017 Part name Procedure Remarks  ƒ Inverter 1) Perform work of item 1 in Inverter cover assembly 2) Remove screw (ST1TØ4 × 10L 2 pcs.) of the P.C. board upper part of the front cabinet. (Soldered surface) •...
  • Page 117 FILE NO. SVM-14017 Part name Procedure Remarks „ Control board 1. Disconnect the leads and connectors connected to assembly the other parts from the control board assembly. 1) Leads • 3 leads (black, white, orange) connected to terminal block. • Lead connected to compressor : Disconnect the connector (3P).
  • Page 118 FILE NO. SVM-14017 Part name Procedure Remarks … Side cabinet 1. Side cabinet (right) ‚ 1) Perform step 1 in and all the steps in ƒ 2) Remove the fixing screw (ST1TØ4 × 10L 3 pcs.) used for securing the side cabinet to the bottom plate and valve fixing panel.
  • Page 119 FILE NO. SVM-14017 Part name Procedure Remarks  ‚ ƒ „ ‡ Compressor 1) Perform work of item 1 of … 2) Extract refrigerant gas. 3) Remove the partition board. (ST1TØ4 × 10L 4 pcs.) 4) Remove the sound-insulation material. 5) Remove terminal cover of the compressor, and disconnect lead wire of the compressor from the terminal.
  • Page 120 FILE NO. SVM-14017 Part name Procedure Remarks ‰ Electronic 1. Detachment expansion valve ‚ ƒ 1) Perform step 1 in , all the steps in coil … and 1 in 2) Remove the coil by pull it upward. 2. Attachment 1) Insert a valve coil to value body by push it downward.
  • Page 121 FILE NO. SVM-14017 Part name Procedure Remarks TE sensor (outdoor heat exchanging temperature sensor) • Attachment Install the sensor onto the straight pipe part of the condenser output pipe. Arrow D Sensor lead Straight part Detail C Detail B Detail C Detail A TS sensor (Suction pipe temperature sensor) •...
  • Page 122 FILE NO. SVM-14017 Part name Procedure Remarks Replacement of 1) Cut the sensor 100 mm longer than old temperature sensor one. Cutting here Thermal for servicing only Connector sensor part 2) Cut the protective tube after pulling out it (200 mm). Common service 3) Move the protective tube toward the Cutting here...

  • Page 123: Exploded Views And Parts List

    FILE NO. SVM-14016 13. EXPLODED VIEWS AND PARTS LIST 13-1. Indoor Unit Location Part Location Part Description Description 43T00649 ASM-PANEL(R)-S 43039406 ASM-COV-MOTOR 43T00650 ASM-PANEL(L)-S 43T11331 PIPE-SHIELD 43005871 ASM-PANEL(AOLT) 43049799 HOLDER-PIPE 43T09505 ASM-AINL 43T62352 ASM-COVER-CONN 43T03394 ASM-BUSH-BODY(R) 43066040 HOLDER-REMOCON 43T03395 ASM-BUSH-BODY(L) 43T66342 WIRESS-REMOCO 4301V130...
  • Page 124 Part Location Part Description Description 43T50324 TEMPERATURE SENSOR 43T6V473 PC BOARD (RAS-13G2KVP-E) 43T50320 TEMPERATURE SENSOR 43T6V474 PC BOARD (RAS-16G2KVP-E) 43T50355 TEMPERATURE SENSOR 43T60378 TERMINAL 43T62340 CORD-CLAMP 43T60417 TERMINAL 43T6V469 PC BOARD ASSY;WRS-LED 43T60416 TERMINAL 43T6V472 PC BOARD (RAS-10G2KVP-E) – –...
  • Page 125 FILE NO. SVM-14017 13-3. Outdoor Unit 30 HOLDER SENSOR (TE) ; For PIPE OD 6.35 mm. 31 HOLDER SENSOR (TD) ; For PIPE OD 8.00 mm. 32 HOLDER SENSOR (TS) ; For PIPE OD 9.52 mm. Location Part Location Part Description Description 43T00559 FRONT CABINET...
  • Page 126 FILE NO. SVM-14017 13-4. P.C. Board Layout TE Sensor (∅6) TS Sensor (∅6) TO Sensor (∅6) TD Sensor (∅4) Location Part Location Part Description Description 43T62353 HEATSINK 43T60326 FUSE 43T6V466 PC BOARD (RAS-10G2AVP-E) 43T50334 TEMPERATURE SENSOR 43T6V467 PC BOARD (RAS-13G2AVP-E) 43T50304 SENSOR;HEAT EXCHANGER 43T6V468 PC BOARD (RAS-16G2AVP-E) 43T62313 BASE-PLATE-PC...
  • Page 127 FILE NO. SVM-03005 TOSHIBA CARRIER (THAILAND) CO.,LTD. – 56 –...
