- Page 1 Operating and installation instructions Built-in coffee machine for connection to mains water supply CVA 5065 en - GB To avoid the risk of accidents or damage to the appliance, it is essential to read these instructions before it is installed and used for the first time.
-
Page 2: Table Of Contents
Contents Caring for the environment ......... . 5 Guide to the machine . - Page 3 Miele|home.........
- Page 4 Contents Cleaning and care ..........48 Chart .
-
Page 5: Caring For The Environment
Caring for the environment Disposal of the packing Disposal of your old machine material Electrical and electronic machines often contain materials which, if The transport and protective packing handled or disposed of incorrectly, has been selected from materials which could be potentially hazardous to are environmentally friendly for human health and to the environment. -
Page 6: Guide To The Machine

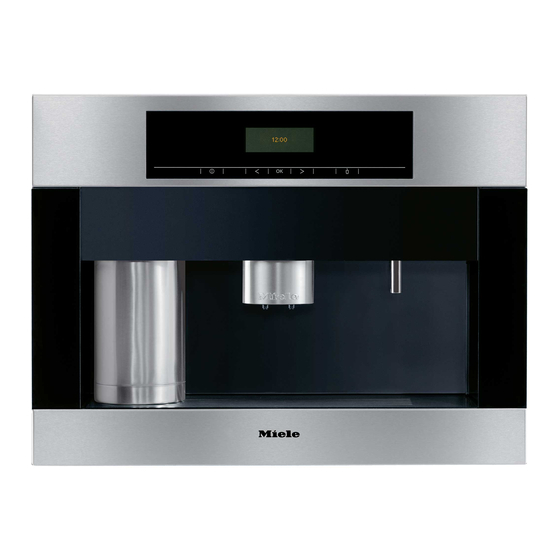

Guide to the machine Exterior view a On/Off sensor for switching the coffee machine on and off b Display c Left arrow, for scrolling through the various programme options d OK sensor, for confirming the selection of a programme option and for saving a setting e Right arrow, for scrolling through the various programme options f Sensor for selecting hot water... -
Page 7: Interior View
Guide to the machine Interior view a Master switch b Ground coffee chute cover c Ground coffee chute d Slide control to select fineness of ground coffee e Coffee bean container f Drip tray with grid for easier carrying g Water container with inlet device h Brew unit i Waste container j Central spout connector (connecting the brew unit and the central coffee spout) -
Page 8: Accessories Supplied
Accessories supplied Stainless steel milk flask For storing and keeping milk cold, with lid (with handle) and additional cap (not suitable for cleaning in a dishwasher) Containers Large and small containers for cleaning and rinsing the milk pipework Coffee spoon For adding the correct amount of ground coffee Cleaning powder For daily cleaning of the milk pipework... -
Page 9: Optional Accessories
Optional accessories Miele accessories and cleaning and conditioning products are available for your coffee machine. These can be ordered via the internet at www.miele-shop.com, from the Miele Spare Parts Department or from your Miele Dealer. Stainless steel milk flask with cap... -
Page 10: Warning And Safety Instructions
Warning and Safety instructions Safety with children This machine conforms with all Keep children away from the relevant legal safety requirements. machine at all times. It is not a toy! To Improper use can, however, lead to avoid the risk of injury do not allow personal injury and damage to children to play on or near it or to play property. - Page 11 (e.g. during holidays). only be used for connecting a Miele Installation work and repairs may EGW 4000-14, EGW 4000-29 or EGW only be carried out by suitably qualified 5000-14 plate warmer.
-
Page 12: Correct Use
(except when it is combined with coffee bean container. It must never be a Miele built-in plate warming drawer). filled with ground coffee as this could In areas which may be subject to damage the grinder. - Page 13 Sugar additives will adhere to the milk pipework and damage the machine. Only use the descaling tablets supplied by Miele and follow the Sugar can damage the coffee instructions on the packet carefully. machine. Only use pure coffee beans.
-
Page 14: Functions
Functions This machine can be used to prepare If two cups of coffee or espresso are espresso, coffee, cappuccino, latte required at the same time, the OK macchiato, milk froth, hot milk and sensor has to be touched twice briefly. hot water. - Page 15 Functions To ensure that the flavour can develop fully and be maintained for longer the machine has an additional function to automatically rinse and pre-warm the system when the machine is cold. This automatic rinsing function is also used to flush coffee remains out of the system and the central spout after use.
-
Page 16: Using The Coffee Machine - First Steps
Using the coffee machine - first steps G Maintenance programme for milk The following notes should help you get to know your coffee machine before pipework, brew unit, descaling, starting to use it. rinsing Settings: Customising your Controls machine This machine has sensor controls which ^ The arrow sensors are used to select react to touch. -
Page 17: Switching Off
Using the coffee machine - first steps When you use the machine for the very If everything has been entered first time, you will be prompted to correctly, Set up successful will select a language. appear in the display. ^ Use the right or left arrow until the ^ Confirm this message by touching language you want appears in the the OK sensor. -
Page 18: Filling The Water And Coffee Bean Containers
Filling the water and coffee bean containers The coffee machine must be cleaned thoroughly (see "Cleaning and care") before you fill it with water and coffee beans. It is vital that you programme in the water hardness level of your water (see "Settings: Customising your machine - Setting the water ^ Pull the water container forwards to... -
Page 19: Filling The Coffee Bean Container
Filling the water and coffee bean containers Filling the coffee bean container Only put roasted espresso or coffee beans in the container. Anything else, including ground coffee, will damage the grinder. Do not use coffee beans which have been treated with caramel, sugar or other substances. -
Page 20: Making Drinks
Making drinks Pre-warming cups Important: the water piping must be The cups should always be rinsed through every day and the pre-warmed to allow the flavour to machine cleaned thoroughly before develop and be retained. The aroma of the first drink of the day is prepared. espresso does not react well to cold. -
Page 21: Adjusting The Height Of The Central Spout
Making drinks Adjusting the height of the central spout The height of the central spout can be adjusted to suit the height of the cup so that the drink will not cool down as quickly as it would if the spout were further away from the cup. -
Page 22: Double Portion
Making drinks Making espresso and coffee Double portion using ready ground coffee If you want to dispense a double portion of coffee or espresso or to Adding ground coffee dispense two portions at the same time: If you want to make espresso or coffee ^ touch the OK sensor twice whilst using ready ground coffee, you can "2 portions?"... -
Page 23: To Make A Drink
Making drinks Drinks with milk If you have not added any ground coffee, you must select "No". Otherwise the Stainless steel milk flask machine will assume that there is The stainless steel milk flask is vacuum ground coffee in the chute, and only insulated to keep the milk cold for a water will be dispensed the next time period of time. -
Page 24: Cappuccino, Latte Macchiato, Hot Milk, Milk Froth
Making drinks To make drinks with milk, Cappuccino, latte macchiato, hot milk, milk froth ^ Place a suitable cup or glass under both jets. For best results with latte macchiato, the glass should be placed beneath the jets such that the espresso flows into the centre of the milk froth. -
Page 25: User Profile Drinks
Making drinks User profile drinks After use The User profile function is used to Before switching the machine off for select the quantity of water and milk for any length of time, the pipework, brew your drink, as well as the fineness of the system, spouts and milk pipework need ground, temperature and pre-brewing to be cleaned (see "Cleaning and care:... -
Page 26: Setting The Coffee Grinder
Setting the coffee grinder A good espresso or coffee with a thick, The crema is evenly coloured but even crema depends not only on the pale quality, pressure and temperature of The beans have been ground too the water and the quality of the coffee coarsely. -
Page 27: Settings: Customising Your Machine
Settings: Customising your machine It is easy to customise your machine to Timer: Here, you can set or activate the suit your exact requirements. Timer. The following options are available in the "Set" menu: Settings menu – Switch on at: The machine can be set to switch on at a specific time of To select the various programme day. -
Page 28: Selecting A Language
Settings: Customising your machine Selecting a language Water hardness: Soft, Medium, Hard, Very hard If you want to change the language Display: Contrast, Brightness used in the display, use the Settings menu and follow the flag symbol. Volume: Buzzer tones, Keypad tone ^ Select "Settings F"... -
Page 29: Setting The Time Of Day
Settings: Customising your machine Setting the time of day Clock format ^ Select "Settings F" from the main ^ Use the arrow sensors to select menu, and then touch the OK sensor. "Clock format". ^ Use the right arrow to select a 24 h or Settings 12 h clock. -
Page 30: Setting The Timer
Settings: Customising your machine Setting the timer If Automatic rinsing is set to "On", the ^ Select "Settings F" from the main machine will automatically carry out menu, and then touch the OK sensor. a brief rinse when it switches itself Settings If the System lock is activated, the Timer... - Page 31 Settings: Customising your machine ^ First set the hour with one of the Activate arrow sensors. Touch the OK sensor. ^ Select "Activate" with the arrow ^ Then use the arrow sensors to set the sensors and touch the OK sensor. minutes.
-
Page 32: Coffee Jug (Making Several Cups One After The Other)
Settings: Customising your machine Coffee jug (making several Setting the amount of coffee cups one after the other) Both the flavour and the crema on the coffee depend on the quantity of This function can be used to make up ground coffee used. -
Page 33: Setting Pre-Brewing
Settings: Customising your machine Setting the temperature ^ Use the arrow sensor to select the drink that you wish to set the amount Different temperature ranges can be of coffee for and then touch the OK selected to take account of making sensor. -
Page 34: Setting Automatic Rinsing
Settings: Customising your machine Setting Automatic rinsing Setting the Steam system To remove any coffee grounds and The machine has two heating systems. residual milk from the system, the water The Steam system enables milk froth or piping must be rinsed through before hot milk, and coffee or espresso to be the first drink of the day is prepared. -
Page 35: Lighting: Setting The Brightness
Settings: Customising your machine Lighting: Setting the Lighting: Setting the switch-off brightness time You can set how bright the lighting The machine lights up when switched should be on the machine: on. It switches off automatically after 15 minutes of inactivity to save energy. ^ Select "Settings F"... -
Page 36: Info (Showing The Number Of Drinks)
Settings: Customising your machine Info (showing the number of Safety (Activating the System drinks) lock) The "Info" option enables you to check The machine can be locked to ensure how many drinks the machine has that it is not operated by unsupervised already dispensed or how many you children or persons who are can still dispense before it has to be... -
Page 37: To Override The System Lock
Settings: Customising your machine To override the System lock ^ Touch the OK sensor for about 3 seconds. The machine is now temporarily unlocked and can be used to make drinks again. It locks itself as soon as the machine is switched off. Setting the water hardness ^ Dip the strip in your drinking water for For trouble-free operation of the coffee... -
Page 38: Setting The Display
Settings: Customising your machine ^ Touch one of the arrow sensors to set – Very hard: Local water hardness levels 3-4 the contrast lower or higher or the 14-21 °d (2.5-3.8 mmol/l) or more brightness lighter or darker. Water through-flow: approx. 40 l ^ Touch the OK sensor to save the Steam through-flow: approx. -
Page 39: Activating The Plate Warmer
Settings: Customising your machine Activating the plate warmer You can connect a Miele EGW 4000-14, You can switch the plate warmer on -29 or an EGW 5000-14 to the coffee and off manually whenever you want, machine using a special connection independently of the coffee machine. -
Page 40: Setting The Plumbed In Water Supply
Settings: Customising your machine Setting the plumbed in water Resetting the factory default supply settings The machine is designed to be The "factory default" setting is used to plumbed into the mains drinking water reset the various settings back to the supply. -
Page 41: Miele|Home
(both set to "Off") – Time of day display (On for 60 Miele|home seconds), With Miele|home, the coffee machine Clock format (24 h), becomes communication-enabled and Timer - Switch on at (12:00), can be monitored or operated via a pc Timer - Switch off after (1:00), or mobile phone. -
Page 42: Programming The Amount: Setting The Portion Sizes
Programming the amount: setting the portion sizes Programming the amount of The flavour of the coffee produced depends on the type of coffee, how espresso, coffee, hot milk and finely the beans are ground and the milk froth via the OK sensor quantity of water used. - Page 43 Programming the amount: setting the portion sizes Programming the proportions ^ Once sufficient has flown into the cup or glass and "Save" shows in the for cappuccino or latte display, press the OK sensor to save macchiato via the OK sensor the amount.
-
Page 44: Sensor
Programming the amount: setting the portion sizes Programming the amount for Programming the amount via hot water via the Hot water "Settings" sensor ^ Select "Settings F" from the main menu, and then touch the OK sensor. ^ Place the appropriate cup for the amount you want to programme Settings under the hot water spout. -
Page 45: Setting Up User Profiles
Setting up User profiles To cater for different tastes and The following options only appear if you preferences, you can enter up to 9 have already entered a new User individual User profiles. For each User profile in addition to the Standard User profile, you can select the following profile: individual settings:... -
Page 46: Creating A User Profile
Setting up User profiles Creating a User profile Saving an entry ^ Use the arrow sensors to highlight ^ When you have finished making your "Create", and then touch the OK entry, use the arrow sensors to sensor. highlight the word "OK" and then touch the OK sensor. -
Page 47: Deleting A User Profile
Setting up User profiles Deleting a User profile After each use If you want to delete the User profile The machine will automatically revert to completely, the Standard User profile each time a drink is dispensed. ^ Select "Delete User profile" using the ^ Select "After each use"... -
Page 48: Cleaning And Care
Cleaning and care Chart Time interval What do I have to do? Each time milk is used to make a Rinse milk pipework drink, if more than one hour has passed since the last drink was made Rinse the system (pipework) Clean the milk pipework (with cleaning agent) Clean the stainless steel milk flask and lid Every day... -
Page 49: Rinse The System
Cleaning and care Rinse the system Always allow the machine to cool Before switching the machine off for down before cleaning. Please be any length of time, the pipework, brew aware that the water in the drip tray system and central spout need to be will be hot. -
Page 50: Milk Pipework
Cleaning and care Milk pipework Clean milk pipework To prevent milk going off in the Rinse milk pipework machine and the pipework getting clogged up it should be cleaned at the To prevent milk going off in the machine and the pipework getting end of each day using the cleaning clogged up, it should be rinsed through agent supplied. -
Page 51: Stainless Steel Milk Flask
^ If the milk pipework in the lid is clogged, use the cleaning brush to clean it under running water. It is important to use the Miele Insert the brush in the pipework and cleaning agent as it has been move it back and forth as far as it will developed for this coffee machine. -
Page 52: Central Spout
Cleaning and care Central spout ^ Remove the two rubber stoppers, and manually clean these and the ^ Pull the central spout down as far as jets thoroughly. it will go (a), and pull the cover ^ Replace the stoppers. forwards to remove it (b). -
Page 53: Water Container
Cleaning and care Water container Waste container Empty the water container daily and - if After a certain period of time a reminder you are not using the plumbed in water to empty the waste container will supply - fill with fresh, cold tap water appear in the display. -
Page 54: Drip Tray
Cleaning and care Drip tray There is a sensor in the drip tray which causes a message to appear in the display when the drip tray is full and needs to be emptied. Remove the tray and empty and clean it when this message appears. -
Page 55: Coffee Bean Container
Cleaning and care Coffee bean container Interior and machine door ^ First take out all removable parts and The coffee bean container must be then clean the interior and the cleaned by hand with hot water and machine door with a mild solution of a little washing-up liquid. -
Page 56: Brew Unit
Cleaning and care Brew unit Leave the handle in the same The brew unit must be cleaned once position, otherwise the brew unit will a week by hand without using be out of alignment and you will not washing-up liquid, because the be able to push it back into the moving parts are lubricated and the coffee machine. -
Page 57: Degreasing The Brew Unit
Miele Dealer or from the Miele Spare Parts Department. To remind you to degrease the brew unit, the message "Please run the cleaning programme"... -
Page 58: Machine Front
Remove any soiling immediately. ^ Switch the machine off with the On/Off button. ^ Clean the front using a damp Miele microfibre E-cloth or with a clean ^ remove the coffee chute cover and sponge and a solution of hot water open the lid of the coffee chute. - Page 59 Cleaning and care Avoid the following on all types of front: – cleaning agents containing soda, amonia, acids or chlorides, – solvent-based cleaning agents, – cleaning agents containing descaling agents, – stainless steel cleaning agents, – dishwasher cleaner, – abrasive cleaning agents, e.g. powder cleaners and cream cleaners, –...
-
Page 60: Descaling The Machine
No. of Miele Spare Parts Department or via portions until descaling: 50. the internet at www.miele-shop.com. The remaining number of drinks that... -
Page 61: To Run The Descaling Programme
Descaling the machine To run the descaling To dissolve the descaling tablets programme ^ take the water container out and fill it to the k mark with lukewarm water. (Do not use less water than this Maintenance because this would cause the descaling programme to finish before ^ Touch the right arrow sensor until it has been completed properly). - Page 62 Descaling the machine Programme finished will appear in the display. Follow the instructions given. The machine will then run a short rinsing cycle. Plumbed in machines will automatically revert to using the plumbed in water supply if set up to do so before the descaling programme was run.
-
Page 63: Problem Solving Guide
^ Check that the fuse is not defective dangerous. The manufacturer and that the mains fuse has not cannot be held liable for tripped. If it has, contact the Miele unauthorised work. Service Department. Various messages will appear in the display to warn of certain problems. - Page 64 ^ Try to improve this by adjusting the ^ If the bean container is not empty display contrast or brightness (see "Settings: customising your machine - call the Miele Service Department. If Setting the display"). it is empty fill the container with fresh beans.
- Page 65 Problem solving guide . . . the espresso is not hot enough..the machine door will not close. ^ Have the cups and system been ^ Are the containers in position pre-warmed? correctly? The smaller and thicker the cup, the ^ It might be necessary to adjust the more important it is to pre-warm it.
- Page 66 If the slide control for the grinder is set to too coarse a setting, too much ^ If this fault message continues to residual "coffee water" can be left in the appear, please call the Miele Service waste container. Department. ^ Set the grinder on a slightly finer setting (see "Setting the coffee...
- Page 67 Problem solving guide . . . the descaling programme was . . . the brew unit or the waste started by mistake. container cannot be pulled out of the machine. The descaling programme cannot be cancelled once you have touched the The brew unit is not in the correct OK sensor.
- Page 68 If neither is the case setting will not move. and the fault message still appears in ^ Close the machine door and the display, call the Miele Service dispense a cup of espresso coffee. Department. The grinder setting slide control will .
- Page 69 If there is too much appear in the display, please call the ground coffee, the machine is unable to Miele Service department, quoting the process it so that it can be emptied into fault code. the waste container, and a fault message appears in the display.
- Page 70 Problem solving guide . . . you can hear "gurgling" or "rushing water" noises. ^ The water container is being filled automatically with water..it is difficult to open or close the door of the machine. ^ Align the door using the hinges (see "Installation - Adjusting the door hinges").
-
Page 71: After Sales Service
After sales service In the event of a fault which you cannot correct yourself, please contact: – your Miele Dealer – the Miele Service Department (see back cover for address). When contacting your Dealer or the Service Department, please quote the model and serial number of your machine. -
Page 72: Plumbed In Water Supply
Plumbed in water supply Notes on connecting to the – The stainless steel hose is 1.5 m long. The hose may not be mains water supply lengthened as too much water would then remain in the hose, adversely Connection to the mains water affecting the quality of the coffee. -
Page 73: Connection To The Water Inlet
Plumbed in water supply Connection to the water inlet The connection point is subject to Before making plumbing mains water pressure. Turn on the connections, ensure the appliance is stopcock slowly and check for leaks. disconnected from the mains Correct the position of the seal and electricity supply. -
Page 74: Electrical Connection U.k., Za, Irl
Electrical connection U.K., ZA, IRL All electrical work should be carried out Non-rewireable plugs BS 1363 by a suitably qualified and competent The fuse cover must be refitted when person only, in strict accordance with changing the fuse, and if the fuse cover current national and local safety is lost, the plug must not be used until a regulations (BS 7671 in the UK). -
Page 75: Installation
The appliance is designed to be built into a tall unit. It can also be combined with other Miele built-in appliances. If the coffee machine is to be built in above another appliance, there must be a full-width, closed shelf between them (except when it is combined with a Miele built-in plate warming drawer). -
Page 76: Installation
Installation ^ If the furniture unit walls are 19 mm Installation thick you will need to drill four holes Before installation make sure that in the sides for securing the machine. there is no power supply to the To mark the position of these holes: machine. -
Page 77: Adjusting The Door Hinges
Installation Adjusting the door hinges If the machine door becomes difficult to open or close after installation you can adjust the hinges to realign it: ^ To adjust the door in direction a, turn screw a. ^ To adjust the door forwards or backwards (direction b), turn screw... - Page 80 Alteration rights reserved / 2809 M.-Nr. 07 611 520 / 01 CVA 5065...
