Summary of Contents for Airflow LA VERNE

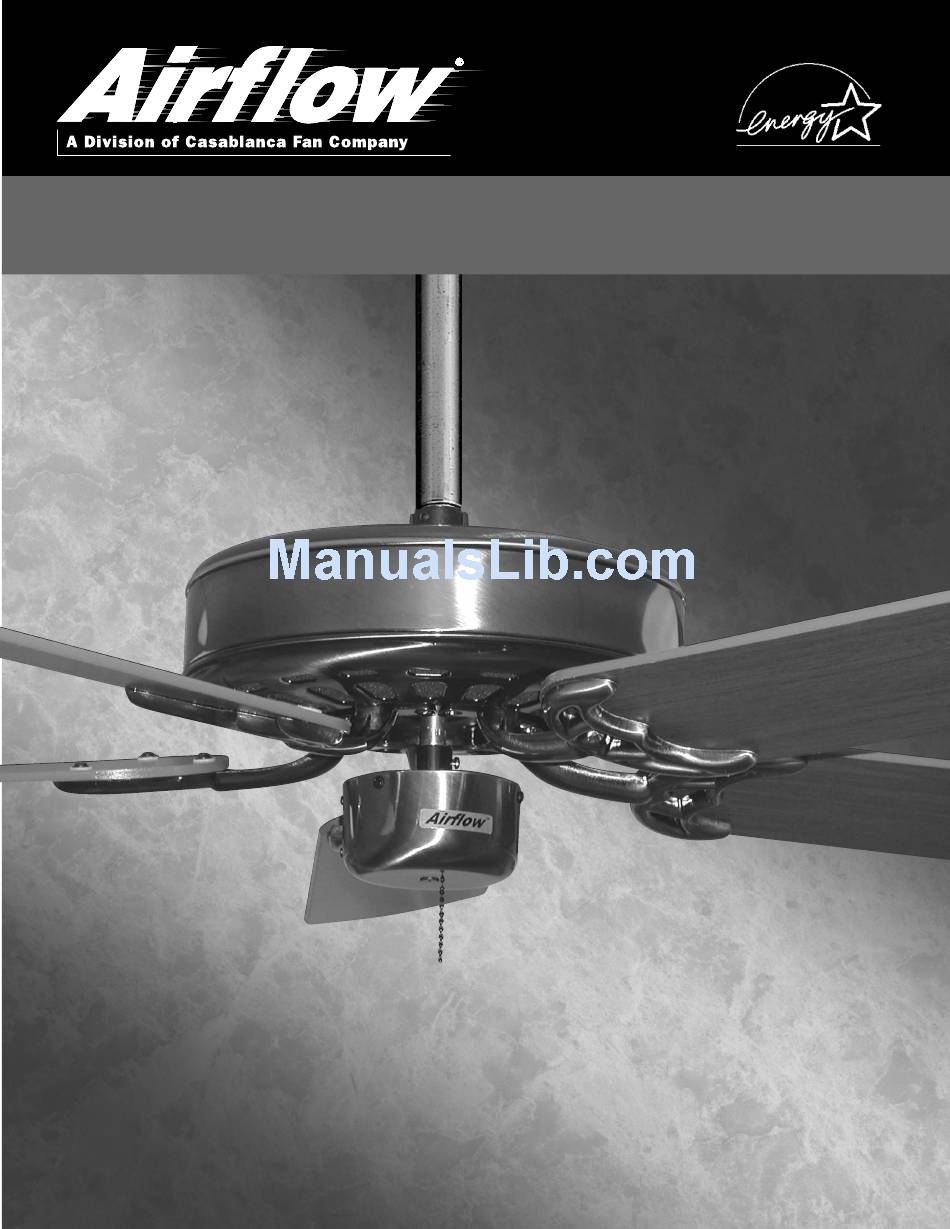

- Page 1 ’ ENERAL WNER ANUAL ’ UILDER HOICE ERNE OSTA ONTAINE RISA NERGY UALIFIED...
-
Page 2: Table Of Contents
• This fan is designed to be installed on an existing electrical outlet box. The outlet box must be UL Listed for ceiling fan installations, if it is not, a new box must be installed. Airflow extension poles are available for sloped or high ceiling installations. -
Page 3: Mounting Recommendations
MOUNTING RECOMMENDATIONS Before mounting your Airflow fan, read the following helpful recommendations. The location of the fan, air circulation, and fan size are all important factors to consider before installation. Location Ceiling fans have practical uses in almost every room in your home. We suggest you follow these mounting recommendations as you decide where to install your Airflow fan. -
Page 4: Preparation Instructions
CAUTION: When removing the shrink wrap, Be sure to only use genuine Airflow blades. The blade shrink be careful not to scratch the blades. wrap holds 5 blades of matched weight. If more than one fan is being installed, be sure not to mix blade sets. -
Page 5: Fan Preparation
SWITCH HOUSING INSTALLATION Step 3. Position the switch housing assembly on the switch housing plate and align the holes in the switch housing with the holes in the plate. Secure the switch housing assembly by reinstalling the three screws removed in the previous step. MOUNTING SCREW CAUTION! Do not pinch wires between the switch... -
Page 6: Fan Installation (Usa)
MOUNTING BRACKET INSTALLATION Proceed with installation as follows: CEILING FAN Step 7. Attach the bracket to the ceiling fixture outlet APPROVED box with the mounting hardware included with the outlet OUTLET BOX box. Tighten the screws firmly by hand only, being careful not to bend the bracket by over tightening. -
Page 7: Canopy Hatch Installation
CANOPY HATCH INSTALLATION Step 10. Tuck the wires into the outlet box with the wire nuts pointed upwards, so that the WHITE and BLACK wires are on opposite sides of the outlet box and all wires are clear of the bracket opening. CANOPY Step 11. -
Page 8: Control Features: 3-Speed Operations
BADGE STYLE BLADE HOLDER & BLADE BLADE SCREW Step 14b. Badge Style (4 PER BLADE) Attach the blades to the blade FLAT WASHER holders by first pressing the blade (4 PER BLADE) badge into the blade, then install- ing the blade holder using the four blade screws and flat wash- BADGE STYLE ers provided for each blade. -
Page 9: Troubleshooting
Never Lubricate this Fan! should be used to prevent scratching the finish. A vacuum cleaner The precision motor at the heart of your Airflow fan features sealed brush nozzle can remove heavier dust. Surface smudges or an accu- bearings that are lubricated for life. Do not attempt to oil the mo- mulation of dirt and dust can easily be removed by using a mild tor. - Page 11 6764 *Measured according to the ENERGY STAR®-approved Solid State test method. Ceiling fan airflow is measured in cubic feet per minute (CFM). Power use is measured in watts. To maximize energy savings, • Choose a fan with high airflow efficiency (CFM/watt).
- Page 12 761 C • P , CA 91768 ORPORATE ENTER RIVE OMONA : 888-227-2178 ©C 2002 C • U.S. P OPYRIGHT ASABLANCA OMPANY ATENT ENDING RINTED IN...
