QuickSpecs

Overview

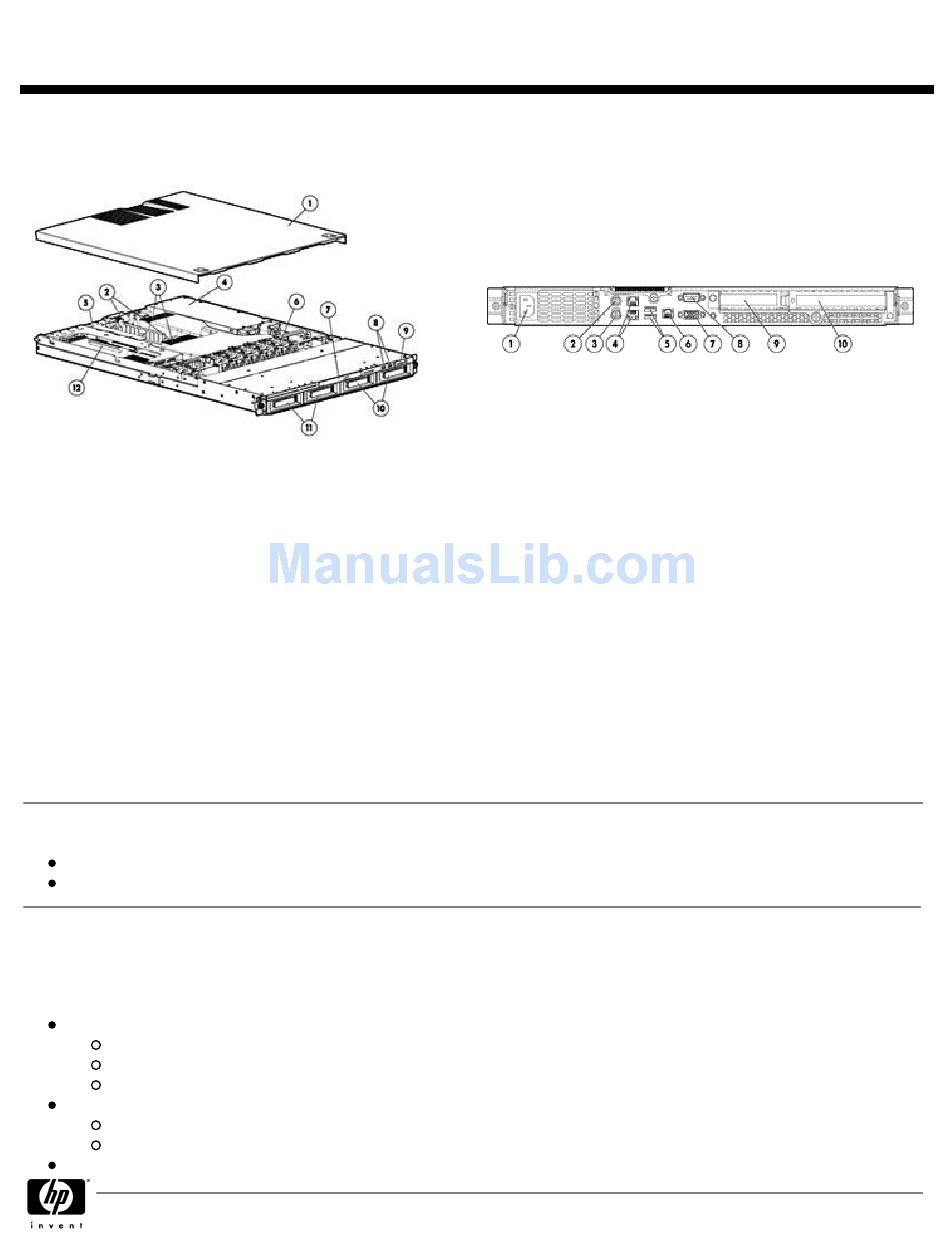

Front View:

Access panel

Memory banks

Two (2) AMD Opteron 2300 series processors

Power supply

PCI-E expansion riser

System fans

Optical drive bay

Front-panel USB 2.0 ports

Power switch/system status LEDs

10.

Optional 3rd and 4th 3.5" hot-plug SAS/SATA or non-hot

plug SATA hard drive bays

11.

Standard 1st and 2nd 3.5" hot-plug SAS/SATA or non-hot

plug SATA hard drive bays

12.

Full height/full length PCI-Express or HTX slot

What's New

Support for SATA Hot Plug 3.5" Midline (MDL) Solid State Drives

Support for SAS Hot Plug 3.5" Enterprise (ENT) Hard Drives

At A Glance

Introducing the HP ProLiant DL165G5p, now available with the latest high performance Opteron Quad Core processors, increased

storage by 2X and a new high efficiency power supply option.

Processors

Processors:

Processors

Supports up to two AMD Opteron™ 2300 series Quad-Core processors

Supports DirectConnect Architecture

Supports Power Now

Memory

Memory:

16 DIMM slots supporting up to 64GB REG PC2-6400 DDR2-800 MHz memory with Advanced ECC

16 DIMM slots supporting up to 128GB REG PC2-5300 DDR2-667 MHz memory with Advanced ECC

Internal Drive Support

Internal Drive Support:

Hot Plug SAS/SATA or Non-Hot Plug SATA Models

DA - 13204

North America — Version 9 — November 16, 2009

HP ProLiant DL165 Generation 5p (G5p)

Rear View:

Power supply cable socket

PS/2 mouse port

PS/2 keyboard port

Two (2) RJ45 GbE LAN ports

Rear panel USB 2.0 ports

Lights-Out 100 10/100Mbps port

Video port

Serial port

Low-profile slot cover (slot only accessible in G5 system)

10.

Full-sized riser board assembly slot cover

Page 1

Table of Contents

Summary of Contents for HP ProLiant DL165

Page 1 At A Glance At A Glance At A Glance At A Glance Introducing the HP ProLiant DL165G5p, now available with the latest high performance Opteron Quad Core processors, increased storage by 2X and a new high efficiency power supply option. Processors Processors...
Page 2 Warranty Warranty: This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for one year from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements.
Page 3: Standard Features
QuickSpecs HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) Standard Features NOTE: NOTE: NOTE: NOTE: For the Standard Features shipped in the "Factory Integrated Models", please see the "Configuration Information - Factory Integrated Models"...
Page 4 4 x 1TB Interfaces Interfaces Interfaces Interfaces Parallel None Network RJ-45(Ethernet) HP NC362i Integrated Dual Port Gigabit Server Adapter Serial Pointing Device (Mouse) Graphics Keyboard Up to 5 (two front & two rear standard, 1 internal option) NOTE: NOTE: NOTE:...
Page 5 Linux-based management consoles. See www.hp.com/go/ic-linux HP Insight Control suites include one year of 24 x 7 HP Software Technical Support and Update Service ensuring rapid access to HP support staff and proactive delivery of software updates. For more information about this service, please visit: www.hp.com/services/insight.
Page 6 UPS and PDU Power UPS and PDU Power UPS and PDU Power UPS and PDU Power Please see the UPS and PDU cable matrix's on the HP Power Protection and Management page. Under Cord Matrix Cord Matrix Cord Matrix Cord Matrix Power Cords, click on the "HP Power Cord Matrix"...
Page 7 Rack Support Rack Support The DL Fixed Rail System supports installation in racks with square or round mounting holes (including Compaq/HP 7000, 9000, 10000 and HP series), with an adjustment range of 24" - 36". Telco Rack Kit Telco Rack Kit...
Page 8 Whether an SMB or large global corporation HP has a ProLiant server support offer to help you speedily deploy and maximize system uptime.
Page 9: Hpc Interconnects
NOTE: High Performance Computing (HPC) interconnect technologies are available for the DL165 G5p under the Cluster Platform product portfolio. These high-speed interconnects are fully supported by HP when they are part of these configure to order clusters. Solutions can be defined with a lot of flexibility with the help of configuration tools. Please visit the following URL to configure HPC Clusters with InfiniBand, Gigabit Ethernet or Myrinet Interconnects: http://www.hp.com/techservers/clusters/ucp/index.html...
Page 10 2.2 GHz, 2GB LP, Non- 2.2 GHz, 2GB LP, Non- Network Controller Network Controller Network Controller Network Controller HP NC362i Integrated Dual Port Gigabit Server Adapter Hot Plug SATA (1P) Hot Plug SATA (1P) Hot Plug SATA (1P) Hot Plug SATA (1P) 507547-001...
Page 11: Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
Page 12 SATA Non-Hot Plug 3.5" Entry (ETY) Drives SATA Non-Hot Plug 3.5" Entry (ETY) Drives SATA Non-Hot Plug 3.5" Entry (ETY) Drives HP 160GB 3G SATA 7.2K NHP 3.5" ETY HDD 458947-B21 SATA Non-Hot Plug 3.5" Midline (MDL) Drives SATA Non-Hot Plug 3.5" Midline (MDL) Drives SATA Non-Hot Plug 3.5"...
Page 13 NOTE: This option kit contains a 24" battery cable and adhesive material for installing a battery into the following servers if a Smart Array E500 is integrated outside of the factory. For all solutions, please refer to the HP ProLiant QuickSpecs and User's Manual for detailed installation instruction.
Page 14: Core Options
HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) Core Options NOTE: NOTE: NOTE: NOTE: Some options may not be available for factory integration. Please contact an HP sales representative for additional information. Processor Processor Processor Processor AMD Opteron™...
Page 15 SATA Hot Plug 3.5" Midline (MDL) Solid State Drives SATA Hot Plug 3.5" Midline (MDL) Solid State Drives SATA Hot Plug 3.5" Midline (MDL) Solid State Drives HP 60GB 3G SATA 3.5in MDL 1y Wty SSD 570761-B21 HP 120GB 3G SATA 3.5in MDL 1y Wty SSD...
Page 16 HP NC360T PCI Express Dual Port Gigabit Server Adapter 412648-B21 HP NC364T PCI Express Quad Port Gigabit Server Adapter 435508-B21 HP NC382T PCI Express Dual Port Multifunction Gigabit Server Adapter 458492-B21 10 Gigabit Ethernet Adapters 10 Gigabit Ethernet Adapters 10 Gigabit Ethernet Adapters...
Page 17: Additional Options
HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical T9084BAE Support and Updates, Electronic HP Insight Control for Linux, No Media, 1-Server license, including one year of 24x7 464423-B22 Technical Support and Updates HP Insight Control for Linux, Media pack (DVD) - No licenses included...
Page 18 NOTE: This option kit contains a 24" battery cable and adhesive material for installing a battery into the following servers if a Smart Array E500 is integrated outside of the factory. For all solutions, please refer to the HP ProLiant QuickSpecs and User's Manual for detailed installation instruction.
Page 19 NOTE: NOTE: Pre-configured with one LTO-4 Ultrium 1840 SCSI tape drive. NOTE: NOTE: NOTE: NOTE: For an up-to-date listing of the latest O/S and software support details for HP Ultrium tape drives, please visit: http://www.hp.com/go/connect Tape Autoloaders Tape Autoloaders Tape Autoloaders...
Page 20 HP StorageWorks D2D2504i Backup System EJ002A NOTE: NOTE: NOTE: NOTE: 4 TB raw capacity/3 TB useable capacity. HP StorageWorks D2D130 Backup System with LTO-3 Ultrium 920 SAS Tape Drive EH952A NOTE: NOTE: NOTE: NOTE: 3TB of Disk Storage HP StorageWorks D2D2503i Backup System...
Page 21 Emulex Fibre Channel HBAs Emulex Fibre Channel HBAs Emulex Fibre Channel HBAs Emulex Fibre Channel HBAs HP StorageWorks 81E 8Gb Single Port PCI-e FC HBA AJ762A HP StorageWorks 82E 8Gb Dual Port PCI-e FC HBA AJ763A HP StorageWorks FC2142SR 4Gb PCI-e FC HBA...
Page 22 NOTE: NOTE: NOTE: NOTE: 1U/0U mounting brackets shipped with the unit (optimized for 10000 G2 and 9000 series racks). HP Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC) 252663-D71 NOTE: NOTE: NOTE: NOTE: This mPDU (252663-D71) may also be used to connect the low volt model of the UPS R3000 XR.
Page 23 Modular PDUs) QuickSpecs for additional options including shorter jumper cables and country specific power cords: http://h18000.www1.hp.com/products/quickspecs/11041_na/11041_na.html NOTE: NOTE: NOTE: NOTE: For additional information on HP Power Distribution Units including accessories please go to: www.hp.com/go/pdu. HP Rack Options HP Rack Options HP Rack Options HP Rack Options...
Page 24 QuickSpecs HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) Memory NOTE: NOTE: Memory configurations listed do not apply to "Factory Integrated Models". NOTE: NOTE:...
Page 25: Drive Support
QuickSpecs HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) Storage 1-4 Non-hot plug 3.5" SATA or Hot-plug SAS/SATA hard drive bays Optional DVD-ROM, or...
Page 26 Controller Controller Controller Controller 120GB 3G SATA Up to 4 HP SC40Ge 4-Port Internal SAS HBA with RAID 0, 1 60GB 3G SATA NOTE: NOTE: NOTE: NOTE: When using the SC40Ge with SATA Hard Drives, 1.5G SATA Hard Drives are required. Transfer rate: 1.5 Gb/s SATA, 3...
Page 27 QuickSpecs HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) Storage DAT 160 1U Rack-Mount Kit 3U Rack-Mount Kit HP StorageWorks USB HP StorageWorks USB...
Page 28 QuickSpecs HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) Storage HP StorageWorks D2D HP StorageWorks D2D HP StorageWorks D2D HP StorageWorks D2D External Embedded Network Controller...
Page 29: Power Specifications
NOTE: HP ProLiant DL servers no longer ship standard with NEMA power cords (163719-002) that allow connection to 110V US wall outlets in a home or office. HP ProLiant DL servers are primarily connected to PDU's in data center racks so they now ship standard with only a PDU power cord (416151-B21).
Page 30: Technical Specifications
QuickSpecs HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) Technical Specifications System Unit System Unit System Unit System Unit Dimensions Dimensions Dimensions Dimensions 1.70 x 17.64 x 26.85 in (4.32 x 44.80 x 68.20 cm)
Page 31 QuickSpecs HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) Technical Specifications Power Supply Output Power Supply Output Power Supply Output Power Supply Output Rated Steady-State Power 900 W (at 100 VAC),...
Page 32 QuickSpecs HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) HP ProLiant DL165 Generation 5p (G5p) Technical Specifications NOTE: NOTE: NOTE: NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment.
Page 33 This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. DA - 13204 North America —...
Page 34 AMD Corporation in the United States and other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
