PBC-60 - power supply and battery charger

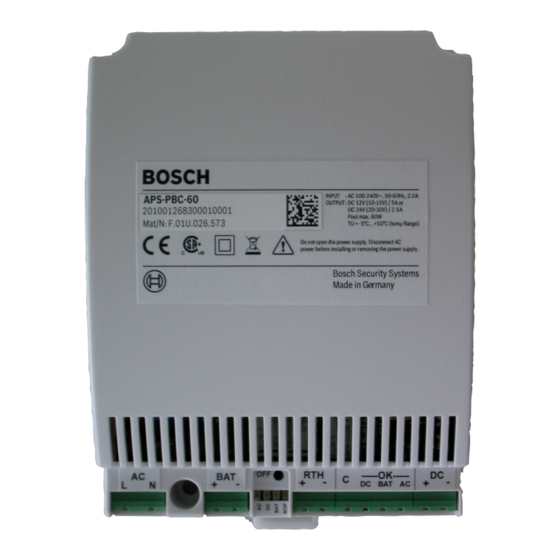

The PBC-60 is a power supply unit with an integrated
battery charging device. Includes pre-configured cable
connectors for AMC controllers, I/O boards and batteries.
Functions

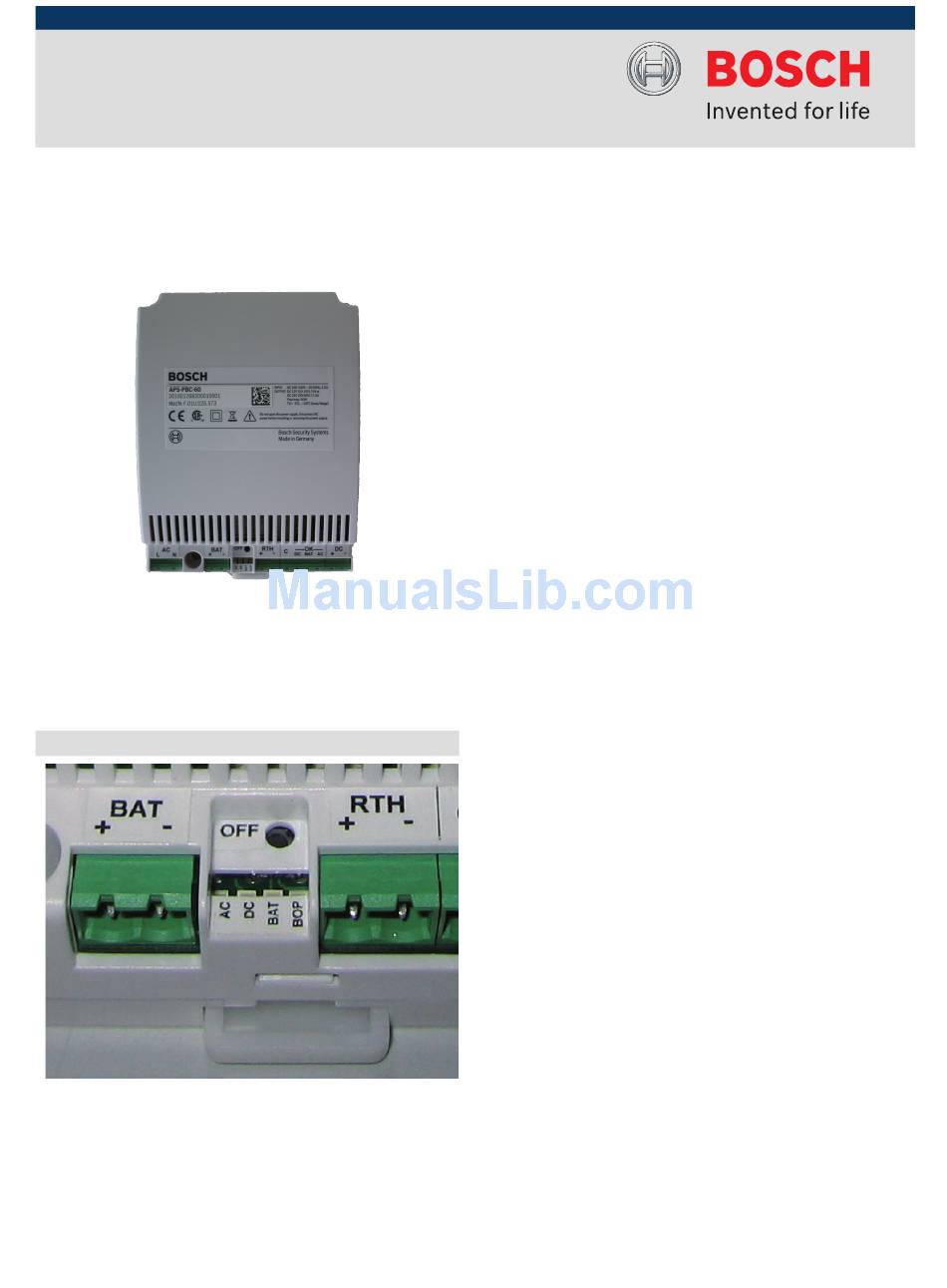

The PBC-60 includes the following LED voltage status
indicators:
•
If the input voltage (AC) is greater than 85 V~, the green
LED lights up next to AC and the AC relay is closed.
▶ Supports 12 V/7 Ah, 12 V/14 Ah and 24 V/7 Ah batteries
▶ Selectable 12 VDC or 24 VDC voltage output
▶ Selectable 5 amp @12 VDC or 2.5 amp @24 VDC current
output
▶ Overvoltage protection
▶ Regulation of battery charging voltage
▶ On-board LED Voltage Status indicators
▶ Protection class II
•
If the output voltage (DC) is greater than 12 V or 24 V
(depending on the mode), the green LED lights up next
to DC and the DC relay is closed.
•
If the battery voltage is greater than 11 V or 22 V
(depending on the mode), the green LED lights up next
to BAT and the BAT relay is closed.
The following applies to the battery mode:
If the input voltage is less than 85 V~, the power supply
switches to "Battery operation" mode and the yellow LED
lights up next to BOP.
The OFF button is only activated in Battery operation mode.
This button is pressed to switch the output voltage off.
Restart is only possible when the alternating current supply
is restored.
This power supply unit can be switched to 12 V or 24 V
mode. To do this, the switch must be configured as shown
below, when there is no voltage input on the power supply.
