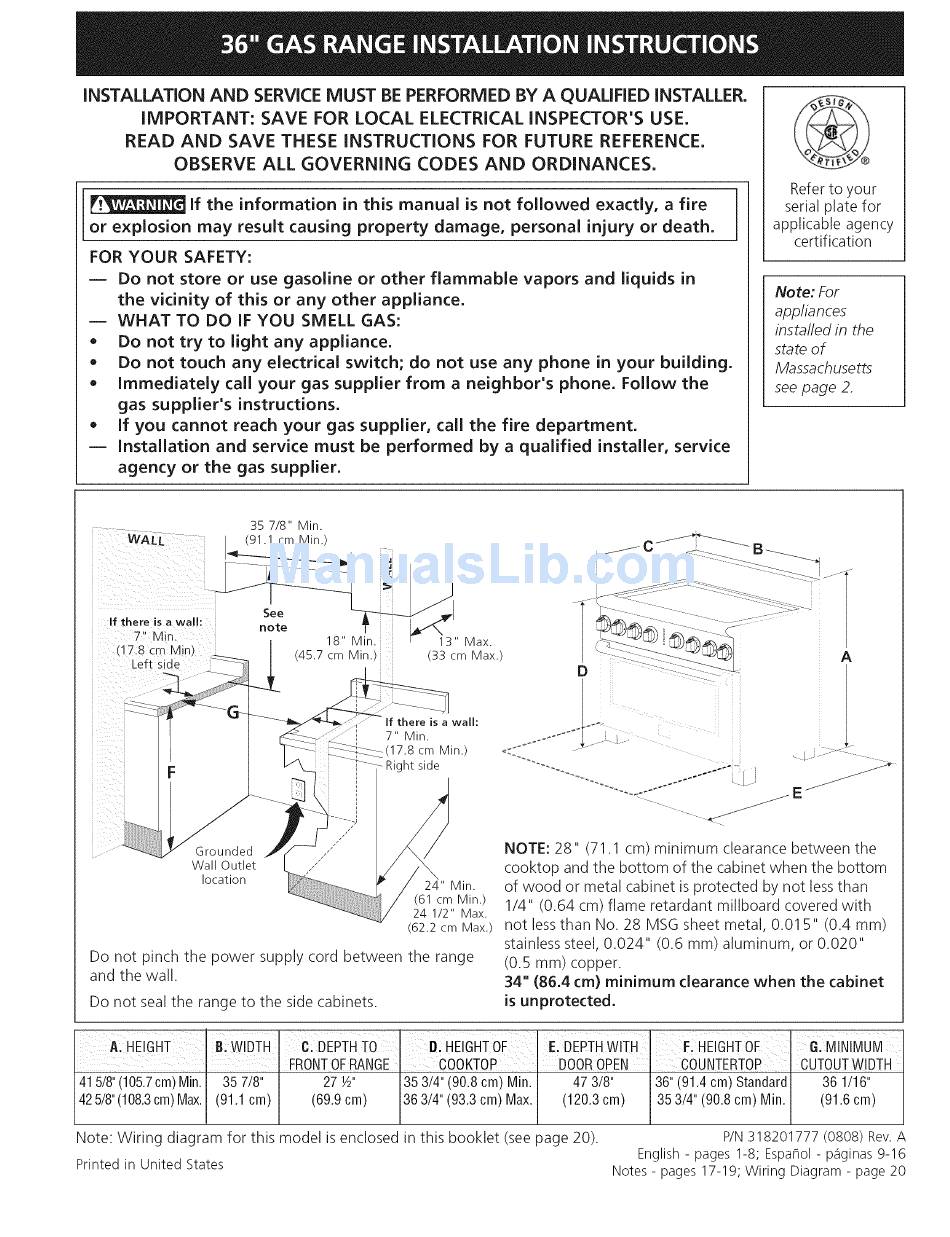

Use and Care Manual
iNSTALLATiON AND SERVICE MUST BE PERFORMED BY A QUALiFiED iNSTALLER.
iMPORTANT:
SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS
FOR FUTURE REFERENCE.
OBSERVE ALL GOVERNING
CODES AND ORDINANCES.
_r_
If the information
in this manual
is not followed
exactly,
a fire
or explosion
may result
causing
property
damage,
personal
injury or death.
FOR YOUR SAFETY:
--
Do not store or use gasoline
or other
flammable
vapors
and liquids
in
the vicinity
of this or any other
appliance.
--
WHAT
TO DO IF YOU SMELL GAS:
•
Do not try to light
any appliance.
•
Do not touch
any electrical
switch;
do not use any phone in your
building.
•
Immediately
call your
gas supplier
from
a neighbor's
phone.
Follow
the
gas supplier's
instructions.
•
If you cannot
reach
your
gas supplier,
call the fire
department.
--
Installation
and service
must
be performed
by a qualified
installer,
service
agency
or the gas supplier.
Refer to your
serial plate for
applicable agency
certification
Note: For
app/iances
instafled in the
state of
Massachusetts
see page 2,
35 7/8" Min.
Grounded
,
,-
Wall
Outlet
location
24" Min.
(61 cm Min.)
24 1/2" Max.
(62.2 cm Max.)
Do not pinch the power supply cord between the range
and the wall.
Do not seal the range to the side cabinets.
NOTE: 28" (71.1 cm) minimum clearance between the
cooktop and the bottom of the cabinet when the bottom
of wood or metal cabinet is protected by not less than
1/4" (0.64 cm) flame retardant millboard covered with
not less than No. 28 MSG sheet metal, 0.01 5" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum, or 0.020"
(0.5 mm) copper.
34" (86.4 cm) minimum
clearance when the cabinet
is unprotected.
A: HEIGHT
i B:WIDTH
'
'
'
C: DEPTH TO
D, HEIGHTOF
E. DEPTH WITH
F: HEIGHTOF
&MINIMUM
FRONT OFRANGE
COOKTOP
DOOR OPEN
COUNTERTOP
....
CUTOUT WIDTH
415/8"(105.7 cm)Min.
35 7/8"
27 W'
35 3/4"(90.8cm) Min.
47 3/8"
36"(91.4cm) Standard
36 1/16"
425/8"(108.3 cm)Max. (91.1cm)
(69.9cm)
36 3/4" (93.3cm) Max.
(120.3cm)
35 3/4" (90.8cm) Min.
(91.6cm)
Note: Wiring diagram
for this model is enclosed
in this booklet
(see page 20).
P/N 318201777 (0808) Rev. A
English - pages 1-8; Espaflol - p_iginas 9-16
Printed in United States
Notes - pages 17-19; Wiring Diagram - page 20
