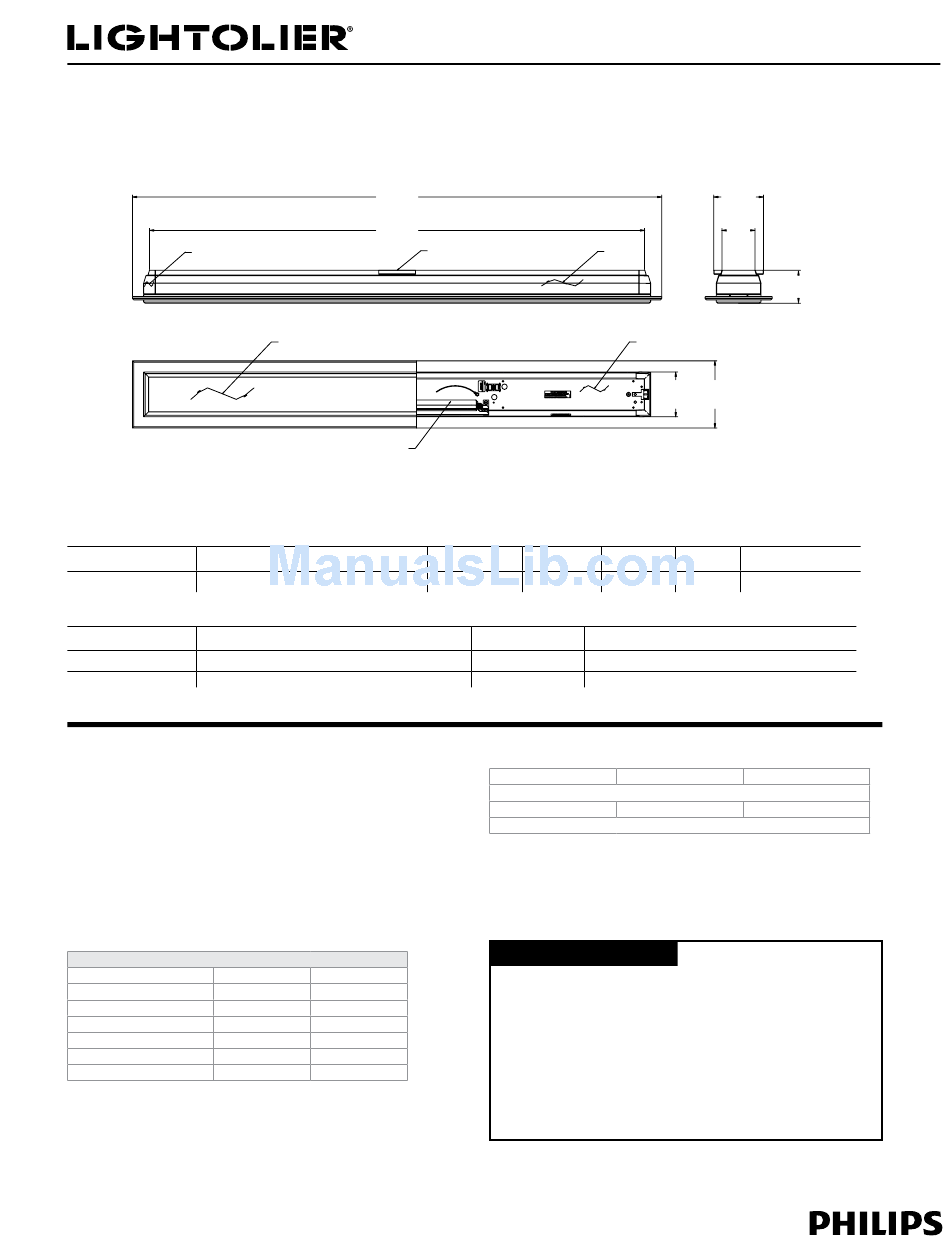

Philips Brisa FP28UDA Dimensions

Page  of 2
1
Fixture Ordering Information
Catalog No.
FP28UDA
Diffuser Ordering Information
Catalog No.
FPA3
FPG3
Features
1. Housing Ends: Die-cast aluminum.
2. Housing Sides: Extruded aluminum.
3. Back Pan: Stamped 8ga. (0.048") sheet metal.
4. Diffuser: Planar clear glass with opal diffuse glass or planar clear acrylic
with opal diffuse acrylic.
5. Junction Box Cover: (2) Die-cast aluminum, easy installation
(provided with luminaire).
6. Fixture Mounting Plate: Mounts directly to a 4" octagonal J-Box
(Not Shown in Drawing).
Electrical
7. Ballast
A. Dali Dimming 120-277V
Voltage
Total Input Watts
Max. Line Current (Amps)
Power Factor
THD
Min. Starting Temp
Min. Dimming Temp
8. Luminaire-Ballast Disconnect: Meets NEC 40.30(G)
and CEC Disconnect Requirements.
Lightolier is a Philips group brand
[1232mm]
[1153mm]
4
Description
Linear Planar Surface Mount Dali Dimming
Description
Acrylic Planar Diffuser
Glass Planar Diffuser
20V 277V
32W 3W
0.27A 0.A
>0.98 >0.98
<0% <0%
50°F, 0°C 50°F, 0°C
50°F, 0°C 50°F, 0°C
Brisa Linear Planar Surface Mount
™
Wall/Ceiling Mount T5 Fluorescent, ADA Compliant
48 1/2"
45 3/8"
5
7
Finish Wattage Volts
Satin aluminum 28W
Finish
Opal
Opal
Lamping (by others)
General Electric
F28W/T5/*/ECO
Finish
Satin Aluminum
Labels
cULus Listed. Suitable for Damp Locations.
Job Information
Job Name:
Cat. No.:
Lamp(s):
Notes:
63 Airport Road, Fall River, MA 02720 • (508) 679-83 • Fax (508) 674-470
We reserve the right to change details of design, materials and finish.
www.lightolier.com © 2008 Philips Group • A0408
FP28UDA
4 9/16"
[115mm]
3"
[76mm]
2
3
4 1/8" 6 1/8"
[104mm] [156mm]
Lamp
20V/277V () T5
Dimensions
5" x 48"
5" x 48"
Osram/Sylvania
() 28W T5 Linear Fluorescent
FP28/*
*Manufactures Color Temperature Designation
Type:
3"
[76mm]
Ballast (Dali)
B28PUNVDV
Philips
F28T5/*/ALTO
