Motorola MINITOR III User Manual

Selective call alert monitor receiver
Hide thumbs

Advertisement

Table of Contents

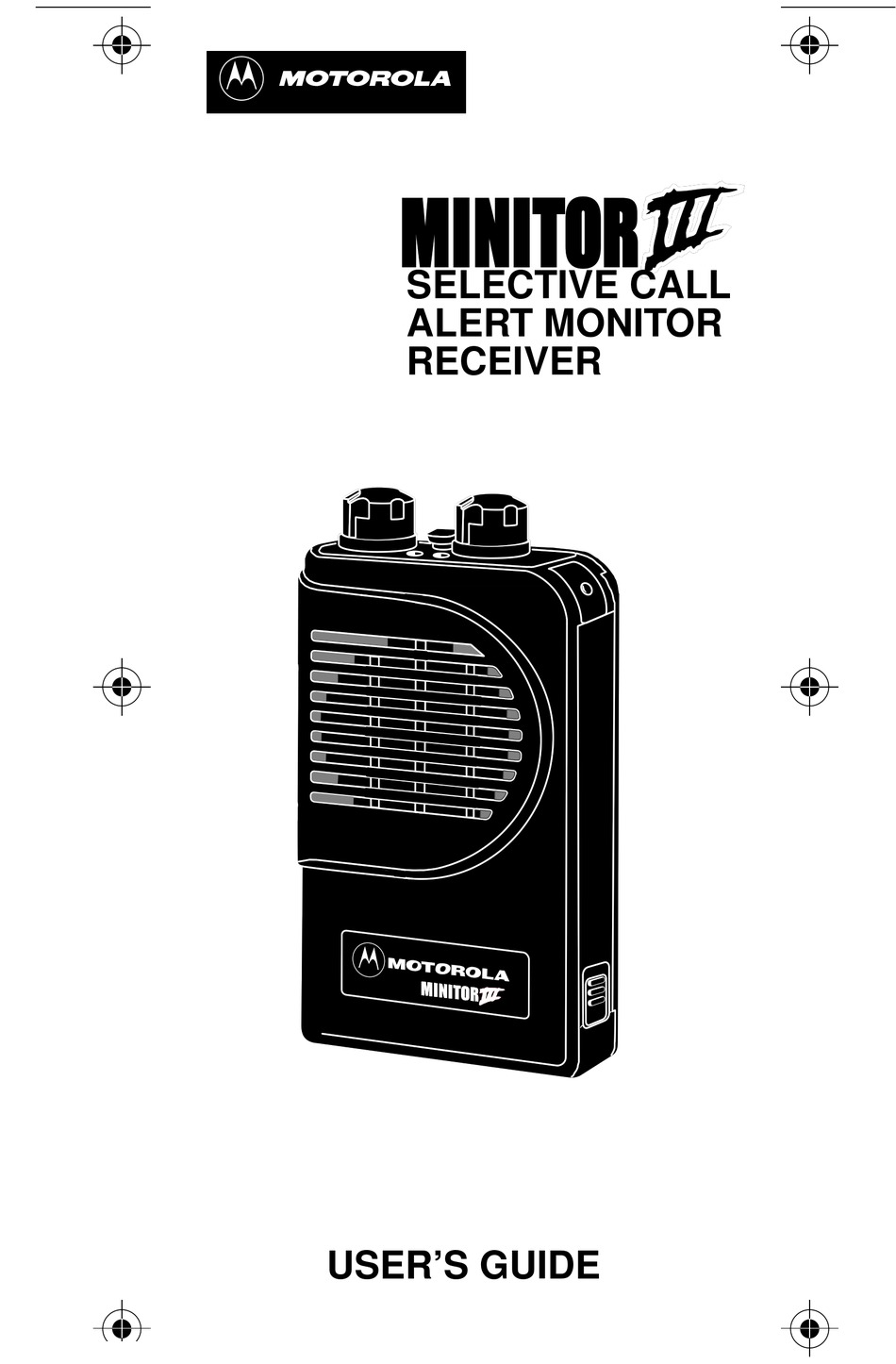

a
SELECTIVE CALL
ALERT MONITOR
RECEIVER
USER'S GUIDE
1

Advertisement

Table of Contents
loading

Related Manuals for Motorola MINITOR III

Summary of Contents for Motorola MINITOR III

  • Page 1 SELECTIVE CALL ALERT MONITOR RECEIVER USER’S GUIDE...

  • Page 2: Battery Types

    INTRODUCTION Congratulations on your purchase of the Motorola MINITOR III Alert Monitor. Motor- ola’s advanced technology offers unique fea- tures and benefits that set the industry standards for performance, reliability, and styl- ing. The compact alert monitor is offered in a variety of models including: •...
  • Page 3 Install your batteries as follows: 1. Slide the battery door latch towards the top of the alert monitor to unlock the battery door. 2. Push up on battery door, then swing open. 3. Observing the correct polarities, insert the batteries into the battery compartment. 4.
  • Page 4 CAUTION If the batteries are improperly installed, the alert monitor will not function and the batteries will not charge. STANDARD FEATURES AND CONTROLS (All Models) External Accessory Jack (Plugged) On/Off Switch/ Function Volume Control Switch Amber Reset Button Visual Alert Indicators ON/OFF Switch/Volume Control The ON/OFF SWITCH/VOLUME CONTROL is a combined single control located on the...
  • Page 5 Audible/Visual Alert Indicators When your alert monitor is initially turned on, both the red and amber LEDs on the control panel light and an alert tone is sounded until the decoder circuit power-up is complete. Thereafter, whenever a properly encoded message is received, the red LED flashes and an audio alert is sounded.

  • Page 6: Factory Options

    External Speaker Jack When the alert monitor is used in high-noise environments or when privacy is needed, an optional Motorola approved lapel speaker or earpiece can be connected to the external accessory jack located on the top control panel. The jack is fitted with a protective plug.

  • Page 7: Field Installed Options

    • Alert Duration • Priority Alert • On/Off Duty • Reset Options - Carrier Reset - Delayed N Carrier Reset - Manual Reset • Push-To-Listen Contact a Motorola authorized paging system dealer or call 1-800-548-9954 for the addition of these features.

  • Page 8: Scan Operation

    OPERATION Perform the following steps to condition your alert monitor for operation: 1. Set the FUNCTION switch to a tone-alert position. 2. Rotate the ON-OFF SWITCH/VOLUME CONTROL clockwise to turn on the alert monitor. Eight short beep sounds occur and both LEDs light, indicating that power is applied.
  • Page 9 If the alert monitor detects a transmission on F2, it stops on F2 then listens for transmis- sions on F1. Scanback time is programmable and can be set to 0.5, 1, or 2-second incre- ments. If a transmission is detected on F1, the alert monitor switches to F1 cutting off any transmission on F2.

  • Page 10: Battery Life

    Consult your Motorola sales representative for a complete list of accessories, prices, and applications. • Desk-top Battery Charger • Desk-top Battery Charger/Amplifier with Antenna and Relay • Vehicular Charger-Amp with Relay •...
  • Page 11 NOTES ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________ ____________________________________...
  • Page 12 © Copyright 1997, Motorola, Inc. All Rights Reserved. Motorola Customer Owned Messaging, 3301 Quantum Blvd., Boynton Beach, FL 33426, Printed in U.S.A. 07/97, t, Motorola, MINITOR III, MINITOR III logo, and VIBRA-Page are trademarks or registered trademarks of Motorola, Inc.
