iNSTALLATiON
AND SERVICE MUST BE PERFORMED BY A QUALiFiED
iNSTALLER.
iMPORTANT:
SAVE FOR LOCAL ELECTRICAL iNSPECTOR'S USE.
READ AND SAVE THESE iNSTRUCTiONS
FOR FUTURE REFERENCE.
If the information
in this manual
is not followed
exactly,
a fire or explosion
may result
causing property
damage,
personal
injury or death.
FOR YOUR SAFETY:
--
Do not store
or use gasoline
or other
flammable
vapors
and liquids
in
0
0
0
0
m
the vicinity
of this or any other
appliance.
WHAT
TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch
any electrical
switch;
do not use any phone
in your
building.
Immediately
call your
gas supplier
from
a neighbor's
phone.
Follow
the
gas supplier's
instructions.
If you cannot
reach your
gas supplier,
call the fire department.
Installation
and service
must
be performed
by a qualified
installer,
service
agency
or
the
gas supplier.

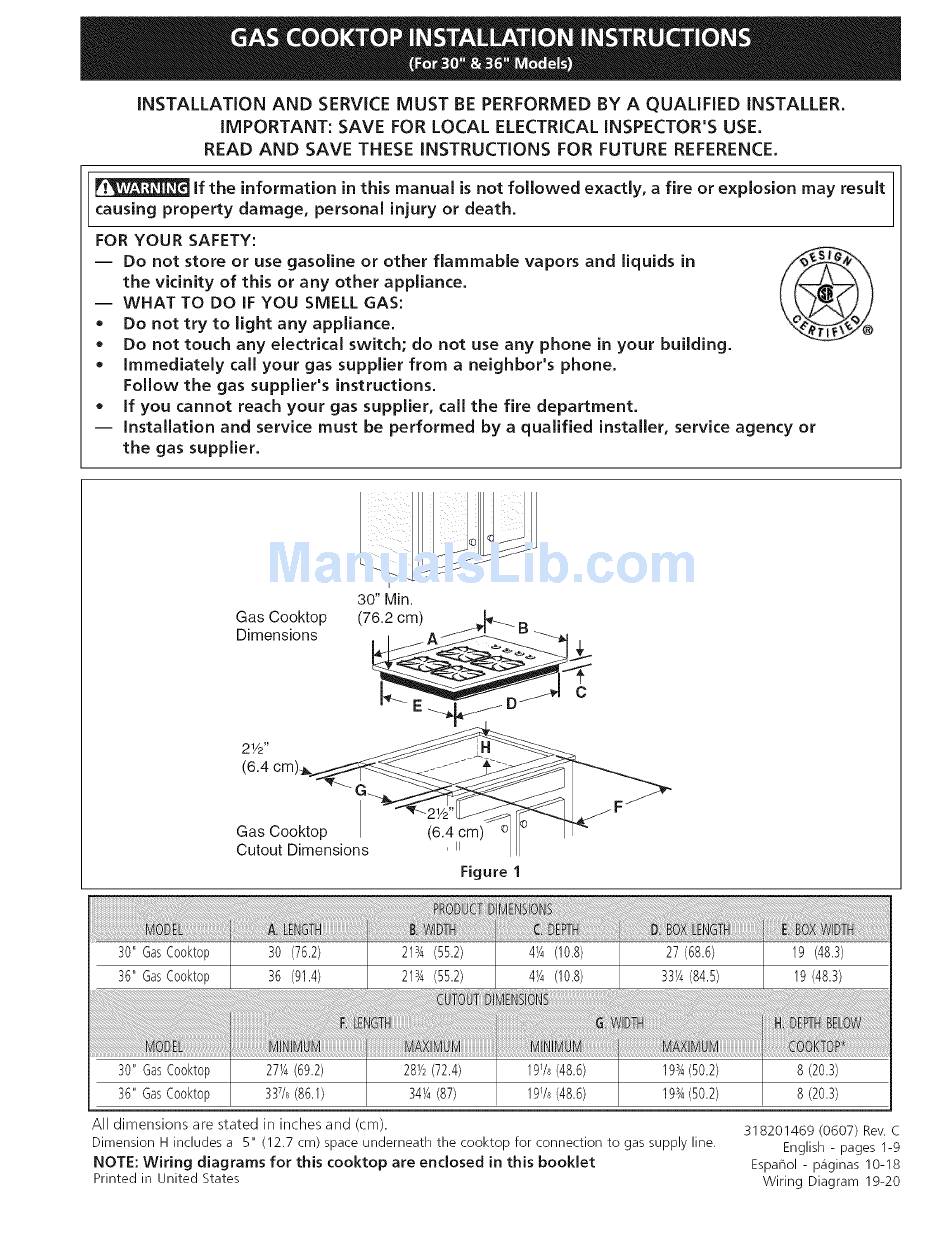

Gas Cooktop
Dimensions
21/2"
30" Min.
(76.2 cm)
_la
Gas Cooktop
(6.4 cm)
Cutout Dimensions
, ii
Figure 1
i_!_iiii_
_i_i_i_!iii!_i_i_
¸i_!_i_!i_!_i_ii_i_!_!_i:i:i:i:i:i:iiiiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii
30" GasCooktop
30 (76.2)
213A(55.2)
4_A(10.8)
27 (68.6)
19 (48.3)
36" GasCooktop
36 (91.4)
213A(55.2)
4_A(10.8)
33_/4 ( 84.5)
19 (48.3)
30" GasCooktop
27Y4 (69.2)
28_/2 ( 72.4)
19_/8 ( 48.6)
193A (50.2)
8 (20.3)
36" GasCooktop
337/8 (86.1)
34_A (87)
19_/8 ( 48.6)
193A (50.2)
8 (20.3)
All dimensions
are stated in inches and (cm).
Dimension H includes a 5" (12.7 cm) space underneath the cooktop for connection to gas supply line.
NOTE: Wiring
diagrams
for this cooktop
are enclosed
in this booklet
Printed in United States
318201469 (0607) Rev. C
English - pages 1-9
Espar_ol - p_qginas 10-18
Wiring Diagram 19-20
