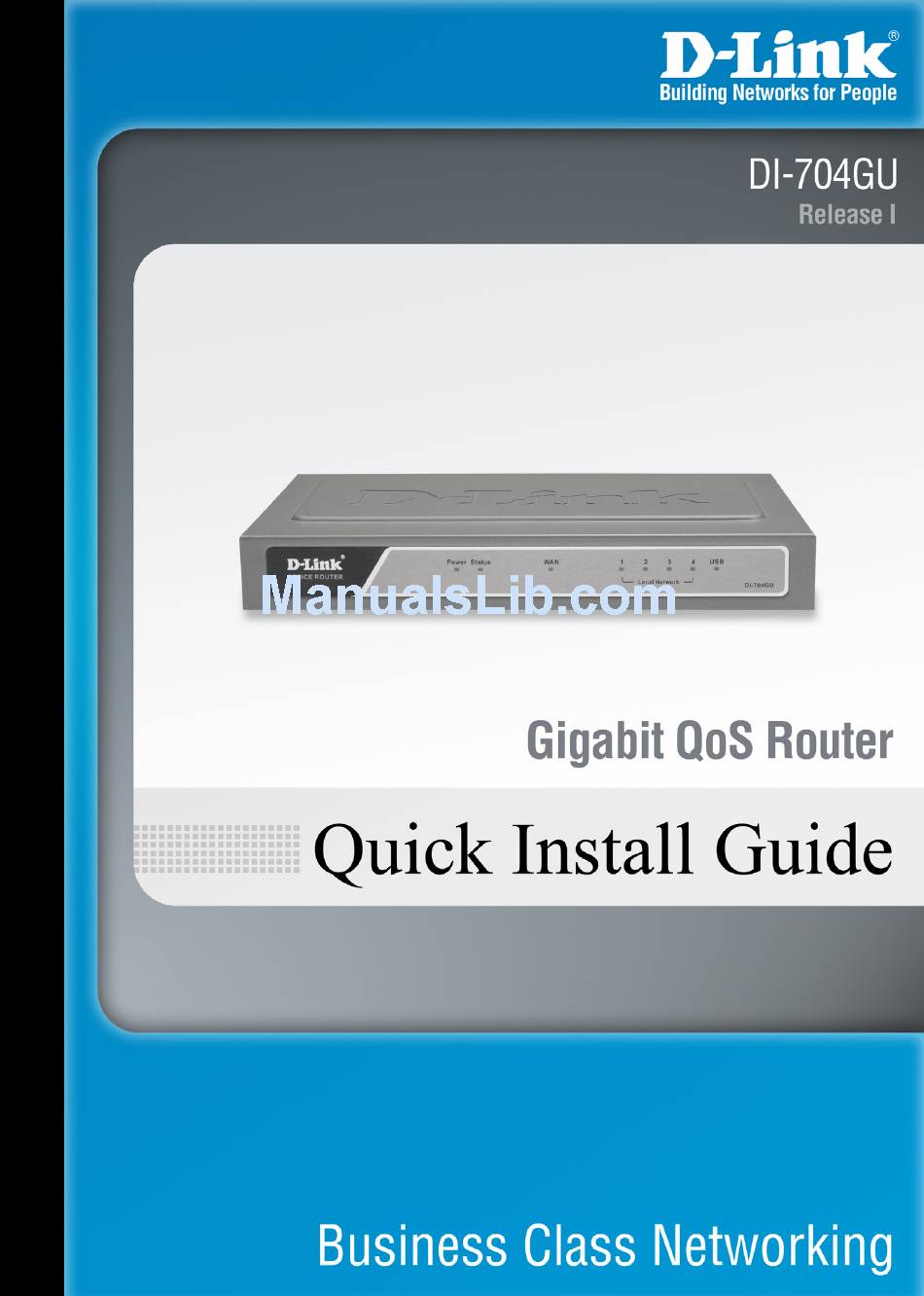

- Page 1 Wireless Internet Camera Wireless G USB 2.0 Adapter with 3G Mobile Video...
-
Page 2: System Requirements
• Internet Explorer 6.x and above, or Netscape Navigator 7.0 and ® above Package Contents CD-ROM with D-Link DI-704GU Manual Gigabit QoS Router CAT5 Ethernet Cable Power Adapter If any of the above items are missing, please contact your reseller. D-Link DI-704GU Quick Install Guide... -
Page 3: Hardware Overview
DI-704GU is functioning E t h e r n e t e n a bl e d d ev i c e. properly. These LEDs blink during data transmission. D-Link DI-704GU Quick Install Guide... - Page 4 Ethernet-enabled computers. Power Receptor WAN Port This is for the connection of an Ethernet cable to your Cable or DSL modem. Reset Button Pressing this button restores the Router to its original factory default settings. D-Link DI-704GU Quick Install Guide...
-
Page 5: Hardware Installation
Hardware Installation First, connect the power adapter to the receptor at the back panel of the DI-704GU and then plug the other end of the power adapter to a wall outlet or power strip. The Power LED will turn ON to indicate proper operation. -
Page 6: Getting Started
Getting Started Getting Started D-Link DI-704GU Quick Install Guide... - Page 7 Configuration Configuration This section will show you how to configure your new D-Link Gigabit QoS Router using the D-Link Setup Wizard. Open your Web browser and type “http://192.168.0.1” into the URL address box. Then press the Enter or Return key.
- Page 8 Configuration Click Next You have the option to establish a password for the User Name “Admin”. Click Next Choose your time zone from the drop down list. Click Next D-Link DI-704GU Quick Install Guide...
- Page 9 Cable Internet service). Click the “Clone MAC Address” button to automatically copy the MAC address of the network adapter in your computer. You can also manually type in the MAC address. Click Next Continue to page 15 D-Link DI-704GU Quick Install Guide...
- Page 10 IP Address, please select the corresponding radio button. Click Next Enter the IP address that was originally provided to you by your ISP. You will need to complete all of the required fields. Click Next Continue to page 15 D-Link DI-704GU Quick Install Guide...
- Page 11 If you have a Dynamic IP connection, enter the User Name and Password provided to you by your ISP. Click Next Note: Please be sure to remove any existing PPPoE client software installed on your computers. Continue to page 15 D-Link DI-704GU Quick Install Guide...
- Page 12 A d d r e s s, S u b n e t M a s k , Gateway IP Address, Server IP, PPTP Account, and Password provided to you by your ISP. Click Next Continue to page 15 D-Link DI-704GU Quick Install Guide...
- Page 13 I f yo u h ave a S t a t i c I P connection, enter the L2TP IP Address, Subnet Mask, Gateway IP Address, L2TP Server IP, User Name, and Password provided to you by your ISP. Click Next Continue to page 15 D-Link DI-704GU Quick Install Guide...
- Page 14 Select this option if you connect to the internet through Telstra BigPond Cable Broadband in Australia. Click Next Enter the User Name, and Password provided to you by your ISP. Click Next Continue to page 15 D-Link DI-704GU Quick Install Guide...
-
Page 15: Test Internet Connection
Link to your favorite Web site to test your Internet connection. For additional settings or information, refer to the Advanced, Tools, or Status tabs on the web-management interface; or to the User’s Manual located on the CD. D-Link DI-704GU Quick Install Guide... -
Page 16: Printer Wizard
Make sure your printer is connected to the USB port on the router. Click Run Printer Wizard Click Next The wizard will identify the make and model of your printer, as well as its status. Click Next D-Link DI-704GU Quick Install Guide... - Page 17 Printer Wizard Click Next to run the Printer Setup application. Click Next This application can only run when accessed from the router. Do not click Save. Click Run Click Run D-Link DI-704GU Quick Install Guide...
- Page 18 Click Browse to locate the driver and then click OK. Once the wizard has completed installing your printer, you will be prompted to print a test page to verify its functionality. Click OK Click Finish D-Link DI-704GU Quick Install Guide...
- Page 19 Here’s how to configure the network adapter to obtain an IP address automatically when using the DI-704GU Gigabit QoS Router. For Microsoft Windows ® Right click on My Network Places and select Properties. Right click...
- Page 20 Select Using DHCP in the Configure pull down menu. The IP address information, the Subnet Mask, the Router’s IP address, and the Ethernet adapter address will appear. Click Apply Now and restart your computer (if necessary). D-Link DI-704GU Quick Install Guide...
- Page 21 Notes Notes D-Link DI-704GU Quick Install Guide...
- Page 22 Notes Notes D-Link DI-704GU Quick Install Guide...
-
Page 23: Technical Support
Copyright ©00 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted on the packaging.
