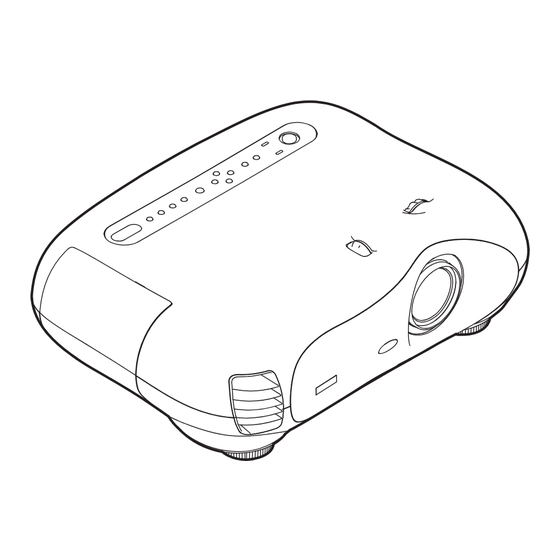

- Page 1 ESC/VP21 Communication Manual Home ESC/VP21 Command User’s Guide for Home Projector 1 of 9...
-
Page 2: Table Of Contents
Neither SEIKO EPSON CORPORATION nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with SEIKO EPSON CORPORATION’... -
Page 3: Introduction To Esc/Vp21
1.Introduction to ESC/VP21 ESC/VP21 is a control command and protocol for Epson projectors, which is used for A/V controller to control and monitor Epson projectors. The command codes are comprised of ASCII codes. Therefore the command codes can be understood very easily and you can easily control projectors using a PC with a terminal emulator such as Microsoft Hyper terminal. -
Page 4: Esc/Vp21 Command Formats
ESC/VP21 Communication Manual Home 2.ESC/VP21 Command Formats 2.1.Set command format A set command consists of a command and a parameter. Projector returns a colon after executing the command. There are two types of parameters. One is fixed such as ON, OFF, or 21.Other is a step parameter such as INC, DEC or INIT. INC increments the parameter by one. -
Page 5: Applicable Models
ESC/VP21 Communication Manual Home 3.Applicable Models EMP-TW100 / TW100H / TS10 / TW10 / TW200 / TW500 / TW10H / TW200H /TW20 / TW600,520,550,800 / TW700 / TW1000 / TW2000 / TW3000 / TW4000 / TW5000 / TW420 4.Command Table Item Command All Models... - Page 6 ESC/VP21 Communication Manual Home TW600/ Item Terminal Signal name Command TW20 520/550/ TW700 TW1000 TW2000 Source change INPUT 1/A Cyclic within “SOURCE 1x”. SOURCE 10 Analog RGB SOURCE 11 Digital RGB SOURCE 12 RGB Video SOURCE 13 SOURCE 14 YCbCr(*4 Component) YPbPr(*4 Component) SOURCE 15 Auto...
- Page 7 ESC/VP21 Communication Manual Home TW3000/ Item Terminal Signal name Command TW4000/ TW420 TW5000 Source change INPUT 1/A Cyclic within “SOURCE 1x”. SOURCE 10 Analog RGB SOURCE 11 Digital RGB SOURCE 12 RGB Video SOURCE 13 SOURCE 14 YCbCr(*4 Component) O(*7) YPbPr(*4 Component) SOURCE 15 Auto...
-
Page 8: Appendix
• TS10, select USB at Advanced Setting of the Menu. • Epson USB VCOM Driver has to be installed in your computer to use USB fpr communication.A COM port is added to your computer, when the projector and your computer is connected by a USB cable. The added COM is listed at PORT (COM/LPT) in the device manager tab of System in Control Panel as EPSON COM Emulation port (COMn). -
Page 9: Revision History
ESC/VP21 Communication Manual Home Revision History Revision Issued Date Page Description Oct 19,2005 All pages First Release Sep 29,2006 All pages Addition of TW700 Mar 19,2007 All pages Addition of TW1000 Jun 4,2007 Correction of “Applicable Model”. Dec 14,2007 All pages Addition of TW2000 Nov 14,2008 All pages...
