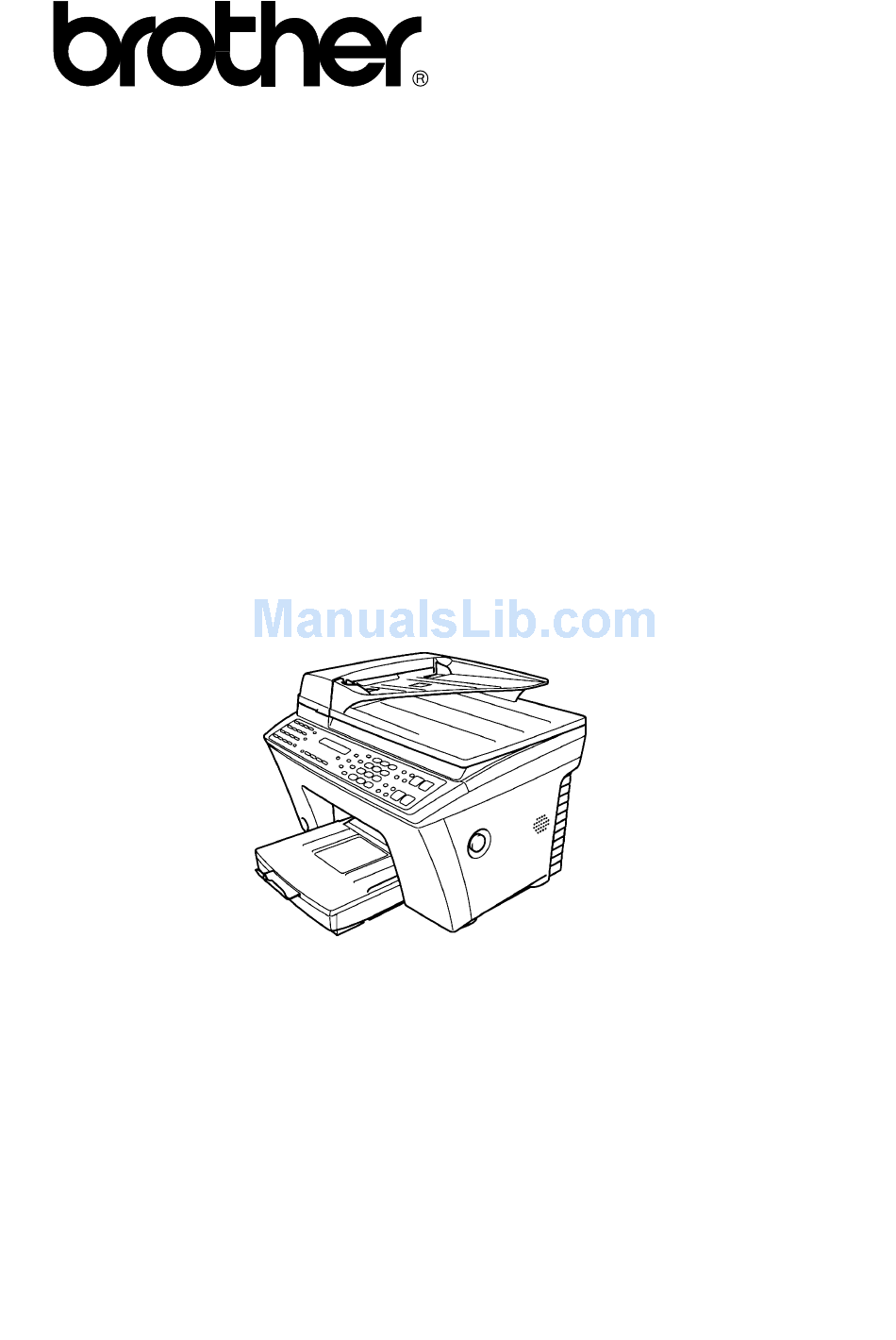

- Page 1 FACSIMILE EQUIPMENT PARTS REFERENCE LIST MODEL: MFC760 (For Germany / United Kingdom / France / Norway / Belgium / Netherlands / Switzerland / Denmark / Spain / Italy / Sweden /)
- Page 2 © Copyright Brother 1999 All rights reserved No part of this publication may be reproduced in any form or by any means without permission in writing from the publisher. Specifications are subject to change without prior notice.
- Page 3 NOTES FOR USING THIS PARTS REFERENCE LIST 1. In the case of ordering parts, it needs mentioning the following items: (1) Code (2) Q' ty (3) Description Note: No orders without Parts Code or Tool No. can be accepted. [Example] REF.NO.
- Page 5 List1(ADF&TRAY) REF.NO. CODE Q'TY DESCRIPTION REMARKS LE2005001 ADF UNIT UG6609001 DOCUMENT SENSOR PCB LG2014001 DOCUMENT SENSOR HARNESS UF7026001 DOCUMENT FRONT SENSOR ACTUATOR LE2008001 DOCUMENT REAR SENSOR ACTUATOR LE2011001 COMPRESSION SPRING LE2551001 RUBBER HOLDER A UU2055001 SEPARATION RUBBER LE2550001 SPRING PLATE A LE2470001 ADF FILM 1-10...
- Page 7 List2(SCANNER UNIT) REF.NO. CODE Q'TY DESCRIPTION REMARKS LE2883001 SCANNER UNIT SUPPLY ASSY UU7490001 CCD MOTOR LG2017001 CCD MOTOR HARNESS 0A4300605 SCREW, PAN (S/P WASHER) M3X6 LG2239001 CCD HP SENSOR LG2019001 CCD HP SENSOR HARNESS LG2025001 PANEL-MAIN HARNESS LE2074001 CCD IDLE PULLEY HOLDER ASSY LE2884001 CCD UNIT SUPPLY ASSY LG2196001...
- Page 9 List3(MAIN CHASIS) To replace part marked with an asterisk(*), you need the special adjustment jig set. If your service center has no special adjustment jig set, you cannot handle those parts as spare parts. REF.NO. CODE Q'TY DESCRIPTION REMARKS LE2110001 IDLE GEAR 23 LE2111001 ARM 12.3 ASSY...
- Page 11 List4(PAPER TRANSPORT) REF.NO. CODE Q'TY DESCRIPTION REMARKS 087320616 TAPTITE, CUP S M3X6 LE2489001 CABLE CLIP LE2157001 UPPER PAPER CHUTE ASSY UG6609001 PAPER WIDTH/REGISTRATION SENSOR PCB LG2022001 PAPER WIDTH/REGISTRATION SENSOR HARNESS 087270816 TAPTITE, CUP B M2.6X8 UF0250000 PUSH NUT 3 LE2169001 CHUTE FILM LE2481001 SOLENOID...
- Page 13 List5(PAPER CASSETTE) REF.NO. CODE Q'TY DESCRIPTION REMARKS LE2228001 PAPER CASSETTE ASSY LE2234001 SIDE PAPER GUIDE LE2235001 GUIDE STOPPER LE2236001 FRONT PAPER GUIDE LE2239001 CASSETTE COVER MFC760...
- Page 15 List6(PURGE UNIT) To replace part marked with an asterisk(*), you need the special adjustment jig set. If your service center has no special adjustment jig set, you cannot handle those parts as spare parts. REF.NO. CODE Q'TY DESCRIPTION REMARKS LE2242001 PURGE UNIT ASSY 0A5300605 SCREW, PAN (S/P WASHER) M3X6...
- Page 17 List7(COVER) REF.NO. CODE Q'TY DESCRIPTION REMARKS UL5600001 RUBBER FOOT LE2246001 DRAIN TANK UU1198001 INK ABSORBER LE2223001 PAPER FEED SHAFT ASSY LE2225001 GEAR M0.5/25 LE2226001 ONE WAY ARM ASSY UU1290001 CONDUCTIVE BUSHING LE2221001 IDLE GEAR LE2222001 GEAR M0.6/25 UF0022000 BUSHING UG5717001 VC CONNECTOR PCB ASSY FOR GER/UK/NOR/BEL/NLD/CHE/DEN/SPA/ITA/SWE LG2195001...
- Page 19 List8(LABEL) REF.NO. CODE Q'TY DESCRIPTION REMARKS UU1235001 INK REPLACEMENT INSTRUCTION LABEL UU1236001 HEAD GAP ADJUSTMENT INSTRUCTION LABEL LE2859001 PAPER JAM CLEARANCE INSTRUCTION LABEL UU0456001 PROTECTION PAPER LE2498001 COLOR MARK UU1351001 VIDEO MYLAR LABEL BY2, EUR FOR GER/UK/NOR/BEL/NLD/CHE/DEN/SPA/ITA/SWE LE2501003 MYLAR LABEL 760 FOR GER LE2501004 MYLAR LABEL 760 FOR UK/CHE LE2501005...
- Page 21 List9(CONTROL PANEL) REF.NO. CODE Q'TY DESCRIPTION REMARKS LE2272001 CONTROL PANEL ASSY, WHITE(1495) LE2273001 CONTROL PANEL, WHITE(1495) UF4393007 KEY, TEN, WHITE(1495) LE2274001 KEY, COPY/FAX AREA, WHITE(1495) UF8174008 KEY, MONO COPY, WHITE(1495) UF8174009 KEY, COLOR COPY, GREEN(5159) UF8174010 KEY, STOP, PINK(2205) UF8174011 KEY, START, PURPLE(6255) UF8176009 KEY, FUNCTION4, GRAY(1509)
- Page 23 List10(PCB ASSY) REF.NO. CODE Q'TY DESCRIPTION REMARKS LG2233001 MAIN PCB ASSY LE2258001 INSULATION FILM (MAIN) 002300615 SCREW, PAN M3X6 LG2295001 NCU PCB ASSY LG2140001 NCU MAIN HARNESS LG2231001 NCU MAIN HARNESS 2 LE2257001 INSULATION FILM (NCU) LE2484001 INSULATION FILM 2 (NCU) LE2543001 CORE SUPPORT UG4163000...
- Page 25 List11(ACCESSORIES&OTHERS) REF.NO. CODE Q'TY DESCRIPTION REMARKS UG3565001 TELEPHONE LINE CORD FOR GER UG3626001 TELEPHONE LINE CORD FOR UK UG3627001 TELEPHONE LINE CORD FOR FRA UG3290001 TELEPHONE LINE CORD FOR NOR UG1575001 TELEPHONE LINE CORD FOR BEL UG3631001 TELEPHONE LINE CORD FOR NLD UG3469000 TELEPHONE LINE CORD FOR CHE UG3633001...
- Page 26 List12(PRINTED MATERIAL) REF.NO. CODE Q'TY DESCRIPTION REMARKS LE2517001 OWNER'S MANUAL ASSY FOR GER (INCLUDING OWNER'S MANUAL(1-1), WARRANTY CARD AND MFL MANUAL(1-2)) LE2518001 OWNER'S MANUAL ASSY FOR UK (INCLUDING OWNER'S MANUAL(1-1), 3 WARRANTY CARDS AND MFL MANUAL(1-2)) LE2519001 OWNER'S MANUAL ASSY FOR FRA (INCLUDING OPERATIONS MANUAL(1-1), 2 WARRANTY CARDS AND MFL MANUAL(1-2)) LE2826001...
- Page 27 List13(CARTON) REF.NO. CODE Q'TY DESCRIPTION REMARKS LE2507003 CARTON, BROTHER MFC760 FOR GER LE2507004 CARTON, BROTHER MFC760 FOR UK/CHE LE2507005 CARTON, BROTHER MFC760 FOR FRA LE2833001 CARTON, BROTHER MFC760 FOR NOR/BEL/NLD/DEN/SPA/ITA/SWE LE2288001 STYROFOAM ASSY LE2565001 POLY-ETHYLENE BAG FOR MACHINE, 900X850 LE2565002...
- Page 28 PL5CA233 Ver. J...
