Installing The Fan Module; Installing Fan Module - HP D7171A - NetServer - LPr Installation Manual

3 Installing the Fan Module

Installing Fan Module

Once the power supply cage and module are installed in the server, install the fan
module from the Power Supply Upgrade Kit. Server power should still be off, and
the covers 1 and 3 should be off the NetServer. The module includes two fans. It
mounts directly in front of the existing power supply fan module.
1. Slide the fan module that you removed back into place.
2. Slide the new fan module into place in front of the existing power supply
fan module.
3. Fasten the fan module in place and secure it with its thumbscrew. See
Figure 3-1.
Slide the new
fan module into
place.

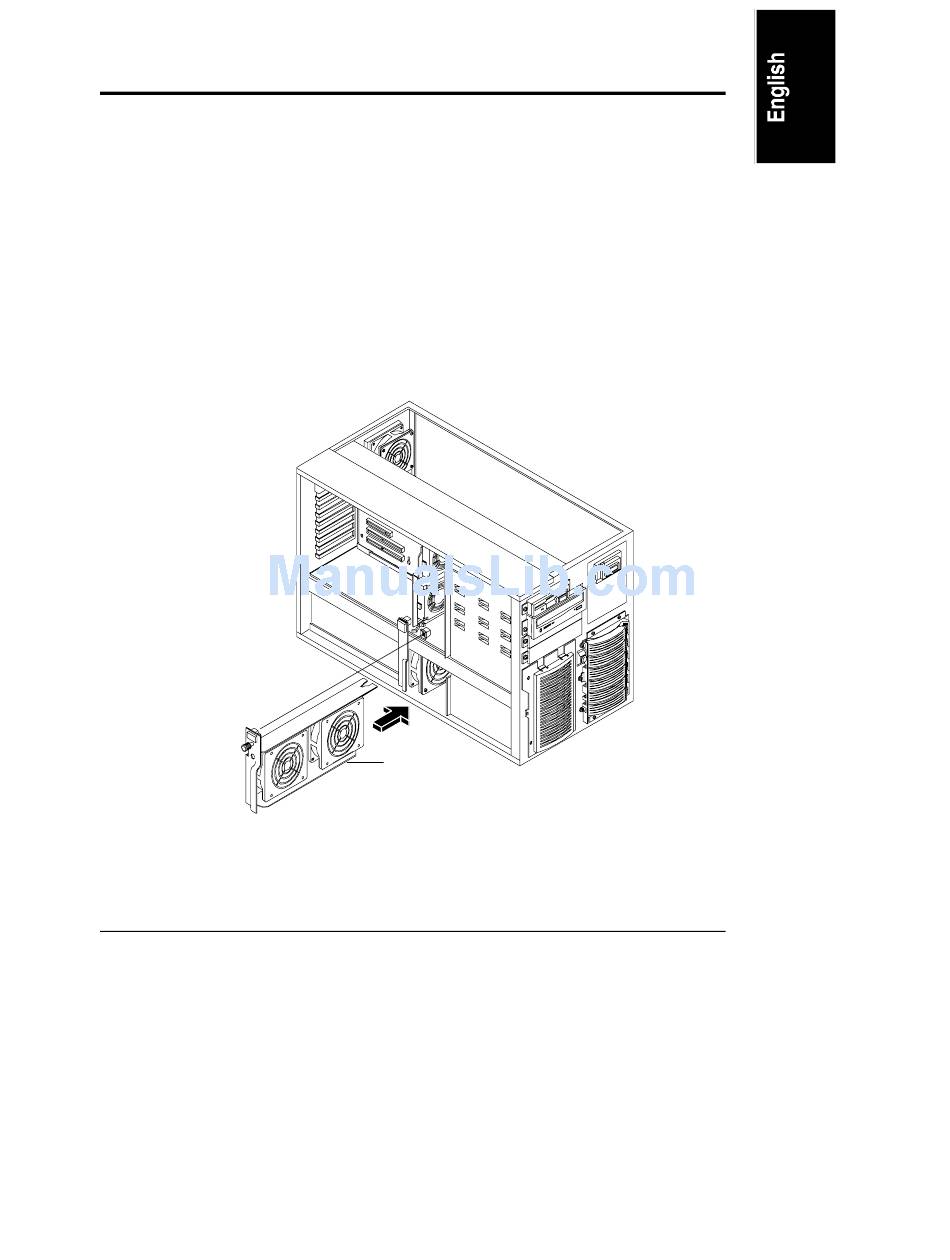

Figure 3-1. Installing the Fan Module
15
