Section
02 Connecting the System

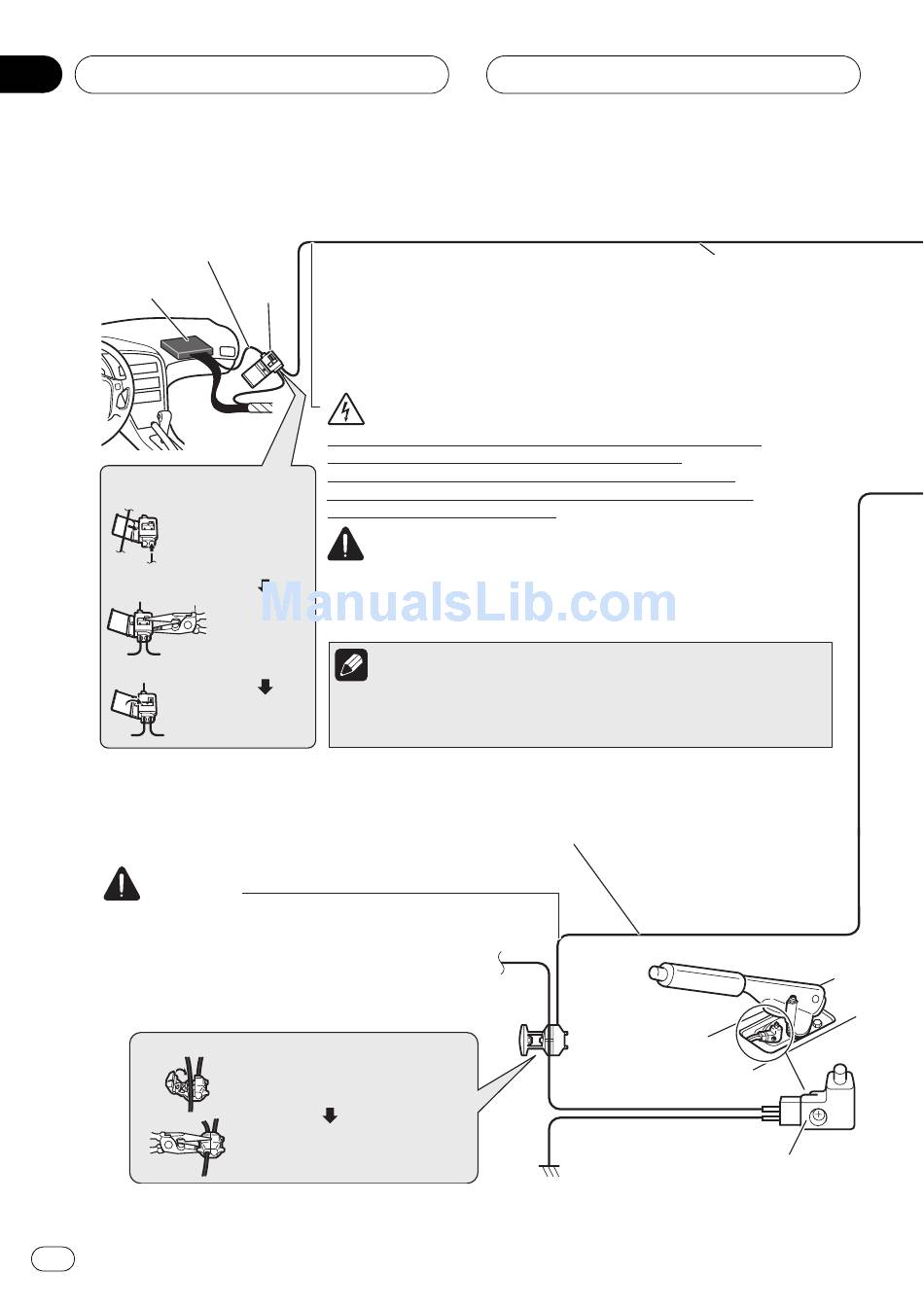

Connecting the power cord (2)

Speed detection circuit lead
Vehicle injection
computer
Connection method
Pass the extension
cord and the lead for
the speed detection
circuit through this
hole.

Light green

Used to detect the ON/OFF status of the parking brake. This lead must be
connected to the power supply side of the parking brake switch.
If this connection is made incorrectly or omitted, certain functions
of your navigation system will be unusable.
WARNING
LIGHT GREEN LEAD AT POWER CONNECTOR IS
DESIGNED TO DETECT PARKED STATUS AND MUST
BE CONNECTED TO THE POWER SUPPLY SIDE OF THE
PARKING BRAKE SWITCH. IMPROPER CONNECTION
OR USE OF THIS LEAD MAY VIOLATE APPLICABLE
LAW AND MAY RESULT IN SERIOUS INJURY OR
DAMAGE.
14
En

Pink (CAR SPEED SIGNAL INPUT)

The mobile navigation system is connected here to detect the
Connector
distance the vehicle travels. Always connect the vehicle´s speed
detection circuit or the ND-PG1 speed pulse generator, sold
separately. Failure to make this connection will increase errors in
the location display.
WARNING
IMPROPER CONNECTION MAY RESULT IN SERIOUS DAMAGE
OR INJURY INCLUDING ELECTRICAL SHOCK, AND
INTERFERENCE WITH THE OPERATION OF THE VEHICLE´S
ANTILOCK BRAKING SYSTEM, AUTOMATIC TRANSMISSION
AND SPEEDMETER INDICATION.
CAUTION
· It is strongly suggested that the speed pulse wire be connected for
accuracy of navigation and better performance of interlock.
· If the speed pulse wire is unavailable for some reason, it is
Clamp firmly
recommended that the pulse generator (ND-PG1) be used.
with needle-
nosed pliers.
Note
The position of the speed detection circuit and the position of the
Close the cover.
parking brake switch vary depending on the vehicle model. For details,
consult your authorized Pioneer dealer or an installation professional.
Connection method
Clamp the parking brake switch
power supply side lead.
Clamp firmly with needle-nosed
pliers.
5 m (16 ft. 5 in.)
Power supply side
Ground side
Parking brake switch
