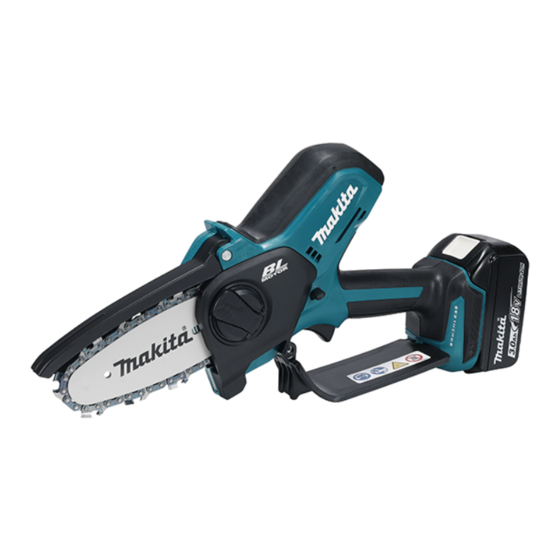

Cordless pruning saw
Hide thumbs Also See for DUC101:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
Cordless Pruning Saw
FR
Scie d'élagage sans fil
Akku-Astsäge
DE
Motosega da potatura a
IT
batteria
Accusnoeizaag
NL
Sierra Inalámbrica para Podar
ES
PT
Cortador de Galho a Bateria
Akku beskæringssav
DA
Φορητό πριόνι κλαδέματος
EL
TR
Akülü Budama Testeresi
DUC101
DUC150
INSTRUCTION MANUAL
MANUEL D'INSTRUCTIONS
BETRIEBSANLEITUNG
ISTRUZIONI PER L'USO
GEBRUIKSAANWIJZING
MANUAL DE
INSTRUCCIONES
MANUAL DE INSTRUÇÕES
BRUGSANVISNING
ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ
KULLANMA KILAVUZU
8
19
31
43
55
67
79
91
102
115

Advertisement

Table of Contents
loading

Related Manuals for Makita DUC101

Summary of Contents for Makita DUC101

  • Page 1 Motosega da potatura a ISTRUZIONI PER L’USO batteria Accusnoeizaag GEBRUIKSAANWIJZING MANUAL DE Sierra Inalámbrica para Podar INSTRUCCIONES Cortador de Galho a Bateria MANUAL DE INSTRUÇÕES Akku beskæringssav BRUGSANVISNING Φορητό πριόνι κλαδέματος ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ Akülü Budama Testeresi KULLANMA KILAVUZU DUC101 DUC150...
  • Page 2 Fig.1 Fig.2 Fig.3 Fig.4...
  • Page 3 Fig.5 Fig.8 Fig.6 Fig.9 Fig.7 Fig.10...
  • Page 4 Fig.15 Fig.11 Fig.16 Fig.12 Fig.17 Fig.13 Fig.18 Fig.14...
  • Page 5 Fig.19 Fig.22 Fig.20 Fig.23 Fig.21 Fig.24...
  • Page 6 Fig.25 Fig.29 Fig.26 Fig.30 Fig.27 Fig.31 Fig.28 Fig.32...
  • Page 7 Fig.33 Fig.36 Fig.34 Fig.35...

  • Page 8: Specifications

    ENGLISH (Original instructions) SPECIFICATIONS Model: DUC101 DUC150 Overall length 357 mm 408 mm (without guide bar and battery) Rated voltage D.C. 18 V Net weight 1.1 kg 1.6 - 2.0 kg 1.7 - 2.0 kg Standard guide bar length 100 mm...

  • Page 9: Intended Use

    The typical A-weighted noise level determined accord- for the equipment. Be sure that you understand their ing to EN62841-4-1: meaning before use. Model DUC101 Sound pressure level (L ) : 79 dB (A) Read instruction manual. Sound power level (L...

  • Page 10: Declarations Of Conformity

    Always keep proper footing and operate the WARNING: The vibration emission during pruner saw only when standing on fixed, actual use of the power tool can differ from the secure and level surface. Slippery or unstable declared value(s) depending on the ways in which surfaces may cause a loss of balance or control of the tool is used especially what kind of workpiece the pruner saw.

  • Page 11: Additional Safety Instructions

    Electrical and battery safety • Do not overreach and do not cut above shoulder height. This helps prevent unin- Avoid dangerous environment. Don't use the tended tip contact and enables better control tool in damp or wet locations or expose it to of the pruner saw in unexpected situations.

  • Page 12: Parts Description

    10. The contained lithium-ion batteries are subject causing fires, personal injury and damage. It will to the Dangerous Goods Legislation require- also void the Makita warranty for the Makita tool and ments. charger. For commercial transports e.g. by third parties,...

  • Page 13: Functional Description

    FUNCTIONAL DESCRIPTION NOTE: Depending on the conditions of use and the ambient temperature, the indication may differ slightly from the actual capacity. CAUTION: Always be sure that the tool is NOTE: The first (far left) indicator lamp will blink when switched off and the battery cartridge is removed the battery protection system works. before adjusting or checking function on the tool. Tool / battery protection system Installing or removing battery cartridge The tool is equipped with a tool/battery protection sys-...
  • Page 14 Check the direction of the saw chain. Match the Checking the run-down brake direction of the saw chain with that of the mark on the tool body. CAUTION: ► Fig.12: 1. Mark on tool body If the saw chain does not stop within a few seconds in this test, stop using the Fit one end of the saw chain on the top of the tool and consult our authorized service center.

  • Page 15: Operation

    The oil delivery may otherwise be impaired. Carrying tool NOTICE: Use the saw chain oil exclusively for Makita tools or equivalent oil available in the market. Before carrying the tool, always remove the battery NOTICE: Never use oil including dust and parti- cartridge from the tool.

  • Page 16: Maintenance

    To maintain product SAFETY and RELIABILITY, ► Fig.29: 1. File 2. Saw chain repairs, any other maintenance or adjustment should — The file can be guided more easily if a file holder be performed by Makita Authorized or Factory Service (optional accessory) is employed. The file holder has Centers, always using Makita replacement parts. markings for the correct sharpening angle of 30° (align Sharpening the saw chain the markings parallel to the saw chain) and limits the depth of penetration (to 4/5 of the file diameter).

  • Page 17: Replacing The Sprocket

    Replacing the sprocket Storing the tool Clean the tool before storing. Remove any chips CAUTION: A worn sprocket will damage a and sawdust from the tool after removing the sprocket new saw chain. Have the sprocket replaced in this cover. case.

This manual is also suitable for:

Duc150
