Sealey SA4 Instruction Manual

Issue Date: . . . . . .011002
Issue No: . . . . . . . . . .1
Item Part No Description
1 SA4/01 HOUSING
2 SA4/02 SLEEVE, VALVE
3 SA4/03 VALVE, REVERSE
4 SA4/04 TRIGGER
5 SA4/05 TRIGGER PIN
6 SA4/06 TRIGGER SCREW
7 SA4/07 VALVE STEM
8 SA4/08 VALVE BALL, STEEL 10.7MM
9 SA4/09 SPRING, AIR INLET
10 SA4/10 ADAPTOR, HOSE
11 SA4/11 SCREEN
12 SA4/12 AIR REGULATOR
13 SA4/13 O-RING
14 SA4/14 PIN
15 SA4/15 OIL SEAL
16 SA4/16 SPACER, ANVIL
17 SA4/17 BUSHING, ANVIL
18 SA4/18 ANVIL ( 3/4” SQ. )
19 SA4/19A CAGE, HAMMER 10.5MM
20 SA4/20A PIN, HAMMER 10.5MM
21 SA4/21A DOG, HAMMER 10.5MM
22 SA4/22A CAM, DRIVE FOR 10.5 PIN
23 SA4/23 SEAL, FRONT PLATE
24 SA4/24 CYLINDER
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component
parts without prior notice. IMPORTANT: No liability is accepted for incorrect use of this equipment. WARRANTY: Guarantee is 12
months from purchase date. proof of which will be required for any claim. INFORMATION: Call us for a copy of our latest catalogue
and promotions on 01284 757525 and leave your full name and address including your postcode.
Sole UK Distributor
Sealey Group,
Bury St. Edmunds, Suffolk.
Item Part No Description
25 SA4/25 ROTOR
26 SA4/26 ROTOR BLADE
27 SA4/27 PLATE, FRONT END
28 B/6002 BEARING, 6002
29 SA4/29 PLATE, REAR END
30 B/6002 BEARING, 6002
31 SA4/31 SPRING, VALVE SLEEVE
32 SA4/32 PIN, VALVE SLEEVE
33 SA4/33 REAR GASKET
34 SA4/34 COVER, (SO)
35 SA4/35 WASHER, REAR COVER
36 SA4/36 SCREW, REAR COVER
37 SA4/37 WASHER, REAR COVER
38 SA4/38 SCREW, REAR COVER
39 SA4/39 DEFLECTOR, EXHAUST
40 SA4/40 SCREW, (SO)
41 SA4/41 SCREW
42 SA4/42 ANVIL COLLAR
43 SA4/43 O-RING
44 SA4/44 PROTECTING RUBBER
45 SA4/45 SCREW
46 SA4/46 OIL SEAL
47 SA4/47 PROTECTING RUBBER
48 SA4/RS RED PLASTIC COVER SLEEVE
(NOT SHOWN)
01284 757500
Web address: www.sealey.co.uk
01284 703534 E-mail: sales@sealey.co.uk
INSTRUCTIONS FOR:

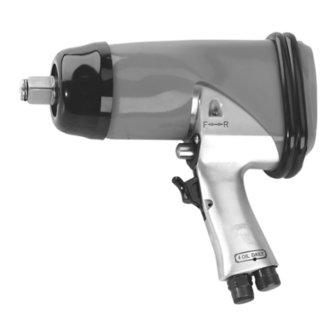

3/4” AIR IMPACT WRENCH
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
! Follow all workshop safety rules, regulations, and conditions when using this wrench.
F WARNING! Disconnect from air supply before changing accessories or servicing.
! Maintain the wrench in good condition and replace any damaged or worn parts. Use
genuine parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
F WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
! Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
! Only use impact sockets which are specifically designed for use with an impact wrench.
! Wear approved safety eye/face shield, ear defenders, and hand protection.
F WARNING! Due to the possible presence of asbestos dust from brake linings, when working
around vehicle brake systems we recommend you wear suitable respiratory protection
! Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
! Keep children and non essential persons away from the working area.
% DO NOT use the wrench for a task it is not designed to perform.
F WARNING! DO NOT use wrench if damaged or thought to be faulty. (Contact Service Agent).
p
% DO NOT use wrench unless you have been instructed in its use by a qualified person.
% DO NOT carry the wrench by the air hose, or yank the hose from the air supply.
% DO NOT operate wrench if you are tired, under the influence of alcohol, drugs or intoxicating medication.
% DO NOT carry wrench with your hand on the power trigger in order to avoid unintentional starting.
% DO NOT direct air from the air hose at yourself or others.
! When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODUCTION & SPECIFICATIONS
Heavy duty air impact wrench suitable for heavy garage and tyre shop use. Fitted with a rocking
dog type clutch mechanism with hardened anvil and cage. Features 4 position adjustable
air/torque control and reversible action.
Drive size . . . . . . . . . . . . . . . . . .3/4”
Working/Max torque . . . .470/650ft/lb
Ultimate torque . . . . . . . . . . 670ft/lb
Air consumption . . . . . . . . . . . .9cfm
HEAVY DUTY
SA4
MODEL:
Operating pressure . . . . .90psi
Air inlet size . . . . . . . .1/4” BSP
Weight . . . . . . . . . . . . . .4.7kg
SA4 - (1) - 011002
