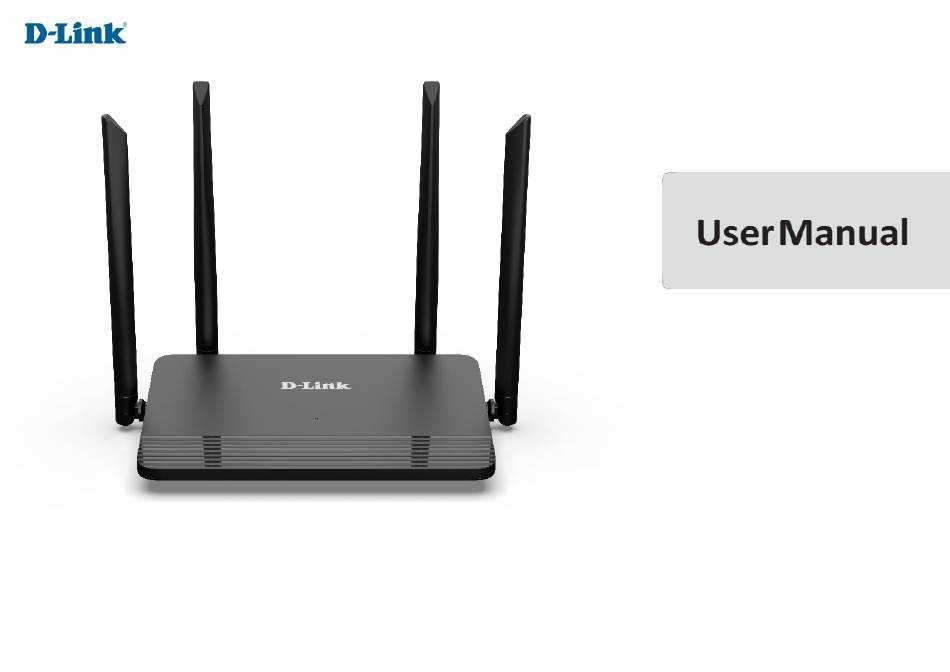

- Page 1 FIBRE Wi-Fi AC1200 Dual Band Router DIR-822K...
-
Page 2: Preface
Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Manual Revisions Revision Date Description 20 Nov 2023 Final Trademarks D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries. -
Page 3: Table Of Contents
Preface ......................2 VPN Status ..................23 Product Overview ..................5 This displays the VPN status information......... 23 Package Contents ..................5 User Traffic ..................24 System Requirements ................6 Statistics .................... 25 Introduction ....................7 Setup ..................... 26 Features .................... - Page 4 Schedule .................... 45 Ping Diagnostic .................. 67 Wireless (5GHz) ..................46 Traceroute ..................68 Basic settings ..................46 System Settings ................. 69 Security ..................... 47 Auto Reboot ..................70 Access Control ................... 48 Upgrade Firmware ................71 Site Survey ..................49 Logout ....................
-
Page 5: Product Overview
Quick Install Guide If any of the above items are missing or damaged, please contact your reseller. Note: Using a power supply other than the one included with the DIR-822K may cause damage and void the warranty for this product. -
Page 6: System Requirements
System Requirements Network Requirements • An active account with an Internet Service Provider using one of the following connection types: • A broadband device connected using the WAN port Web-based Configuration Utility Requirements Computer with the following: • Windows®, Macintosh, or Linux-based operating system •... -
Page 7: Introduction
The DIR-822K FIBRE WI-FI AC1200 DUAL BAND ROUTER provides incredible speeds, smart antenna technology, and easy mesh features. It also features a clean design and easy installation options. -
Page 8: Features
Features Faster Wireless Networking -The DIR-822K is dual-band capable and equipped with four antennas to provide wireless speeds of up to 1200 Mbps* for your wireless devices. It operates on both the 2.4 GHz and 5GHz bands to allow separation of traffic so users can participate in high-bandwidth activities, such as video streaming, online gaming, and real-time audio, without affecting low-priority traffic like email and web surfing. -
Page 9: Hardware Overview
Hardware Overview Back Panel Ethernet Ports Connects to Ethernet devices such as computers. WAN Port Connects to Ethernet WAN devices. Reset button Hold Reset button down for 15 Seconds to factory default the Router. Power Button Press to switch router ON/OFF. Power Connector Connector for the supplied power adapter. -
Page 10: Side Panel
Hardware Overview Side Panel... -
Page 11: Leds
Hardware Overview LEDs Power/WAN Solid Red Device is powered on. Solid Green The WAN is properly connected. No connection or Cable not connected properly. -
Page 12: Installation
Note: This installation section is written for users who are setting up their home Internet service with the DIR-822K FIBRE WI-FI AC1200 DUAL BAND ROUTER with Easy mesh for the first time. If you are replacing an existing modem and/or router, you may need to modify these steps. -
Page 13: Wireless Installation Considerations
The key to maximizing wireless range is to follow these basic guidelines: 1. Keep the number of walls and ceilings between the D-Link router and other network devices to a minimum - each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices so that the number of walls or ceilings is minimized. -
Page 14: Manual Setup
Manual Setup Hardware Installation... -
Page 15: Getting Started
To connect to the web interface of the router and get started setting it up, refer to Configuration on page. Quick Setup The Quick Setup menu is used to set up the Internet connection on the DIR-822K. This is the first step in the Quick Setup tool and allows you to choose the connection type. Step 1... - Page 16 If PPPoE or DHCP is successful, please click the next button to continue to next step. If both DHCP and PPPoE test fails, Please verify that your fibre is active and the cable from the ONT device is plugged into the WAN port at the back of the DIR-822K.
- Page 17 Step 3 IF PPPoE Passed then user will need to enter the Username and Password as provided by the Internet Service Provider (ISP). IF DHCP passed device will automatically skip to step 5. Username: Enter your Username here. (usually looks like an email address like Yourname@telkomsa.net) Password: Enter your Password here.
- Page 18 Step 5 On Step 5 the user will be able to modify the Wi-Fi SSID and Preshared Key to their requirements. SSID 2.4GHz: The name of the Wi-Fi network operating on 2.4GHz. Preshared key: The password for the Wi-Fi network operating on 2.4GHz. SSID 5GHz: The name of the Wi-Fi network operating on 5GHz.
- Page 19 Step 7 In this step you can enter the Site Username, Site Password, Confirm Site Password and Site LAN IP/Netmask to connect to Telkom VPN lite Site Username: The site username. Site Password: Enter the site password here. Confirm Site Password: Enter the site password again to confirm. Site LAN IP/ Netmask: Enter the LAN IP or Netmask for the site here.
-
Page 20: Configuration
To access the web interface, open a web browser and enter the IP address of the router (by default this is 10.0.0.2) into the address bar. When the login page of the DIR-822K is displayed, enter the username and password you set on step 6 of the setup wizard. By default, the login details are admin for the username and admin for the password if you chose to not change the details on the wizard. -
Page 21: Status
Status Device Information The Status menu is used to display statistics from different functions from the router. This displays basic system information and the uptime of the router. Device Information Product Type: The model number of the router. Default Gateway: The Default gateway assigned by the ISP to access the Router. -
Page 22: Wan Status
WAN Status Network This displays Network status information. IPv4 / IPv6 WAN Connection Status Connection Name: The name of the WAN connection. Enable: The state of the WAN connection. Type: The WAN connection type. VLAN ID: The ID indicating what VLAN the WAN connection is assigned to. Status: The status of the WAN connection. -
Page 23: Vpn Status
VPN Status This displays the VPN status information. PPTP: Enabled/Disabled L2TP: Enabled /Disabled Server IP address: IP address attained from the server. Local IP address: Local IP of attained from your device. Remote Address: IP address of the Remote access device. Status: This will state if the connection is connected/disconnected. -
Page 24: User Traffic
User Traffic This Displays the User traffic Information such as IP address of connected devices, Total Download/Upload statistics. -
Page 25: Statistics
Statistics This page shows the packet counters for transmission and reception regarding the wireless and Ethernet networks of the device. -
Page 26: Setup
Setup Wizard This Section displays the “Quick Setup Wizard” which is used during first time setup. -
Page 27: Operation Mode
Operation Mode This section allows you to setup different modes on the LAN and WAN Interface for NAT and bridging functions. Gateway: This mode allows the device to connect to the Internet via Ethernet WAN connection, NAT Enabled. Bridge/AP: This mode bridges all Ethernet ports and wireless interface and Disables NAT. Wireless ISP: This mode has all Ethernet ports are bridged together and the wireless client will connect to the ISP Router, NAT Enabled. -
Page 28: Network
Network LAN Setting Here you can configure the parameters for local area network. IP Address: The IP address can be set. Subnet Mask: The Subnet mask can be set. Default Gateway: Default Gateway of the Router. WORK MODE: Can be set to OFF/Client/Server/DHCP Relay. -
Page 29: Wan Setting
WAN Setting Connection name: Choose a WAN from the drop-down menu. Enable: Choose to Enable/Disable the profile. WAN Access Type: Select a WAN type such as PPPOE/DHCP/Static. User Name: Enter the ISP username if using PPPOE. Password: Enter the ISP password if using PPPOE. Service Name: Leave blank or give it a name. -
Page 30: Pptp Setting
PPTP Setting Here you can configure the parameters for the PPTP Server Enable: Choose to Enable/Disable the service Server: Enter the Server IP address Username: Enter the username associated Password: Enter the password associated MTU: This value must be 1492 MPPE: Enable/Disable (Microsoft Point-to-Point Encryption) MPPC: Enable/Disable (Microsoft Point-to-Point Compression) -
Page 31: L2Tp Setting
L2TP Setting Here you can configure the parameters for the L2TPv2 Server Enable: Choose to Enable/Disable the service Server: Enter the Server IP address Username: Enter the username associated Password: Enter the password associated MTU: maximum transmission unit, this value is usually 1492 (represents the largest data packet a network device will accept) MPPE: Enable/Disable (Microsoft Point-to-Point Encryption) MPPC: Enable/Disable (Microsoft Point-to-Point Compression) -
Page 32: Gre Setting
GRE Setting Here you can configure the parameters to connect to GRE. (Packet encapsulation protocol to route packets over an IP network) Enable: Enable or disable the function. Local Host Address: Local IP address. Remote Host Address: Remote IP address. Tunnel Address: Insert the Tunnel IP address. -
Page 33: Vpn Lite
VPN LITE Here you can configure your Telkom VPN profile Enable: Enable or Disable the Feature. Username: Enter your Telkom VPN Lite Username. Password: Enter your Telkom VPN Lite Password. LAN IP/Netmask: Here you can Enter the IP or Netmask. NAT: Enable or Disable the NAT Function. - Page 34 IPv6 Wan Setting Here you can configure the parameters of IPv6 Wan settings. Enable IPv6: Enable/Disable IPv6 Origin Type: This can be set to AUTO/STATIC/6RD Address Mode: You can set this to a Stateful/Stateless address PD Enable: Enable or Disable the PD (Prefix Delegation) Enable wan ds lite: Enable/Disable DS-Lite (Dual-Stack Lite) Allows the user to utilize IPV4 to access Internet via IPv6 Enable MLD Proxy: Enable/Disable Multicast Listener Discovery (used to discover Multicast Listeners)
-
Page 35: Ipv6 Lan Setting
IPv6 Lan Setting Here you can configure the DHCPv6 and RADVD Parameters IP address: Enter the IP address. DHCPv6 Server Enable: Enable or Disable the server. RADVD: Enable or disable RADVD feature (Router advertisement daemon) used for IPv6 auto-configuration. -
Page 36: Tunnel (6 Over 4)
Tunnel (6 over 4) Here we can configure Tunnel 6 -4. Enable: Enable or Disable the Tunnel. -
Page 37: Vlan Bridge Here We Can Change The Vlan Parameters
VLAN Bridge Here we can change the VLAN parameters VLAN ID: Assign an associated VLAN ID. LAN1-LAN 4: Select which LAN ports are associated with the VLAN. SSID Guest 1-4 (2.4Ghz): Select which 2.4Ghz SSID Guest are associated with the VLAN. SSID Guest 1-4 (5Ghz): Select which 5Ghz SSID Guest are associated with the VLAN . -
Page 38: Default Route
Default Route Here you can select which wan connection is set as the default (If no default is set, the current configured wan will be selected as default). -
Page 39: Static Route
Static Route Here you can Enable and edit static routing to allow network traffic to be redirected to a specific client its location. Enable Static Route: Set the Static Route to Enable/Disable. IP Address: Enter the IP address associated. Subnet Mask: Enter the Subnet Mask associated. Gateway: Default Gateway IP address. -
Page 40: Wireless (2.4Ghz)
Wireless (2.4GHz) Basic settings Here we will configure the settings for the 2.4Ghz Network. Disable Wireless LAN Interface: Set the Wireless state to Enabled or Disabled. Country or Region: Choose your country of origin Band: Select a wireless band Mode: Select mode AP/Client SSID: Set a name for your wireless network Channel Width: Select the channel width of 20Mhz, 40Mhz or 20/40Mhz Control Sideband: Set the Sideband to Upper or Lower. -
Page 41: Security
Security Here you can set and change security parameters Select SSID: Choose an SSID from the drop-down list. Encryption: Select an Encryption type. Authentication Mode: Select between Enterprise or Personal. WPA2 Cipher Suite: Choose between TKIP/AES. Management Frame Protection: Select between None/Capable/required. Pre-Shared Key Format: Select between Passphrase or HEX (64 Characters) Pre-shared Key: create a Wi-Fi password with a minimum of 8 characters. -
Page 42: Access Control
Access Control Wireless ACL Mode: Set to Disable or choose to Allow or Deny Device access. Allow: Allows the desired mac address Disable: fully disables the ACL feature. Deny: Denies the desired mac address MAC Address: Enter the MAC of the device or choose it from the connected clients list. Comment: You may enter a note/name/tag in this field. -
Page 43: Site Survey
Site Survey Here you can utilize the site survey tool to scan the wireless network in your area, if any Router or IBSS is found you can choose to connect to it. (Please note wireless client mode must be enabled to connect). -
Page 44: Wps
Here you can change the settings for the 2.4Ghz WPS (Wi-Fi Protected Setup), using this feature you can let your wireless client connect and synchronize all its settings and connect to the Router. Disable WPS: Choose to Disable/Enable the WPS Function WPS Status: This will state if the device is configured or unconfigured. -
Page 45: Schedule
Schedule Here you can setup the wireless schedule rule (Please note to configure system time) Enable: Enable or Disable the Rule. DAY: Select a day in which you want the rule to be active. FROM: Set start time. TO: Set end time. -
Page 46: Wireless (5Ghz)
Wireless (5GHz) Basic settings Here we will configure the settings for the 5Ghz Network. Disable Wireless LAN Interface: Set the Wireless state to Enabled or Disabled. Country or Region: Choose your country of origin Band: Select a wireless band Mode: Select mode AP/Client SSID: Set a name for your wireless network Channel Width: Select the desired channel width Control Sideband: Set the Sideband to Upper or Lower. -
Page 47: Security
Security Here you can set and change security parameters. Select SSID: Choose an SSID from the drop-down list. Encryption: Select an Encryption type. Authentication Mode: Select between Enterprise or Personal. WPA2 Cipher Suite: Choose between TKIP/AES. Management Frame Protection: Select between None/Capable/required. Pre-Shared Key Format: Select between Passphrase or HEX (64 Characters) Pre-shared Key: create a Wi-Fi password with a minimum of 8 characters. -
Page 48: Access Control
Access Control Wireless ACL Mode: Set to Disable or choose to Allow or Deny Device access. Allow: Enables the ACL mode. Disable: Disables the ACL mode. Deny: Deny any Mac Address on the ACL list. MAC Address: Enter the MAC of the device or choose it from the connected clients list. Comment: You may enter a note/name/tag in this field. -
Page 49: Site Survey
Site Survey Here you can utilize the site survey tool to scan the wireless network in your area, if any Router or IBSS is found you can choose to connect to it. (Please note wireless client mode must be enabled to connect). -
Page 50: Wps
Here you can change the settings for 5Ghz WPS (Wi-Fi Protected Setup), using this feature you can let your wireless client connect and synchronize all its settings and connect to the Router. Disable WPS: Choose to Disable/Enable the WPS Function WPS Status: This will state if the device is configured or unconfigured. -
Page 51: Schedule
Schedule Here you can setup the wireless schedule rule (Please note to configure system time) Enable: Enable or Disable the Rule. DAY: Select a day in which you want the rule to be active. FROM: Set start time. TO: Set end time. -
Page 52: Easy Mesh
Easy Mesh You can configure the Easy Mesh feature here and makes changes to the settings. Role: Choose to Disable or make it the Controller or Agent. Backhaul BSS: Choose which SSID you want to use. Device name: Give the Device a unique name. WPS Trigger: Click to start WPS process. -
Page 53: Features
Features Advanced You can utilize the Routers high-performance features, monitor internet traffic and protect your network from malicious internet attacks. Enable DMZ: Enabling this feature will add a perimeter network that adds an extra layer of security to internal local-area network from untrusted traffic Enable UPNP: Enabling this feature will allow Universal plug and play ,this network protocol allows network devices to seemingly discover each other’s presence and establish functional network service. -
Page 55: Port Filtering
Port Filtering You can restrict certain types of data packets from your local network to the internet. This can secure or restrict your local network. Enable Port Filtering: This feature will enable port filtering. Enable IPv4: This will Enable Port filtering to be done on IPv4 Enable IPv6: This will Enable Port filtering to be done on IPv6 Port Range: You can set the Port Range here (1 –... -
Page 56: Ip Filtering
IP Filtering You can restrict certain types of data packets from your local network to the internet. This can secure or restrict your local network. Enable IP Filtering: Enable this feature to use IP Filtering. Enable IPv4 : Enable this Feature to utilize IP Filtering over IPv4 Enable IPv6 : Enable this Feature to utilize IP Filtering over IPv6... -
Page 57: Mac Filtering
MAC Filtering You can restrict certain types of data packets from your local network to the internet, use of such filters can secure or restrict your local network. Mode: Choose to Blacklist or Whitelist a MAC address. MAC Address: Select the device from the drop-down menu and type in its corresponding Mac address. Comment: Enter a name or tag. -
Page 58: Port Forwarding
Port Forwarding You can setup your port forwarding rules here, this will allow you to connect to a specific device behind the NAT firewall. Enable Port Forwarding: Use this feature to Enable Port Forwarding on the device. Local IP Address: Internal IP address of the Router. Local Port Start: Enter the Port Number Local Port End: Enter the Port Number Protocol: Choose a Protocol ( BOTH , UDP,TCP ) -
Page 59: Url Filtering
URL Filtering You can use the URL Filter to deny LAN users access to certain Internet sites by blocking URL’s which contain certain keywords. Enable URL Filtering: Use this to Enable or Disable the URL Filtering rules. DENY URL address (Black list): Enable this to use “Black-List” (Denies all access to the URL) Allow URL address (white list): Enable this to use “White-List”... -
Page 60: Qos
You can use this Feature to improve all round network traffic and prioritize network packets to improve online gaming / FTP or WEB services. Enable QoS: Enable or Disable the Rule. Automatic Uplink Speed : Enable or Disable . Automatic Downlink Speed : Enable or Disable. Name: : Give the Rule a name. -
Page 61: Management
Management Time Zone Setting Here you can maintain the system time settings by synchronizing with a public time server over the internet. Current time: set the current time manually. Copy LAN time: Automatically Copies the Computer time from your device. Time Zone Select: Select a time zone based on your location. -
Page 62: Ddns
DDNS Here you can setup you’re existing DDNS account Enable DDNS: This feature will allow you to Enable or Disable the DDNS account. Status: this will show the DDNS account as Connected/Disconnected. IP Address: this will show the IP address associated with the DDNS account. Service Provider: Select your DDNS service provider from the drop down menu. -
Page 63: Deny Of Service
Deny of Service Here you can manage parameters to prevent Denial of Service attacks (DDOS) - Page 64 Enable DoS Prevention: You can enable the DDOS prevention Feature here to stop malicious attacks. Whole System Flood: SYN: enable this to Prevent attacks affecting traffic denial to a server. Whole System Flood: FIN: enable this to Prevent attacks affecting Packet traffic . Whole System Flood: UDP: enable this to Prevent attacks that cause packet flooding to overwhelm or stop device ability to function.
-
Page 65: Log
Here you can view and set the remote log server. Enable Log: This Feature Enable’s Logging. Enable Remote log: This Feature Enable’s Remote logging. Log Server IP Address: Enter the Server IP. Log Server Port: Enter the Log Port. -
Page 66: Password
Password Here you can change the default Router password to enhance security. New Password: Enter a password of at least 6 characters long, this can contain Numbers, Letters, Special characters. Confirm Password: Confirm the above password. -
Page 67: Ping Diagnostic
Ping Diagnostic Here you can Ping an IP and Run diagnostics. Host Name or IP Address: Choose IPv4 or IPv6 and “Click Run”... -
Page 68: Traceroute
Traceroute Here you can use the Traceroute tool and Run Diagnostics. Host Name or IP Address: Choose IPv4 or IPv6... -
Page 69: System Settings
System Settings Here you can save current settings or configurations, Reboot/Reset the Device, or load a Config file onto the Router. Save Settings to File: Save the Router config locally to your PC/Laptop. Load Settings from File: Load a config backup previously saved. Reset Settings to Default: Reset the Router to Factory default settings. -
Page 70: Auto Reboot
Auto Reboot Here you can Enable and Manage automatic Reboot for your Device. Enable: Set the state to Enabled/Disabled. Period Days: Set how many day intervals you want the device to reboot. Reboot Time: Set a daily time you want the device to reboot. -
Page 71: Upgrade Firmware
Upgrade Firmware Here you can update the Routers firmware, by downloading and selecting the correct firmware file. Firmware Version: this will display the current Firmware version of the device. Select file: Click here to browse your local PC/Laptop for the downloaded firmware file. Upload: Click this button to start the firmware update process. -
Page 72: Logout
Logout Here you can safely and manually logout of your device after changing any settings or parameters. Logout: Click this button to Exit the Web-Management page of the Router. -
Page 73: Connect A Wireless Client To Your Router
Blu-ray DVD players, wireless printers and cameras will have a WPS button (or a software utility with WPS) that you can press to connect to the DIR-822K router. Please refer to your user manual for the wireless device you want to connect to make sure you understand how to enable WPS. -
Page 74: Windows® 10
Windows® 10 When connecting to the DIR-822K wirelessly for the first time, you will need to input the wireless network name (SSID) and Wi-Fi password (security key) of the device you are connecting to. If your product has a Wi-Fi configuration card, you can find the default network name and Wi-Fi password here. -
Page 75: Windows® 8
Windows® 8 It is recommended that you enable wireless security (WPA/WPA2/WPA3) on your wireless router or access point before configuring your wireless adapter. If you are joining an existing network, you will need to know the security key (Wi-Fi password) being used. 1. -
Page 76: Windows® 7
Windows® 7 It is recommended that you enable wireless security (WPA/WPA2) on your wireless router or access point before configuring your wireless adapter. If you are joining an existing network, you will need to know the security key or passphrase being used. 1. -
Page 77: Wps
The WPS feature of the DIR-822K can be configured using Windows 7. Carry out the following steps to use Windows 7 to configure the WPS feature: 1. Click the Start button and select Computer from the Start menu. 2. Click Network on the left side. - Page 78 4. Input the WPS PIN number (on the router label) in the Setup > Wireless Setup menu in the Router’s Web UI) and click Next. 5. Type a name to identify the network. 6. To configure advanced settings, click the Arrow icon. Click Next to continue.
- Page 79 7. The following window appears while the DIR-822K is being configured. Wait for the configuration to complete. 8. The following window informs you that WPS on the DIR-822K has been set up successfully. Make a note of the security key as you may need to provide this security key if adding an older wireless device to the network in the future.
-
Page 80: Troubleshooting
1. Why can’t I access the web-based configuration utility? When entering the IP address of the D-Link router (10.0.0.2 for example), make sure you are not connected to a website, you don’t have to be connected to the Internet. The device has the utility built-in to a ROM chip in the device itself. Your computer must be on the same IP subnet to connect to the web-based utility. - Page 81 Close your web browser (if open) and open it. • Access the web management. Open your web browser and enter the IP address of your D-Link router in the address bar. This should open the login page for your web management.
- Page 82 To find the proper MTU Size, you’ll have to do a special ping of the destination you’re trying to go to. A destination could be another computer, or a URL. • Click on Start and then click Run. • Windows® 95, 98, and Me users type in command (WindowsR NT, 2000, XP, VistaR, 7, 8.x, and 10 users type in cmd) and press Enter (or click OK).
-
Page 83: Wireless Basics
D-Link wireless products are based on industry standards to provide easy-to-use and compatible high-speed wireless connectivity within your home, business, or public access wireless networks. Strictly adhering to the IEEE standard, the D-Link wireless family of products will allow you to access the data you want, when, and where you want it. - Page 84 PDAs, headphones, laptops, speakers, and other devices that operate on batteries. Who uses wireless? Wireless technology as become so popular in recent years that almost everyone is using it, whether it’s for home, office, business, D-Link has a wireless solution for it.
- Page 85 The wireless connection in public places is usually called hotspots”. Using a D-Link USB adapter with your laptop, you can access the hotspot to connect to the Internet from remote locations like: airports, hotels, coffee shops, libraries, restaurants, and convention centres.
-
Page 86: Tips
Tips Here are a few things to keep in mind, when you install a wireless network. Centralize your router or access point Make sure you place the router/access point in a centralized location within your network for the best performance. Try to place the router/access point as high as possible in the room, so the signal gets dispersed throughout your home. -
Page 87: Wireless Modes
• Ad-hoc – Directly connecting to another computer for peer-to-peer communication using wireless network adapters on each computer, such as two or more DIR-822K wireless network USB adapters. An Infrastructure network contains an access point or wireless router. All the wireless devices, or clients, will connect to the wireless router or access point. -
Page 88: Networking Basics
Networking Basics After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below. -
Page 89: Statically Assign An Ip Address
Statically Assign an IP address If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps below: Step 1 Windows® 7- Click on Start > Control Panel > Network and Internet > Network and Sharing Center > Change Adaptor Options Windows®... -
Page 90: Wireless Security
Wireless Security This section will show you the different levels of encryption you can use to help protect your data from intruders. The DIR-822K offers the following types of security: • WPA2 (Wi-Fi Protected Access 2) • WPA2-PSK (Pre-Shared Key) •... -
Page 91: Technical Specifications
Technical Specifications Device Interfaces Wi-Fi Encryption • WPA™ - Personal/Enterprise • 3 x RJ-45 10/100 Ethernet LAN ports • WPA2™ - Personal/Enterprise • 1 x RJ-45 10/100 Ethernet WAN port • WPA3™ Personal/Enterprise • 2.4 GHz and 5 GHz wireless for 802.11 a/b/g/n/ac •... -
Page 92: Regulatory Information
Regulatory Information CE EMI Class A Warning This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause radio interference. Frequency Band(s) Max. Output Power (EIRP) Frequenzband Max. Output Power Fréquence bande(s) Consommation d’énergie max. Bandas de Frecuencia Potencia máxima de Salida Frequenza/e...
