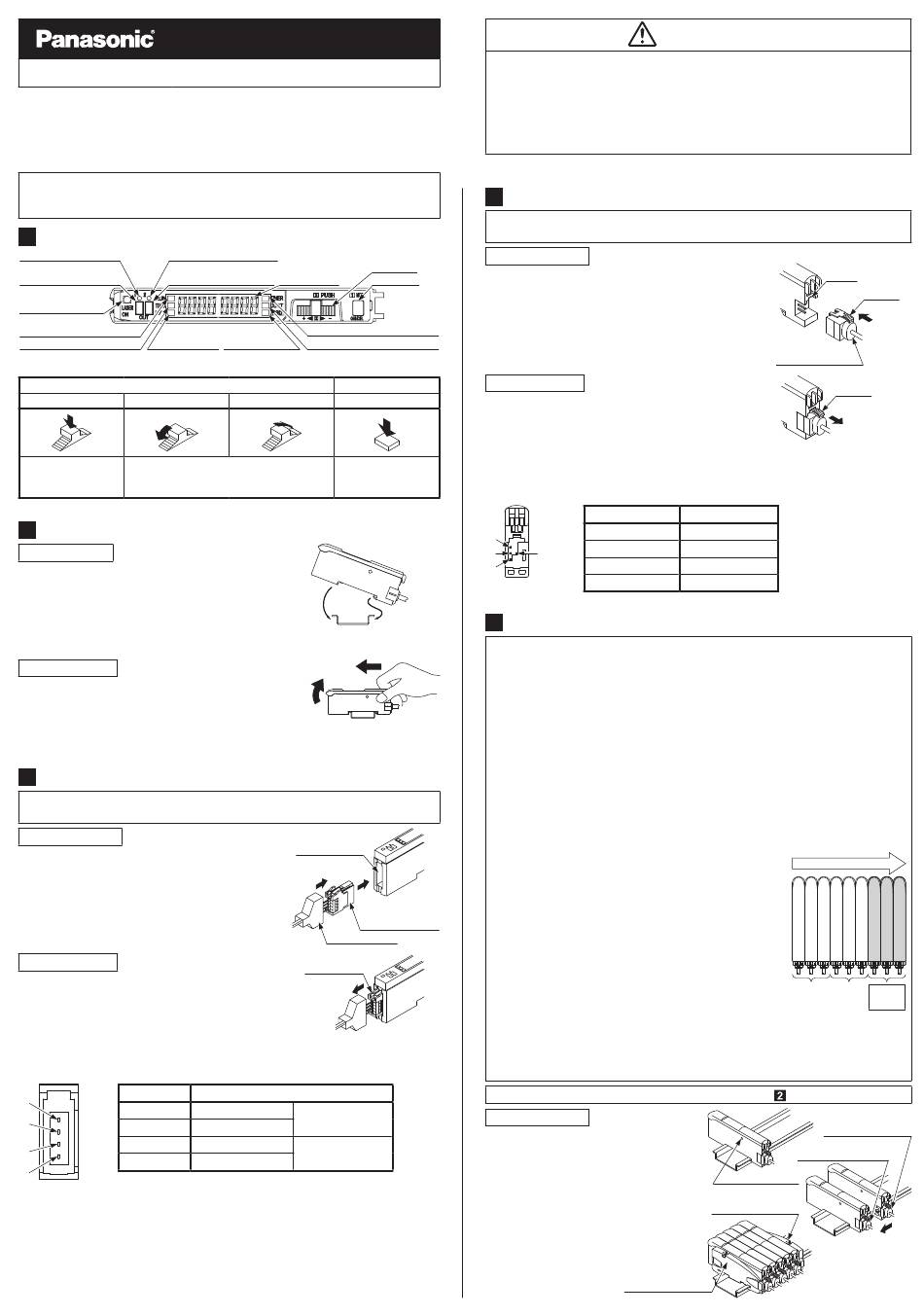

Panasonic LS-403 Instruction Manual

Digital Laser Sensor Amplifier LS-403
Thank you very much for purchasing Panasonic products. Please read this
Instruction Manual carefully and thoroughly for the correct and optimum
use of this product.
Kindly keep this manual in a convenient place for quick reference.
For details of the setting contents or setting procedures, refer to "LS series
PRO mode operation guide" in "Panasonic Industrial Devices SUNX
website (http://panasonic.net/id/pidsx/global)."
1 PART DESCRIPTION
Select 1 indicator (Yellow) Select 2 indicator (Yellow)
Output 1 operation indicator Output 2 operation indicator
(Orange)
(Orange)
Laser emission indicator
(Green)
MODE indicator: RUN (Green)
MODE indicator
L/D (Yellow)
MODE indicator: TEACH (Yellow)
<Description of the operation part>
Jog switch
Press Turn to "+" side
To decide each item. To select each item.
2 MOUNTING
How to mount
1. Fit the rear part of the mounting section of the
amplifier on a 35mm width DIN rail.
2. Press down the rear part of the mounting sec-
tion of the unit on the 35mm width DIN rail and
fit the front part of the mounting section to the
DIN rail.
How to remove
1. Push the amplifier forward.
2. Lift up the front part of the amplifier to remove it.
Note: Take care that if the front part is lifted without pushing the amplifier forward, the hook
on the rear portion of the mounting section is likely to break.
3 CONNECTION OF A SENSOR HEAD
Make sure that the power supply is OFF while connecting or disconnect-
ing the sensor head LS-H series (optional).
How to connect
1. Insert the connector of the sensor head
LS-H series (optional) into the connector
area for the sensor head of this product as
shown in the right figure.
2. Fit the connector cover.
How to remove
1. Remove the connector cover.
2. Pressing the release lever attached to the
connector of the sensor head, pull out the
connector.
Note: Do not pull by holding the cable without pressing the release lever, as this can cause
cable break or connector break.
<Terminal arrangement>
Terminal No.
1
1
2
2
3
3
4
4
INSTRUCTION MANUAL
ME-LS403 No.0084-50V
Digital display
(Green / Red)
MODE indicator: TIMER (Yellow)
MODE indicator
PRO (Yellow)
MODE indicator: CUSTOM (Yellow)
MODE key
Turn to "-" side
To select a mode
or to cancel during
setting.
2
35mm width DIN rail
1
2
Connector area for
the sensor head
2
1
Connector of the
sensor head LS-H
series (Optional)
Connector cover
Release lever
Connection cable
Cable core: Brown
Cable color: Gray
Shielded wire
Cable core: Yellow
Cable color: Black
Shielded wire
● Never use this product as a sensing device for personnel protection.
● In case of using devices for personnel protection, use products which
meet laws and standards, such as OSHA, ANSI or IEC etc., for person-
nel protection applicable in each region or country.
● In case of control or adjustment using procedures other than those
specified in this instruction manual, hazardous laser radiation exposure
can result.
4 WIRING
Make sure to connect or disconnect the quick-connection cable (optional)
in the power supply OFF condition.
How to connect
Jog switch
1. Holding the connector of the quick-connec-
MODE key
tion cable, align its release lever with the
groove at the top portion of the controller
connector.
2. Insert the connector till a click is felt.
How to remove
Press
1. Pressing the release lever at the top of the
quick-connection cable connector, pull out
the connector.
Note: Take care that if the connector is pulled out without pressing the release lever, the re-
lease lever may break. Do not use a quick-connection cable whose release lever has
broken. Further, do not pull by holding the cable, as this can cause a cable-break.
<Terminal arrangement>
1
2 4
3
1
AMPLIFIER CASCADING
5
● Make sure that the power supply is OFF while adding or removing the amplifier.
● Make sure to check the allowable ambient temperature, as it depends
on the number of amplifiers connected in cascade.
● In case 2 or more amplifiers are connected in cascade, make sure to
mount them on a DIN rail.
● When the amplifiers move on the DIN rail depending on the attaching con-
dition or the amplifiers are mounted close to each other in cascade, fit them
between the end plates MS-DIN-E (optional) mounted at the two ends.
● Up to maximum 15 amplifiers can be added (total 16 amplifiers con-
nected in cascade).
● When connecting 2 or more amplifiers in cascade, use the sub cable
CN-72-C□ (optional) as the quick-connection cable for the second am-
plifier onwards.
● When connecting amplifiers not close to each other in parallel, be sure to
mount the end plate MS-DIN-E (optional) at both sides of each amplifier.
● When this product and other products (e.g. fiber sensor
amplifiers, pressure sensor controllers, etc.) are con-
nected together in cascade, install those products so
that they are in order of Group A, B, and C as shown in
the right figure. This product is included in Group C.
● As for the products that are located between differ-
ent groups, put the amplifier protection seal FX-MB1
(optional) on the communication window of each
corresponding product.
● Within each group, identical models should be
connected in a lump.
● When this product and other products (fiber sensor amplifiers, pressure
sensor controllers, etc.) are connected together in cascade, items that
can be copied at Copy setting are limited.
Copiable items are digital display setting in RUN mode, Eco setting,
time period hold setting and CUSTOM setting.
For mounting and removing the amplifier, refer to "
How to cascade
1. Mount the amplifiers, one by one,
on the 35mm width DIN rail.
2. Slide the amplifiers next to each
other, and connect the quick-
connection cables.
3. Mount the end plates MS-DIN-E (op-
tional) at both the ends to hold the
amplifiers between their flat sides.
4. Tighten the screws to fix the end
plates.
WARNING
Terminal No. Terminal name
1 +V
2 Output 1
3 0V
4 Output 2
Communication window
End plate
MS-DIN-E (Optional)
End plate
MS-DIN-E (Optional)
Groove
Release
lever
Quick-connection
cable (Optional)
Release
lever
Communication direction
Group Group Group
A B C
MOUNTING."
Sub cable
CN-72-C□ (Optional)
Main cable
CN-74-C□ (Optional)
Slide
