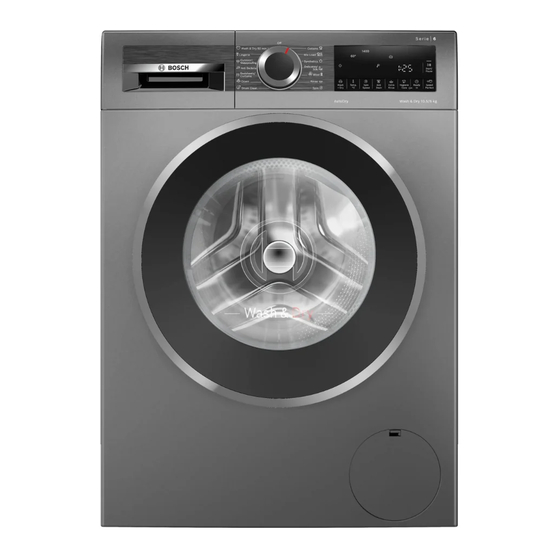

- Page 1 Washer dryer WNA2E4U1IN [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Buttons ........ 23 1.1 General information.... 4 9 Programmes ...... 25 1.2 Intended use...... 4 1.3 Restriction on user group.. 4 10 Accessories...... 29 1.4 Safe installation ...... 5 11 Laundry........ 29 1.5 Safe use ........ - Page 3 15 Basic settings...... 33 15.1 Overview of the basic set- tings........ 33 15.2 Changing the basic set- tings........ 34 16 Cleaning and servicing ... 34 16.1 Cleaning the drum.... 34 16.2 Cleaning the detergent drawer........ 34 16.3 Cleaning the drain pump.. 35 17 Troubleshooting...... 39 17.1 Emergency release ....
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... -
Page 6: Safe Use
en Safety ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶... - Page 7 Safety en ▶ If the appliance or the power cord is damaged, immediately un- plug the power cord or switch off the fuse in the fuse box and turn off the water tap. ▶ Call customer services. → Page 51 An ingress of moisture can cause an electric shock. ▶...
- Page 8 en Safety WARNING ‒ Risk of explosion! Highly flammable objects such as lighters or matches may ignite during the drying process. ▶ Remove all highly flammable objects from any pockets in your laundry before the drying process. Unwashed laundry that has come into contact with solvents, oil, wax, wax remover, paint, grease or stain remover may ignite when drying is in progress.
-
Page 9: Safe Cleaning And Maintenance
Safety en CAUTION ‒ Risk of scalding! When you wash at high temperatures, the detergent solution gets hot. ▶ Do not touch the hot detergent solution. CAUTION ‒ Risk of chemical burns! If the detergent drawer is opened, detergent and care products may spray out from the appliance. Contact with eyes or skin may cause irritation. -
Page 10: Preventing Material Damage
en Preventing material damage Make sure that the length of the ▶ Preventing material damage 2 Preventing material thread on the connection to the water tap is at least 10 mm. damage If the water pressure is too high or too low, the appliance may not be Preventing material damage ATTENTION! able to operate properly. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en Remove all detergent residue, Set the maximum spin speed if you ▶ spray residue or other residues im- want to dry the laundry in the appli- mediately if they come into contact ance afterwards. with the appliance. a The drier the laundry, the shorter the programme duration when dry- ing which, in turn, reduces energy... -
Page 12: Contents Of Package
en Installation and connection Remove any packaging and pro- ¡ Water inlet hose tective covers completely from the → "Connecting the water inlet appliance. hose", Page 14 → "Disposing of packaging", 4.3 Requirements for the in- Page 11 stallation location Check the appliance for visible damage. Open the door. -
Page 13: Removing The Transit Bolts
Installation and connection en Pull the hoses out of the holders. Installation loca- Requirements tion Wooden joist Place the appli- floor ance on a water- resistant wooden board (minimum thickness of 30 mm) which is screwed tightly to the floor. Kitchen unit Only install the appliance under- neath a continu-... -
Page 14: Connecting The Appliance
en Installation and connection Remove the 4 sleeves. 4.5 Connecting the appliance Connecting the water inlet hose Connect the water inlet hose. Put on the 4 cover caps. Connect the water inlet hose to a tap (26.4 mm = 3/4"). Push the 4 cover caps downwards. Open the water tap carefully and check that the connection points are tight. -
Page 15: Aligning The Appliance
Installation and connection en Note: Observe the draining heights. 4.6 Aligning the appliance The draining heights are: minimum: In order to reduce noise and vibra- 60 cm, maximum: 100 cm tion and to prevent the appliance Siphon Secure the con- from moving, align the appliance cor- nection point with rectly. - Page 16 en Installation and connection Use a WAF 17 wrench to tighten the lock nuts against the housing until they are hand-tight. In doing so, hold the foot tight and do not adjust its height.
-
Page 17: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. -
Page 18: Control Panel
en Familiarising yourself with your appliance Dispenser II: detergent for the main wash Compartment : Fabric softener Compartment I: Detergent for prewash 5.3 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. Programmes → Page 25 Programme selector → Page 30... -
Page 19: Before Using For The First Time
Before using for the first time en Add washing powder that contains Before using for the first time 6 Before using for the a bleaching agent to compart- ment II. first time Prepare the appliance for use. Before using for the first time 6.1 Starting an empty wash- ing cycle Your appliance was inspected thor-... -
Page 20: Buttons
en Display Display 7 Display The display shows the current settings, options or relevant information. Display Example: Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. Program end time → "Buttons", Page 23 Recommendation for the maximum load capacity for the selected program in kg. - Page 21 Display en Display Description Spin Programme status Program end Programme status Drying Programme status Crease-reduction function Programme status ¡ Lights up: The childproof lock is activated. ¡ Flashes: The childproof lock is activated and the appli- ance has been operated. → "Deactivating the childproof lock", Page 32 Additional rinse cycles are activated.
- Page 22 en Display Display Description Flashes: Drum cleaning is required. Run the Drum Clean programme for cleaning and caring for the drum and the outer tub. → "Cleaning the drum", Page 34 ( Hygiene The gentle pretreatment of dry laundry using hot air for in- Care）...
- Page 23 Buttons en Buttons 8 Buttons The selection of programme settings depends on the programme that is set. Buttons Button Selection Description Temp.℃ - 90 Adjust the temperature. Set temperature in °C. Spin Speed - 1400 Adjust the spin speed or deactivate the spin cycle.
- Page 24 en Buttons Button Selection Description Anti Stain Multiple selection Select the type of stain. The temperature, drum movement and soaking time are all adjusted to suit the type of stain. Wash+Dry ¡ When is selected, only wash- ¡...
- Page 25 Programmes en Programmes 9 Programmes Programmes Note: The laundry's care labels provide you with additional information on pro- gramme selection. Programme Description Max. Max. load load (kg) (kg) Wash Dry- Cottons Wash hard-wearing items made of cotton, 10.5 linen or blended fabrics. Also suitable as a short programme for nor- mally soiled laundry when you activate ...
- Page 26 en Programmes Programme Description Max. Max. load load (kg) (kg) Wash Dry- Delicates/ Wash delicate, washable items made from – Silk silk, viscose and synthetic fabrics. Use a detergent that is suitable for delicates or silk. Note: Wash especially delicate items or items with hooks, eyelets or clips in a mesh laundry bag.
-
Page 27: Programmes
Programmes en Programme Description Max. Max. load load (kg) (kg) Wash Dry- Anti Bac- Wash hard-wearing items made from cotton, teria linen or blended fabrics. Suitable for allergy sufferers and for strict hy- giene requirements. Note: Once the set temperature has been reached, it remains constant throughout the entire washing process. - Page 28 en Programmes Programme Description Max. Max. load load (kg) (kg) Wash Dry- Programme setting: ¡ Max. 60 °C ¡ Max. 1000 rpm Drum Clean Clean and care for the drum. – – After cleaning, the residual water in the drum is removed by supplying hot air.
-
Page 29: Accessories
Accessories en Accessories 10 Accessories Use original accessories. These have been made especially for your appliance. Accessories Order num- Water inlet hose ex- Extend the water inlet hose for cold water WMZ2381 tension or AquaStop (approx. 2.50 m). Fixing brackets Improves the stability of the appliance. WMZ2200 Elbow Secure the water outlet hose in place. -
Page 30: Detergents And Care Products
en Basic operation Open the door. Basic operation 13 Basic operation Place the laundry in the drum. Close the door. Basic operation Ensure that there is no laundry 13.1 Switching on the appli- trapped in the door. ance Requirement: The appliance has 13.5 Adding detergent and been correctly installed and connec- care product ted. -
Page 31: Soaking Laundry
Basic operation en ¡ If "Hot" appears, the appliance The appliance door remains cools the laundry. locked for safety reasons if the When "Hot" goes out, the laundry temperature and water levels are has cooled down. high. – If the temperature is high, start 13.7 Soaking laundry the Rinse ... -
Page 32: Switching Off The Appli- Ance
en Childproof lock 13.13 Switching off the appli- 14.2 Deactivating the child- ance proof lock Turn the programme selector to Requirement: To deactivate the Off . childproof lock, the appliance must be switched on. Turn off the tap. Wipe the rubber gasket dry and re- Press and hold the two ... -
Page 33: Basic Settings
Basic settings en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. Basic settings 15.1 Overview of the basic settings Basic setting Programme Value Description position End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme. -
Page 34: Changing The Basic Set- Tings
en Cleaning and servicing 15.2 Changing the basic set- Cleaning and servicing 16 Cleaning and servi- tings cing Set the programme selector to po- To keep your appliance working effi- sition 1. Cleaning and servicing ciently for a long time, it is important to clean and maintain it carefully. -
Page 35: Cleaning The Drain Pump
Cleaning and servicing en Press down on the insert and re- Fit the insert and click it into place. move the detergent drawer. Clean the opening for the deter- Pull out the insert upwards. gent drawer. Clean the detergent drawer and in- Push in the detergent drawer. - Page 36 en Cleaning and servicing Open and remove the mainten- CAUTION - Risk of scalding! ance flap. When you wash at high temperat- ures, the detergent solution gets hot. Do not touch the hot detergent ▶ solution. To allow the detergent solution to flow out into the container, remove the sealing cap.
- Page 37 Cleaning and servicing en Insert the pump cap. Cleaning the drain pump Ensure that the parts of the Requirement: The drain pump is ‒ pump cap are correctly as- empty. → Page 35 sembled. Since water may remain in the drain pump, unscrew the pump cap carefully.
- Page 38 en Cleaning and servicing Before the next wash To prevent unused detergent from flowing straight into the outlet in the next wash, run a suitable programme for draining after you have emptied the drain pump. Open the water tap. Insert the mains plug. Switch on the appliance.
-
Page 39: Troubleshooting
Troubleshooting en Troubleshooting 17 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 40 en Troubleshooting Fault Cause and troubleshooting "E:36 / -10" Immediate measure: Mix one tablespoon of fabric ▶ softener with 0.5 litres of water and pour the mix- ture into compartment II (not for outdoor clothing, sportswear or items stuffed with down). Reduce the amount of detergent for the next wash- ▶...
- Page 41 Troubleshooting en Fault Cause and troubleshooting flashes. Door is not closed. Close the door. ▶ Laundry is caught in the door. Remove any trapped laundry. ▶ "Hot" and the drum Cooling process active. rotates. Not a fault. Do not change the programme during the cooling process.
- Page 42 en Troubleshooting Fault Cause and troubleshooting Creasing. Unsuitable programme for the type of fabric. Set the suitable programme for the type of fabric. ▶ Easy-Care fabrics are dried for too long. The appliance is not The mains plug of the power cord is not plugged in. working.
- Page 43 Troubleshooting en Fault Cause and troubleshooting The water is not drain- → "Cleaning the drain pump", Page 35 ▶ ing. The water outlet hose is connected too high. Install the water outlet hose at a maximum height of ▶ 1 metre. Pump cover is not correctly assembled. Correctly assemble the pump cover.
- Page 44 en Troubleshooting Fault Cause and troubleshooting No water is visible in Water is below the visible area. the drum. Not a fault – no action required. ▶ Do not add any extra water to the appliance while it ▶ is operating. Residual water is Insert in compartment is blocked.
- Page 45 Troubleshooting en Fault Cause and troubleshooting The spin programme Note: Where possible, mix large and small items in does not start. the drum. Different sized items of laundry distribute themselves better during the spin cycle. Start the Spin programme. ▶ Water is leaking out at Water inlet hose is not correctly/securely connected.
- Page 46 en Troubleshooting Fault Cause and troubleshooting Detergent residue on Detergents may contain water-insoluble substances the damp washing. that deposit on the laundry. Start the Rinse programme. ▶ Detergent residue on Detergents may contain water-insoluble substances the dry laundry. that deposit on the laundry. Brush out the laundry after washing and drying.
- Page 47 Troubleshooting en Fault Cause and troubleshooting The laundry is too Unsuitable programme for the type of fabric. damp. There has been a power cut. Check whether the lighting in your room or other ▶ appliances are working. The load is too large. After the end of the programme, warm laundry feels damper than it actually is.
- Page 48 en Troubleshooting Fault Cause and troubleshooting Banging noises, rat- Foreign bodies have got into the drain pump. tling in the drain → "Cleaning the drain pump", Page 35 ▶ pump. Slurping, rhythmical The drain pump is active, the detergent solution is suction noise. pumped out.
-
Page 49: Emergency Release
Transportation, storage and disposal en 17.1 Emergency release 18.2 Inserting the transit bolts Releasing the door Secure the appliance before trans- Requirement: The drain pump is portation using transit bolts in order empty. → Page 35 to prevent transport damage. ATTENTION! Escaping water may Use a screwdriver to remove the 4 cause material damage. -
Page 50: Disposing Of Old Appliance
Handling Rules 2022. Valuable raw materials can be re- used by recycling. ¡ Please visit our web- site https:// WARNING www.bosch-home.in/ Risk of harm to health! metapages/e-waste- Children can lock themselves in the management to find appliance, thereby putting their lives out more details re- at risk. -
Page 51: Customer Service
Appliance width 59.8 cm Helpline no.: 1800-266-1880 Appliance depth 59.0 cm (Monday to Saturday – 8 am to 8 pm) Appliance depth 63.5 cm with door closed Email ID: service.in@bosch- home.com Appliance depth 107.2 cm Chat with us (WhatsApp): with door open +91-8451000555 Weight 81.3 kg Maximum load 10.5 kg... - Page 52 en Technical data Length of the wa- 150 cm ter inlet hose Length of the wa- 150 cm ter outlet hose Length of the 160 cm power cord...
- Page 56 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
