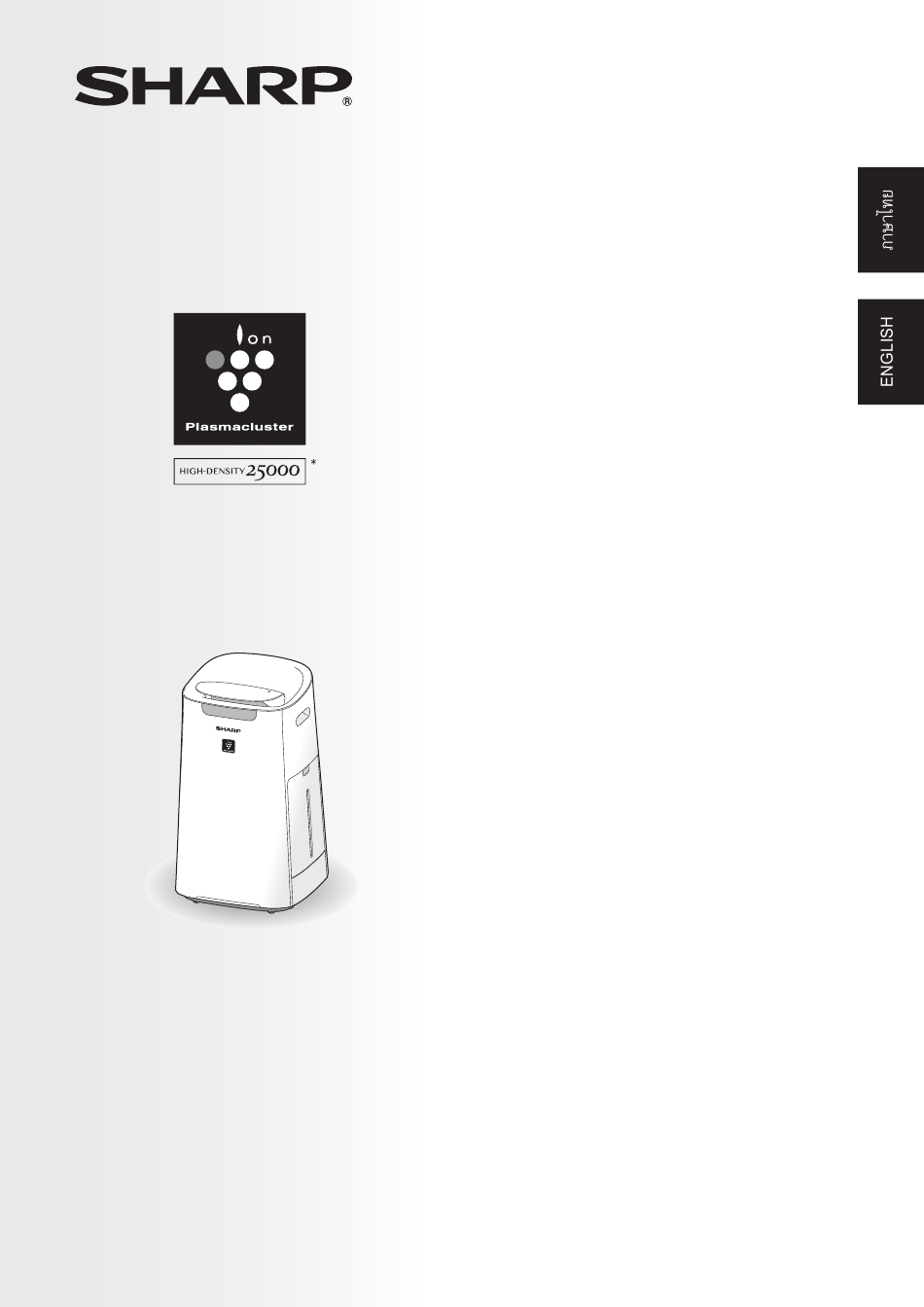

AIR PURIFIER with Humidifying Function OPERATION MANUAL "Plasmacluster" and "Device of a cluster of grapes" are trademarks of Sharp Corporation. * The number in this technology mark indicates an approximate number of ions supplied into air of 1 cm , which is measured around the center of a room applicable floor area (at 1.2 m height above...
Page 22
ENGLISH Thank you for purchasing this SHARP Air Purifier. Please read this manual carefully before using the product. This manual should be kept in a safe place for handy reference. CONTENTS FEATURES ......................1 IMPORTANT SAFETY INSTRUCTIONS ............. 2 PART NAMES ...................... 4 PREPARATION ....................
FEATURES A unique Combination of Air Treatment Technologies Triple Filteration System + Humidification + Plasmacluster High Density Plasmacluster 25000 The higher the PCI density is, the more effective PCI has. Triple Filteration System + Humidification TRAP DUST Pre-filter traps dust larger than approx 240 micron particles. DECREASES ODORS Deodorizing filter absorbs many common household odors.
• When carrying the product, first remove service agent, a Sharp authorized the Water Tank and Humidifying Tray, and Service Center or similarly qualified then hold the product by the handles on persons in order to avoid a hazard.
Page 25
• Consult the dealer or a qualified radio or the carrying handle. • Do not remove the Humidifying Filter from TV technician. the Filter Frame except replacing it. CAUTIONS CONCERNING • Avoid spilling water when removing or OPERATION cleaning the Humidifying Tray. •...
PART NAMES OPERATION PANEL SHARP COCORO AIR FRONT DISPLAY 21 19 23 22 LIGHT SENSOR When the Light Control NOTE Detection range of Light sensor is set to “Auto”, Front Do not install the product in the following places. Display and Cleanliness The Light Sensor may not sense correctly.
Page 27
When the air changes from dirty to clean, it flashes blue for a while and then turns off. Clean Turn off or Blue (Flashing) Yellow (Flashing) Impure Red (Flashing fast) • When the product receives driving instructions from SHARP’s cloud service, it will blink white light twice quickly. EN-5...
Page 28
MAIN BODY Louver Air Outlet (Back) Operation Panel Front Display Air Outlet (Front) Main Body Caster (4 Locations) Sensor (Internal) Temperature / Humidity / Sensitive Dust / Odor Sensor Filter Unit* Holder (Plasmacluster Ion Generating Unit) Unit* Cleaning Brush Unit* Cover Caster Stopper (Right &...
PREPARATION Always be sure to remove the power plug from the wall outlet. FILTER INSTALLATION REFILLING THE WATER TANK 1. Remove the Back Panel. 1. Remove the Water Tank. Back Panel Tank Handle 2. Remove the plastic bag from the each filter.
SETTING usage records. * For details on how to connect Sharp Cloud, refer ♪ ♪ ♪ to the Wireless LAN Guide Book. When the product is not connected to...
Page 31
PLASMACLUSTER ION SWITCH DISPLAY SPOT MODE Use this mode when you want to remove adhering odor, germs, and other substances from clothes, sofas and curtains. Discharges stronger air with high-density ♪ ♪ ♪ ♪ Plasmacluster ions only in the forward direction. ♪...
Page 32
PRE-FILTER AUTO HOW TO CHANGE CLEANING VARIOUS SETTING The pre-filter auto cleaning will operate for about You can change the functions in the table on 8 minutes automatically when the product reaches page 11. a certain operating time since a completion of the (with the product OFF) previous pre-filter auto cleaning.
Page 33
4. Touch Power ON/OFF Button to finish the setting mode. ♪ ~ Turn off Function Setting Turn off When set to “Turn off”, the “Dim” light illuminates for 8 seconds after operation starts and then the light turns off. The Humidify Indicator flashes darker only when the product needs water.
CARE AND MAINTENANCE Always be sure to remove the power plug from the wall outlet. CARE INDEX WATER TANK Rinse the inside with water. NOTE How to clean hard to remove dirt. Clean the inside of the Water Tank with a soft sponge and the Tank Cap with a cotton swab or...
Page 35
HUMIDIFYING FILTER / HUMIDIFYING TRAY 1. Remove the Humidifying Filter and Tray. 2. Rinse with plenty of water. Tray Panel Float • Do not remove the Float and the Rollers. If they come off, refer to below. Roller 3. Attach the Humidifying Filter and Tray.
Page 36
HEPA FILTER / 3. Throw away the dusts in the Dust Box. DEODORIZING FILTER Push Remove the dust on the filters. CAUTION Do not wash the filters. Do not expose to sunlight. (Otherwise these filters may lose efficacy.) HEPA Filter 4.
Page 37
PRE-FILTER 1. Remove the Back Panel and the 6. Insert the Pre-Filter shaft into the groove of the Shaft. Dust Box. 2. Remove the Pre-Filter Lock. Pre-Filter Lock 7. Attach the Shaft (upper) to the Back Panel. Shaft (upper) Tab (orange) 3.
REPLACEMENT PLASMACLUSTER ION GENERATING UNIT START/STOP START/STOP FILTERS ( Electrode Section ) LIFE OF FILTERS 1. Remove the Unit Cover, and pull out Filter life varies depending on the room environment, the Unit Holder. usage conditions, and location of the product. Lifespan of HEPA filter and Deodorizing filter and Unit Cleaning replacement suggestions are based on purifying...
PLASMACLUSTER ION TROUBLESHOOTING GENERATING UNIT UNIT REPLACEMENT LAMP Before calling for service, please review the Troubleshooting list below, since When the total operation time exceeds 17,500 the problem may not be the product hours, the Unit Replacement Lamp will flash to malfunction.
Page 40
Control to the “Dim” setting. (Page 10, 11) The Front display does not • The communication between match weather report or another SHARP server and the product is hygrometer or thermometer in the not available. room. Please check the Wireless LAN Flashing Guide Book for details.
SPECIFICATIONS KI-L80TA Model 220 V 50 Hz Power supply Fan Speed Adjustment Fan Speed (m / hour) CLEAN AIR Rated Power (W) Noise Level (dBA) * Fan Speed (m / hour) CLEAN AIR Rated Power (W) & Noise Level (dBA) *...
