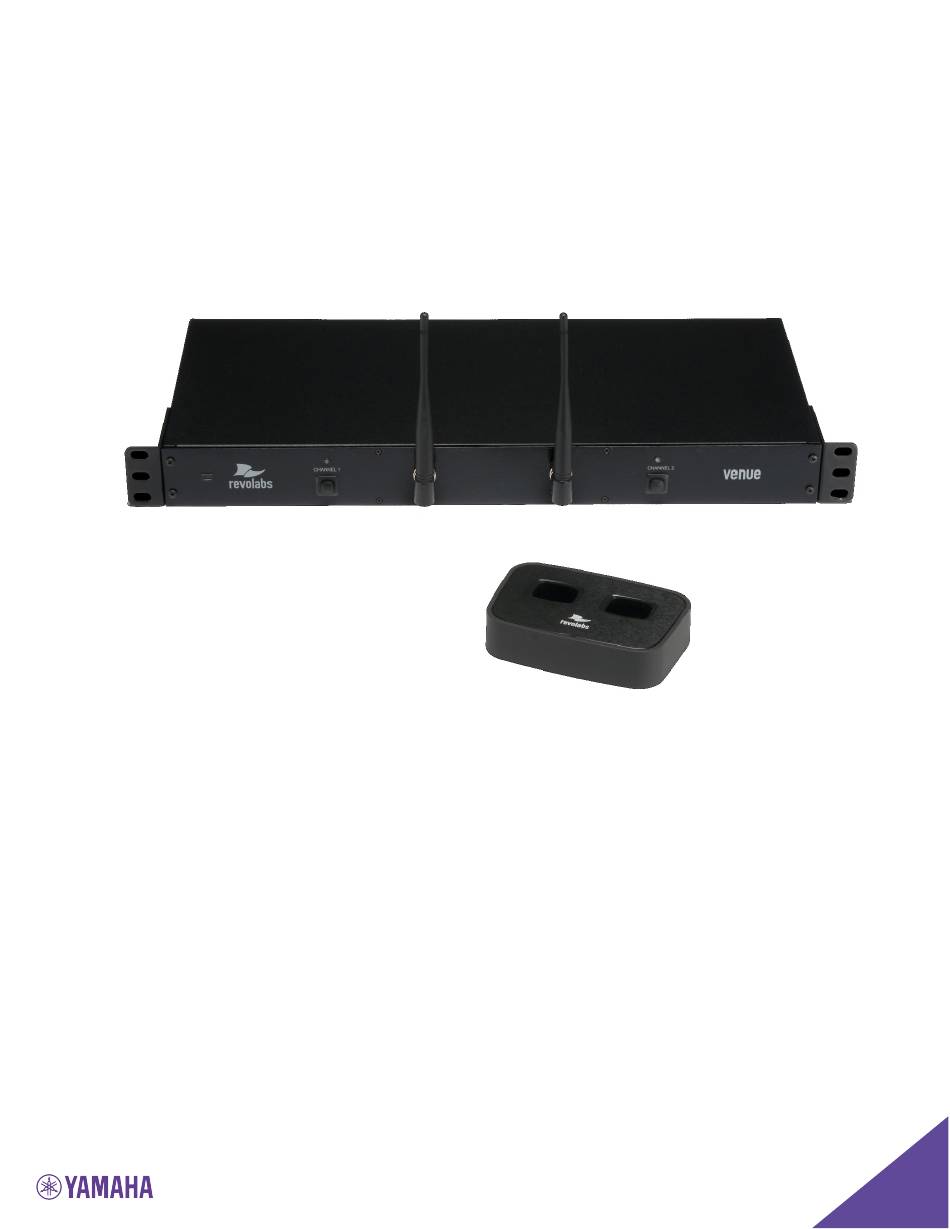

- Page 1 REVOLABS HD Venue™ Wireless Microphone System User and Set-up Guide Models: 01-HDVENU 03-HDVENUEU 03-HDVENUCN 03-HDVENUJP...
- Page 2 © 2018 Yamaha UC, Inc. All rights reserved. No part of this document may be reproduced in any form or by any means without express written permission from Yamaha, Inc. Product specifications are subject to change without notice. R e v o l a b s H D V e n u e ™ U s e r a n d S e t - u p G u i d e 0 1 - H D V N U M A N - P A P - 1 1 S e p t e m b e r 2 0 1 8 ( R e v 2 .
-
Page 3: Table Of Contents
Contents Safety and General Information ................... 4 Introduction ......................... 9 System Components ....................10 Installing the Revolabs HD Venue™ Base Station ............11 To Install the Base Station: ..................11 Revolabs HD Venue™ Base Station Connections ............ 12 Controls and Connections: ..................12 Configuring the Revolabs HD Venue Base Station .......... -
Page 4: Safety And General Information
Users are not permitted to make changes or modify the equipment in any way. Changes or modifications not expressly approved by Yamaha UC, Inc. could void your authority to operate this equipment under Federal Communications Commission’s rules. - Page 5 Industry Canada Notice to Users This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
- Page 6 Notice to Customers in Australia • Do not use the areas where there are explosive hazards • Do not use in environments where there is a danger of ignition of flammable gasses. Restricted use with certain medical devices Hearing Aids Some devices may interfere with some hearing aids.
- Page 7 HD, XLR Wireless Adapter for Dynamic Handheld 03-HDXLRMICEU-11 Microphone 03-HDCOMANEU-11 HD Wireless Adapter for Countryman Microphone Any unauthorized modification of the products voids this Declaration. For a copy of the original signed declaration of conformity, please contact Yamaha UC, Inc.
- Page 8 WEEE Notification: The Waste Electrical and Electronic Equipment (WEEE) directive (2012/19/EU) is intended to promote recycling of electrical and electronic equipment and their components at end of life. According to the requirement of the WEEE legislation the following user information is provided to customers for all branded Revolabs products subject to the WEEE directive.
-
Page 9: Introduction
Introduction Congratulations on your purchase of a Revolabs Wireless Microphone System! This system utilizes 1.9 GHz DECT technology, and high band-width audio from multiple wireless microphones, enabling clear, reliable, un-tethered communications in recording, audio/video conferencing, speech recognition, VOIP communications, sound re-enforcement as well as many other environments requiring clear audio capture. -
Page 10: System Components
System Components Your Revolabs HD Venue System contains the following: • Rack-mountable HD Venue Base Station • HD Microphone Charger Base • HD Wireless Microphones, purchased and boxed separately (HD Omni Tabletop and HD XLR Adapter shown in photo above for example only) The Base Station houses the processor and one end of the wireless connection. -
Page 11: Installing The Revolabs Hd Venue™ Base Station
Installing the Revolabs HD Venue™ Base Station To Install the Base Station: The Revolabs HD Venue™ Base Station is designed to be installed into a standard 19” AV rack using the attached rack ears. 1. Install the HD Venue System into the rack. 2. -
Page 12: Revolabs Hd Venue™ Base Station Connections
Revolabs HD Venue™ Base Station Connections The Revolabs HD Venue™ Base Station, shown below in front and rear panel views, manages wireless audio signal processing, pairing, and muting between the Revolabs microphones and the Base Station. Front View Rear View Controls and Connections: 1. - Page 13 Note: The HD Venue System is not compatible with any other Revolabs system and therefore cannot be installed in the same room. The HD and Solo Wireless Microphones and Charger Bases are not interchangeable. Only two HD Venue Systems can be used in a single area. Please contact https://uc.yamaha.com/ resources/support/ for design recommendations.
-
Page 14: Configuring The Revolabs Hd Venue
Configuring the Revolabs HD Venue Base Station Each Revolabs HD Venue Base Station must be configured properly prior to use. Accurate configuration is dependent on several variables such as: • Is Line Level or Mic Level signal required? Refer to setting Dip Switch 3 below. •... - Page 15 Configuration Settings DIP Switch 1 – Output Mixing: When DIP Switch 1 is OFF (default), each HD microphone has its own balanced audio output on the Base Station. When DIP Switch 1 is switched on, the audio outputs of the two HD microphones are mixed together and sent to both outputs.
-
Page 16: Using The Revolabs Hd Control Panel Software
1. Download the Revolabs HD Control Panel software from https://uc.yamaha.com/resources/support/ 2. Connect the PC to the HD Venue system via USB. 3. Allow the PC to recognize the hardware and install the necessary drivers. - Page 17 All Mic Mute: This feature removes the mics individual mute capability and causes both microphones to mute when the mute button on either microphone is pressed. The same effect will take place when unmuting the microphones. Note: Any changes to ‘Mics Unmute at Startup’ or ‘All Mic Mute’ requires the ‘Save’...
- Page 18 Version: This provides the current firmware version for the microphone that is paired to each channel. Note: The microphone firmware version must match the Base firmware version for the system to function properly. A mismatch may result in no audio from the microphones.
-
Page 19: Revolabs Hd Microphones And Hd Microphone Adapters
Revolabs HD Microphones and HD Microphone Adapters Use any of five microphones with your Revolabs HD Venue™ System: • Revolabs HD Wearable Wireless Microphone • Revolabs HD Omni-directional Tabletop Wireless Boundary Microphone • Revolabs HD Uni-directional Tabletop Wireless Boundary Microphone •... - Page 20 To use the HD Wearable Microphone: 1. Remove the microphone from the Charger Base. 2. Attach the microphone to clothing or to a lanyard, position microphone just above the sternum or breastbone, within 6 – 12 inches (15 – 30cm) from the mouth is recommended.
-
Page 21: Using The Hd Omni-Directional Tabletop Wireless Boundary Microphones
Adjusting the Volume on the Wearable Microphone Earpiece To change the volume on the Wearable microphone earpiece, use the dial on the earpiece wire. Turning the dial towards the earpiece, as shown in the figure, will increase the volume, and turning the dial towards the microphone will decrease the volume. Use the attached clothing clip to secure the earpiece wire. - Page 22 To use the HD Omni Tabletop Microphone: 1. Remove the microphone from the Charger Base to turn on and automatically mute the mic. (indicated by a flashing RED LED) 2. Omni Tabletop microphones can be centered on the table within 2 to 6 feet (0.6 to 2m) away from people speaking and do not need to be pointing any particular direction because they pick up sound from all directions.
-
Page 23: Using The Hd Directional Tabletop Wireless Boundary Microphones
Using the HD Directional Tabletop Wireless Boundary Microphones The HD Tabletop Wireless Microphone, shown below, is designed to provide optimum coverage when placed on a conference room table in front of one or two people. Pickup 45º pattern 45º 1. LED display — visual status for mute, un-mute, and pairing. 2. - Page 24 To use the HD Directional Tabletop Microphone: 1. Remove the microphone from the Charger Base to turn on and automatically mute the mic. (indicated by a flashing RED LED) 2. Directional Tabletop microphones should be located on the table with the acoustic cover pointed toward the users, trying to keep the microphone 2 to 6 feet (.6 to 2m) from the target person or two.
-
Page 25: Using The Hd Xlr Microphone Wireless Adapter
Using the HD XLR Microphone Wireless Adapter The HD Wireless XLR Adapter for Handheld Microphone, shown in the following figure, connects to a handheld dynamic microphone for wireless freedom during open mic meetings, Q&A sessions, classrooms, etc. 1. Audio Out port — accepts the 2.5mm plug for the earpiece. 2. - Page 26 To use the HD Universal Wireless Adapter: 1. Remove the Microphone Adapter from the Charger Base. The adapter turns on and mutes automatically when removed from Charger Base (flashing RED LED). The XLR Microphone Adapter is attached to a standard dynamic microphone to convert it from a wired microphone to a wireless microphone (see following figure).
-
Page 27: Using The Hd Wireless Adapter For Countryman Microphone
Using the HD Wireless Adapter for Countryman Microphone The HD Wireless Adapter for Countryman Microphones, shown in the following figure, is connects to a Countryman microphones for wireless freedom for broadcasting applications with no bulky equipment, such as a belt pack or batteries. -
Page 28: Pairing Wireless Microphones To Base Station
After 15 seconds the microphone will beep 5 times, and will continue beeping every 30 seconds to indicate that it is out of range. Move the Countryman Adapter closer to the Base Station and the connection will automatically be re-established to its original state, and the beeping will cease. -
Page 29: Revolabs Hd Venue Tm Charger Base
Any serial number preference starting with either 7010 or 8020 are equipped with current replaceable rechargeable Lithium Polymer type batteries. If the serial number preference is anything else but 7010 or 8020 Please contact Yamaha ( https://uc.yamaha.com ) or your AV service provider for... -
Page 30: Updating The Revolabs Hd Tm Firmware
7010 or 8020, replace only with the same manufacturer and model battery type recommended by Revolabs. Please contact Yamaha UC o r your AV service provider for correct manufacturer approved and recommended replacement type batteries or process for return and replacement for either type battery. -
Page 31: Revolabs Hd™ Indicator Leds
Revolabs HD™ Indicator LEDs The following tables show activities associated with the various states shown by the LEDs: Equipment Use Microphone LED Base Station Meaning Channel LEDs Microphone in Solid RED Charging in Progress Charger Base Solid GREEN Charging Complete Microphone not in Microphone powered OFF or Charger Base... -
Page 32: Warranty
Yamaha UC, Inc. warrants this product to be free of manufacturing defects. Repair or replacement of any defective part or unit (at the discretion of the Seller) will be free of charge for the period defined in the Yamaha Limited Warranty. -
Page 33: Specifications
Specifications Dimensions, (L, W, H) and Weight: HD Venue Base Station 16.9” (43.03 cm) x 8.0” (20.32 cm) x 1.7” (4.42 cm), 2.0 lbs (5.45 HD Charger Base 4.6” (11.75 cm) x 3.125” (7.9 cm) x 1.0” (2.54 cm), 0.325 lbs (0.147 kg) Wireless Microphones Wearable: 0.9”... - Page 34 Security: 128-bit DSAA (DECT Standard Authentication Algorithm) authentication, 64 bit DECT Standard Cipher Audio Bandwidth: 50 – 14000 Hz Included Accessories: 1 Earpiece with inline volume control and 1 Lanyard per Wearable Microphone Environmental Requirements: Temperature 40° to 105° F (5° to 40° C) operating Humidity 20% to 85% Note: Microphone s must be fully...
- Page 35 0 1 - H D V N U M A N - P A P - 1 1 S e p t e m b e r 2 0 1 8 ( R e v 2 . 6 . 1 ) Copyright 2018 Yamaha Unified Communications, Inc.
