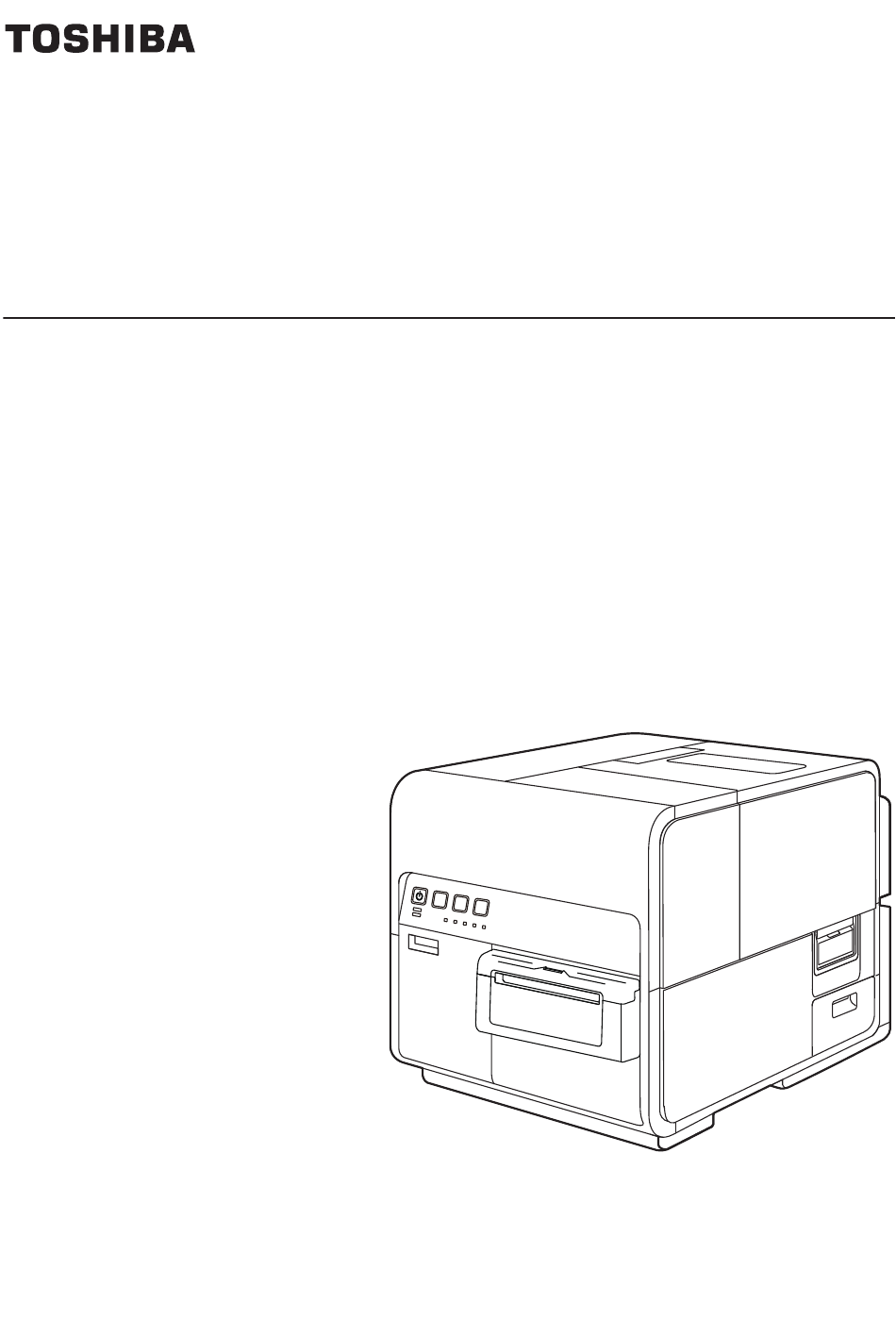

- Page 1 BC400P-SS02-QM-S COLOR LABEL PRINTER Installing Software...
-
Page 2: Table Of Contents
Table of Contents Before You Begin ................1 Conventions ....................1 Sample Screens ..................1 Installing Software .................2 System Requirements ................2 Installing the Printer Driver ................. 3 Readling the Manual ................15... -
Page 3: Before You Begin
Instructions including notes for operation and additional explanations. Note Indicates an operation that must not be performed. Read these items carefully, and make sure not to perform the described operations. Sample Screens The sample BC400P-SS02-QM-S printer driver screens displayed in this manual were created with Windows 10. -
Page 4: Installing Software
Installing Software After installing this printer at the installation site, install the printer driver in the computer. The accessory Printer Software DVD-ROM contains the printer driver and manual. Follow the instructions below to install the printer driver. System Requirements The printer driver and User's Guide require a personal computer with the following system requirements: ■... -
Page 5: Installing The Printer Driver
Installing Software Installing the Printer Driver The printer can be connected to a computer with a USB connection or an Ethernet local area network (LAN) connection. ● To connect the printer with a USB cable, please read: [ Using the Printer via a USB Cable (P.3) ] ●... - Page 6 In this case, go through ROM drive, the printer driver can be the following. downloaded from the support area of the Toshiba Tec Corporation web site (https:// 1. Double-click the DVD-ROM icon in [This www.toshibatec.com) and then installed. PC] (or [Computer]).
- Page 7 Installing Software Confirm this printer is selected and click Select [Connect via USB or existing port] [OK]. and then click [Next]. Read the software license agreement, select [Agree], and then click [Next]. To change the printer name, enter a new printer name in "Printer name." Read the Cautions and then click [Next]. When this printer is not the default printer, uncheck the checkbox then click [Next].
- Page 8 Installing Software Check [Always trust software from "Toshiba Tec Corporation."] checkbox and Important then click [Install]. • The USB cable is hot-swappable. However, it should be noted that the USB cable should not be connected or disconnected in the following cases: –...
- Page 9 Installing Software Click [Finish]. Remove "Printer Software DVD-ROM", and then click [Yes]. Rebooting of the computer starts automatically. Note • When [No] is selected, be sure to restart Note Windows prior to using the printer. • If the printer driver was installed in a computer to be used as a print server, click [Server Client Registration].
- Page 10 Installing Software ■ Using the Printer via a LAN Select [Connect via network] and then click [Next]. Cable Important • A Ethernet cable does not come with this printer. Use a commercially available Ethernet cable that is compatible with your computer.
- Page 11 Installing Software When the below window is displayed, When the below window is displayed, connect the printer to the computer with select this printer and click [Next]. LAN cable and then click [Next]. It starts to search for this printer. Important •...
- Page 12 Installing Software Set IP address of the printer. Important Important • To search for the printer with IP address specified: • When changing IP address, contact the Click [Find with specified address...] button network administrator. on the screen in step 7. Select [Find the printer specified address.] ●To change IP address: radio button on the screen that appears,...
- Page 13 Installing Software Enter the password and then click [OK]. Change IP address and then click [Next]. Important • When changing the IP address, it is necessary to enter a password for the Note network setup. Contact the network administrator. • IP address shown now is the default IP address.
- Page 14 When not set as the default printer, uncheck the checkbox then click [Next]. Click [Next]. Check [Always trust software from Important "Toshiba Tec Corporation."] checkbox then click [Install]. • The network utility is a tool for configuring network settings for the printer. The network utility is required when changing IP address.
- Page 15 Installing Software Click [Next]. Click [Finish]. The network utility will be installed. Note • If the printer driver was installed in a Click [Finish]. computer to be used as a print server, click [Server Client Registration]. • The server client can be registered after completion of installation of the printer driver.
- Page 16 Installing Software Remove "Printer Software DVD-ROM", and then click [Yes]. Rebooting of the computer starts automatically. Note • When [No] is selected, be sure to restart Windows prior to using the printer. Installation of the printer driver via a LAN cable is completed.
-
Page 17: Readling The Manual
Installing Software Readling the Manual When reading the Manual stored on DVD-ROM, follow the procedure below. Set the "Printer Software DVD-ROM" in Click [Read the Manual]. the computer. Click [Run autoplay.exe]. Confirm this printer is selected and click [OK]. Note The folder containing the Manual appears. •... - Page 18 BU22002400-EN R220521Z2800-TTEC Ver00-F Issued in Sep, 2022 1-11-1, OSAKI, SHINAGAWA-KU, TOKYO, 141-8562, JAPAN PRINTED IN JAPAN...
