- Page 1 Latitude 3140/Latitude 3140 2-in-1 Setup and Specifications Regulatory Model: P32T/P33T Regulatory Type: P32T002/P33T002 January 2023 Rev. A00...
- Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2023 Dell Inc. or its subsidiaries. All rights reserved. Dell Technologies, Dell, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Contents Chapter 1: Set up your Latitude 3140/Latitude 3140 2-in-1............4 Chapter 2: Views of Latitude 3140/Latitude 3140 2-in-1..............7 Front....................................... 7 Right....................................... 8 Left......................................9 Top......................................9 Bottom....................................11 Modes....................................12 Chapter 3: Specifications of Latitude 3140/Latitude 3140 2-in-1..........14 Dimensions and weight..............................14 Processor..................................... -
Page 4: Chapter 1: Set Up Your Latitude 3140/Latitude 3140 2-In-1
Set up your Latitude 3140/Latitude 3140 2- in-1 NOTE: The images in this document may differ from your computer depending on the configuration you ordered. 1. Connect the power adapter and press the power button. Latitude 3140 Latitude 3140 2-in-1... - Page 5 2. Finish Windows setup. Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you: ● Connect to a network for Windows updates.
- Page 6 Dell Digital Delivery Download software applications, which are purchased but not preinstalled on your computer. For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at www.dell.com/support. Set up your Latitude 3140/Latitude 3140 2-in-1...
-
Page 7: Chapter 2: Views Of Latitude 3140/Latitude 3140 2-In-1
Views of Latitude 3140/Latitude 3140 2-in-1 Front Latitude 3140 1. Camera Enables you to video chat, capture photos, and record videos. 2. Camera-status light Turns on when the camera is in use. 3. Microphone Provides digital sound input for audio recording, voice calls, and so on. -
Page 8: Right
4. Power and battery-status light Indicates the power state and battery state of the computer. Solid white—Power adapter is connected and the battery is charging. Solid amber—Battery charge is low or critical. Views of Latitude 3140/Latitude 3140 2-in-1... -
Page 9: Left
A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device. 3. HDMI 1.4b port Connect to a TV, external display or another HDMI-in enabled device. Provides video and audio output. Latitude 3140 1. Power button Views of Latitude 3140/Latitude 3140 2-in-1... - Page 10 When the computer is turned on, press the power button to put the computer into sleep state; press and hold the power button for four seconds to force shut-down the computer. NOTE: You can customize the power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals. 2. Touchpad Move your finger on the touchpad to move the mouse pointer.
-
Page 11: Bottom
NOTE: You can customize the power-button behavior in Windows. For more information, see Me and My Dell at www.dell.com/support/manuals. 5. Touchpad Move your finger on the touchpad to move the mouse pointer. Tap to left-click and two fingers tap to right-click. -
Page 12: Modes

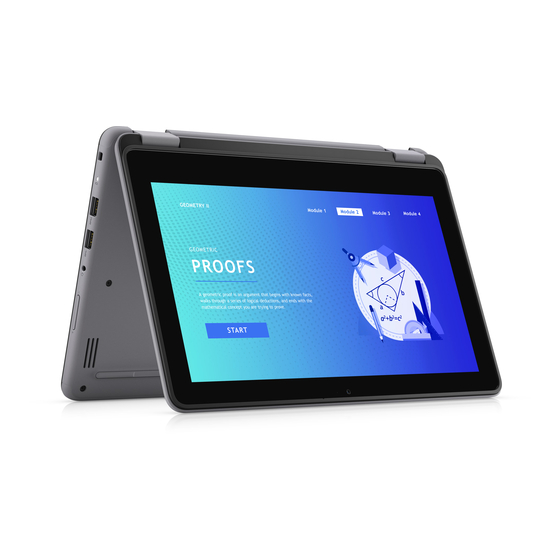

Modes Notebook Tablet Stand Views of Latitude 3140/Latitude 3140 2-in-1... - Page 13 Tent Views of Latitude 3140/Latitude 3140 2-in-1...
-
Page 14: Chapter 3: Specifications Of Latitude 3140/Latitude 3140 2-In-1
Specifications of Latitude 3140/Latitude 3140 2-in-1 Dimensions and weight The following table lists the height, width, depth, and weight of your Latitude 3140/Latitude 3140 2-in-1. Table 2. Dimensions and weight Description Values Height: Front height ● 20.90 mm (0.82 in.) - Laptop ●... -
Page 15: Chipset
6 MB 6 MB Integrated graphics Intel UHD Graphics Intel UHD Graphics Chipset The following table lists the details of the chipset supported by your Latitude 3140/Latitude 3140 2-in-1 Table 4. Chipset Description Option one Option two Processors Intel Processor N100... -
Page 16: Memory
Power-adapter port One 7.4 mm barrel-type Security-cable slot One wedge-shaped lock slot Wireless module The following table lists the Wireless Local Area Network (WLAN) module supported on your Latitude 3140/Latitude 3140 2-in-1. Table 7. Wireless module specifications Description Values Model number... -
Page 17: Wwan Module
● AES-CCMP ● TKIP Bluetooth Bluetooth 5.2 WWAN module The following table lists the Wireless Wide Area Network (WWAN) module supported on your Latitude 3140/Latitude 3140 2-in-1. NOTE: This module is only available on computers that support WWAN. NOTE: Availability of the eSIM feature on this module is dependent on your region and your mobile carrier's requirements. -
Page 18: Audio
For instructions on how to find your computer's IMEI (International Mobile Station Equipment Identity) number, search in the Knowledge Base Resource at www.dell.com/support. Audio The following table lists the audio specifications of your Latitude 3140/Latitude 3140 2-in-1. Table 9. Audio specifications Description... -
Page 19: Storage
● One 128 GB M.2 2230 Solid-State Drive ● One 256 GB M.2 2230 Solid-State Drive The primary drive of your Latitude 3140/Latitude 3140 2-in-1 varies with the storage configuration. ● For systems with an eMMC drive, the eMMC drive is the primary drive ●... -
Page 20: Camera
Camera The following table lists the camera specifications of your Latitude 3140/Latitude 3140 2-in-1. Table 12. Camera specifications Description Values Number of cameras ● One (Laptop) ● Two (2-in-1) Camera type ● HD RGB camera, single-integrated microphone ● HD RGB camera, dual-array microphones ●... -
Page 21: Power Adapter
Power adapter The following table lists the power adapter specifications of your Latitude 3140/Latitude 3140 2-in-1. Table 14. Power adapter specifications Description Option one Option two Type 65 W AC adapter, 7.4 mm 65 W AC adapter, USB-C Power-adapter dimensions: Height 28 mm (1.10 in.) -
Page 22: Display
CAUTION: Dell recommends that you charge the battery regularly for optimal power consumption. If your battery charge is completely depleted, connect the power adapter, turn on your computer, and then restart your computer to reduce the power consumption. -
Page 23: Gpu-Integrated
Power consumption (maximum) 2.8 W Anti-glare vs glossy finish Anti-glare Anti-glare GPU—Integrated The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your Latitude 3140/ Latitude 3140 2-in-1. Table 17. GPU—Integrated Controller External display support Memory size... - Page 24 Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components. * Measured using a random vibration spectrum that simulates user environment. † Measured using a 2 ms half-sine pulse. Specifications of Latitude 3140/Latitude 3140 2-in-1...
-
Page 25: Chapter 4: Keyboard Function Keys
Keyboard function keys The F1-F12 keys at the top of the keyboard are function keys. By default, these keys are used to perform specific functions defined by the software application in use. You can run the secondary tasks that are indicated by the symbols on the function keys by pressing the function key with Fn, for example, Fn and F1. -
Page 26: Chapter 5: Getting Help And Contacting Dell
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Table 20. Self-help resources Self-help resources Resource location Information about Dell products and services www.dell.com My Dell app...
