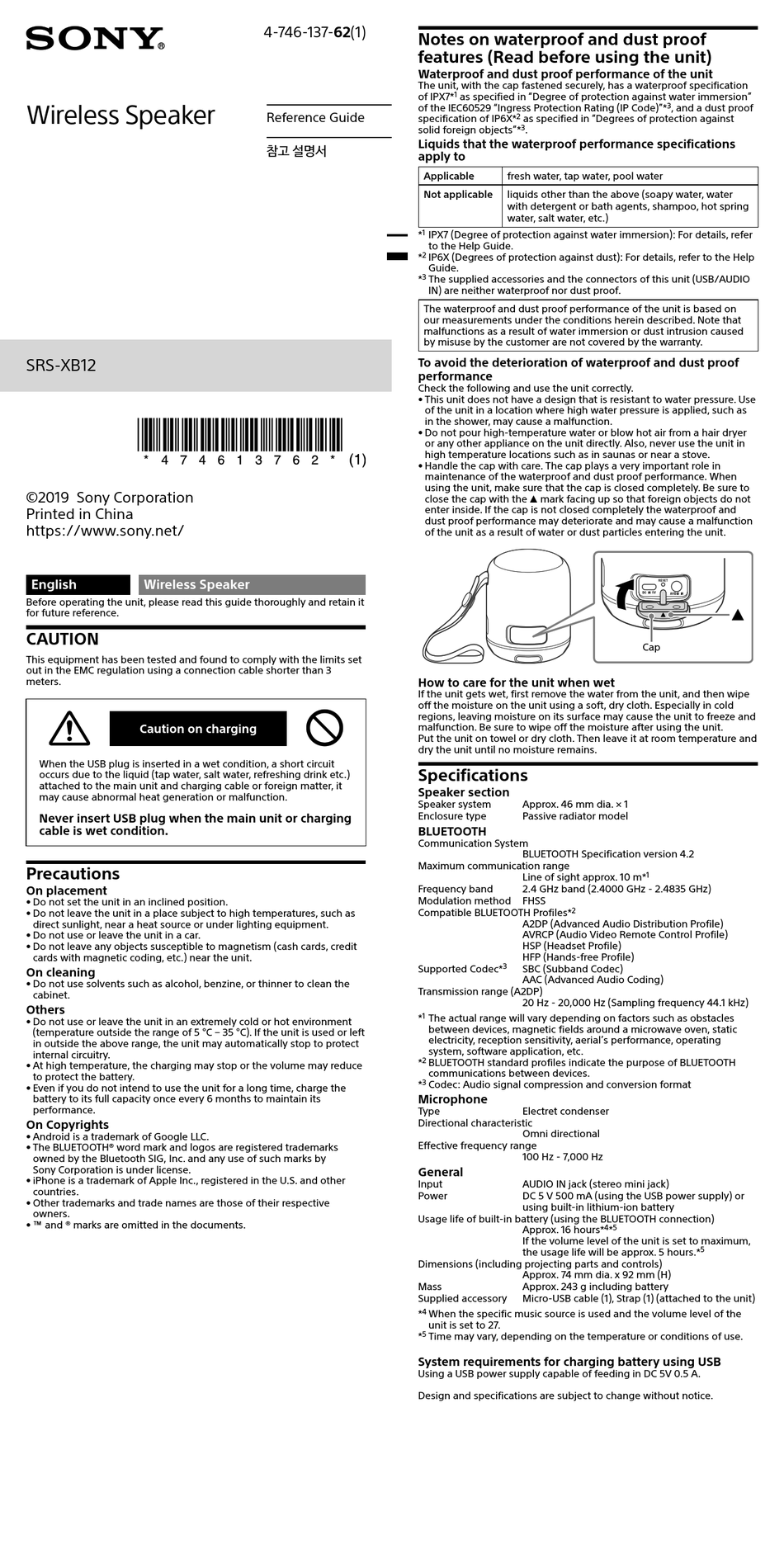

Sony SRS-XB12 Reference Manual

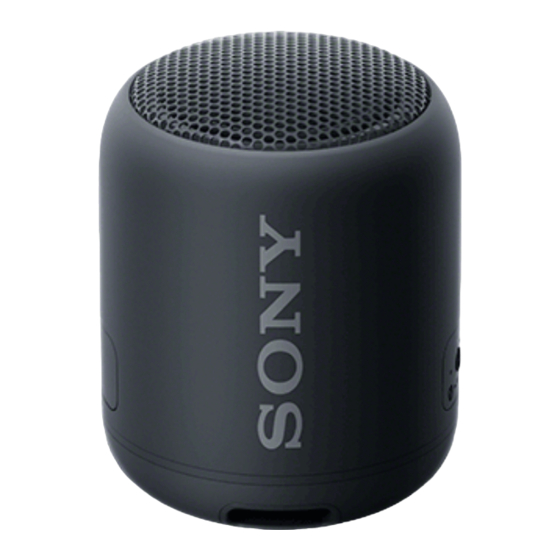

Wireless Speaker
SRS-XB12
©2019 Sony Corporation
Printed in China
https://www.sony.net/
English Wireless Speaker
Before operating the unit, please read this guide thoroughly and retain it
for future reference.
CAUTION
This equipment has been tested and found to comply with the limits set
out in the EMC regulation using a connection cable shorter than 3
meters.
Caution on charging
When the USB plug is inserted in a wet condition, a short circuit
occurs due to the liquid (tap water, salt water, refreshing drink etc.)
attached to the main unit and charging cable or foreign matter, it
may cause abnormal heat generation or malfunction.
Never insert USB plug when the main unit or charging
cable is wet condition.
Precautions
On placement
• Do not set the unit in an inclined position.
• Do not leave the unit in a place subject to high temperatures, such as
direct sunlight, near a heat source or under lighting equipment.
• Do not use or leave the unit in a car.
• Do not leave any objects susceptible to magnetism (cash cards, credit
cards with magnetic coding, etc.) near the unit.
On cleaning
• Do not use solvents such as alcohol, benzine, or thinner to clean the
cabinet.
Others
• Do not use or leave the unit in an extremely cold or hot environment
(temperature outside the range of 5 °C – 35 °C). If the unit is used or left
in outside the above range, the unit may automatically stop to protect
internal circuitry.
• At high temperature, the charging may stop or the volume may reduce
to protect the battery.
• Even if you do not intend to use the unit for a long time, charge the
battery to its full capacity once every 6 months to maintain its
performance.
On Copyrights
• Android is a trademark of Google LLC.
• The BLUETOOTH® word mark and logos are registered trademarks
owned by the Bluetooth SIG, Inc. and any use of such marks by
Sony Corporation is under license.
• iPhone is a trademark of Apple Inc., registered in the U.S. and other
countries.
• Other trademarks and trade names are those of their respective
owners.
• ™ and ® marks are omitted in the documents.
4-746-137-62(1)
Reference Guide
참고 설명서
Notes on waterproof and dust proof
features (Read before using the unit)
Waterproof and dust proof performance of the unit
The unit, with the cap fastened securely, has a waterproof specification
1
of IPX7* as specified in "Degree of protection against water immersion"
of the IEC60529 "Ingress Protection Rating (IP Code)"*
specification of IP6X* 2 as specified in "Degrees of protection against
3
solid foreign objects"* .
Liquids that the waterproof performance specifications
apply to
Applicable fresh water, tap water, pool water
Not applicable liquids other than the above (soapy water, water
with detergent or bath agents, shampoo, hot spring
water, salt water, etc.)
* 1 IPX7 (Degree of protection against water immersion): For details, refer
to the Help Guide.
* 2 IP6X (Degrees of protection against dust): For details, refer to the Help
Guide.
3
* The supplied accessories and the connectors of this unit (USB/AUDIO
IN) are neither waterproof nor dust proof.
The waterproof and dust proof performance of the unit is based on
our measurements under the conditions herein described. Note that
malfunctions as a result of water immersion or dust intrusion caused
by misuse by the customer are not covered by the warranty.
To avoid the deterioration of waterproof and dust proof
performance
Check the following and use the unit correctly.
• This unit does not have a design that is resistant to water pressure. Use
of the unit in a location where high water pressure is applied, such as
in the shower, may cause a malfunction.
• Do not pour high-temperature water or blow hot air from a hair dryer
or any other appliance on the unit directly. Also, never use the unit in
high temperature locations such as in saunas or near a stove.
• Handle the cap with care. The cap plays a very important role in
maintenance of the waterproof and dust proof performance. When
using the unit, make sure that the cap is closed completely. Be sure to
close the cap with the  mark facing up so that foreign objects do not
enter inside. If the cap is not closed completely the waterproof and
dust proof performance may deteriorate and may cause a malfunction
of the unit as a result of water or dust particles entering the unit.
How to care for the unit when wet
If the unit gets wet, first remove the water from the unit, and then wipe
off the moisture on the unit using a soft, dry cloth. Especially in cold
regions, leaving moisture on its surface may cause the unit to freeze and
malfunction. Be sure to wipe off the moisture after using the unit.
Put the unit on towel or dry cloth. Then leave it at room temperature and
dry the unit until no moisture remains.
Specifications
Speaker section
Speaker system Approx. 46 mm dia. × 1
Enclosure type Passive radiator model
BLUETOOTH
Communication System
BLUETOOTH Specification version 4.2
Maximum communication range
Line of sight approx. 10 m*
Frequency band 2.4 GHz band (2.4000 GHz - 2.4835 GHz)
Modulation method FHSS
Compatible BLUETOOTH Profiles*
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
HSP (Headset Profile)
HFP (Hands-free Profile)
Supported Codec* 3 SBC (Subband Codec)
AAC (Advanced Audio Coding)
Transmission range (A2DP)
20 Hz - 20,000 Hz (Sampling frequency 44.1 kHz)
* 1 The actual range will vary depending on factors such as obstacles
between devices, magnetic fields around a microwave oven, static
electricity, reception sensitivity, aerial's performance, operating
system, software application, etc.
2
* BLUETOOTH standard profiles indicate the purpose of BLUETOOTH
communications between devices.
3
* Codec: Audio signal compression and conversion format
Microphone
Type Electret condenser
Directional characteristic
Omni directional
Effective frequency range
100 Hz - 7,000 Hz
General
Input AUDIO IN jack (stereo mini jack)
Power DC 5 V 500 mA (using the USB power supply) or
using built-in lithium-ion battery
Usage life of built-in battery (using the BLUETOOTH connection)
Approx. 16 hours*
If the volume level of the unit is set to maximum,
the usage life will be approx. 5 hours.*
Dimensions (including projecting parts and controls)
Approx. 74 mm dia. x 92 mm (H)
Mass Approx. 243 g including battery
Supplied accessory Micro-USB cable (1), Strap (1) (attached to the unit)
4
* When the specific music source is used and the volume level of the
unit is set to 27.
5
* Time may vary, depending on the temperature or conditions of use.
System requirements for charging battery using USB
Using a USB power supply capable of feeding in DC 5V 0.5 A.
Design and specifications are subject to change without notice.
3 , and a dust proof
Cap
1
2
4 5
*
5
