- Page 1 Preface Product overview Technical data SIMATIC NET Industrial Wireless LAN Passive network components IWLAN System Manual 08/2021 C79000-G8976-C282-08...
- Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
-
Page 3: Table Of Contents
Table of contents Preface ..............................5 Product overview ........................... 9 Cabling technique........................ 9 2.1.1 Overview ..........................9 2.1.2 Area of application......................13 Further passive components ....................15 2.2.1 Antennas ........................... 15 2.2.2 RCoax cables........................16 Active components ......................17 2.3.1 Access points ........................ - Page 4 Table of contents Index ..............................51 Passive network components IWLAN System Manual, 08/2021, C79000-G8976-C282-08...
-
Page 5: Preface
DQS. The DQS certificate is recognized in all IQNet countries (reg. no.: 2613). Security information Siemens provides products and solutions with industrial security functions that support the secure operation of plants, systems, machines and networks. Passive network components IWLAN... - Page 6 Note the different national regulations. Device defective If a fault develops, send the device to your SIEMENS representative for repair. Repairs on-site are not possible. SIMATIC NET glossary Explanations of many of the specialist terms used in this documentation can be found in the SIMATIC NET glossary.
- Page 7 You will find the SIMATIC NET glossary on the Internet at the following address: 50305045 (https://support.industry.siemens.com/cs/ww/en/view/50305045) Trademarks The following and possibly other names not identified by the registered trademark sign ® registered trademarks of Siemens AG: SCALANCE, C-PLUG, RCoax Passive network components IWLAN System Manual, 08/2021, C79000-G8976-C282-08...
- Page 8 Preface Passive network components IWLAN System Manual, 08/2021, C79000-G8976-C282-08...
-
Page 9: Product Overview
2.1.1 Overview The following passive IWLAN components are available: Flexible connecting cables SIEMENS IWLAN RCoax N-Connect/N-Connect male/male Flexible connecting cable for linking two RCoax cables or an antenna to a SCALANCE W700 access point with N-Connect connectors. Preassembled with two N-Connect male connectors: •... - Page 10 • 6XV1875-5CN10 (length 10 m) Flexible connecting cables for railway applications SIEMENS SIMATIC NET Cable N-Connect male/male railway Flexible connecting cable, e.g. for connecting antennas; suita‐ ble for IWLAN and mobile wireless; for railway applications. Preassembled with two N-Connect male/male connectors •...
- Page 11 Product overview 2.1 Cabling technique Terminating resistors SIEMENS SIMATIC NET IWLAN RCoax N-Connect Male Termi‐ nation Impedance 50 Ω TI795-1N Terminating impedance for RCoax cables and open wireless inter‐ faces on SCALANCE W devices with N-Connects, impedance 50 ohms, •...
- Page 12 Attenuator with N-Connect male / N-Connect female connectors • 6GK5798-0AP00-4CA0 Power splitter SIEMENS SIMATIC NET IWLAN RCoax N-Connect Female Pow‐ er Splitter 2-Way Two-way power splitter, Y element for splitting the RCoax cable or for the use of two antennas on one wireless interface.
-
Page 13: Area Of Application
Product overview 2.1 Cabling technique HF angle adapter HF angle adapter 90° angle adapter with R-SMA male /R-SMA female connectors • 6GK5798-1CS00-4AA0 2.1.2 Area of application Flexible connecting cables • The flexible IWLAN RCoax/antenna connecting cables are required for connecting RCoax segments or antennas to active devices. - Page 14 Product overview 2.1 Cabling technique Product variants Flexible connecting cables • Preassembled cable lengths (0.3 m to 10 m) • Different connector types and combinations: – N-Connect – R-SMA – SMA – QMA Terminating resistors • TI795-1R: Terminating resistor for R-SMA antenna sockets •...
-
Page 15: Further Passive Components
Product overview 2.2 Further passive components Further passive components 2.2.1 Antennas Product connections The products described up to now are used to connect the following passive components to access points and clients: Type Properties Article number IWLAN RCoax Antenna RCoax helical antenna with circular polariza‐ 6GK5792-4DN00-0AA6 ANT792-4DN tion for RCoax systems, 4 Bi, 2.4 GHz, IP65, N-... -
Page 16: Rcoax Cables
W access points. For the expanded tempera‐ ture range (-40 °C to +85 °C). Sold by the meter, minimum order 20 meters Note Further information You will find further information in the system manual for RCoax (https:// support.industry.siemens.com/cs/de/en/view/84922825). Passive network components IWLAN System Manual, 08/2021, C79000-G8976-C282-08... -
Page 17: Active Components
Product overview 2.3 Active components Active components 2.3.1 Access points 2.3.1.1 IEEE 802.11n SCALANCE W700 The SCALANCE W700 access points with one or more wireless interfaces are suitable for setting up Industrial Wireless LANs. Both infrastructure networks and point-to-point links can be implemented. -
Page 18: Ieee 802.11Ac
Product overview 2.3 Active components Type Connectors for exter‐ Number of iPCF IEEE IEEE Article number nal antennas connectable mode 802.11 802.11n devices a/b/g/h R-SMA N-Connect W786-2 RJ-45 ● ● 3 x 3 6GK5786-2FC00-0AA0 6GK5786-2FC00-0AB0 W786-2IA ● ● 3 x 3 6GK5786-2HC00-0AA0 RJ-45 6GK5786-2HC00-0AB0... -
Page 19: Ieee 802.11Ax
Product overview 2.3 Active components Type Antennas Spatial Max. data Ethernet interfa‐ Article number streams rate Quan‐ Connections (data (gross in tity streams) Mbps) SCALANCE W1788-2 N-Connect 1 to 8 1733 2 x M12 for 1000 6GK5788-2GY01-0TA0 Mbps, (max. 4 per 6GK5788-2GY01-0TB0 client) 1 x PoE... -
Page 20: Client Modules
Product overview 2.3 Active components 2.3.2 Client modules 2.3.2.1 IEEE 802.11n SCALANCE W700 The SCALANCE W700 client modules establish a connection between wired Ethernet and Industrial Wireless LAN. The most important characteristics of the various product variants are shown in the table below. You will find detailed information in the documentation of the relevant device. -
Page 21: Ieee 802.11Ac
Product overview 2.3 Active components ET 200pro IWLAN The SIMATIC ET 200pro is an I/O system that can be mounted directly on the machine. To achieve this, various interface modules are available for connection to PROFINET or PROFIBUS both in standard and fail-safe versions. -
Page 22: Ieee 802.11Ax
Product overview 2.3 Active components 2.3.2.3 IEEE 802.11ax SCALANCE WUM76x The client module SCALANCE WUM766-1 supports the WLAN standard IEEE 802.11ax and enables reliable wireless connection of a large number of mobile devices. The most important characteristics of the client module are shown in the table below. You can find detailed information in the documentation for SCALANCE W700ax devices. -
Page 23: Technical Data
Technical data Note The following tightening torques apply to the connectors: • with N-Connect connectors: 1.7 Nm • with SMA/R-SMA connectors: 1 Nm Note Installation outdoors Protect the connectors from environmental influences (e.g. with self vulcanizing adhesive tape or a shrink-on hose). Flexible connecting cables 3.1.1 Introduction... -
Page 24: Iwlan N-Connect Male/Male

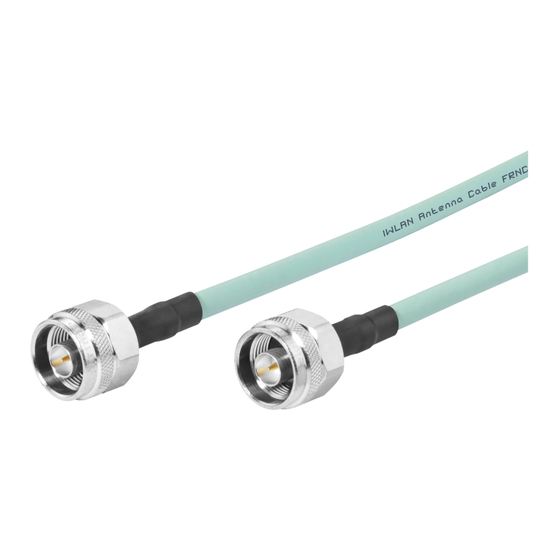

3.1 Flexible connecting cables 3.1.2 IWLAN N-Connect male/male Flexible connecting cable for connecting an RCoax cable or an antenna to a SCALANCE W access point with N connectors. Technical specifications Article numbers 6XV1875-5AH10 6XV1875-5AH20 6XV1875-5AH50 10 m 6XV1875-5AN10 Electrical data Impedance 50 Ω... -
Page 25: Iwlan Qma/N-Connect Male/Female
Technical data 3.1 Flexible connecting cables Technical specifications Weight 0.075 kg/m Permitted ambient conditions Ambient temperature -40 °C ... +80 °C Mechanical data Smallest bend radi‐ when bending once 3.2 cm when bending more 4.5 cm than once Tensile strength 30 ... - Page 26 Technical data 3.1 Flexible connecting cables Technical specifications Attenuation at 2.4 GHz 0.53 dB/m at 5.1 GHz 0.83 dB/m at 5.7 GHz 0.88 dB/m Resistance to fire Flame retardant UL 1685 (vertical tray) and UL 1581, Sec. 1090 (H) Dimensions, materials and weight Number of plug-in connections Outer diameter 6.3 mm...
-
Page 27: Iwlan R-Sma/Sma Male/Male
Technical data 3.1 Flexible connecting cables Dimension drawing All dimensions except thread diameters are in millimeters. The thread diameter is specified in inches. Figure 3-2 QMA male Figure 3-3 N-Connect female 3.1.4 IWLAN R-SMA/SMA male/male Flexible connecting cable for connecting an active device to components with R-SMA and SMA connectors, for example panel feedthrough. - Page 28 Technical data 3.1 Flexible connecting cables Technical specifications Attenuation at 2.4 GHz 0.53 dB/m at 5.1 GHz 0.83 dB/m at 5.7 GHz 0.88 dB/m Resistance to fire Flame retardant UL 1685 (vertical tray) and UL 1581, Sec. 1090 (H) Dimensions, materials and weight Number of plug-in connections Outer diameter 6.3 mm...
-
Page 29: Iwlan N-Connect/R-Sma Male/Male
Technical data 3.1 Flexible connecting cables Dimension drawing The dimensions are specified in mm. Figure 3-4 R-SMA/SMA male 3.1.5 IWLAN N-Connect/R-SMA male/male Flexible connecting cable for connecting an RCoax cable or an antenna to a SCALANCE W700 access point with R-SMA connectors. Preassembled with two connectors N-Connect male and R- SMA male. - Page 30 Technical data 3.1 Flexible connecting cables Technical specifications Materials Inner conductor • Silver-coated copper • Diameter: 1.4 mm Dielectric • Polyethylene foam • Diameter: 3.8 mm Inner metal screen • Tin plated copper wires with a wire diameter of 0.13 •...
-
Page 31: Iwlan N-Connect Male/Male (Railway Applications)
Technical data 3.1 Flexible connecting cables Dimension drawing All dimensions except thread diameters are in millimeters. The thread diameter is specified in inches. Figure 3-5 N-Connect male Figure 3-6 R-SMA male 3.1.6 IWLAN N-Connect male/male (railway applications) Flexible connecting cable for connecting an antenna to a SCALANCE W access point with N- Connect connectors, suitable for IWLAN and mobile wireless. - Page 32 Technical data 3.1 Flexible connecting cables Technical specifications Attenuation at 2.4 GHz 0.47 dB/m at 5.1 GHz 0.77 dB/m at 5.7 GHz 0.83 dB/m Resistance to fire Fire prevention According to DIN 5510-2, NF F 16-101 Standard for fire behavior Smoke emission EN 61034-2 Flame resistance...
-
Page 33: Iwlan Qma/N-Connect Male/Female (Railway Applications)
Technical data 3.1 Flexible connecting cables Dimension drawing All dimensions except thread diameters are in millimeters. The thread diameter is specified in inches. Figure 3-7 N-Connect male 3.1.7 IWLAN QMA/N-Connect male/female (railway applications) Flexible adapter cable for connecting an antenna with QMA connectors to the antenna connecting cable. - Page 34 Technical data 3.1 Flexible connecting cables Technical specifications Materials Inner conductor • Silver-coated copper • Diameter: 1.4 mm Dielectric • SPEX • Diameter: 3.8 mm Cable jacket • RADOX, black • Diameter: 5.5 mm Degree of protection IP67 Silicone-free Halogen-free UV resistant resistant Weight...
-
Page 35: Iwlan N-Connect/R-Sma Male/Male (Railway Applications)
Technical data 3.1 Flexible connecting cables Figure 3-9 N-Connect female 3.1.8 IWLAN N-Connect/R-SMA male/male (railway applications) Flexible connecting cable for connecting an RCoax cable or an antenna to a SCALANCE W access point with R-SMA connectors. Preassembled with two connectors N-Connect male and R-SMA male. - Page 36 Technical data 3.1 Flexible connecting cables Technical specifications Number of plug-in connections Outer diameter 5.5 mm Materials Inner conductor • Silver-coated copper • Diameter: 1.4 mm Dielectric • SPEX • Diameter: 3.8 mm Cable jacket • RADOX, black • Diameter: 5.5 mm Degree of protection IP67 Silicone-free...
-
Page 37: Terminating Resistors
Technical data 3.2 Terminating resistors Figure 3-11 R-SMA male Terminating resistors 3.2.1 N terminating resistance 50 Ω – male Technical specifications Article number 6GK5795-1TN00-0AA6 Electrical data Standing wave ratio f [GHz] (VSWR) Return flow attenuation > 35 > 30 > 30 >... -
Page 38: R-Sma Terminating Resistor 50 Ω - Male
Technical data 3.2 Terminating resistors Technical specifications Degree of protection IP65 Permitted ambient conditions Ambient temperature During operation -40 °C ... +70 °C During storage -40 °C ... +70 °C During transportation -40 °C ... +70 °C Dimension drawing All dimensions except thread diameters are in millimeters. The thread diameter is specified in inches. - Page 39 Technical data 3.2 Terminating resistors Technical specifications Materials Inner conductor • Core material: CuBe2 • Coating: Cu1Ni2Au1.27 Outer conductor • Core material: CuZn39Pb3 • Coating: Cu1Ni2Au1.27 Other metal parts • Core material: CuZn39Pb3 • Coating: Cu2Ni5Au0.8 Insulation • PTFE • Silicone-free Seal •...
-
Page 40: Lightning Protectors
Technical data 3.3 Lightning protectors Lightning protectors 3.3.1 Lightning protector LP798-1N Note We recommend that you use the maintenance-free lightning protector LP798-2N with low residual voltage. Exception: When there is also DC power is supplied via the antenna cable. In this case, only use the lightning protector LP798-1N. -
Page 41: Lightning Protector Lp798-2N
Technical data 3.3 Lightning protectors Dimension drawing All dimensions except thread diameters are in millimeters. The thread diameters are specified in inches. 54,8 24,5 antenne SCALANCE W7xx extencion cabel SW 13,5 max. 8 SW 19 Dimension drawing through hole The dimensions are specified in mm. 3.3.2 Lightning protector LP798-2N Technical specifications... - Page 42 Technical data 3.3 Lightning protectors Technical specifications Residual pulse energy 0.2 μJ (test pulse 4 kV 1.2/50 μs or 2 kA 8/20 μs) Starting voltage 150 to 250 VDC (100V/s) Dimensions, materials and weight Number of plug-in connections Design of the plug-in connector N-Connector female / female Dimensions (length x diameter) 89.6 x ∅29 mm...
-
Page 43: Panel Feedthroughs
Technical data 3.4 Panel feedthroughs Panel feedthroughs 3.4.1 Panel feedthrough N-Connect female/female Panel feedthrough for wall thicknesses up to a maximum of 4.5 mm, two N-Connect female connectors. Technical specifications Article number 6GK5798-2PP00-2AA6 Electrical data Frequency range ≤ 11 GHz Characteristic impedance 50 Ω... -
Page 44: Panel Feedthrough N/Sma Female/Female
Technical data 3.4 Panel feedthroughs Note The N-N adapter also be used as a coupler between two IWLAN RCoax / antenna connecting cables. Dimension drawing of the feedthrough and through hole All dimensions except thread diameters are in millimeters. The thread diameters are specified in inches. - Page 45 Technical data 3.4 Panel feedthroughs Technical specifications Materials Inner conductor • Core material: CuBe2 • Coating: Ni2Au1.27 Outer conductor N end • Core material: CuZn39Pb3 • Coating: CuSnZn3 Outer conductor SMA • Core material: CuZn39Pb3 • Coating: Ni2Au0.8 Insulation • PTFE •...
-
Page 46: Attenuator N-Connect Male/Female
Technical data 3.5 Attenuator N-Connect male/female Attenuator N-Connect male/female Technical specifications Article number 6GK5798-0AP00-4CA0 Electrical data Frequency range ≤ 6 GHz Impedance 50 Ω Insert attenuation 10 dB Power range Dimensions, materials and weight Number of plug-in connections Dimensions (length x diameter) 45.7 x 21 mm Materials Inner conductor... -
Page 47: Power Splitter N-Connect Female
Technical data 3.6 Power splitter N-Connect female Power splitter N-Connect female Double power splitter, Y element for splitting RCoax cables. Technical specifications Article number 6GK5798-0SN00-0EA0 Electrical data Frequency range 2.4 to 6 GHz Impedance 50 Ω Return loss ≥ 24 dB Insert attenuation ≤... -
Page 48: Hf Coupler N-Connect Male/Male
Technical data 3.7 HF coupler N-Connect male/male Dimension drawing All dimensions except thread diameters are in millimeters. The thread diameters are specified in inches. 131.4 17.2 5/8-24 UNEF 18.7 5/8-24 UNEF HF coupler N-Connect male/male Technical specifications Article number 6GK5798-0CP00-1AA0 Electrical data Frequency range 6 GHz... -
Page 49: R-Sma Angle Adapter
Technical data 3.8 R-SMA angle adapter Technical specifications Materials Inner conductor • Core material: CuZn39Pb3 • Coating: Ag5 Outer conductor • Core material: CuZn39Pb3 • Coating: CuSnZn3 Metallic parts • Core material: CuZn39Pb3 • Coating: CuSnZn3 Insulation PTFE Seal • •... - Page 50 Technical data 3.8 R-SMA angle adapter Technical specifications Dimensions, materials and weight Number of plug-in connections Dimensions (length x width) 17.1 x 15.1 mm Material Inner contact, pin • Core material: Brass • Coating: Au 0.75 Inner contact, socket • Core material: CuBe •...
- Page 51 Index Access points Panel feedthroughs, 12, 13, 14 SCALANCE W1700, 18 Power splitter, 12, 13 SCALANCE W700, 17 SCALANCE WAM76x, 19 Antennas Directional antenna, 15 RCoax cables, 16 Dual directional antenna with linear polarization, 15 Dual-band directional antenna with linear polarization, 16 Helical antenna, 15 SIMATIC NET glossary, 6...
- Page 52 Index Passive network components IWLAN System Manual, 08/2021, C79000-G8976-C282-08...
