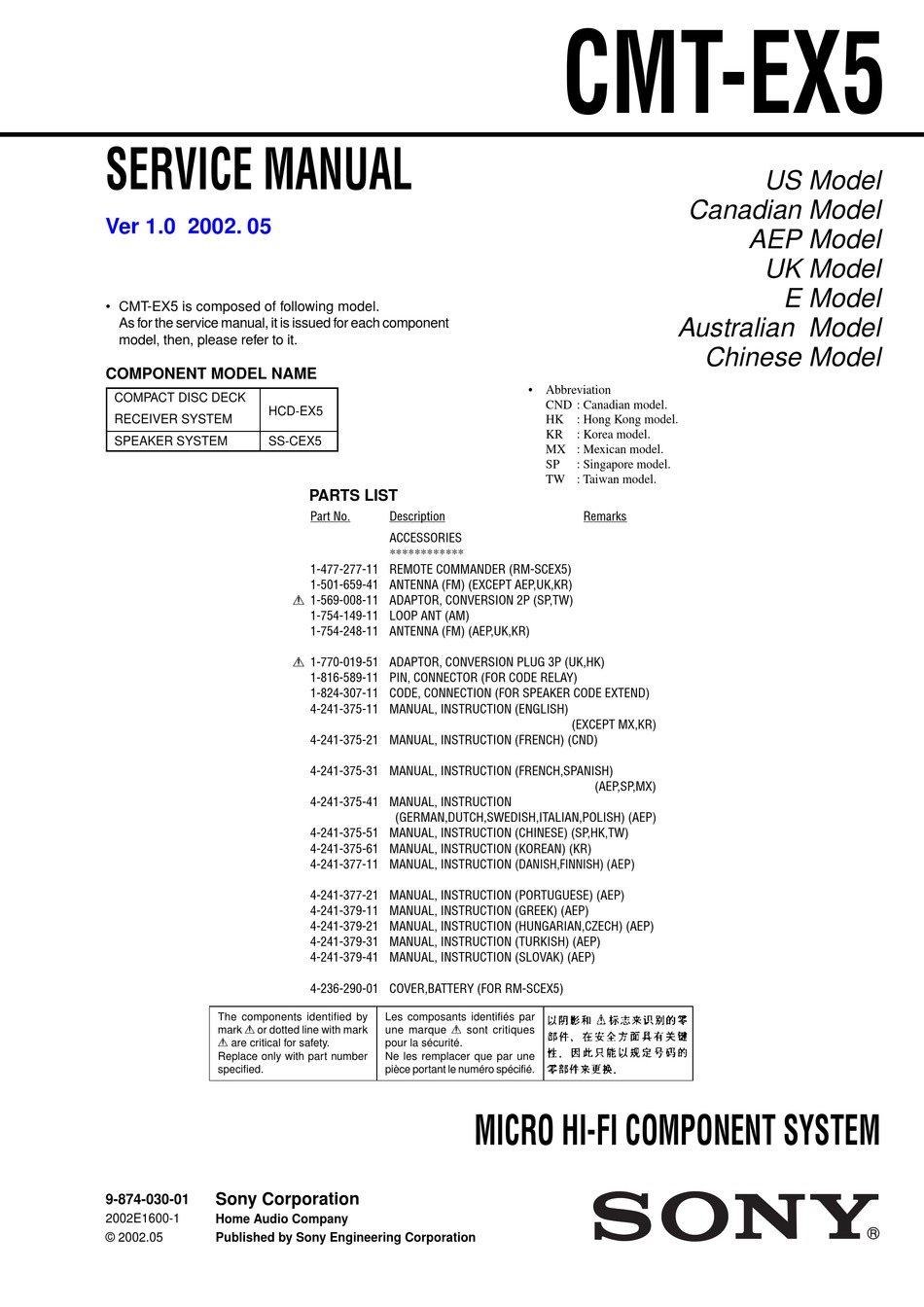

SERVICE MANUAL
Ver 1.0 2002. 05
• CMT-EX5 is composed of following model.
As for the service manual, it is issued for each component
model, then, please refer to it.
COMPONENT MODEL NAME
COMPACT DISC DECK
HCD-EX5
RECEIVER SYSTEM
SPEAKER SYSTEM
SS-CEX5
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Sony Corporation
9-874-030-01
2002E1600-1
Home Audio Company
© 2002.05
Published by Sony Engineering Corporation
PARTS LIST
Part No.
Description
ACCESSORIES
************
1-477-277-11 REMOTE COMMANDER (RM-SCEX5)
1-501-659-41 ANTENNA (FM) (EXCEPT AEP,UK,KR)
0 1-569-008-11 ADAPTOR, CONVERSION 2P (SP,TW)
1-754-149-11 LOOP ANT (AM)
1-754-248-11 ANTENNA (FM) (AEP,UK,KR)
0 1-770-019-51 ADAPTOR, CONVERSION PLUG 3P (UK,HK)
1-816-589-11 PIN, CONNECTOR (FOR CODE RELAY)
1-824-307-11 CODE, CONNECTION (FOR SPEAKER CODE EXTEND)
4-241-375-11 MANUAL, INSTRUCTION (ENGLISH)
4-241-375-21 MANUAL, INSTRUCTION (FRENCH) (CND)
4-241-375-31 MANUAL, INSTRUCTION (FRENCH,SPANISH)
4-241-375-41 MANUAL, INSTRUCTION
(GERMAN,DUTCH,SWEDISH,ITALIAN,POLISH) (AEP)
4-241-375-51 MANUAL, INSTRUCTION (CHINESE) (SP,HK,TW)
4-241-375-61 MANUAL, INSTRUCTION (KOREAN) (KR)
4-241-377-11 MANUAL, INSTRUCTION (DANISH,FINNISH) (AEP)
4-241-377-21 MANUAL, INSTRUCTION (PORTUGUESE) (AEP)
4-241-379-11 MANUAL, INSTRUCTION (GREEK) (AEP)
4-241-379-21 MANUAL, INSTRUCTION (HUNGARIAN,CZECH) (AEP)
4-241-379-31 MANUAL, INSTRUCTION (TURKISH) (AEP)
4-241-379-41 MANUAL, INSTRUCTION (SLOVAK) (AEP)
4-236-290-01 COVER,BATTERY (FOR RM-SCEX5)
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
CMT-EX5
•
Abbreviation
CND : Canadian model.
HK : Hong Kong model.
KR
: Korea model.
MX : Mexican model.
SP
: Singapore model.
TW : Taiwan model.
Remarks
(EXCEPT MX,KR)
(AEP,SP,MX)
MICRO HI-FI COMPONENT SYSTEM
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Chinese Model
