Table of Contents
Precautions .......................................................................................... 2
Product Features ................................................................................. 3
Package Overview ............................................................................... 4
Product Overview................................................................................ 5
Connecting the Projector ................................................................... 8
Powering On/Off the Projector .......................................................... 9
Adjusting the Projected Image .......................................................... 11
On-Screen Display Menus ................................................................... 15
Troubleshooting .................................................................................. 22
Changing the Lamp ............................................................................ 25
Specifications ....................................................................................... 26
Compatibility Modes........................................................................... 27
1
English
Advertisement
Table of Contents
Related Manuals for Acer PD320
Summary of Contents for Acer PD320
-
Page 1: Table Of Contents
All manuals and user guides at all-guides.com English Table of Contents Usage Notice Precautions ..................2 Introduction Product Features ................. 3 Package Overview ................4 Product Overview................5 Installation Connecting the Projector ..............8 Powering On/Off the Projector ............9 Adjusting the Projected Image ............ -
Page 2: Usage Notice
All manuals and user guides at all-guides.com English Usage Notice Warning- Do not look into the lens. The bright light may hurt your eyes. Warning- To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. Warning- Please do not open or disassemble the product as this may cause electric shock. -
Page 3: Introduction

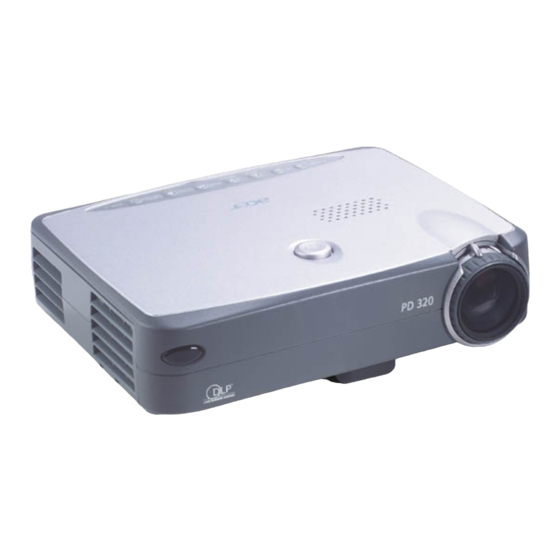

All manuals and user guides at all-guides.com English Introduction Product Features This product is an XGA single chip 0.7” DLP Projector. The outstanding ä features of it are listed as follows: True XGA, 1024 x 768 addressable pixels 3.3 lbs (1.5 kgs) lightweight compact design Single chip DLP technology ä... -
Page 4: Package Overview
All manuals and user guides at all-guides.com English Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if anything is missing. Projector Power Cord D-Sub RGB to DVI Cable RCA Audio Cable Composite Video Cable S-Video Cable... -
Page 5: Product Overview
All manuals and user guides at all-guides.com English Product Overview Panel Control Enter / Lamp Volume Mute Source Resync Warning LED Temperature Warning LED Four Directional Menu Power On / Standby Select Keys (On/Off) Main Unit Elevator Button Panel Control Speaker Remote Control Receiver... - Page 6 All manuals and user guides at all-guides.com English Remote Control with Mouse Function & Laser Pointer LED Point Multi-Directional Resync Power / Standby Page Down Source Laser Pointer Page Up Keystone Correction Volume ( + / - ) Zoom In / Zoom Out Mute Menu Freeze...
- Page 7 All manuals and user guides at all-guides.com English Enter Key Laser Pointer Caution...
-
Page 8: Installation
All manuals and user guides at all-guides.com English Installation Connecting the Projector Power Cord DVI Signal Cable for HDTV/Component Digital Port RGB Port RS232 D-Sub RGB to Monitor Cable DVI Cable Composite Video Cable DVI Signal Cable for DVI Digital Port RGB Port RCA Audio Cable S-Video Output... -
Page 9: Powering On/Off The Projector
All manuals and user guides at all-guides.com English Power On/Off the Projector Powering On the Projector 1. Remove the lens cap. Œ 2. Ensure that the power cord and signal cable are securely connected. 3. The “Power/Standby” indicator will flash. And press the “Power/Standby”... - Page 10 All manuals and user guides at all-guides.com English Powering Off the Projector 1. Press the “Power/Standby” button to turn off the projector lamp. 2. After pressing the “Power/Standby” button, you will see a message “Power off the lamp?” on the on-screen display. Press the “Power/Standby” button again to confirm.
-
Page 11: Adjusting The Projected Image
All manuals and user guides at all-guides.com English Adjusting the Projected Image Adjusting the Projector Height The projector is equipped with an elevator foot for adjusting the projector height. To raise the projector: 1. Press the elevator button Π2. Raise the projector to the desired display angle , then release the button to lock ... - Page 12 All manuals and user guides at all-guides.com English Adjusting the Projector Zoom / Focus You may adjust zoom ring to zoom in / out. Rotate the zoom ring counter-clockwise to zoom in and clockwise to zoom out. To focus the image, rotate the focus ring until the image is clear.
-
Page 13: User Controls Panel Control & Remote Control
All manuals and user guides at all-guides.com English User Controls Panel Control & Remote Control There are two ways for you to control the function: Remote Control and Panel Control. Panel Control Remote Control Enter Key Power / Standby Refer to the “Power On/Off the Projector” section on page 9~10. Source Press “Source”... - Page 14 All manuals and user guides at all-guides.com English Four Directional Select Keys When you close the cover of remote control, this key can be used as a mouse to control direction. * The above function is only enabled with the connection between computer and projector by remote mouse Y cable.
-
Page 15: On-Screen Display Menus
All manuals and user guides at all-guides.com English On-Screen Display Menus How to operate The Projector has a multilingual On-Screen Display(OSD) menus that allow you to make image adjustments and change a variety of settings. In computer source, the OSD will be the “Computer OSD”. In video source, the OSD will be the “ Video OSD”. - Page 16 All manuals and user guides at all-guides.com English Computer mode Language Management Image-I Image-II Audio Brightness Zoom Contrast Keystone Color Temp. Image-I (Computer mode) Brightness Adjusting the brightness of the image. Press the to darken the image. Press the to lighten the image. Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture.
- Page 17 All manuals and user guides at all-guides.com English Video mode Language Management Image-I Image-II Audio Brightness Tint Contrast Sharpness Color Image-I (Video mode) Brightness Adjusting the brightness of the image. Press the to darken the image. Press the to lighten the image. Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture.
- Page 18 All manuals and user guides at all-guides.com English Computer mode Language Management Image-I Image-II Audio Frequency H. Position Tracking V. Position 16:9 / 4:3 Reset Image-II (Computer mode) Frequency “Frequency” is for changing the display data frequency to match the frequency of your computer’s graphic card.
- Page 19 All manuals and user guides at all-guides.com English Video mode Language Management Image-I Image-II Audio Keystone Color Temp. 16:9 / 4:3 Reset Image-II (Video mode) Keystone Correction Adjust image distortion caused by tilting the projector. (±16 degrees) 16 : 9 / 4 : 3 You can select this function to fit your desired aspect ratio type.
- Page 20 All manuals and user guides at all-guides.com English Computer / Video mode Computer / Video mode Language Management Image-I Image-II Audio Image-I Image-II Audio Language Management Volume Stereo / Mono Treble Mute Bass Audio Volume Press the to decrease the volume. Press the to increase the volume.
- Page 21 All manuals and user guides at all-guides.com English Computer / Video mode Image-I Image-II Audio Language Management Menu Location Lamp Reminder Projection Lamp Reset Signal Type Component HDTV Management Menu Location Choose the Menu location on the display screen. Projection Front-Desktop The factory default setting.
-
Page 22: Appendices Troubleshooting
All manuals and user guides at all-guides.com English Appendices Troubleshooting If you are experiencing trouble with the projector, refer to the following. If the problem persists, please contact your local dealer or our service center. Problem: No image appears on screen. Ensure all the cables and power connections are correctly and securely connected as described in the “Installation”... - Page 23 All manuals and user guides at all-guides.com English 4. Follow above steps 1~2. Click on the “Advanced Properties ” button. 5. Select the “Change” button under the “Monitor” tab . 6. Click on “ Show all devices ”. Then select “ Standard monitor types ” under the “...
- Page 24 All manuals and user guides at all-guides.com English Problem : The screen is outstretched when displaying 16:9 DVD. The projector itself will automatically detect 16:9 DVD and adjust the aspect ratio by digitization to full screen with 4:3 default setting. If the projector is still outstretched, you will also need to adjust the aspect ratio by referring to the following: Please select 4:3 aspect ratio type on your DVD player if you are playing a 16:9 DVD.
-
Page 25: Changing The Lamp
All manuals and user guides at all-guides.com English Changing the lamp The projector will detect the lamp life itself. It will show you a warning message “ Lamp is running out of standard lifetime. Be sure to replace the lamp as soon as possible.” When you see this message, change the lamp as soon as possible. -
Page 26: Specifications
All manuals and user guides at all-guides.com English Specifications Light Valve - Single Chip DLP Technology Contrast Ratio - 500:1 (Full On / Full Off) Lamp - 130W User Replaceable P-VIP Lamp Number of Pixels - 1024 pixels(H) X 768 lines(V) Displayable Color - 16.7M colors Projection Lens... -
Page 27: Compatibility Modes
All manuals and user guides at all-guides.com English Compatibility Modes (ANALOG) (DIGITAL) Mode Resolution V.Frequency H.Frequency V.Frequency H.Frequency (Hz) (kHz) (Hz) (kHz) " " " " * compression computer image.
