Summary of Contents for Panasonic Easy Take NR-B182W
Page 1

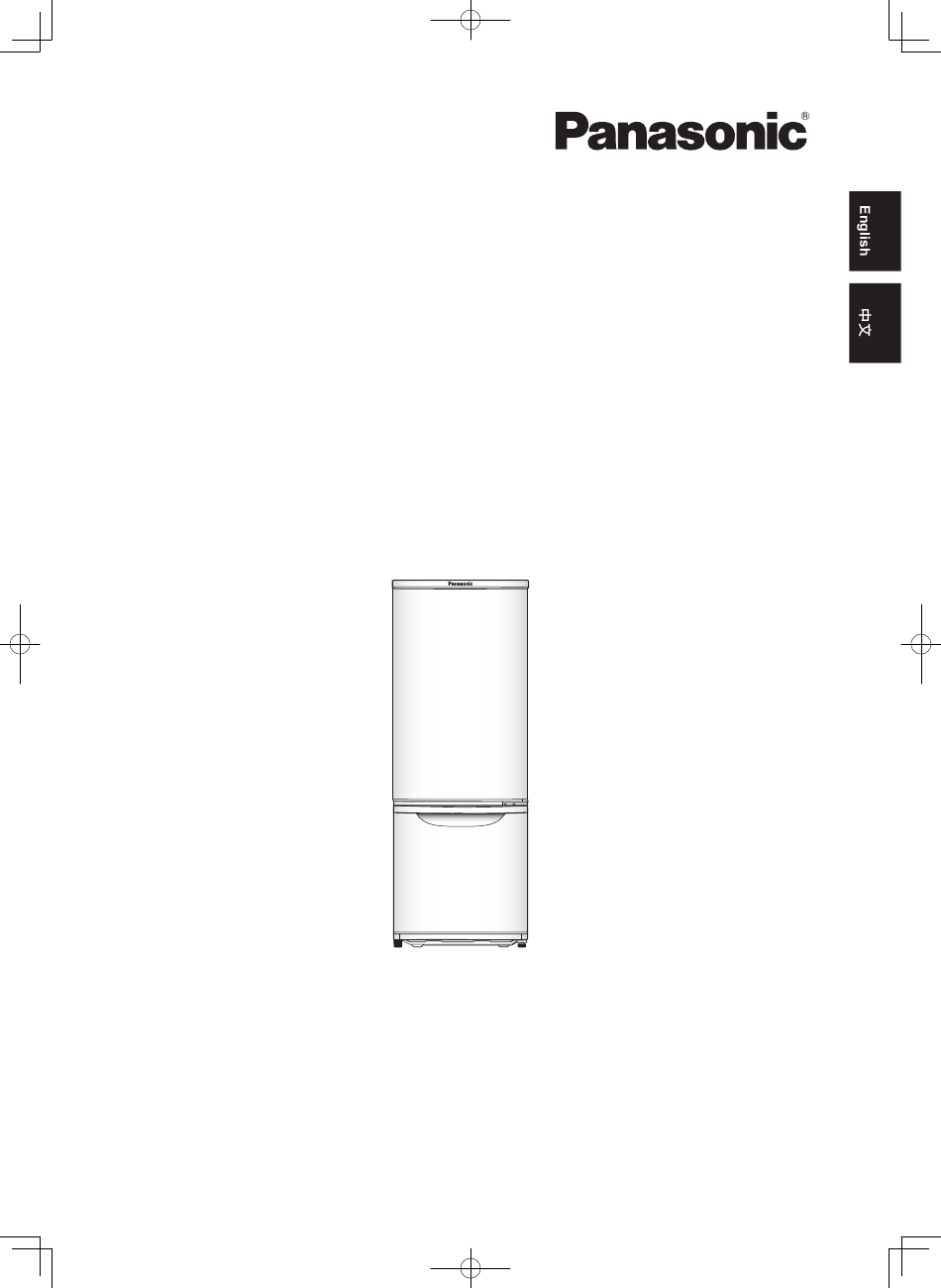

Operating Instructions Refrigerator (Household use) 使用說明書 雪櫃 (只供家用) NR-B182W-SHK Model No./ 型號 NR-B182W-WHK Thank you for purchasing this Panasonic product. Please read these instructions carefully before using this product. Please keep this manual for future reference. 非常感謝您購買本 Panasonic 產品。 使用本產品之前,請先仔細閱讀下列使用說明。 請保留此說明書,以供日後使用。...
Introduction Contents Introduction Caring for the environment ............2 Safety instructions ................3 Installation Installation ..................6 Choosing the right location ............6 Operation To use all features .................8 Temperature control ..............9 Appendix How to clean ................10 In these cases ................11 Troubleshooting ................12 Specifications ................12 ●This appliance is intended to be used in household and similar applications such as - staff kitchen areas in shops, offices and other working environments;...
Introduction Safety instructions What the symbols mean. Indicates the appliance must be Do not earthed to prevent electric shock Make sure you do this Do not take apart Indicates risk of death or serious injury. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given WARNING supervision or instruction concerning use of the appliance by a person responsible for their safety.
Page 4
Introduction When using... Do not apply water on the body or interior. ● Electrical insulation deteriorates and may cause shocks or fire. WARNING:Do not damage the refrigerant circuit. ● The flammable refrigerant may catch fire and lead to an explosion. Do not store petrol or other flammable liquids and vapours in the refrigerator, or use them near the appliance.
Page 5
Introduction When disposing and recycling the product... When a concern exists for possible entry of a child during recycling, remove the door packing. The refrigerant (R600a iso-butane) used in the refrigerator and the gases in the insulation material (cyclopentane) are both flammable. They also require special disposal procedures. ●...
Installation Installation Installation Choosing the right location 1. Place the refrigerator in the following locations. ● Locations free from heat and direct sunlight Minimize reduction of cooling power, and prevent electricity waste. ● Well-ventilated locations with low humidity Minimize rust and generation of condensation. ●...
Page 7
Installation 4. Plug into a wall outlet. After removing the power cord, set the evaporation pan correctly. Plug into a wall outlet of the rated voltage on its own with the rated current and insert plug fully. The power plug can be plugged into an outlet immediately after installation. The surroundings and surfaces (side surfaces) of the refrigerator may become hot (approximately 50 °C to 60 °C when the ambient temperature is 30 °C) when the power is turned on, but this is not abnormal.
Operation To use all features Operation Refrigerator compartment (approx. 3°C – approx. 6°C) Table Small door shelf (Upper temperature limit 100°C, withstand load 30 kg) Oven, microwave oven and the like can be put on this table. LED lighting Egg tray (built-in 2 pcs.
Operation Temperature control Interior temperature is automatically adjusted to the appropriate temperature. If temperature control is necessary, temperature can be adjusted by the following operation. Cold air volume adjusting lever Power-saving lever Usually, use this refrigerator Usually, use this refrigerator with this cold air volume- with this power-saving lever adjusting lever set to "...
Appendix How to clean Appendix Before cleaning, be absolutely sure to disconnect the power plug from the power outlet You can wipe off dirt easily as long as the dirt dries out by cold air. Especially, cooking oil causes cracks in plastic parts and citrus fruit juice causes discoloration of the plastic parts. If you have difficulty in cleaning off the dirt, dilute neutral kitchen detergent with water and wipe off with a wet cloth to finish up.
Appendix In these cases The power failed. ● Keep the doors closed and do not store additional food. ● Wait at least 7 minutes, and then plug in the power plug. The power plug was If it is plugged in immediately, the compressor will be overloaded, which may disconnected.
Appendix Troubleshooting If you feel that the refrigerator is not working properly, check out the following points first. If the trouble persists, disconnect the power plug and contact your dealer or an authorized service centre. ● When you use this refrigerator for the first time, from four to 24 hours or Does not get cold at all even more are required until the refrigerator begins to cool.
