OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
© 2021 by Snow Joe
, LLC
®
All rights reserved. Original instructions.

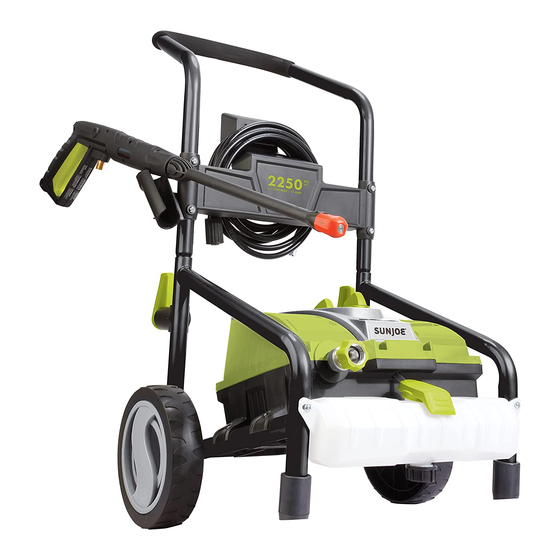

14.5A ELECTRIC PRESSURE WASHER
R
2250 PSI MAX PRESSURE
1.65 GPM MAX FLOW
Model SPX4003-ELT-RM
AT INITIAL DISCHARGE PER CSA INTERNAL PRESSURE TESTING
WITH NOZZLE OPEN AT MINIMUM PRESSURE
1
Form No. SJ-SPX4003-ELT-RM-880E-MR2-V1
SAVE THESE INSTRUCTIONS
EN
Advertisement
Table of Contents
Related Manuals for sunjoe SPX4003-ELT-RM
Summary of Contents for sunjoe SPX4003-ELT-RM
- Page 1 1.65 GPM MAX FLOW WITH NOZZLE OPEN AT MINIMUM PRESSURE OPERATOR’S MANUAL Model SPX4003-ELT-RM A Division of Snow Joe , LLC ® Form No. SJ-SPX4003-ELT-RM-880E-MR2-V1 © 2021 by Snow Joe , LLC SAVE THESE INSTRUCTIONS ® All rights reserved. Original instructions.
-
Page 2: General Safety
OPERATOR’S MANUAL Model SPX4003-ELT-RM A Division of Snow Joe , LLC ® Form No. SJ-SPX4003-ELT-RM-880E-MR2-V1 IMPORTANT! • Stay alert – Watch what you are doing. Use common sense. Do not operate the pressure washer when you are Safety Instructions tired, or under the influence of alcohol or drugs. -
Page 3: Electrical Safety
Electrical Safety • Risk of explosion – Do not spray flammable liquids. • Risk of injection or injury to persons – Never direct discharge stream at people, pets, or electrical devices. ATTENTION: If there are problems with the electrical • Disconnect the tool – Disconnect from the electrical power MAINS, short voltage drops may appear when starting the supply before performing any maintenance task. -
Page 4: Risk Of Electrocution
4. Use only extension cords that are intended for outdoor Table 1. Method of Securing Extension Cord use. These extension cords are identified by marking "Acceptable for use with outdoor appliance; store indoors Cord set Appliance cord while not in use". Use only extension cord having an electrical rating not less than the rating of the product. -
Page 5: Product Description
Product Description Purpose • This high-pressure electric power washer is intended for residential use to clean vehicles, machines, buildings, facades, etc. Areas of Application • Never use the machine in potentially explosive areas under any circumstances! • The operating temperature must be between 32ºF (0ºC) and 104ºF (40ºC). -
Page 6: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand, WARNING! Electrical shock hazard –... -
Page 7: Technical Data
Know Your Electric Pressure Washer Read the owner’s manual and safety instructions carefully before operating the electric pressure washer. Compare the illustration below to the electric pressure washer in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference. -
Page 8: Carton Contents
Unpacking Assembly Carton Contents 1. Position the washer as CLOSE as possible to the water supply. • Upper handle frame 2. The washer must be used on a secure and stable surface • Lower handle + pressure washer assembly in a standing, upright position (Fig. 1). •... - Page 9 5 Slide the upper handle frame into lower handle then 6. Connect the high-pressure hose to the water outlet on the depress the small button at the end of the upper handle washer (Fig. 6). frame, push and insert into lower handle until it snaps securely into place (Figs.
- Page 10 9. Connect the garden hose adapter (female coupler) to 10. Attach garden hose to water supply (Fig. 11). the water inlet of the pressure washer, then thread your garden hose (male end) into the garden hose Fig. 11 adapter (Figs. 9 – 10). The garden hose must have an internal diameter of at least 13 mm (1/2 in.) and must be reinforced.
- Page 11 12. Check that the electrical supply voltage and frequency Fig. 15 (Volt/Hz) correspond to those specified on the pressure washer rating plate. If the power supply is correct, you may now plug the pressure washer into the power outlet (Fig. 13). Fig.
-
Page 12: Working With Detergents
2. Engage the safety lock on the trigger handle. 2. Install the soap nozzle (black) on the spray wand (Fig. 17). 3. Pull back the brass Quick-Connect collar and insert the 3. Turn on the pressure washer. Pull the trigger to operate desired nozzle into the collar. -
Page 13: Shutting Down
These chemicals will harm the unit and will damage Fig. 20 the cleaning surface. Shutting Down 1. Turn the switch to the STOP (0) position and unplug the power cord from the outlet. 2. Turn off the water source. 3. Hold the trigger to release water pressure. 4. -
Page 14: Service & Support
Service + Support Pre-filter If your Sun Joe SPX4003-ELT-RM electric pressure washer ® requires service or maintenance, please call the Snow Joe ® Sun Joe customer service center at 1-866-SNOWJOE (1-866- ®... -
Page 15: Troubleshooting
Troubleshooting • Disconnect the unit from the electrical power supply before carrying out maintenance on the machine or when checking that its parts are in proper working order. • To avoid unnecessary hassles, consult the following table before contacting customer service with any mechanical issues. Problems Possible Cause Possible Solution... - Page 16 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe to provide notice of such ® ® changes. Accessories can be ordered online at sunjoe.com or via phone by contacting the Snow Joe + Sun Joe customer ® ®...
- Page 17 SNOW JOE + SUN JOE REFURBISHED GOODS WARRANTY ® ® Snow Joe + Sun Joe may from time to time change the design of ® ® GENERAL CONDITIONS: its products. Nothing contained in this warranty shall be construed Snow Joe + Sun Joe operating under Snow Joe , LLC warrants...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 sunjoe.com...
