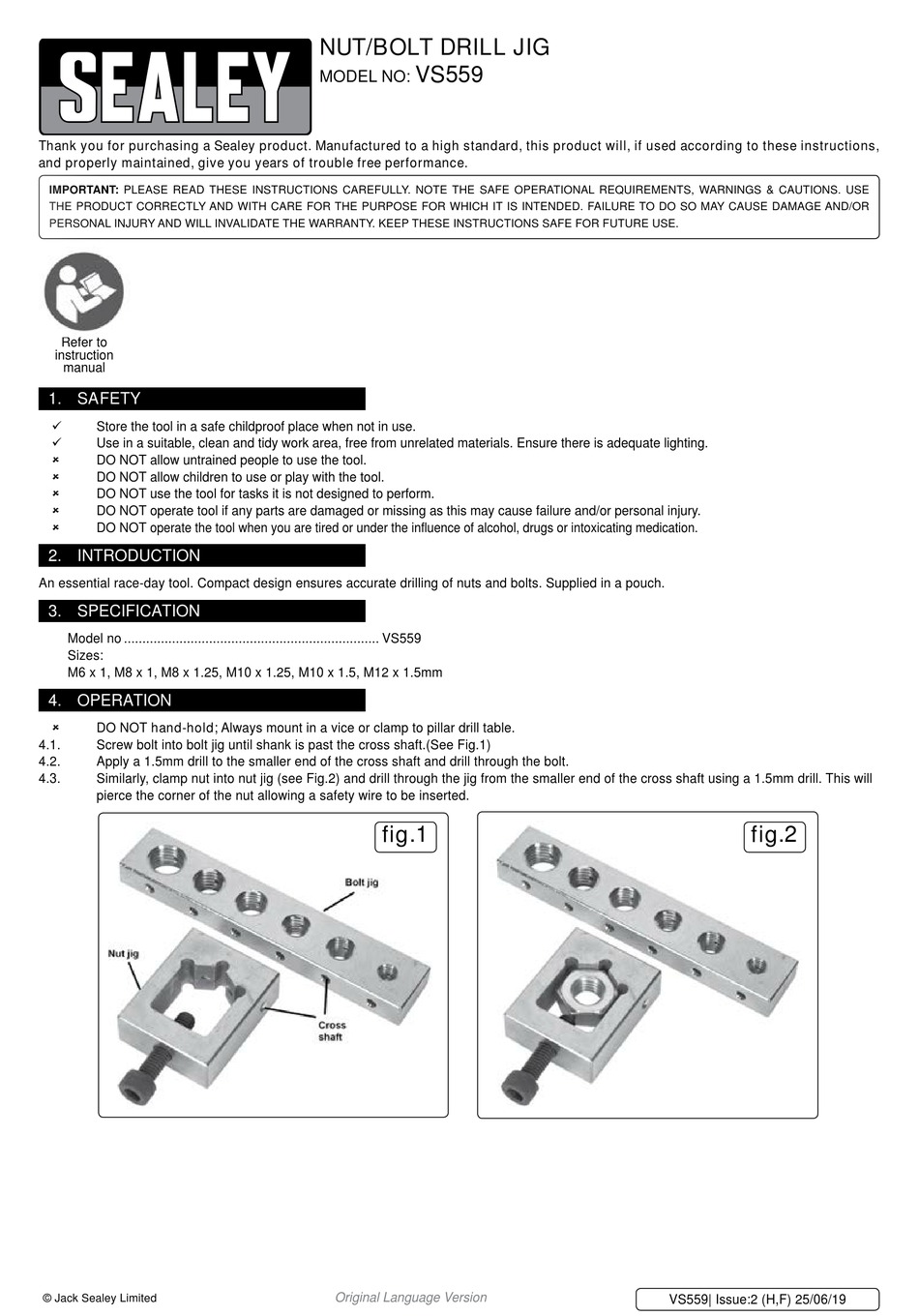

Sealey VS559 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
instruction
manual
1. SAFETY
Store the tool in a safe childproof place when not in use.
9
Use in a suitable, clean and tidy work area, free from unrelated materials. Ensure there is adequate lighting.
9
DO nOT allow untrained people to use the tool.
8
DO nOT allow children to use or play with the tool.
8
DO nOT use the tool for tasks it is not designed to perform.
8
8 8 DO nOT operate tool if any parts are damaged or missing as this may cause failure and/or personal injury.
8 8
DO nOT operate the tool when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8
2. InTRODUcTIOn

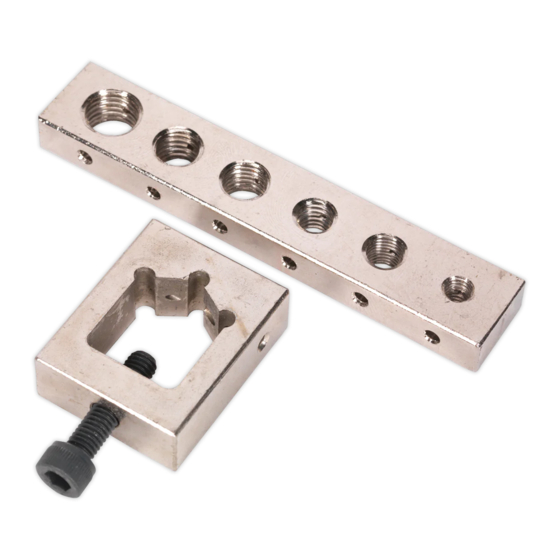

An essential race-day tool. Compact design ensures accurate drilling of nuts and bolts. Supplied in a pouch.
3. SpEcIFIcATIOn
model no ..................................................................... VS559
Sizes:
m6 x 1, m8 x 1, m8 x 1.25, m10 x 1.25, m10 x 1.5, m12 x 1.5mm
4. OpERATIOn
DO nOT hand-hold; Always mount in a vice or clamp to pillar drill table.
8
4.1. Screw bolt into bolt jig until shank is past the cross shaft.(See Fig.1)
4.2. Apply a 1.5mm drill to the smaller end of the cross shaft and drill through the bolt.
4.3.
Similarly, clamp nut into nut jig (see Fig.2) and drill through the jig from the smaller end of the cross shaft using a 1.5mm drill. This will
pierce the corner of the nut allowing a safety wire to be inserted.
© Jack Sealey Limited
nUT/BOLT DRILL JIG
VS559
mODEL NO:
fig.1
Original Language Version
fig.2
VS559| Issue:2 (H,F) 25/06/19
