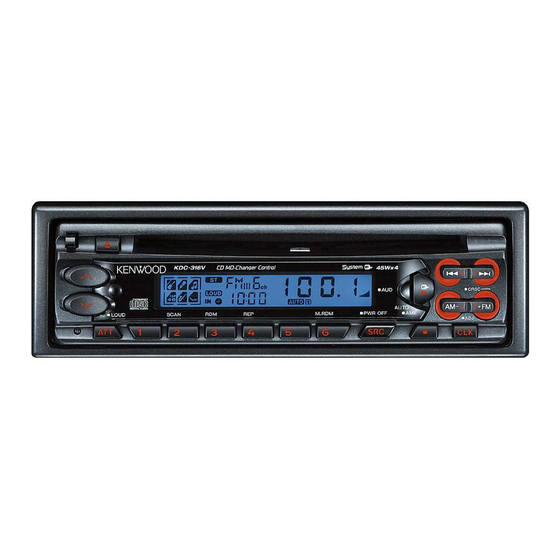

KDC-416S
KDC-316S
KDC-37MR
KDC-316V
KDC-216S
KDC-116S
CD-RECEIVER
INSTRUCTION MANUAL
AMPLI-TUNER-LECTEUR DE CD
MODE D'EMPLOI
REPRODUCTOR DE DISCOS COMPACTOS RECEPTOR DE FM/AM
MANUAL DE INSTRUCCIONES
RECEPTOR DE CD
MANUAL DE INSTRUÇÕES
Take the time to read through this instruction manual. Familiarity with installa-
tion and operation procedures will help you obtain the best performance from
your new CD-receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on
the warranty card, and in the space provided below. Refer to the model and serial
COMPACT
numbers whenever you call upon your KENWOOD dealer for information or service on
the product.
Model KDC-416S/316S/37MR/316V/216S/116S Serial number
DIGITAL AUDIO
© B64-1830-00 (KW)
Advertisement
Table of Contents
Related Manuals for Kenwood KDC-316V
Summary of Contents for Kenwood KDC-316V
-
Page 1: Instruction Manual
Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below. Refer to the model and serial COMPACT numbers whenever you call upon your KENWOOD dealer for information or service on the product. Model KDC-416S/316S/37MR/316V/216S/116S Serial number... -
Page 2: Table Of Contents
Contents Safety precautions...4 Handling Compact discs ...6 General features Power...8 Volume ...8 Attenuator ...8 Switching Modes ...9 Loudness ...9 Clock display ...9 System Q ...10 Audio Control Setting...10 Mobile Preset...11 Theft Deterrent Faceplate...11 Adjusting Time ...11 Disabled System Indicator (DSI) ...12 Tuner features Tuning ...13 Station Preset Memory...13... - Page 3 KENWOOD CORPORATION 2967-3, ISHIKAWA-CHO, HACHIOJI-SHI TOKYO, JAPAN KENWOOD CORP. CERTIFIES THIS EQUIPMENT CONFORMS TO DHHS REGULATIONS N0.21 CFR 1040. 10, CHAPTER 1, SUBCHAPTER J. Location : Bottom Panel FCC WARNING This equipment may generate or use radio frequency energy.
-
Page 4: Safety Precautions
DNPS, DNPP, Magazine random play, and CD Text display. Note that none of the KDC-C100, KDC-C302, C205, C705, and non-Kenwood CD changers can be connected. 2CAUTION You can damage both your unit and the CD changer if you connect them incorrectly. - Page 5 NOTE • If you experience problems during installation, consult your Kenwood dealer. • If the unit does not seem to be working right, try pressing the reset button first. If that does not solve the problem, consult your Kenwood dealer.
-
Page 6: Handling Compact Discs
Handling Compact discs Playing a CD that is dirty, scratched or warped can cause the sound to skip and the unit to operate incorrectly, resulting in worsened sound quality. Take the following precautions to prevent your CDs from getting scratched or damaged. Handling CDs •... - Page 7 Do Not Load CD Accessories Do not use commercially available CD accessories that can be loaded into the CD slot, such as stabilizers, protective sheets, or CD cleaning discs, since they can cause the unit to malfunction. Removing the CD Only remove the CD from the machine in a horizontal direction, holding it flat.
-
Page 8: General Features
General features Release button ATT/ PWR OFF LOUD KDC-416S LOUD indicator ATT indicator SYSTEM Q indicator KDC-316S/37MR/316V/216S ATT indicator LOUD indicator Clock indicator SYSTEM Q indicator KDC-116S LOUD indicator ATT indicator Clock indicator SYSTEM Q indicator Power 4/¢ Q/AUD Turning on the power: Press the SRC (source) button. -
Page 9: Switching Modes
Turning Loudness On/Off: Press the LOUD button for at least one second to switch the loudness on and off. Function of the KDC-316S/KDC-37MR/KDC-316V/KDC-216S/KDC-116S Clock display Changing the Clock Display: Press the CLK button to switch the clock display on and off. -
Page 10: System Q
Flat ("SQ-1") Easy ("SQ-6") Rock ("SQ-2") Jazz ("SQ-5") General features Pops ("SQ-4") Top 40 ("SQ-3") System Q You can recall the best audio setting preset for different types of the music. Switching the Preset Sound Setting: Each time you press the Q button, the preset sound setting switches as follows: Scan of Flat –... -
Page 11: Mobile Preset
When you change the setting of type of speaker, the bass, middle, and treble tone settings are returned to original levels. Function of the KDC-416S/KDC-316S/KDC-37MR/KDC-316V/KDC-216S Theft Deterrent Faceplate The faceplate of the unit can be detached and taken with you, helping to deter theft. -
Page 12: Disabled System Indicator (Dsi)
General features Operation of the KDC-316S/KDC-37MR/KDC-316V/KDC-216S Disabled System Indicator (DSI) A red indicator will blink on the unit after the faceplate is removed, warning potential thieves. The factory default for this function is ON. Turning Disabled System Indicator On/Off: Turn the power of the unit off. -
Page 13: Tuning
Tuning You can choose from three tuning modes: auto seek, preset station seek, and manual. The AUTO 1 indicator lights up when auto seek tuning is selected, and the AUTO 2 indicator lights when preset station seek tuning is selected. Selecting Tuning Mode: Press the AUTO button. -
Page 14: Auto Memory Entry
Tuner features Auto Memory Entry You can automatically store all the receivable frequencies in the band currently being listened to, and then recall them with the touch of a button later. This function is especially useful when you are travelling and do not know what stations are available. -
Page 15: Clean Reception System Circuit (Crsc)
Station frequency SNPS name (only when being preset) Clock Operation of the KDC-316S/KDC-37MR/KDC-316V/KDC-216S/KDC-116S Clean Reception System Circuit (CRSC) Temporarily have reception switched from stereo to mono to reduce multi-path noise when listening to the FM station. The factory default for this function is ON. -
Page 16: Cd/External Disc Control Features Playing Cds
When you load a CD and eject it right away, the next time you try to insert the CD may not load. In such a situation, take the CD out for a moment and then reinsert it. Function of the KDC-416S/KDC-316S/KDC-37MR/KDC-316V Playing Other Disc mode This function permits the connection of optional players and the playing of discs other than the loaded CD (in the current unit). -
Page 17: Fast Forwarding And Reversing Disc Play
NOTE (For disc changers : KDC-416S/316S/37MR/316V only) You cannot make a forward track search when listening to the last track on a disc. Function of the KDC-416S/KDC-316S/KDC-37MR/KDC-316V Disc Search Search forward or backward through the discs in a disc changer. -
Page 18: Track / Disc Repeat
To change the track being heard, press the ¢ button. Another track will be selected and played. NOTE Random play is canceled when you eject the disc. Function of the KDC-416S/KDC-316S/KDC-37MR/KDC-316V Magazine Random Play Play the tracks on all the discs in the disc changer in random order. -
Page 19: Presetting Disc Names (Dnps)
Press the M.RDM button to switch magazine random play on and off. The RDM indicator lights up when magazine random play is turned on. (KDC-316S/37MR/316V) "MRDM ON" is displayed when magazine random play is turned on. (KDC-416S) The disc and track numbers will change over and over in the display as the next track is being selected. -
Page 20: Text Scroll
CD/External disc control features Function of the KDC-416S Text Scroll Function of disc changers) This function permits the text to be scrolled and the entire text to be displayed. The scrolling method differs depending on the setting of scrolling in the menu. To scroll automatically: Press the CLK button to display the disc title or the track title. -
Page 21: Menu System
Menu System You can set the defaults for additional functions in the menu mode. Make a setting for each function, referring to the following operations. Enter the menu mode Press the MENU button for at least one second. "MENU" is displayed when the menu mode is entered. The function that you can adjust is indicated with the current settings displayed. -
Page 22: Disabled System Indicator (Dsi)
Menu settings Function of the KDC-416S Disabled System Indicator (DSI) A red indicator will blink on the unit after the faceplate is removed, warning potential thieves. Display and setting: "DSI ON" : The disable system indicator is on. (Default setting) "DSI OFF"... -
Page 23: Basic Operations Of Remote
Basic Operations of remote Accessory of the KDC-316V FM/DISC ¢ AM/DISC NOTE The supplied remote control unit is in its storage case. 2CAUTION Do not set the remote on hot places such as above the dashboard. Loading and Replacing the Batteries: Use two "AAA"-size batteries. - Page 24 Basic Operations of remote Accessory of the KDC-316V Basic operations • VOLUME buttons Press the button to turn the volume up. – Press the button to turn the volume down. • SRC button Each time you press the SRC button, the mode switches as...
-
Page 25: Accessories
Accessories External view ...1 ...1 ...2 ...1 ...4 ...4 ...1 7...KDC-416S/ 316S/ 316V/ 216S only 2CAUTION The use of any accessories except for those provided might result in damage to the unit. Make sure only to use the accessories shipped with the unit, as shown above. Installation Procedure 1. -
Page 26: Connecting Wires To Terminals
Always connect those wires to the power source running through the fuse box. Fuse (10A) Wiring harness KENWOOD disc changer control input (Accessory1) (KDC-416S/316S/37MR/316V only) NOTE To connect the Disc changer, Power control/ consult your Disc changer manual. -
Page 27: Installation
Installation Installation Firewall or metal support Accessory4 Self-tapping Accessory2 Metal mounting screw strap (commercially available) NOTE Make sure that the unit is installed securely in place. If the unit is unstable, it may malfunction (for example, the sound may skip). Installing in Japanese-Made Cars Refer to the section “Removing the hard rubber frame (P. - Page 28 Installation Removing the hard rubber frame Engage the catch pins on the removal tool and remove the two locks on the lower level. Lower the frame and pull it forward as shown in the figure. Lock Accessory3 Removal tool When the lower level is removed, remove the upper two locations.
- Page 29 Installation Screwing the Faceplate on the Unit Function of the KDC-416S/ 316S/ 316V/ 216S If you want to fasten the faceplate to the main unit so that it does not fall off, screw in the provided screw (ø4 × 16 mm) in the hole shown below.
-
Page 30: Troubleshooting Guide
Troubleshooting Guide What might seem to be a malfunction in your unit may just be the result of slight misoperation or miswiring. Before calling service, first check the following table for possible problems. PROBLEM The power does not turn on. The fuse has blown. - Page 31 Troubleshooting Guide PROBLEM Can’t remove disc. The cause is that more than 10 minutes has elapsed since the vehicle ACC switch was turned OFF. Free switching of the sound The System Q function is set on Scan mode. quality. CD/External disc control mode The disc control mode cannot No wire has been connected to the disc changer input be selected.
- Page 32 Troubleshooting Guide The following messages are displayed when certain problems are occurring in your system. Take the recommended actions. No disc magazine has been loaded in the changer. The disc magazine is not completely loaded. EJECT/E-01 ] Load the disc magazine properly. No CD in the unit.
-
Page 33: Specifications
Specifications Specifications subject to change without notice. FM tuner section Frequency range (200 kHz space) ...87.9 MHz – 107.9 MHz Usable sensitivity (S/N = 30dB) ...9.3dBf (0.8 µV/75 Ω) Quieting Sensitivity (S/N = 50dB) ...15.2dBf (1.6 µV/75 Ω) Frequency response (±3.0 dB) ...30 Hz – 15 kHz Signal to Noise ratio (MONO) ...70 dB Selectivity (±400 kHz)...≥...
