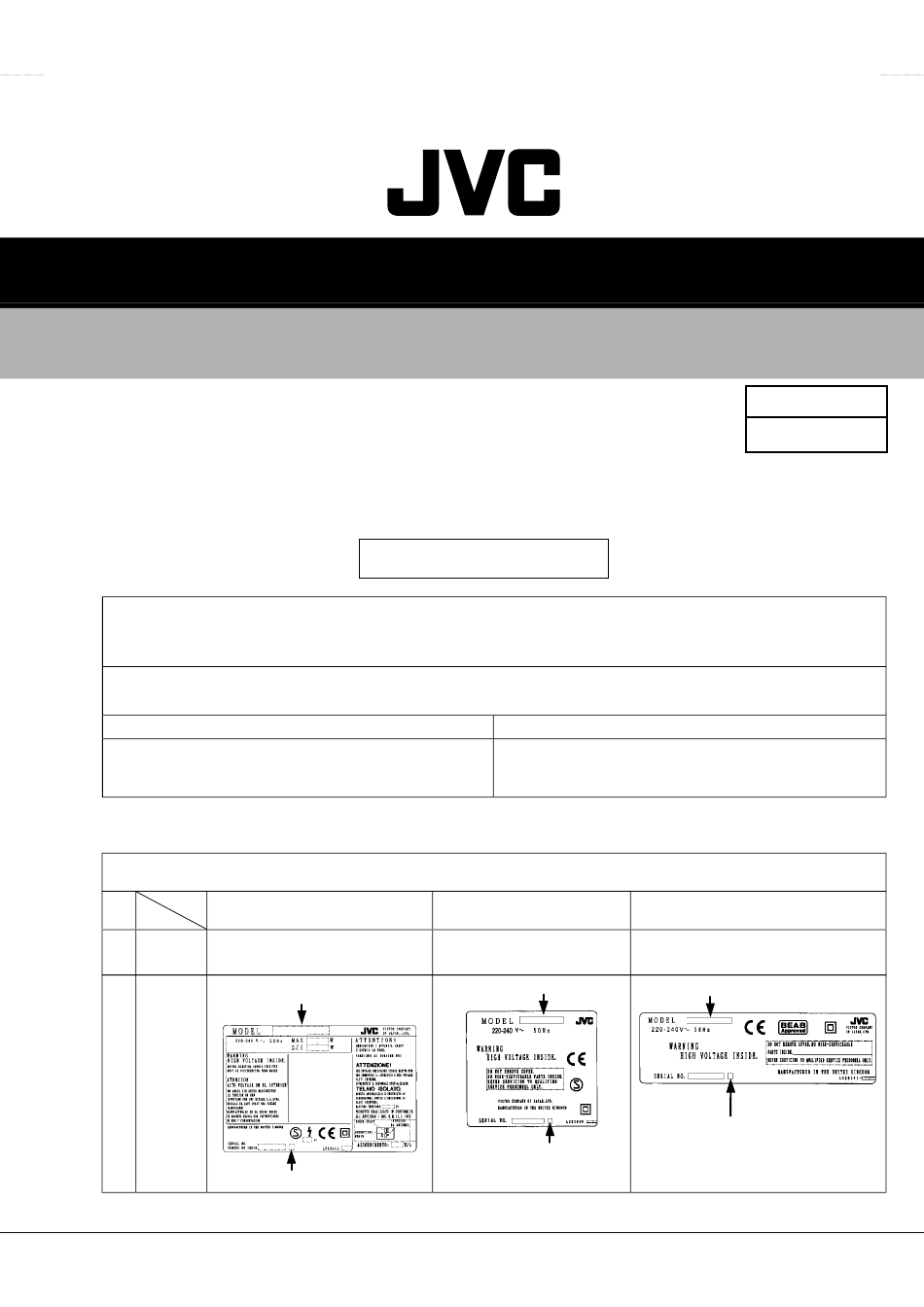

■ ■ ■ ■ MODEL DIFFERENCE Model Model AV-28WFT1EPG / AV-28WFT1EPS AV-28WFT1EPG / AV-28WFT1EPS AV-28WFT1EIS / AV-28WFT1EKS AV-28WFT1EIS / AV-28WFT1EKS HOW TO IDENTIFY MODELS While referring to the illustration given below, identify model name on the rating label affixed to the rear cover.
Page 3
AV-28WFT1EPG AV-28WFT1EPS AV-28WFT1EIS AV-28WFT1EKS PARTS DIFFERENCE TABLE AV-28WFT1EPG / AV-28WFT1EPS / AV-28WFT1EIS PRINTED WIRING BOARD PARS LIST MAIN PW BOARD ASS’Y (Page 43) SJK-1703A-U2 PW BOARD No. SJK-1702A-U2 PARTS NAME DESCRIPTION ! Symbol No. PARTS No. PARTS No. NDC21HJ-821X C1726 NDC21HJ-391X C CAP.
Page 4
POWER & DEF. PW BOARD ASS’Y(Page 45~46) (2/2) SJK-2506A-U2 PW BOARD No. SJK-2502A-U2 PARTS NAME DESCRIPTION ! ! ! ! Symbol No. PARTS No. PARTS No. T2521 CE42549-001J1 BRIGE COIL Delete QQH0089-001 T2551 QQH0065-002-I2 QQH0898-001 T2561 QQR0898-001 DEF.TRANSF. QQLZ028-501 L2521 QQLZ028-101 CHOKE COIL D2403...
Page 6
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL SPECIFICATIONS Content Item AV28S2EKGR AV28S2EIGR AV28S2EKBL AV28S2EIBL Dimensions ( W× × × × H× × × × D ) 800mm×500mm×496mm Mass 41kg TV RF System CCIR ( I ) Colour System PAL / NTSC (Only in EXT mode) Stereo System NICAM ( I ) Teletext System...
Page 7
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL ■ ■ ■ ■ 21-pin Euro connector (SCART socket) : EXT-1 / EXT-2 / EXT-3 (P-P= Peak to Peak, S-W= Sync tip to white peak, B-W= Blanking to white peak) Signal Designation Matching Value EXT-1 EXT-2 EXT-3...
Page 8
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL SAFETY PRECAUTIONS 1. The design of this product contains special hardware and many have these special safety characteristics are identified in the circuits and components specially for safety purposes. For Parts List of Service Manual. Electrical components having such continued protection, no changes should be made to the original features are identified by shading on the schematics and by (!) design unless authorized in writing by the manufacturer.
Page 9
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL FEATURES " By preference, users can select the picture size from REGULAR, " Built-in ECO (ECONOMY, ECOLOGY) MODE. PANORAMIC, FULL, 14:9 ZOOM, 16:9 ZOOM, 16:9 ZOOM SUB In accordance with the brightness in a room, the brightness TITLE modes.
Page 10
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL SPECIFIC SERVICE INSTRUCTIONS DISASSEMBLY PROCEDURE REMOVING THE REAR COVER CHECKING THE PW BOARD 1. Unplug the power cord. To check the back side of the PW Board. 2. Remove the 10 screws marked ”A” as shown in the Fig. 1. 1) Pull out the chassis.
Page 11
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL SPEAKER FRONT CABINET SPEAKER SOCKET FRONT CONTROL CONTROL BASE CLAW POWER & DEF. PWB AV SEL. PWB CHASSIS MAIN PWB CLAW AV TERMINAL BOARD Fig. 2 SIDE CONTROL JACK ASSEMBLY SPEAKER SPEAKER REAR COVER Fig.
Page 12
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL REMOVING THE CRT ! Replacement of the CRT should be performed by 2 or more persons. CRT CHANGE TABLE " After removing the cover, chassis etc., 1. Putting the CRT change table on soft cloth, the CRT change table should also be covered with such soft cloth (shown in Fig.4).
Page 13
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL REPLACEMENT OF CHIP COMPONENT ! CAUTIONS 1. Avoid heating for more than 3 seconds. 2. Do not rub the electrodes and the resist parts of the pattern. 3. When removing a chip part, melt the solder adequately. 4.
Page 14
4) Check the setting values of the SYSTEM CONSTANT SET of : STORE : EXIT Table 1. If the value is different, select the setting item with the JVC JK EURO V00 ******** - ***** FUNCTION UP/DOWN key, and set the correct value with the FUNCTION -/+ key.
Page 15
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL SETTING VALUES OF SYSTEM CONSTANT SET (TABLE 1) Setting value Setting item Setting content AV28S2EKGR AV28S2EIGR AV28S2EKBL AV28S2EIBL COUNTRY INCH MODEL USER SETTING VALUES (TABLE 2) PICTURE SETTING EXT SETTING EXT SETTING ID : BLACK TINT COOL S-IN : BLACK...
Page 16
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL SERVICE ADJUSTMENTS BEFORE STARTING SERVICE ADJUSTMENT 1. There are 2 ways of adjusting this TV: One is with the 7. Preparation for adjustment (presetting): REMOTE CONTROL UNIT and the other is the conventional Unless otherwise specified in the adjustment items, preset the method using adjustment parts and components.
Page 17
AV28S2EKGR AV28S2EKBL AV28S2EIGR AV28S2EIBL ADJUSTMENT LOCATIONS SIDE CONTROL JACK PWB FRONT CONTROL PWB FRONT DOWN CN102 F901 MENU POWER SW MAIN PWB POWER&DEF PWB FRONT FRONT CN001 IC701 IC702 MEMORY AV SEL PWB TUNER IC301 CN008 CN009 1pin:B1(TP-91) 2pin:NC 3pin:NC CRT SOCKET PWB (SOLDER SIDE) 4pin:NC...
Page 18
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL BASIC OPERATION SERVICE MENU 1. TOOL OF SERVICE MENU OPERATION Operate the SERVICE MENU with the REMOTE CONTROL UNIT. 2. SERVICE MENU ITEMS With the SERVICE MENU, various settings (adjustments) can be made, and they are broadly classified in the following items of settings (adjustments): (1) 1.
Page 19
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL SERVICE MENU SERVICE MENU SUB MENU 7. AUTO PROGRAM 1. IF 2. V/C (Do not adjust) 3. AUDIO 4. DEF 5. VSM PRESET 6. VPS 7. AUTO PROGRAM (OFF) 7. AUTO PROGRAM (OFF) 7. AUTO PROGRAM (ON) 1-7 : SELECT : EXIT SUB MENU 1.IF (VCO)
Page 20
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL (3) Method of Setting 1) Method of Setting 1.IF [VCO] ① 1 Key ・・・・・・・・・・・・・・・・・・・・・・・・ Select 1.IF. ② The VCO (CW) screen will be displayed in yellow when the AFC voltage is at a certain level and in blue when it is at other levels. ③...
Page 21
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL ADJUSTMENTS CHECKING ITEM Measuring Item Test point Adjustment part Description instrument Check of B1 Signal TP-91(B1) 1. Receive any broadcast. TP-E(" " " " ) Power Supply Generator 2. Push the “ZOOM” key and select the FULL mode. [X connector 3.
Page 22
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL IF CIRCUIT ADJUSTMENT Measuring Item Test point Adjustment part Description instrument " Under normal conditions, no adjustment is required. Adjustment of Remote control unit 1. Receive any broadcast. 2. Select 1.IF from the SERVICE MENU. 3.
Page 23
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL VIDEO / CHROMA CIRCUIT ADJUSTMENT The setting (adjustment) using the REMOTE CONTROL UNIT is made on the basis of the initial setting values. The setting values which adjust the screen to the optimum condition can be different from the initial setting values. Colour system Initial setting value Setting Item...
Page 24
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL Measuring Item Test point Adjustment part Description instrument " The adjustment for Low Light WHITE BALANCE should be Adjustment Signal 2.DRIVE of WHITE generator finished. (R)*** " Set the PICTURE MODE to NORMAL. BALANCE (High Light) Remote 1.
Page 25
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL Measuring Item Test point Adjustment part Description instrument Adjustment Remote 5.COLOUR [Method of adjustment without measuring instrument] of SUB control unit (PAL / NTSC) COLOURⅠ Ⅰ Ⅰ Ⅰ PAL COLOUR (PAL COLOUR) 1. Receive PAL broadcast. 2.
Page 26
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL Measuring Item Test point Adjustment part Description instrument Adjustment Signal TP-47B 5.COLOUR [Method of adjustment using measuring instrument] TP-E(" " " " ) of SUB generator (PAL / NTSC) COLOUR Ⅱ Ⅱ Ⅱ Ⅱ [CRT Oscilloscope SOCKET...
Page 27
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL Measuring Item Test point Adjustment part Description instrument Adjustment Remote 6. HUE [Method of adjustment without measuring instrument] control unit SUB HUEⅠ Ⅰ Ⅰ Ⅰ NTSC 3.58 HUE [NTSC 3.58 HUE] 1. Input a NTSC 3.58MHz COMPOSITE VIDEO signal (full field colour bar with 75% white) from the EXT terminal.
Page 28
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL DEFLECTION CIRCUIT ADJUSTMENT There are 6 modes of the adjustment ( 1 ) 50Hz mode ( ① ① ① ① PANORAMIC ② ② ② ② FULL ③ ③ ③ ③ REGULAR ④ ④ ④ ④ 14:9 ZOOM ⑤ ⑤ ⑤ ⑤ 16:9 ZOOM ⑥ ⑥ ⑥ ⑥ 16:9 ZOOM SUB TITLE ), ( 2 ) 60Hz mode ( each aspect mode ) ・・・・...
Page 29
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL Measuring Item Test point Adjustment part Description instrument Adjustment Signal 1. V- SHIFT [50Hz PANORAMIC mode] generator 1. Receive a circle pattern signal of vertical frequency 50Hz. V-SHIFT 2. Select 4.DEF from the SERVICE MENU. Remote 3.
Page 30
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL Measuring Item Test point Adjustment part Description instrument Adjustment of 4.H-CENT. 6. Receive a circle pattern signal. H.CENTER 7. Select 4.H-CENT and set the initial setting value. 8. Adjust H-CENT to make C=D. 9. Press the MENU key and memorize the set value. Adjustment 5.H-SIZE 10.
Page 31
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL Measuring Item Test point Adjustment part Description instrument Adjustment Signal 7.TRAPEZ 19. Receive a cross-hatch signal. of TRAPEZ generator 20. Select 7.TRAPEZ with the FUNCTION UP/DOWN key. Remote 21. Set the initial setting value of TRAPEZ with the FUNCTION - or control unit + key.
Page 32
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL Measuring Item Test point Adjustment part Description instrument " Adjustment 10. V-S. COR When the vertical linearity has been deteriorated remarkably, of V-S.COR & 11. V-LIN perform the following steps. V.LINEARITY 31. Receive a cross-hatch signal. 32.
Page 33
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL H. BLANKING ADJUSTMENT Measuring Item Test point Adjustment part Description instrument 1. Receive the PAL circle pattern signal. Adjustment of H.BLK 2. Select 4.DEF from the SERVICE MENU. H.BLANKING Capacitor 3. Select the aspect [14:9 ZOOM] mode. [On MAIN PWB] 4.
Page 35
VICTOR COMPANY OF JAPAN, LIMITED HOME AV NETWORK BUSINESS UNIT 1106 Heta, Iwai-city, Ibaraki-prefecture, 306-0698, Japan AV28S2EKGR-U #4 AV28S2EKBL-U #4 Printed in Japan AV28S2EIGR-U #4 AV28S2EIBL-U #4 VP 0103 DP2051...
Page 36
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL PARTS LIST CAUTION ! The parts identified by the symbol are important for the safety. Whenever replacing these parts, be sure to use specified ones to secure the safety . ! The parts not indicated in this Parts List and those which are filled with lines in the Parts No. columns will not be supplied. ! P.
Page 40
AV28S2EKGR / AV28S2EKBL AV28S2EIGR / AV28S2EIBL (×4) SOCKET FRONT CONTROL T2551 POWER & DEF. PWB AV SEL. MAIN PWB (×3) SIDE CONTROL (EI MODEL) (EK MODEL) (×10) No.51777...
Page 58
AV28S2EKGR AV28S2EKGR AV28S2EKBL AV28S2EKBL AV28S2EIGR AV28S2EIGR AV28S2EKGR/AV28S2EKBL AV28S2EIBL AV28S2EIBL SIDE CONTROL PWB PATTERN AV28S2EIGR/AV28S2EIBL STANDARD CIRCUIT DIAGRAM n NOTE ON USING CIRCUIT DIAGRAMS Type 1. SAFETY No indication :Ceramic capacitor The components identified by the symbol and shading are :Mylar capacitor :Metalized mylar capacitor critical for safety.
Page 59
AV28S2EKGR AV28S2EKGR AV28S2EKBL AV28S2EKBL AV28S2EIGR AV28S2EIGR AV28S2EIBL AV28S2EIBL CONTENTS FRONT CONTROL PWB PATTERN SEMICONDUCTOR SHAPES ...
Page 60
AV28S2EKGR AV28S2EKGR AV28S2EKBL AV28S2EKBL AV28S2EIGR AV28S2EIGR AV28S2EIBL AV28S2EIBL BLOCK DIAGRAM SP L TU001 TUNER MAIN PWB SP R SC_R/G/B JACK SC_YS MAIN PWB IC302 IC701 TV_L/R RGB SW IC602 (2/2) " " TV_R TV_V " IC601 L4/R4 TV_L L/R1 IC603 "$ EXT-1 POWER...
Page 70
