D-Link DRO-210i User Manual

D-Link DRO-210i User Manual

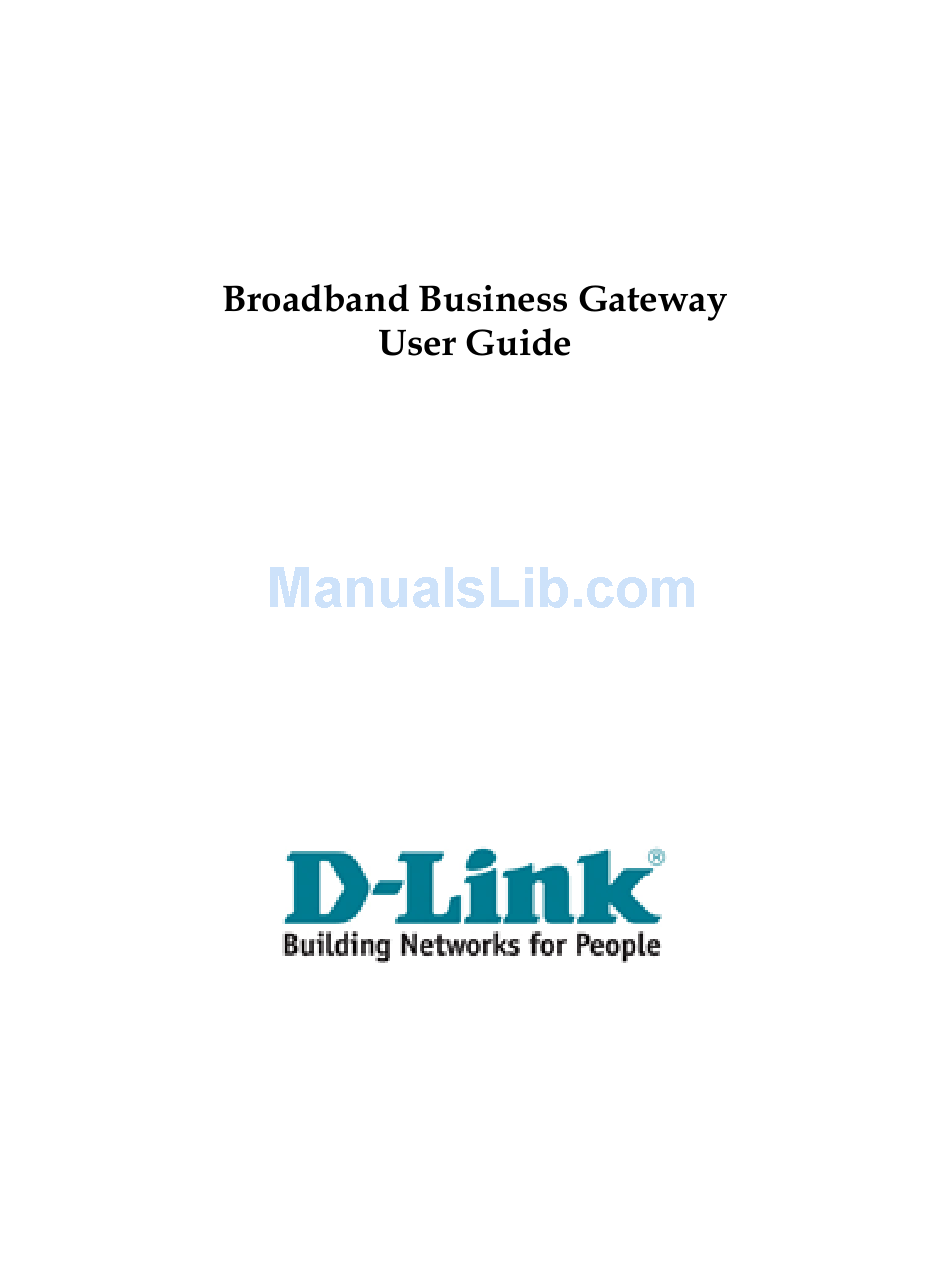

Broadband business gateway
Hide thumbs Also See for DRO-210i:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
DRO-210i
(Updated for Firmware Revision 2.1.2)
D-Link India Ltd.,
Software and R&D Center,
Bangalore.
Phone: 91-80-26788345/46/50/51
www.dlink.co.in
