Quick Connection and
Operation Guide

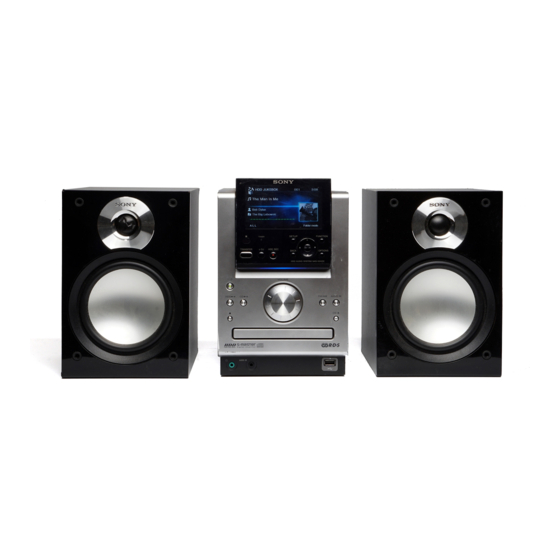

HDD Network Audio System
NAS-50HDE
This manual explains the basic connections and
operations that will allow you to enjoy music on
your GIGA JUKE.
For a fuller explanation of the various operations,
refer to the supplied Operating Instructions.
© 2007 Sony Corporation
Connections .................................................. 2
DAB services .......................................... 5
Using the Hard Disk Drive ........................ 7
Using the Internet .....................................14
Troubleshooting ........................Back cover
2-890-158-11(1)
Advertisement
Related Manuals for Sony Giga Juke NAS-50HDE
Summary of Contents for Sony Giga Juke NAS-50HDE
-
Page 1: Table Of Contents
GIGA JUKE. For a fuller explanation of the various operations, refer to the supplied Operating Instructions. © 2007 Sony Corporation 2-890-158-11(1) Connections ... 2 Listening to CDs, Radio Broadcasts, or DAB services ... -
Page 2: Connections
Connections Connect the speaker cords to the speakers. Insert the cords into the speaker terminals on the speakers. Pull on the cord lightly afterwards to confirm that the cords are firmly connected. Black Black Note Make sure the metal leads (not the part covered with vinyl insulation) are securely inserted into the speaker terminals. - Page 3 Connect the AM loop antenna. Connect the AM loop antenna to the AM antenna terminals on the unit. Pull on the cord lightly afterwards to confirm that the antenna is firmly connected. Notes Make sure to keep the AM loop antenna away from the unit or other AV equipment as this may produce noise in the radio reception.
-
Page 4: Remote Control
For details on connections, refer to the page 85 of the Operating Instructions or the customer support site of Sony Europe, http:// support.sony-europe.com/ (for the customers in Europe only). Connect the power cord. -
Page 5: Listening To Cds, Radio Broadcasts, Or Dab Services
Listening to CDs, Radio Broadcasts, or DAB services Listening to an audio CD Press CD. The disc tray slides out. Place an audio CD into the disc tray. Press CD. The disc tray closes and playback starts. When an audio CD is loaded, the unit automatically starts searching for title information within its database or over the Web (when connected to the Internet). - Page 6 Listening to CDs, Radio Broadcasts, or DAB services (continued) Listening to the radio Press FM/AM. Press the button repeatedly to select FM or AM. Press TUNING + or TUNING – on the remote control to tune in a station. Listening to DAB services (UK model only) Press DAB. DAB Auto Scan starts automatically. When scanning is completed, the DAB service that was first received starts.
-
Page 7: Using The Hard Disk Drive
Using the Hard Disk Drive Saving Audio CDs FM/AM/DAB* External component USB storage device Listening Playback by artist Playback by genre Transferring Hard Disk Drive (HDD) Hard Disk Drive (HDD) For details on recording from an audio CD or importing from a USB storage device: See page 8 For details on transferring data to a “WALKMAN”: ... - Page 8 Using the Hard Disk Drive (continued) Saving ~ Recording from an audio CD ~ Press CD and place an audio CD into the disc tray. The unit automatically starts searching for title information within its database or over the Web (when connected to the Internet). Press CD and start playback. Press HDD REC .
- Page 9 Saving ~ Importing files from a USB storage device ~ Press FUNCTION to display the Function menu. FUNCTION Press / / / to select [HDD JUKEBOX]. /// Press ENTER. ENTER Connect the USB storage device to the USB connecting jack of the unit. Refer to the operation manual of the USB storage device as well. Press OPTIONS to display the Option menu.
- Page 10 Using the Hard Disk Drive (continued) Press / / to select [Import] – [USB storage] and press ENTER. If the drive selection display appears, select the drive. If the connected USB storage device has only one drive, the drive selection display does not appear.
- Page 11 Listening ~ Playing tracks in the HDD Jukebox ~ Press HDD . The unit starts playing the audio data in the HDD Jukebox. HDD To stop playback Press Playing audio data by album, artist, genre, etc. In addition to album mode, artist mode and genre mode, the unit has the following listing modes. Listing mode Description Plays tracks of the selected album.
- Page 12 Using the Hard Disk Drive (continued) Press / to select the listing mode. Press ENTER to enter the listing mode. Press // to select the desired album or track. Press ENTER. The unit starts playing in the selected listing mode. /...
- Page 13 USB storage device as the transfer destination. Refer to page 51 of the Operating Instructions for details. Refer to http://support.sony-europe.com/ (for the customers in Europe only) for the compatible “WALKMAN” models. Connect the “WALKMAN” to the USB connecting jack of the unit.
-
Page 14: Using The Internet
Using the Internet Obtaining title information Through an Internet connection, you can obtain title information to albums that were not labeled when you recorded or imported them. Albums saved to the HDD Jukebox can be automatically labeled. For details on obtaining title information to an album: See page 15... - Page 15 Obtaining title information stored in the HDD Jukebox ~ This section explains how title information (album name, artist name, etc.) is obtained for albums in the HDD Jukebox. Select the album whose information you are looking for. Press OPTIONS to display the Option menu. OPTIONS Press // / to select [Obtain title info] – [Album] and press ENTER. The search starts.
-
Page 16: Troubleshooting
Troubleshooting If a problem occurs while operating the unit, follow the steps described below before consulting the nearest Sony dealer. If an error message appears, it is recommended that you make a note of its contents for reference. Step 1: Check the supplied “Operating Instructions” .
