- Page 1 Operating and Installation Instructions Ceramic cooktops To avoid the risk of accidents or damage to the appliance it is imperative that you read these instructions before installing the appliance and using it for the first time en-CA M.-Nr. 10 171 920...
-
Page 2: Table Of Contents
Contents IMPORTANT SAFETY INSTRUCTIONS .............. 4 Caring for the environment ................ 12 Overview....................... 13 Cooktop......................... 13 Burner data......................14 Initial commissioning .................. 15 Cleaning the cooktop for the first time..............15 Turning on the cooktop for the first time ............... 15 How the burners work .................. - Page 3 Contents Electrical connection .................. 38 Service........................ 39 Contact in case of a fault ..................39 Data plate ......................39 Warranty ........................ 39...
-
Page 4: Important Safety Instructions
They contain important notes on installation, safety, use and maintenance. Miele cannot be held liable for damage occurring as a result of non-compliance with these instructions. Keep these instructions in a safe place and pass them on to any... - Page 5 IMPORTANT SAFETY INSTRUCTIONS Intended use This cooktop is intended for domestic use and use in other similar environments. This cooktop is not intended for outdoor use. The cooktop is intended to prepare food and keep it warm in domestic use only.
- Page 6 IMPORTANT SAFETY INSTRUCTIONS Safety with children Children under 8 years of age must be kept away from the cooktop unless they are constantly supervised. Children ages 8 and up may only use the cooktop without supervision if they have been shown how to use it in a safe manner, and if they are able to recognize and understand the potential risks of improper use.
- Page 7 IMPORTANT SAFETY INSTRUCTIONS Technical safety Installation, maintenance and repair work should only be performed by a Miele authorized service technician. Installation, maintenance and repair work by unqualified persons can cause considerable danger to users. A damaged cooktop can be dangerous. Always check for visible signs of damage.
- Page 8 Any repairs not performed by a Miele authorized service technician will void the warranty. Miele can only guarantee the safety of the appliance if genuine Miele spare parts are used. Defective components must only be replaced by genuine Miele spare parts.
- Page 9 IMPORTANT SAFETY INSTRUCTIONS Proper use The cooktop gets hot when in use and remains hot for a while after being turned off. A burn hazard is present until the residual heat indicators go out. When in use, the cooktop emits a significant amount of heat, which could cause objects in the vicinity to catch fire.
- Page 10 IMPORTANT SAFETY INSTRUCTIONS You can burn yourself on a hot cooktop. When cooking on the cooktop, protect your hands by using heat-resistant pot holders or oven mitts. Only use dry pot holders and oven mitts. Wet or damp textiles conduct heat more effectively and produce steam, which poses a burn hazard.
- Page 11 IMPORTANT SAFETY INSTRUCTIONS Cookware made of plastic or aluminum foil will melt at high temperatures. Do not use any plastic or aluminum foil cookware. The cooktop trim or edge (in the case of bevelled cooktops) can become hot due to the following factors: operating time, high output settings, large cookware, and number of burners in use.
-
Page 12: Caring For The Environment
Miele. By law, you are solely responsible for deleting any personal data from the appliance prior to disposal. Ensure that it presents no danger to children while being stored for disposal. -
Page 13: Overview

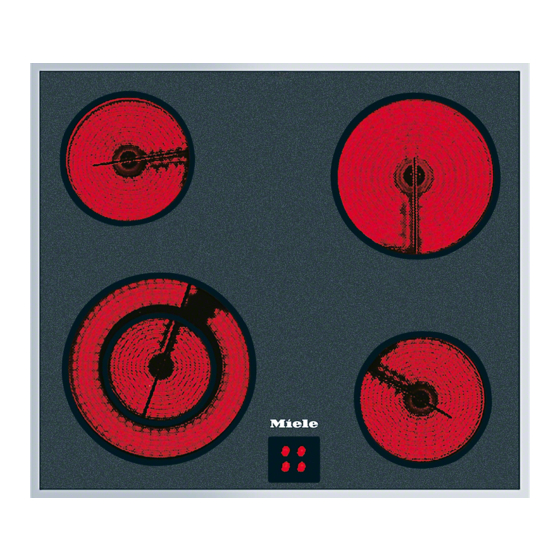

Overview Cooktop a Variable burner b Standard burner c Standard burner d Standard burner e Display with residual heat indicators... -
Page 14: Burner Data
Overview Burner data Ø Burner Rating in watts in cm in inch 208/240 V 12.0 / 21.0 4³/ ₄" / 8¹/₄" 750 / 2200 14.5 5¹¹/₁₆ 1200 18.0 7¹/₈" 1800 14.5 5¹¹/₁₆ 1200 Total: 6400... -
Page 15: Initial Commissioning
Initial commissioning Please stick the extra data plate for Turning on the cooktop for the the appliance supplied with this first time documentation in the space provided The cooktop's metal components are in the "After sales service" section of protected by a conditioning agent. -
Page 16: How The Burners Work
How the burners work Standard burners have one heating Standard burner band, and variable burners and casserole areas have two heating bands. Depending on the model, the heating bands may be separated by a ring. Each burner features overheat protection (internal temperature limiter), which prevents the ceramic surface from overheating (see "Overheat a Overheat protection... -
Page 17: Cookware
Cookware The most suitable cookware is metal – The maximum diameter indicated by pots and pans with thick bases that, manufacturers will often refer to the when cold, bulge inwards slightly. On diameter of the top rim of the pot or warming, the base expands and rests pan. -
Page 18: Energy Saving Tips
Energy saving tips – Make sure that the bottoms of pots or pans either match the size of the burner or are somewhat larger. This ensures that heat from the burner is not wasted. – Whenever possible, keep pots and pans covered while cooking. -
Page 19: Power Setting Ranges
Power setting ranges Setting range Melting butter, chocolate, etc. Dissolving gelatin Preparing yogurt Thickening sauces containing only egg yolk and butter Warming small quantities of liquid Keeping food warm that sticks easily Cooking rice Warming liquid and semi-solid foods 3–5 Thickening sauces, e.g. -
Page 20: Operation
Operation Residual heat indicator Fire hazard. Do not leave the appliance When a specified temperature is unattended while cooking. reached after a burner, for example the left front, has been turned on, the corresponding residual heat indicator Burner control knobs lights up: The oven is equipped with different control knobs:... -
Page 21: Switching On Second Heating Zones
Operation Switching on second heating zones Variable burners and casserole areas have a second heating zone that you can switch on. Activating Turn the burner knob clockwise past 12 to the stop. Turn the burner knob counter- clockwise to the desired power setting. -
Page 22: Overheat Protection
Overheat protection Each burner has an overheat protection feature (internal temperature limiter). This feature automatically deactivates burner heating before the burner overheats. As soon as the burner has cooled down, heating is automatically resumed. Any of the following can trigger the overheat protection: –... -
Page 23: Cleaning And Care
Cleaning and care Allow the cooktop to cool down Burn hazard. before cleaning. The burners must be turned off and allowed to cool completely. The cooktop should be cleaned after each use. Risk of injury. Dry the cooktop after using water to The steam from a steam cleaner can clean it. - Page 24 Stubborn soiling may need to be described above. removed with a scraper blade. Then clean the ceramic surface with the Miele ceramic and stainless steel cleaner (see "Optional accessories") or with a commercially available ceramic glass cleaner applied with paper towels or a clean cloth.
-
Page 25: Frequently Asked Questions
The burners do not heat There is no power to the cooktop. Check if the circuit breaker has tripped. Contact an electrician or Miele Service (for the minimum fuse rating, see data plate). There may be a technical fault. - Page 26 Frequently Asked Questions Problem Possible cause and remedy The food in the pan is The pan is not conducting heat properly. barely heating up or is Use a different pan that is able to better conduct not heating up at all. heat.
-
Page 27: Optional Accessories
Optional accessories Miele offers a wide range of useful accessories as well as cleaning and conditioning products for your Miele appliances. These products can be ordered through the Miele Webshop. They can also be ordered from Miele Technical Service (see end of this booklet for contact details) or from your Miele dealer. -
Page 28: Safety Instructions For Installation
Safety instructions for installation Installation of the cooktop may only be performed by a qualified technician. The cooktop may only be connected to the oven by a qualified electrician. Install the upper cabinets and ventilation hood before installing the cooktop to avoid damaging the appliance. -
Page 29: Safety Clearances
Safety clearances Safety clearance above the cooktop For a ventilation hood positioned above the cooktop, always use the clearance specified by the hood manufacturer. If no specifications are available from the hood manufacturer, or if flammable materials (e.g. wall shelf) are installed above the cooktop, the clearance must be at least 760 mm. - Page 30 Safety clearances Safety clearances to the sides and back of the cooktop Ideally, the cooktop should be installed with plenty of space on either side. There may be a wall at the rear or a tall cabinet or wall on one side (right or left) (see illustrations).
- Page 31 Safety clearances Safety distance from the wall covering If a wall covering is installed, a minimum safety distance must be maintained between the countertop cut-out and the covering, since high temperatures can damage these materials. If the covering is made of a flammable material (such as wood), the minimum distance ...
-
Page 32: Bottom Cover Panel
Bottom cover panel Measures must be taken to ensure that it is not possible to touch the underside of the installed cooktop. For this reason, a front cover panel and bottom cover panel must be installed if: – The cooktop is wider than the oven installed below it. -
Page 33: Instructions For Installation
Instructions for installation Seal between the cooktop and Tiled countertop countertop The grouting and the shaded area under the cooktop frame must be smooth and flat so that the frame will sit Do not use sealant between the evenly on the countertop and so that cooktop and the countertop. -
Page 34: Installation Dimensions
Installation dimensions All dimensions are indicated in mm. 5 1 4 5 7 4 ß 5 0 0 a Spring clips b Installation height c Front d Space for fastening elements and cable routing... -
Page 35: Installation
Installation Wooden countertops Preparing the countertop Create the countertop cut-out as shown in the cooktop diagram. Remember to maintain the minimum safety distances (see "Safety clearances"). Wooden countertop Seal any cut surfaces on the wooden countertop with a special varnish, silicone rubber, or resin to prevent the ... - Page 36 Installation Natural stone countertops Installing the cooktop You will need heavy duty double-sided Feed the cooktop connection cable adhesive tape (not included with the down through the countertop cut-out. cooktop) to fasten the spring clips. Connect the cooktop to the oven (see "Connection to the oven").
-
Page 37: Connecting The Cooktop
Connecting the cooktop Connect the EMC ground , which is attached to the bottom casing of the cooktop (depending on the model), to the cable lug on the oven. Insert the plug casing on the cooktop power cord into the plug connector on the oven. - Page 38 Please ensure that these match the for which Miele is not responsible. building's electrical supply. Miele cannot be held liable for Disconnecting devices...
- Page 39 In the event of any faults which you cannot remedy yourself, please contact your Miele Dealer or the Miele Service Department. Contact information for Miele Service can be found at the end of this document. Please quote the model and serial number of your appliance when contacting Miele.
- Page 43 Canada Importer Miele Limited Headquarters and Miele Centre 161 Four Valley Drive Vaughan, ON L4K 4V8 www.miele.ca Customer Care Centre Phone: 800-565-6435 customercare@miele.ca Germany Manufacturer Miele & Cie. KG Carl-Miele-Straße 29 33332 Gütersloh...
- Page 44 KM 6002 en-CA M.-Nr. 10 171 920 / 01...
