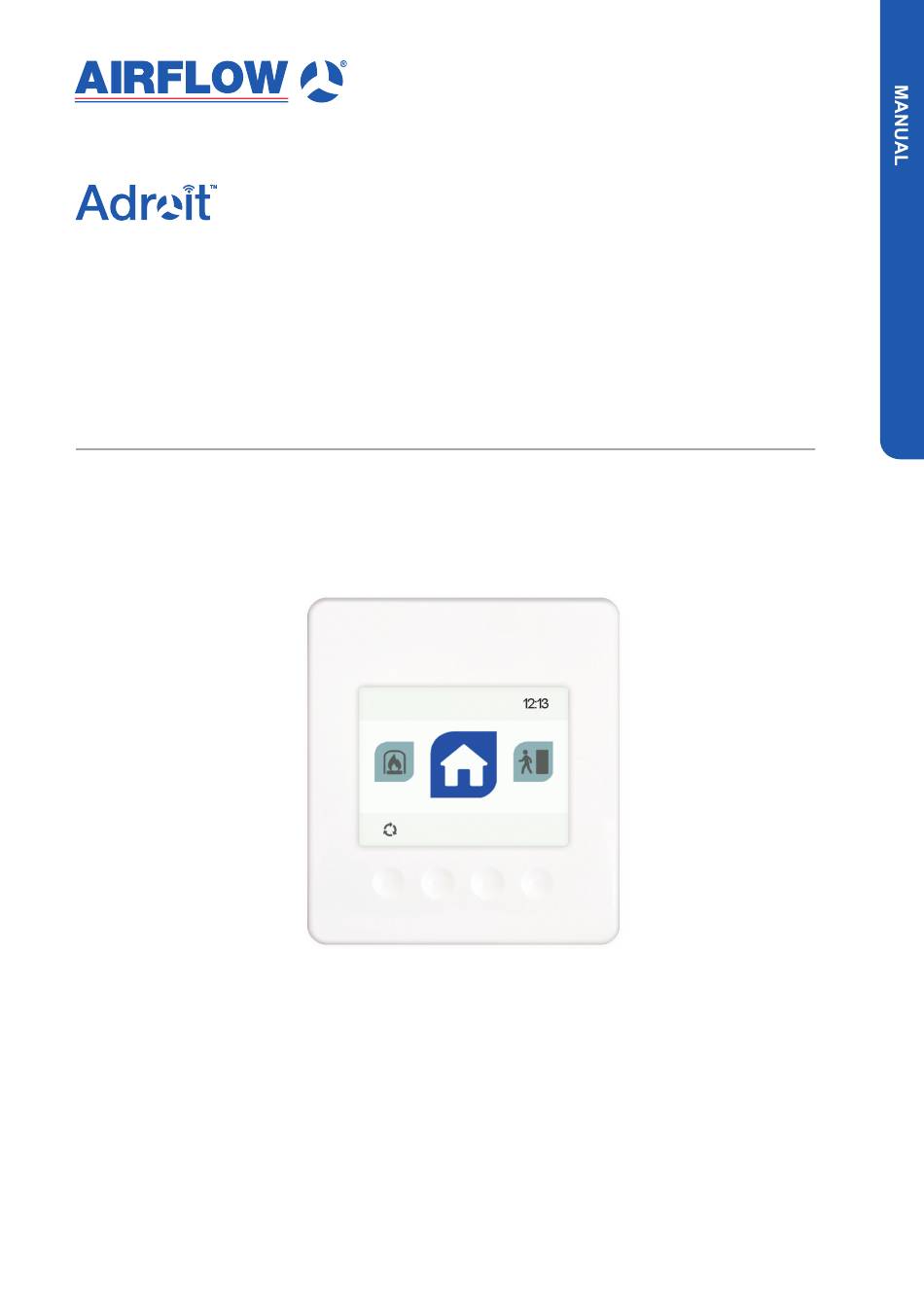

  • Page 1 Digital Controller Instruction Manual At home...
  • Page 2 INTRODUCTION Digital Controller...

  • Page 3: General Safety Instructions

    • Ignoring advice for transportation, mounting, operation and maintenance • Unauthorized structural alteration and changes of the programming • Disasters due to extraneous elements and force majeure © Airflow • We reserve the right to make changes without prior notice...
  • Page 4 Digital Controller DISPOSAL OF THE VENTILATION UNIT Do not dispose of electronic devices with household waste. Follow local laws and regulations on safe and ecological disposal of the product. SAFETY SIGNS USED IN THE INSTRUCTIONS DANGER WARNING CAUTION Indicates a hazard that will Indicates a hazard that Indicates a hazard that result in death or serious...

  • Page 5: System Description

    9. Click on the link given in this e-mail to verify your e-mail address. 10. You are now connected to the Adroit Cloud. © Airflow • We reserve the right to make changes without prior notice...
  • Page 6 Digital Controller INTRODUCTION INTRODUCTION Ventilation has to be constant for the indoor air to stay healthy for the building occupants. Even for longer holidays, it is not advisable to stop the ventilation, because the indoor air will become stuffy and, during the heating season, the indoor air humidity may condense in the ventilation ductwork and structures, causing moisture damage.

  • Page 7: Installation

    These icons indicate the hierarchy level of the settings. This icon indicates when the feature is turned off at your user level. The parental controls lock code is 1001. © Airflow • We reserve the right to make changes without prior notice...

  • Page 8: Starting The Unit

    Digital Controller INTRODUCTION Each ventilation unit has two control settings connected to the computer. available, basic and expert. The basic settings are: Transfer the update file you have downloaded onto • User interface language. the ventilation unit. Copy the update file HSWUPD. •...

  • Page 9: Basic Settings

    If you want to use the 12 hour clock, proceed as follows: Press the Minus button. The 24 Hour Time setting value is changed to Off. Proceed to the next phase by pressing the Right arrow button. © Airflow • We reserve the right to make changes without prior notice...

  • Page 10: Expert Settings

    Digital Controller BASIC SETTINGS SET THE AUTOMATIC DAYLIGHT SAVING TIME By default, the system automatically switches to the summer time. If you want to use the automatic daylight saving time, proceed to the next step by pressing the right arrow button. If you want to use the manual daylight saving time, proceed as follows: Press the Minus button.
  • Page 11 PARENTAL CONTROLS Set the parental controls on or off by using the Plus and ACCESS CODE: Minus buttons. Press the OK button. The parental controls are now set. © Airflow • We reserve the right to make changes without prior notice...

  • Page 12: Fan Settings

    If, at the beginning, the air flows differ greatly from the designed rate. Check the air flows by measuring them at the valves, and fine tune the airflow rates, if necessary by first adjusting the units fans, then by adjusting the room valves.
  • Page 13 - The carbon dioxide or VOC level is significantly higher than normal. • The fan speed will be automatically increased if automatic adjustment has been chosen. © Airflow • We reserve the right to make changes without prior notice...

  • Page 14: Profile Settings

    Digital Controller EXPERT SETTINGS PROFILE SETTINGS In the following chapters, you can make ventilation settings for the system profiles. AT HOME PROFILE When you want to set the At home profile settings, proceed as follows: 1. The deployment wizard At home screen will open. NOTE When the units fans have been set (step 5 in the deployment wizard) these values will default to the At home profile fan speed...
  • Page 15 VOC content, is used or not. 15. The automatic fan speed control, based on the carbon dioxide or VOC content, is now set. 16. Press the OK button. © Airflow • We reserve the right to make changes without prior notice...
  • Page 16 Digital Controller EXPERT SETTINGS BOOST PROFILE When you want to set the Boost profile settings, proceed as follows: 1. The deployment wizard Boost profile screen is opened. NOTE Once you have set the fan speed for the At home profile, the fan speed for the Boost profile will default to +30% of the At home profile fan speed.
  • Page 17 (or the week clock) change the profile. 15. The profile timer function is now set. 16. Press the OK button. 17. The Fireplace function settings are now complete. © Airflow • We reserve the right to make changes without prior notice...
  • Page 18 Digital Controller EXPERT SETTINGS FINISHING UP When you have completed the wizard, the Setup done! screen will open. Finish up the deployment, as follows: If you want to go back to repair or change a value, use the arrow buttons to select the desired line and press the OK button.

  • Page 19: Changing The Profile

    • Change filters — Indicates the next recommended filter change date. • Days in use — Indicates how long the unit has been running in days and years. © Airflow • We reserve the right to make changes without prior notice...
  • Page 20 Digital Controller VENTILATION PROFILES VIEWING THE AWAY PROFILE INFORMATION If you want to view the Away profile settings, proceed as follows: Open the Away profile main view. Press the Profile information button. The first information screen for the profile appears. This screen contains the following information: •...
  • Page 21 If you want to view the Fireplace function settings, proceed as follows: Open the Fireplace function main view. The profile main screen contains a summary of the profile data. Also see Table 2, “Profile symbols. © Airflow • We reserve the right to make changes without prior notice...
  • Page 22 Digital Controller VENTILATION PROFILES Press the Profile information button. The first information screen for the profile opens. This screen shows the following information: • Duration — Indicates the duration of enhanced ventilation when the Fireplace profile is activated. The value is shown in hours and minutes.
  • Page 23 14. Use the Plus and Minus buttons to select whether the automatic fan speed control, based on the carbon dioxide or VOC level, is used or not. 15. Press the OK button. © Airflow • We reserve the right to make changes without prior notice...
  • Page 24 Digital Controller VENTILATION PROFILES MODIFYING THE BOOST PROFILE SETTINGS When you want to edit the Boost profile settings, proceed as follows: Open Boost profile main view. Press the Profile information button. Press the Edit button. The fan speed setup opens. Set the Boost profile fan speed as a percentage of the maximum by using the Plus and Minus buttons.
  • Page 25 Off — When the timer is disabled, the Fireplace function is used until manually changed (or the week clock) change the profile. 15. Press the OK button. © Airflow • We reserve the right to make changes without prior notice...

  • Page 26: Viewing Temperature Data

    Digital Controller TEMPERATURES AND SENSORS VIEWING TEMPERATURE DATA When you want to view the system temperature and sensor data, proceed as follows: Select Settings > Temperatures and sensors. Press the OK button. The temperature and sensors summary screen is opened. This screen contains the following information: •...
  • Page 27 11. A screen displaying the maximum carbon dioxide value from the air carbon dioxide extract air sensor is opened, again 12. To exit the menu, press the Back button. © Airflow • We reserve the right to make changes without prior notice...
  • Page 28 Digital Controller TEMPERATURES AND SENSORS VIEWING HUMIDITY AND CARBON DIOXIDE STATISTICS When you want to view statistics on the humidity and carbon dioxide values, proceed as follows: Select Settings > Temperatures and sensors. Press the OK button. The temperature and supply and extract air sensors summary screen is opened.

  • Page 29: Filter Settings

    Press the Edit button. The Filter status 1/2 screen is opened. Press the Plus button. The Filters changed field value changes to Today. Press the OK button. © Airflow • We reserve the right to make changes without prior notice...
  • Page 30 Digital Controller SETTINGS NOTE The system will automatically set the service reminder to remind you of the filter replacement. The reminder will be displayed when the set reminder interval has elapsed. SETTING THE FILTER REPLACEMENT REMINDER INTERVAL This section describes how to set the filter replacement reminder interval.

  • Page 31: Display Settings

    You can select the user interface language as follows: Select Settings > Language. Press the OK button. Select the language you want for example, English. Press the OK button. © Airflow • We reserve the right to make changes without prior notice...

  • Page 32: Setting The Time And Date

    Digital Controller SETTINGS TIME AND DATE SETTING THE TIME AND DATE In the following chapters, it shows you how to set: • Time • 24- or 12-hour clock • Automatic daylight-saving time • Date NOTE The system time will stay active for a few hours if the power is cut to the unit.

  • Page 33: Setting The Date

    A confirmation screen is opened. You can switch the week clock ON or OFF by pressing the OK button in the Week clock screen for a few seconds. © Airflow • We reserve the right to make changes without prior notice...
  • Page 34 Digital Controller SETTINGS WEEK CLOCK SETTING AND EDITING THE WEEKLY PROGRAM If you want to set the weekly timer program or edit an existing program, proceed as follows: Select Settings > Week clock. Press the OK button. The week view in the week clock is displayed. Use the Right arrow button to select the desired day.
  • Page 35 • At 21.00, select the At home profile. Ensure that the week clock is enabled. The figures above depict a week The weekly program is now set clock set in line with this example. © Airflow • We reserve the right to make changes without prior notice...

  • Page 36: Switching The Unit Off

    Digital Controller SETTINGS PARTIAL BY-PASS To turn the partial by-pass on: Select Expert settings. Find HR cell bypass settings. Select On from the pop down list menu of the Partial bypass option. The partial bypass has now been turned on and will run automatically based on temperature sensors inputs.
  • Page 37 External sensor settings Display settings Heating settings Panel address Professional settings Basic fan settings Modbus settings I/O and bus settings Lock code and access rights Defrost settings © Airflow • We reserve the right to make changes without prior notice...
  • Page 38 Digital Controller USER LEVEL DIAGRAMS Limited Away Away information Edit Unit information Turn unit on At home At home information Edit Error log Boost Boost information Fan test Edit Setup Fireplace mode Fireplace information Edit Heater test HR cell bypass test Service menu Self-test Language...
  • Page 39 Digital Controller © Airflow • We reserve the right to make changes without prior notice...

  • Page 40: Commissioning The System

    • Has been installed in accordance with latest Building Regulations and IEEE wiring regulations by a recognised competent installer. Airflow Developments Ltd shall not be liable for any loss, injury or other consequential damage, in the event of a failure of the...
